BK Resources UBDW-18-248TS Bar Equipment
$1,982.96
Unit price
/
Unavailable
Description

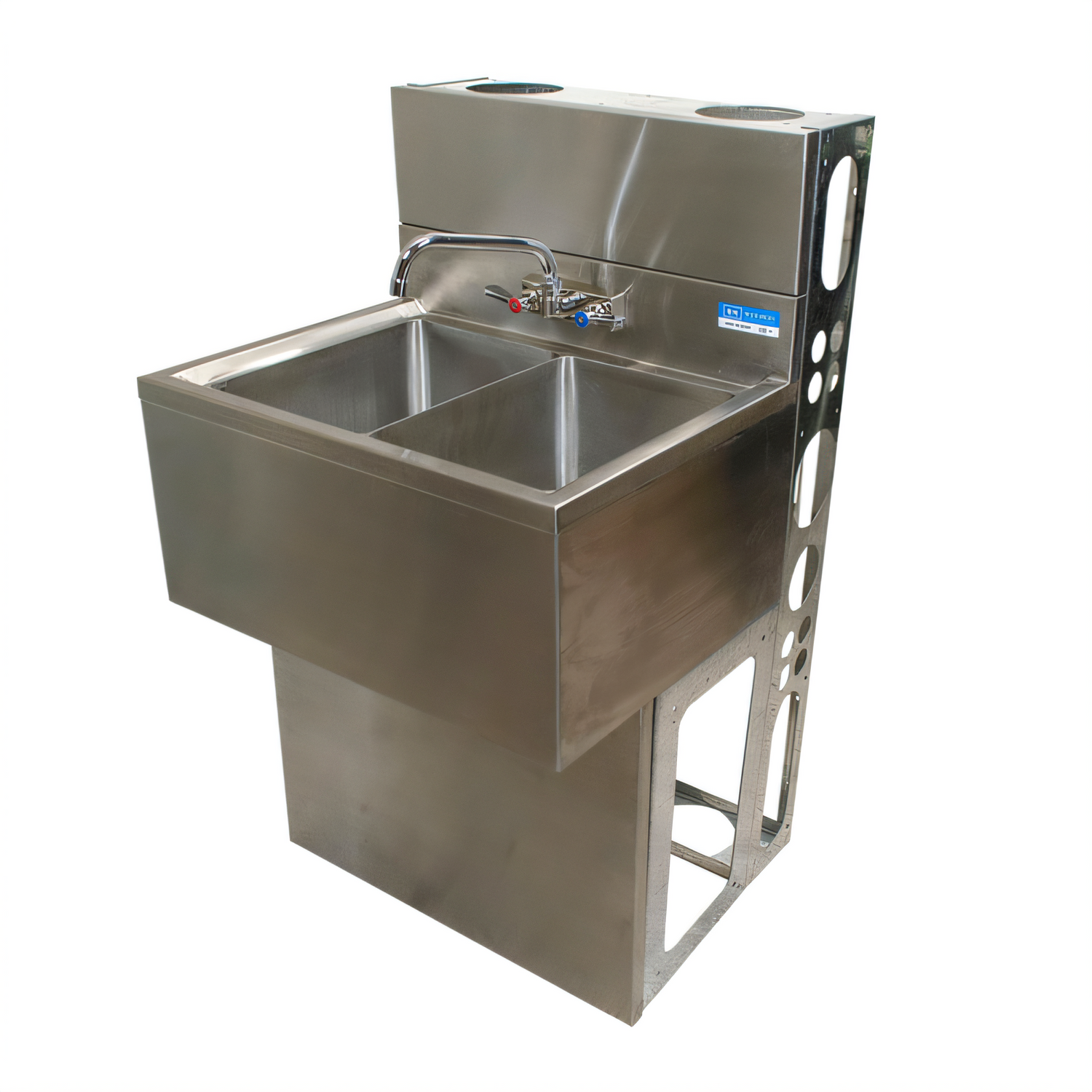

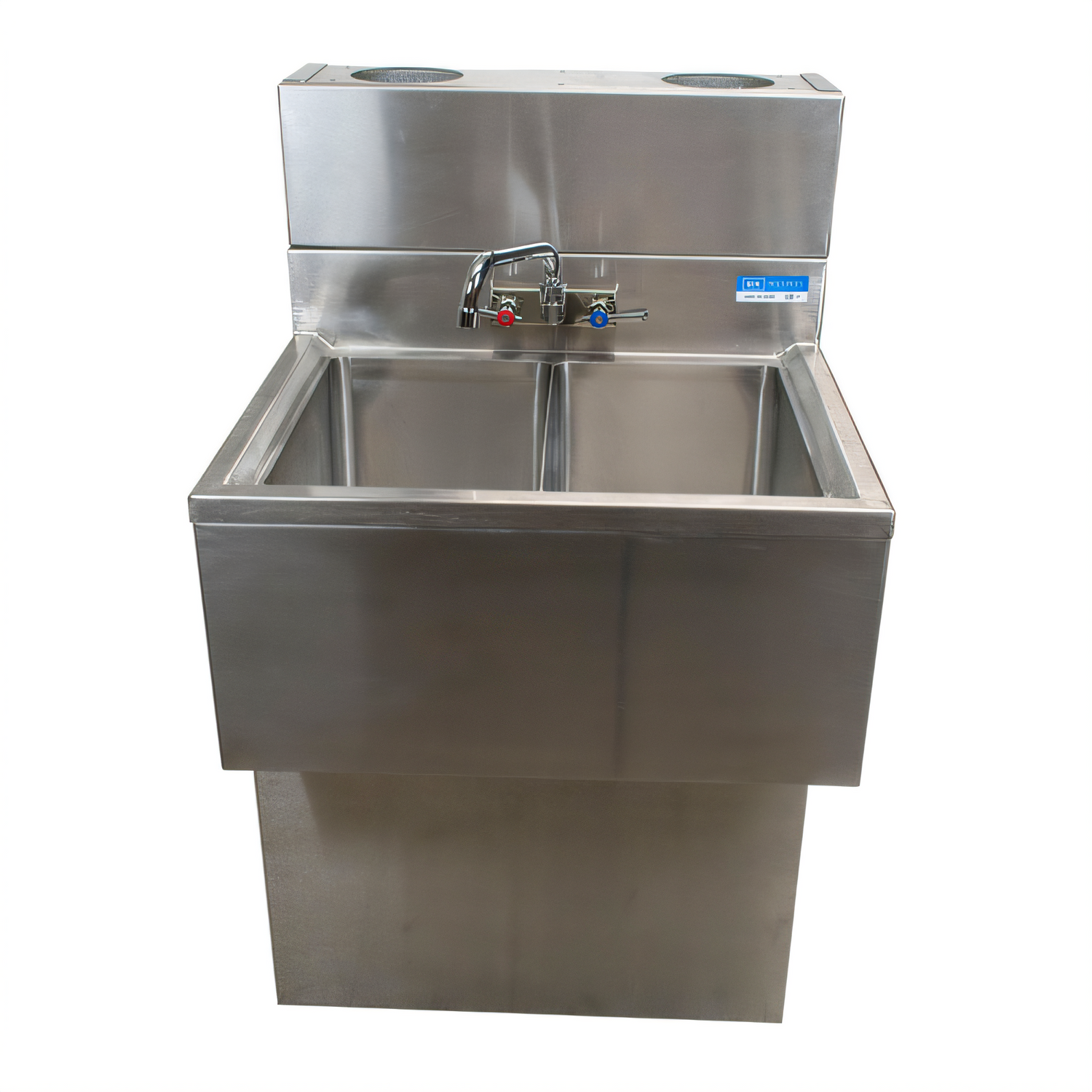

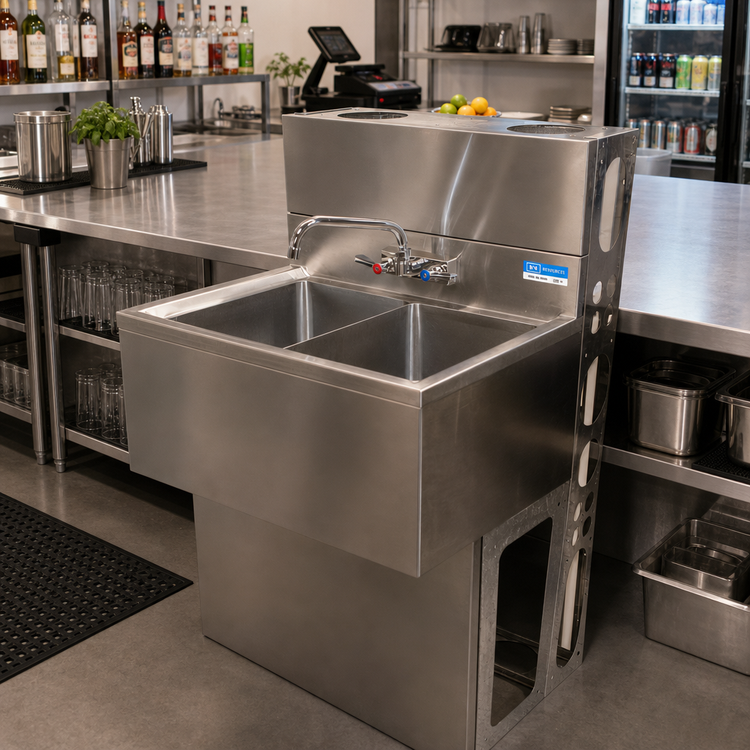

BK Resources Slim-Line 48" Two-Compartment Underbar Sink
Model UBDW-18-248TS | NSF CertifiedPurpose-built for busy bars and beverage stations, this slim-profile sink delivers full-size performance in just 18-¼" of depth. Twin 10"-deep bowls, dual drainboards, and all-inclusive accessories arrive ready to install, so you can keep glassware moving and guests satisfied.
Why You’ll Love It

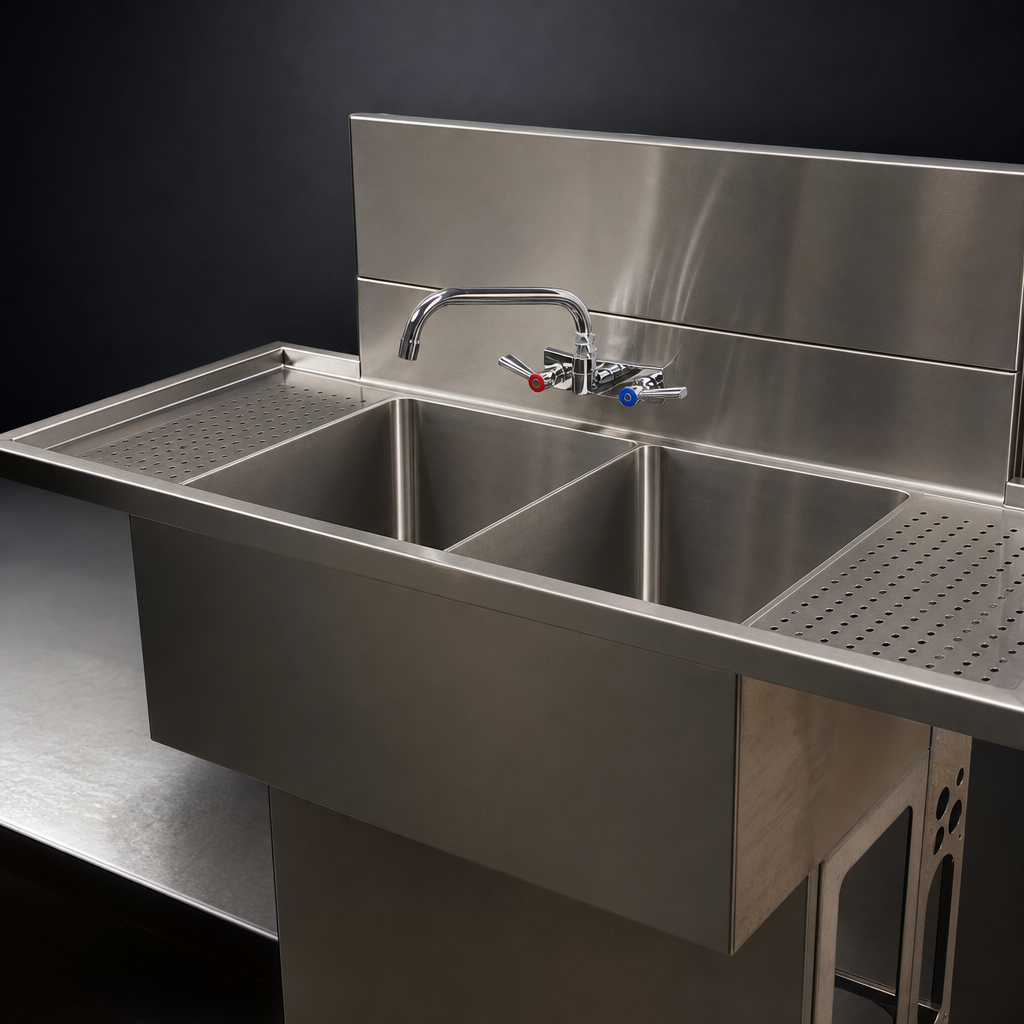

- (2) integrally welded bowls – 10" W × 14" F/B × 10" D – speed up wash & rinse cycles

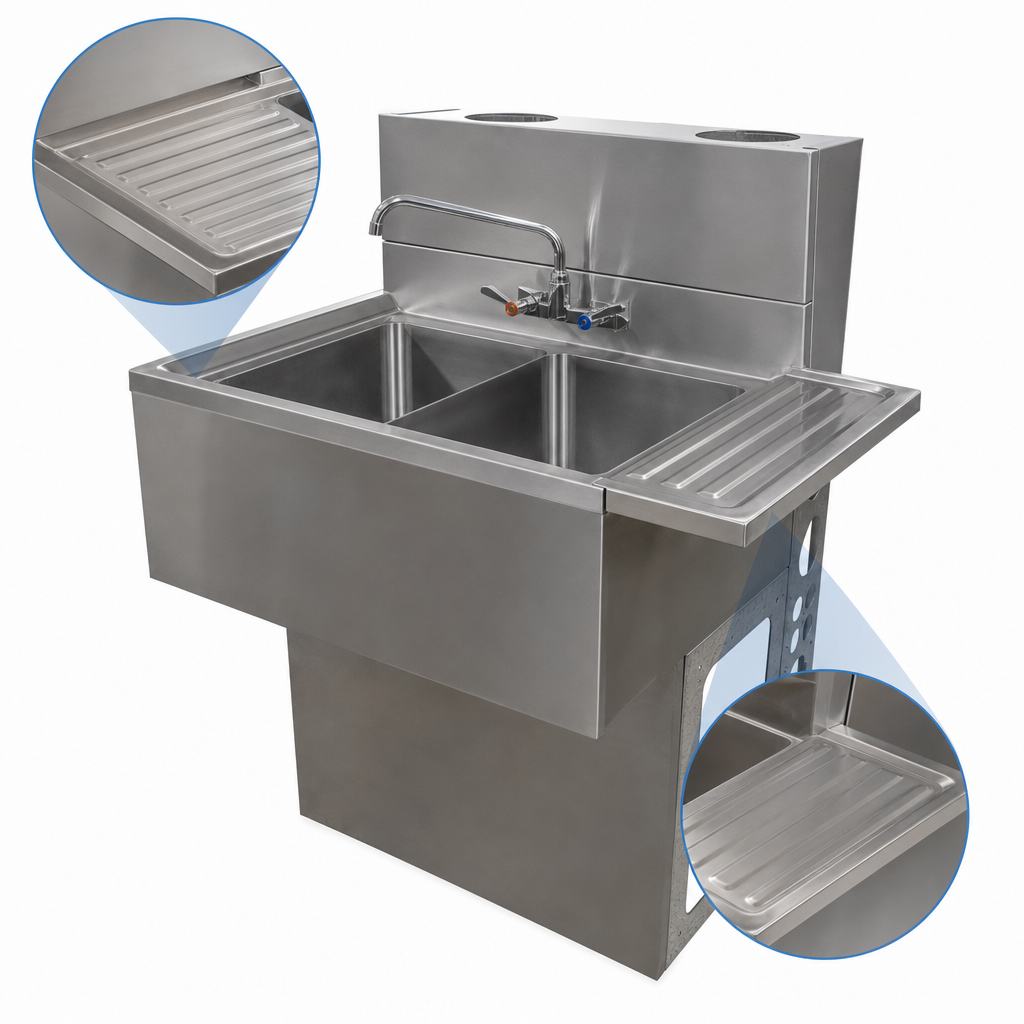

- Left & right 13-3/16" stamped drainboards are pitched for fast drainage and air-drying
- 4-½" backsplash with 4" on-center holes and lead-free splash-mount faucet (BKF-W2-10-G) included
- 18-gauge, Type 304 stainless steel throughout for superior corrosion resistance
- Removable stainless steel apron on front and sides keeps plumbing hidden and cleaning simple
- Rigid die-wall and base construction withstands everyday bar abuse
- Comes complete with basket drains (BKDR-2) and removable overflow standpipes (BK-OT-15075)
Quick Specs
| Overall Size | 48" W × 18-¼" D × 33-½" H* |
|---|---|
| Work Height | 30" (plus 4-½" backsplash) |
| Bowls | Two – 10" W × 14" F/B × 10" D |
| Drainboards | Dual – 13-3/16" L (left & right) |
| Faucet | BKF-W2-10-G, splash-mount, 4" O.C., lead-free |
| Included Accessories | (2) BKDR-2 basket drains; (2) BK-OT-15075 removable overflow tubes |
| Material / Gauge | 18-ga T-304 stainless steel |
| Certifications | NSF |
*Overall height shown includes backsplash. Dimensions are nominal.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Top Stainless Series
300 series
Width (side - side) OA
43" - 48"
Sink Compartments
(2)
Bowl Size
10" x 14" front-to-back
Splash
4"
Depth (front - back) OA
18" - 19"
Bowl Depth (rim - drain)
10"
Construction
stainless steel top, front, ends & legs
Drainboards
drainboards on left & right
Specifications
Slim-Line Underbar Sink, two compartment, 48”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 13-3/16" stamped drainboards, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
