BK Resources | SKU:
UBDW-18-236LS
BK Resources UBDW-18-236LS Bar Equipment
$1,582.01
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
BK Resources UBDW-18-236LS Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UBDW-18-236LS Bar Equipment
$1,582.01
Unit price
/
Unavailable
Description

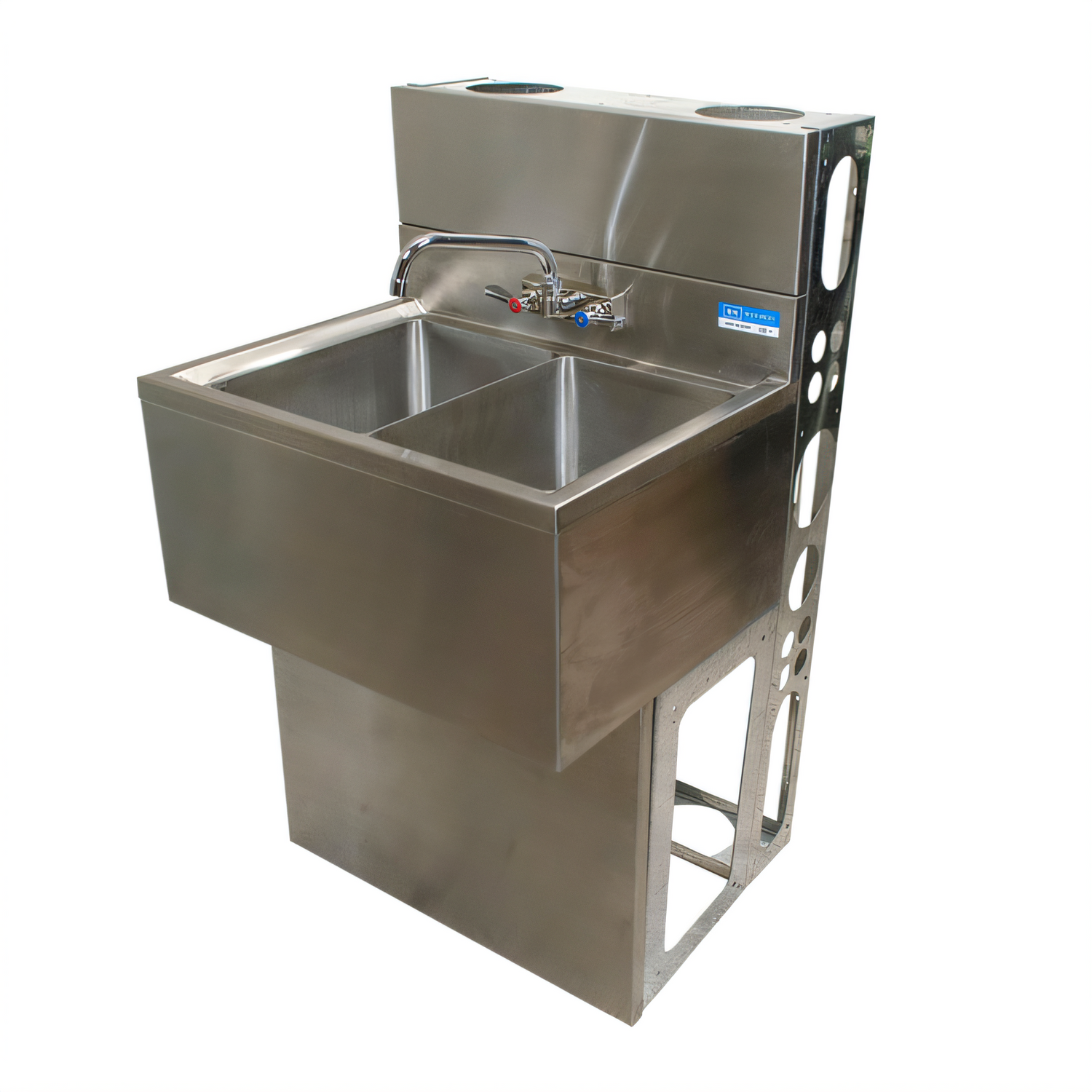

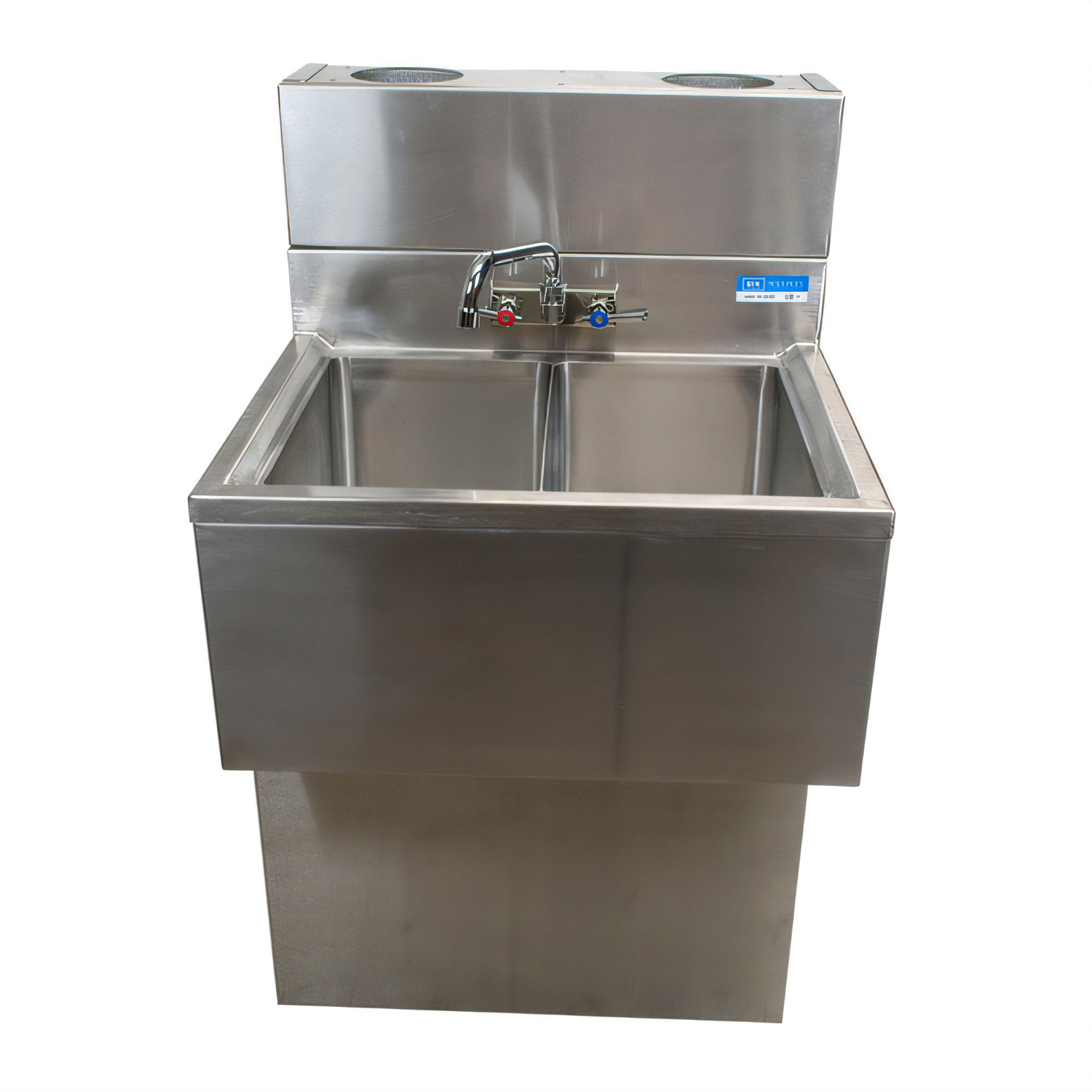

BK Resources Slim-Line Underbar 2-Compartment Sink – 36″
Model UBDW-18-236LS (Left-Side Drainboard)Built for tight back-bar layouts, this NSF-listed slim-line sink delivers full commercial durability in a space-saving 18-¼″ depth. Two integrally welded bowls, a stamped drainboard, and the included lead-free faucet arrive completely ready for installation—no add-ons required.
Highlights
- Space-saving 18-¼″ slim-line depth fits narrow underbar runs
- Two 10″ × 14″ × 10″ deep compartments with seamless, integrally welded corners

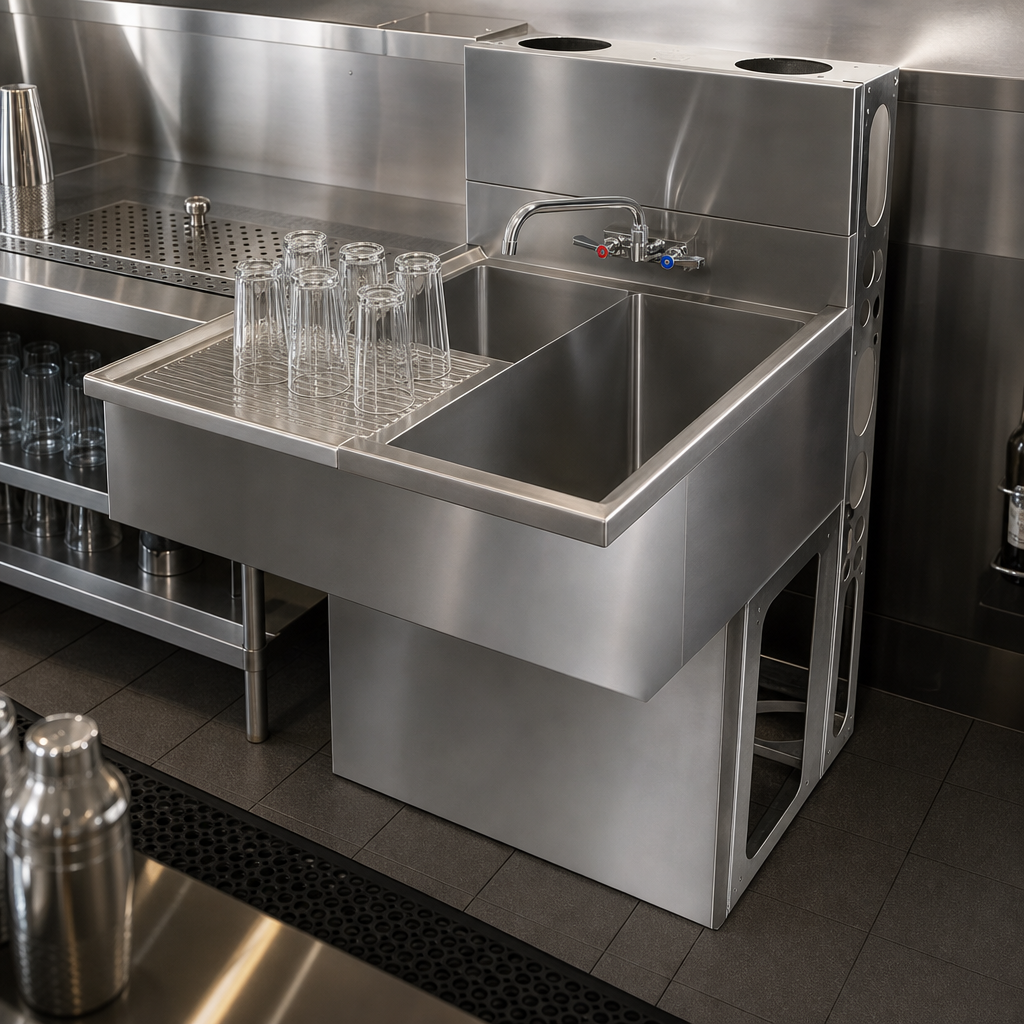

- 12-¾″ stamped & pitched drainboard on the left speeds drying and glass turnover
- 4-½″ backsplash with pre-punched 4″ on-center faucet holes
- BKF-W2-10-G lead-free splash-mount faucet included
- Removable stainless-steel apron on front & sides for clean appearance and easy service access
- Die-formed wall & base add rigidity for years of heavy use
- 18 ga. T-304 stainless-steel construction — resists rust, corrosion & bar chemicals
- NSF certified for hygiene and code compliance
Everything in the Box
- BKF-W2-10-G 4″ O.C. lead-free faucet
- (2) BKDR-2 basket drains
- (2) BK-OT-15075 removable overflow standpipes
- Pre-installed stainless backsplash & apron panels
Perfect For
- Back-bar glass washing stations
- Craft cocktail prep areas
- Food-truck or concession bar build-outs
- Anywhere floor space is at a premium but full NSF compliance is required
Technical Specifications
| Model | UBDW-18-236LS |
|---|---|
| Overall Dimensions (W × D × H) | 36″ × 18-¼″ × 33-½″ |
| Compartment Quantity / Size | 2 bowls, each 10″ W × 14″ F-B × 10″ D |
| Drainboard | Left side, 12-¾″ L, stamped & pitched |
| Backsplash Height | 4-½″ with 4″ O.C. faucet holes |
| Faucet | BKF-W2-10-G splash-mount, lead-free, included |
| Material & Gauge | 18 ga. 304 stainless steel (bowls, deck, apron, backsplash) |
| Accessories Included | (2) BKDR-2 basket drains, (2) BK-OT-15075 overflow tubes |
| Certifications | NSF, Lead-Free (ANSI/NSF 61) |
| Ship Weight | Approx. 56 lb |
NSF listing applies to the entire assembly when installed according to the manufacturer’s instructions.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Bowl Size
10" x 14" front-to-back
Sink Compartments
(2)
Width (side - side) OA
31" - 36"
Drainboards
drainboard on left
Depth (front - back) OA
18" - 19"
Bowl Depth (rim - drain)
10"
Construction
stainless steel top, front, ends & legs
Top Stainless Series
300 series
Splash
4"
Specifications
Slim-Line Underbar Sink, two compartment, 36”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 12-3/4” stamped drainboard on left, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
