BK Resources  |  SKU: UBDW-18-224S

BK Resources UBDW-18-224S Bar Equipment

$1,647.77
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment Beverage Equipment Beverage Equipment BK Resources Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

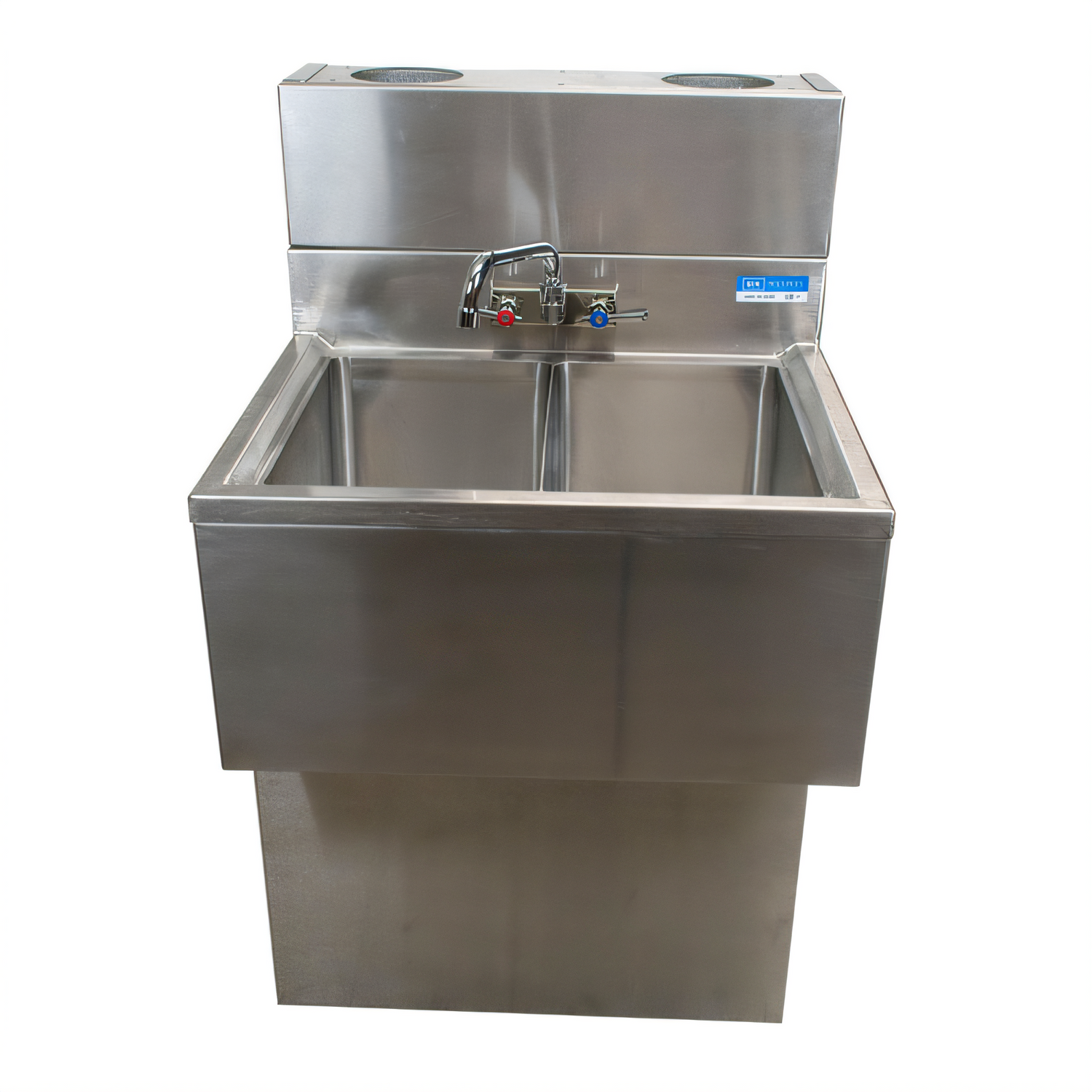

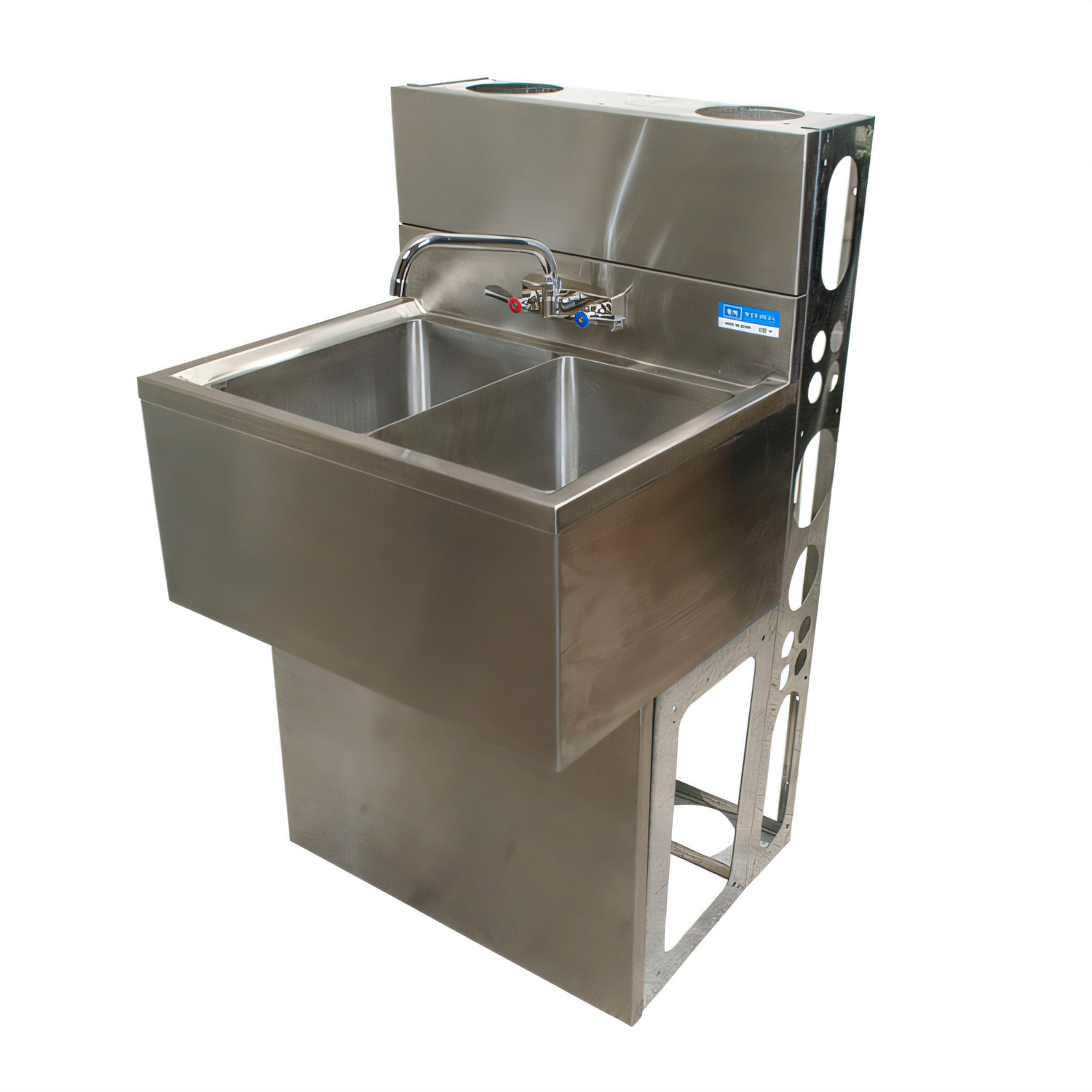

Slim-Line Underbar Sink – 24" Two-Compartment

BK Resources • Model UBDW-18-224S

Compact in size, heavy-duty in performance. This 24" Slim-Line sink from BK Resources fits perfectly beneath crowded bar tops while delivering the washing capacity and NSF sanitation you demand.

Key Features

  • Space-saving 24" footprint with two integrally welded bowls.

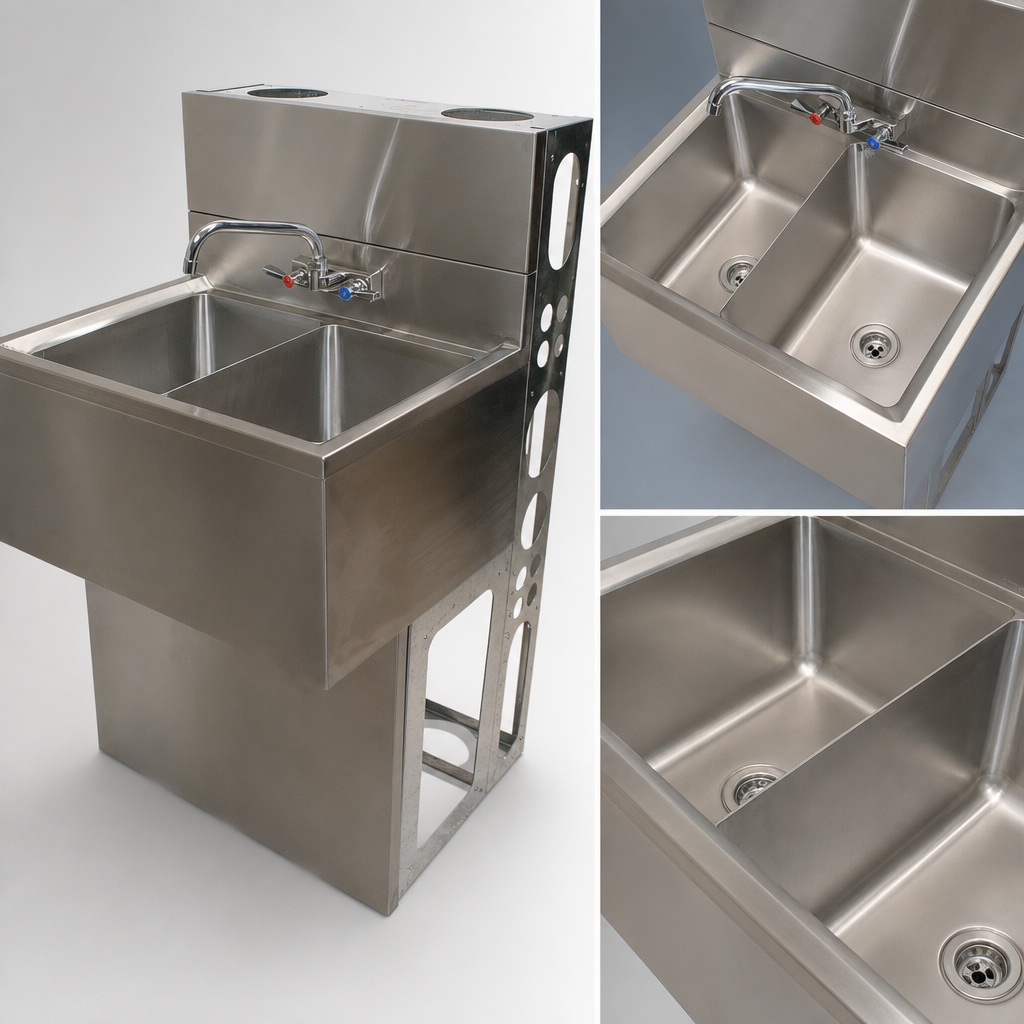

  • Bowl size (each): 10" W × 14" F-B × 10" D – ideal for glassware and small wares.
  • 4-1/2" high backsplash with pre-punched 4" on-center faucet holes.
  • Lead-free splash-mount faucet included – BKF-W2-10-G, 10" gooseneck spout.
  • Complete drain kit: (2) BKDR-2 basket drains & (2) BK-OT-15075 removable overflow standpipes.
  • 18 ga. Type 304 stainless steel construction with die-formed wall & base for extra rigidity.
  • Stainless steel front & side apron panel removes for quick service access.
  • NSF Listed – built for code-compliant commercial use.

Specifications

Overall width 24" (610 mm)
Overall depth 18 1/4" (464 mm)
Overall height 33 1/2" (851 mm)
Backsplash height 4 1/2" (114 mm)
Working height ≈29" (737 mm)
Number of compartments 2
Bowl dimensions 10" W × 14" F-B × 10" D (each)
Faucet BKF-W2-10-G, 4" O.C. splash-mount, 10" gooseneck, lead-free
Drain fittings (2) BKDR-2 basket drains & (2) BK-OT-15075 overflow standpipes
Material / gauge 18 ga. (1.2 mm) Type 304 stainless steel
Certifications NSF

Perfect For

  • Bar & cocktail stations
  • Concession & stadium kiosks
  • Food trucks & mobile bars
  • Tight prep areas that need NSF sinks without sacrificing floor space
Installation Note: All plumbing connections must be completed by a licensed professional and in accordance with local codes. Supply lines and mounting hardware are not included.

Looking for a different length or drainboard option? Explore additional BK Resources Slim-Line models or contact us for assistance.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Top Stainless Series

300 series

Construction

stainless steel top, front, ends & legs

Sink Compartments

(2)

Width (side - side) OA

19" - 24"

Splash

4"

Depth (front - back) OA

18" - 19"

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Drainboards

without drainboards

Specifications

Slim-Line Underbar Sink, two compartment, 24”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, die wall and base, NSF
