Description

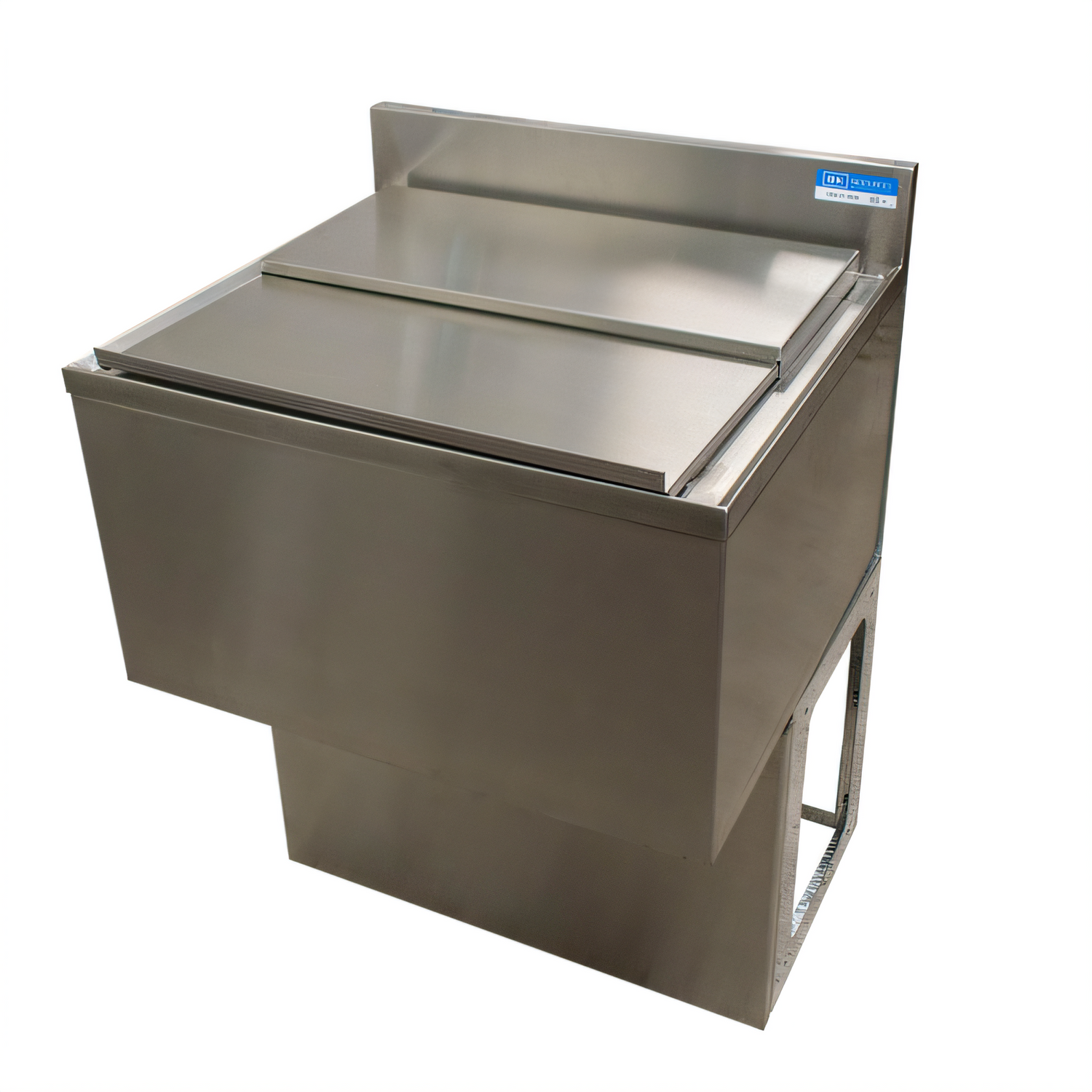

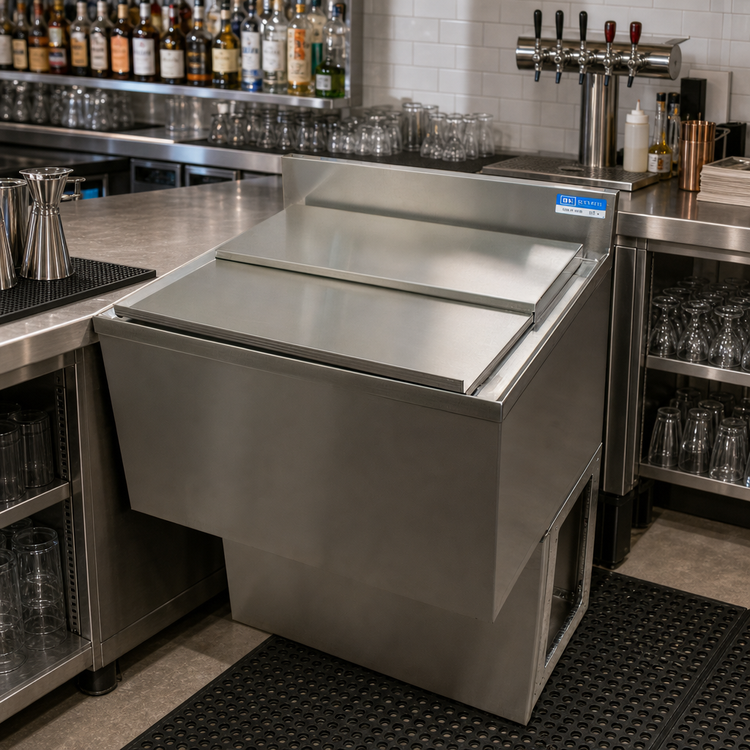

Underbar Ice Bin with 8-Circuit Cold Plate

BK Resources | Model UBB-21-IBCP48-8

Keep service moving and cocktails ice-cold with BK Resources’ high-capacity, NSF-listed ice bin. A fully insulated 12-9/16" deep well stores up to 167 lbs of ice, while the integrated 8-circuit aluminum cold plate chills beverage lines right at the point of dispense—no remote chillers or extra footprint required.

Key Features

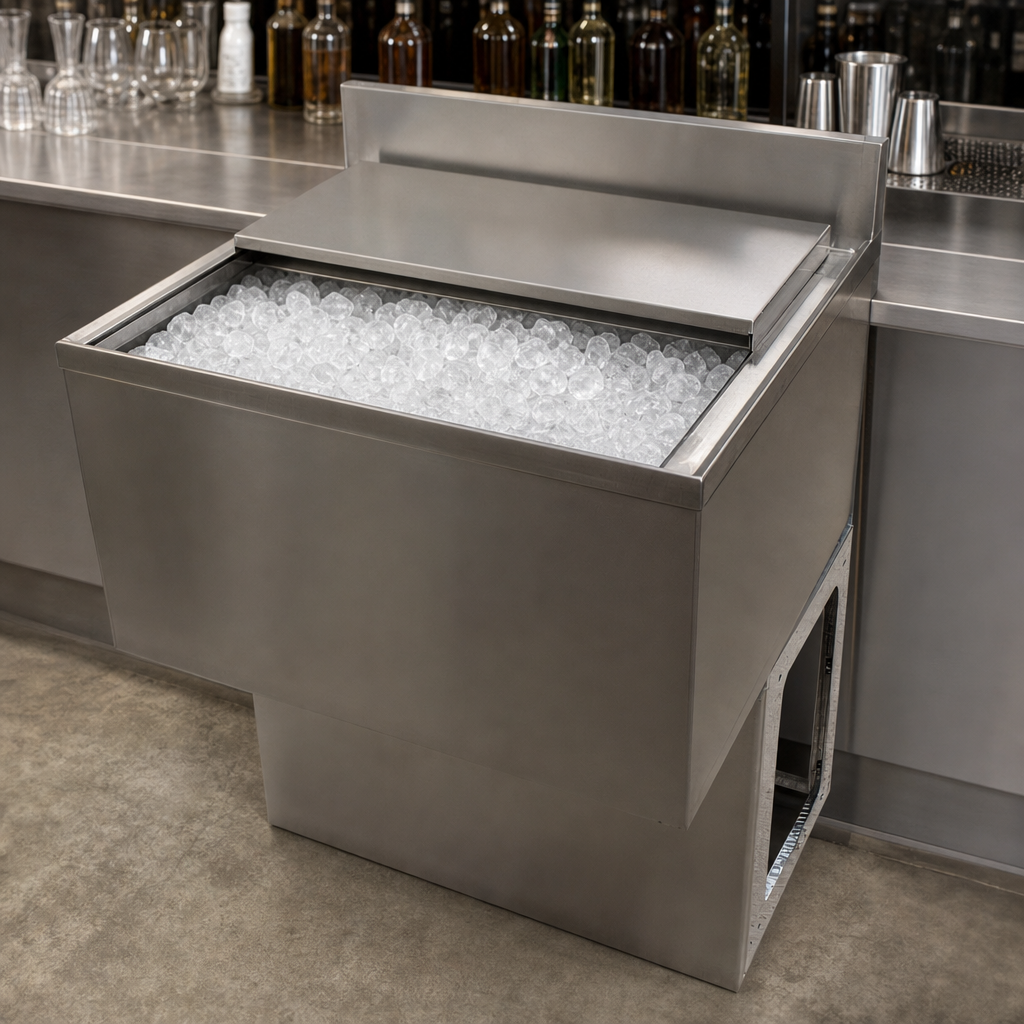

  • 167 lb ice holding capacity—ideal for high-volume bars

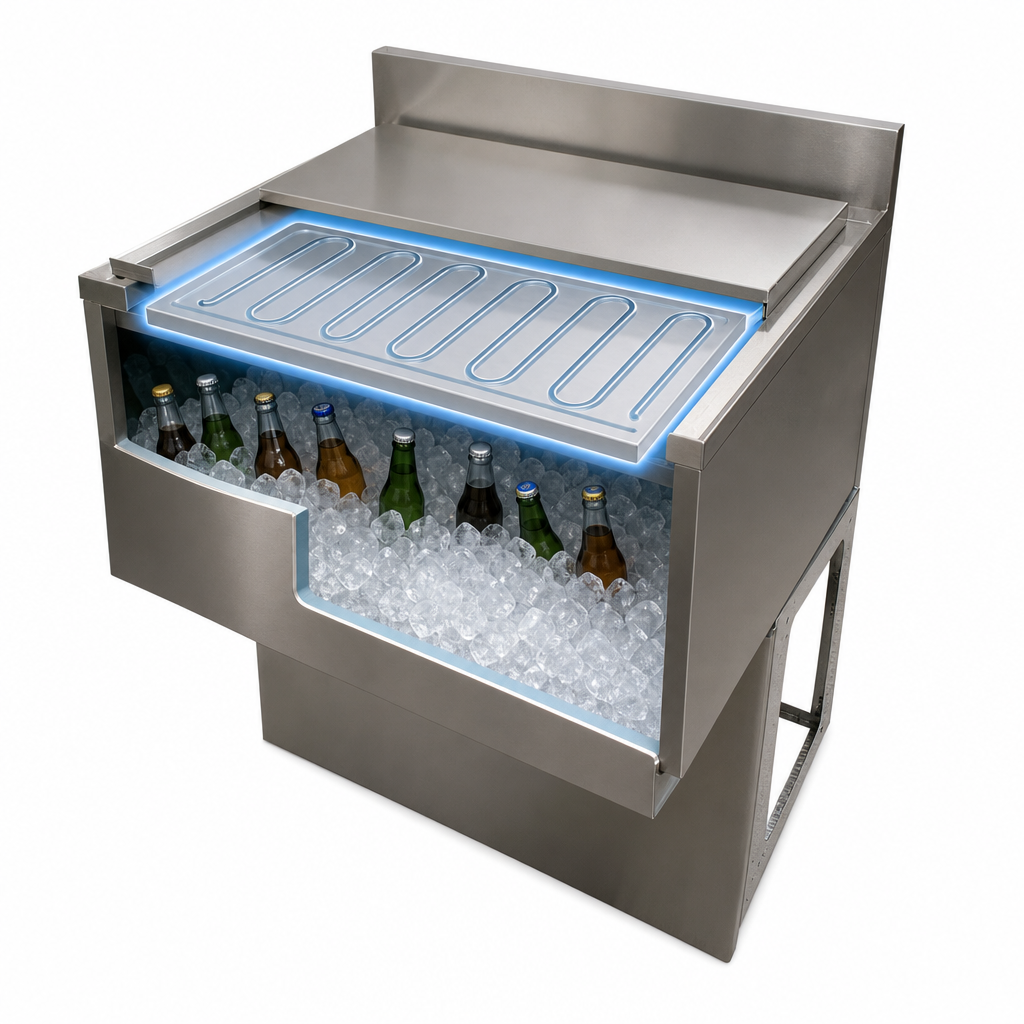

  • 8-circuit aluminum cold plate keeps soda/juice lines at serving temperature
  • 18 ga type 304 stainless steel top, bin & front panel for superior corrosion resistance
  • 12-9/16" deep, fully insulated ice well for maximum ice retention
  • 4" high rear backsplash helps contain splashes and meets health codes
  • Galvanized pedestal base with removable stainless steel front for easy line access
  • Includes stainless steel sliding lids—required when ice is used for human consumption
  • 1/2" NPT drain fitting pre-installed
  • NSF certified for safe, sanitary operation

Applications

  • Cocktail, beer & wine bars
  • Hotel lounges & banquet halls
  • Nightclubs & entertainment venues
  • Catering & portable beverage stations

Specifications

Overall dimensions 48" L × 21 1/4" W × 34" H
Work height 30"
Ice bin interior 43" L × 18" W × 12 9/16" D
Ice capacity 167 lbs
Cold plate 8-circuit aluminum (pre-installed beverage lines)
Backsplash 4" H
Drain 1/2" NPT (centered)
Construction 18 ga 304 stainless steel top & bin; galvanized base with SS front
Certifications NSF
Special-Order Notice: This item is built to order and is non-cancellable & non-returnable once production begins.

Need a different size or circuit count? View the full BK Resources cold-plate ice bin line or contact us for custom quotes.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Ice Capacity

150 - 199 lbs.

Construction

stainless steel construction

Cold Plate

(8) circuit

Bin Depth

12" deep ice bin

Splash

4"

Specifications

Underbar Ice Bin, with 8-circuit aluminum cold plate, 167 lbs capacity, 43" wide x 18" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, pedestal base, NSF
