BK Resources UBB-21-IBCP48-10 Bar Equipment
Description

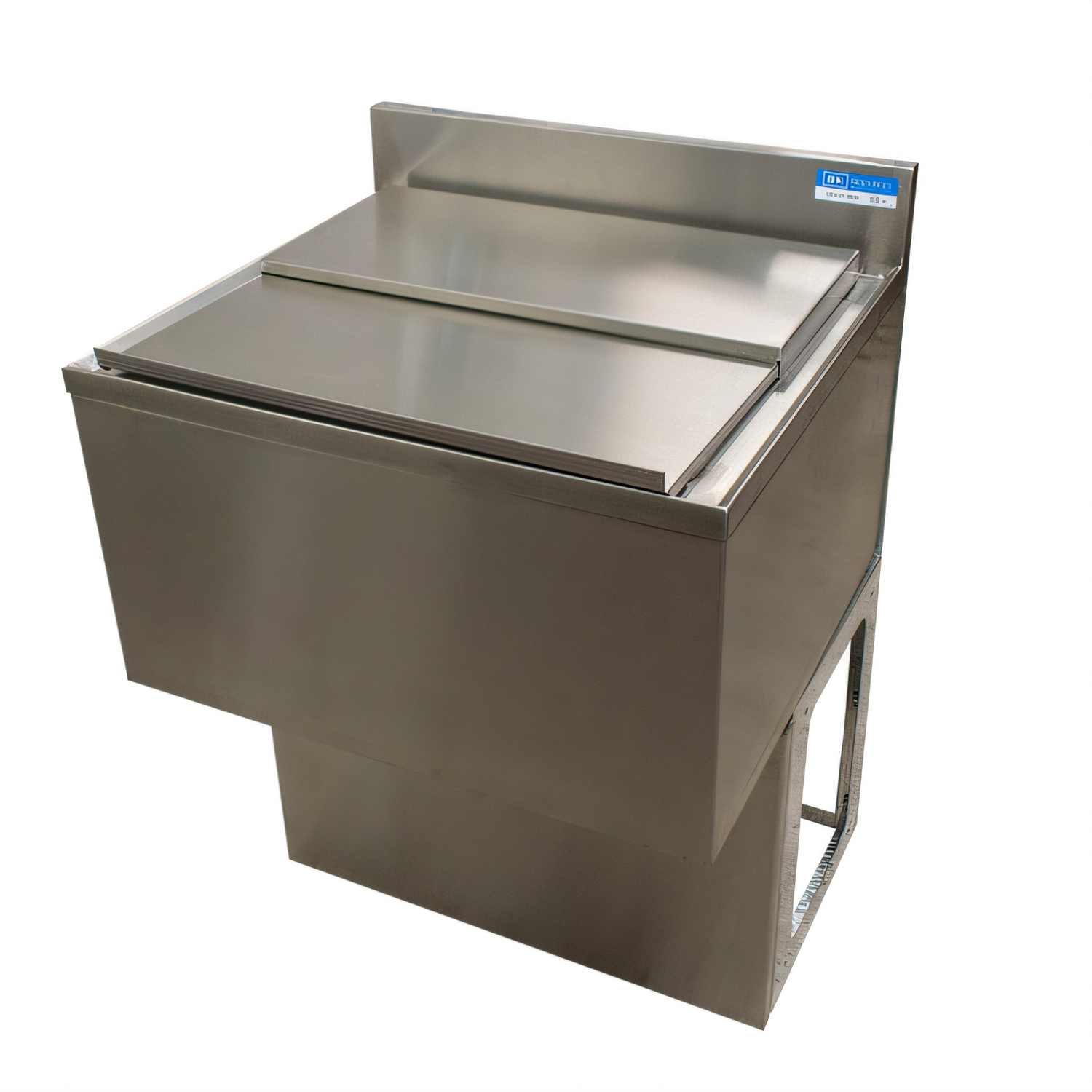

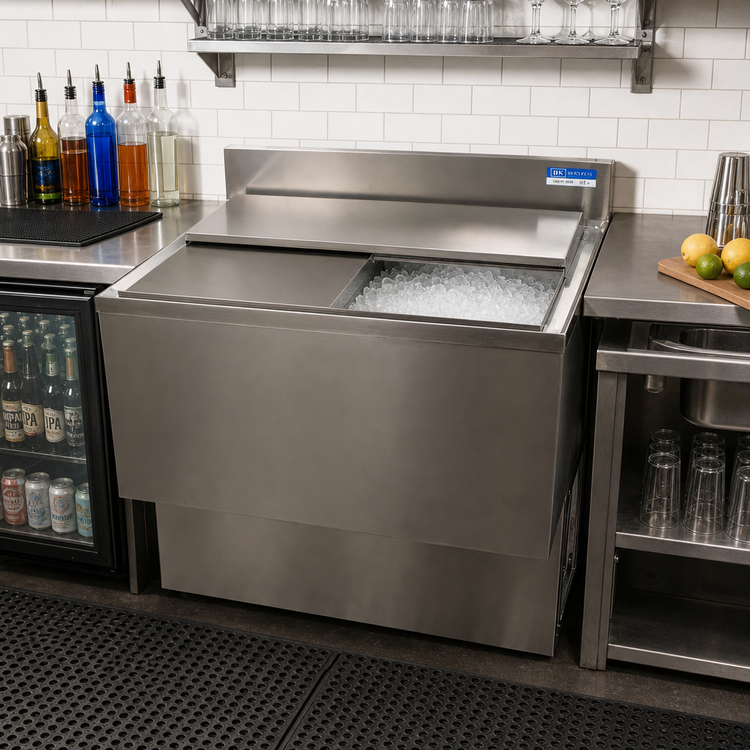

BK Resources 48" Insulated Underbar Ice Bin w/ 10-Circuit Cold Plate
Model: UBB-21-IBCP48-10 | 167 lb ice capacity | NSF CertifiedKeep cocktails flowing and soda guns ice-cold with this heavy-duty 48 inch underbar ice bin from BK Resources. A built-in 10-circuit aluminum cold plate chills beverage lines right in the ice—no remote chillers needed—while the fully insulated 18 gauge stainless steel bin holds up to 167 pounds of ice for your busiest shifts.
Why You’ll Love It

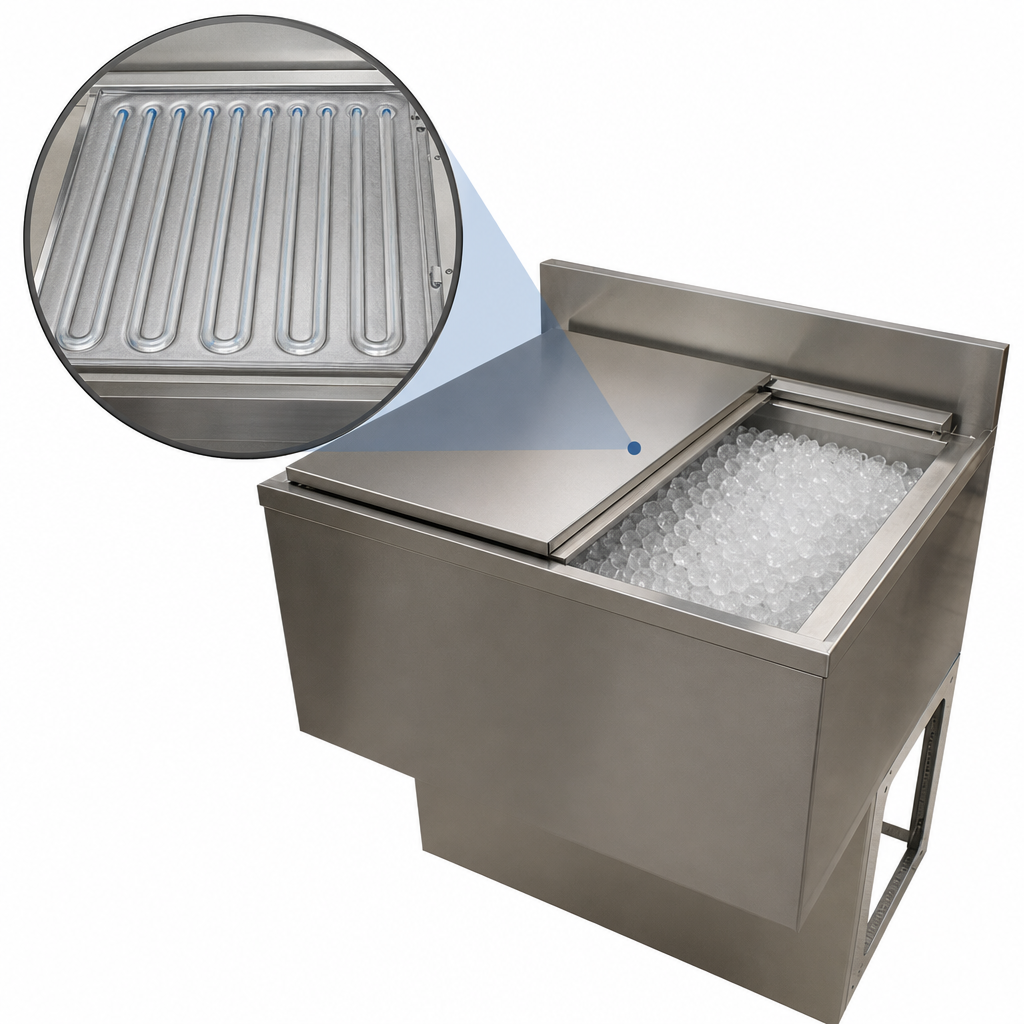

- 10-circuit cast aluminum cold plate for instant beverage cooling
- Generous 43" L × 18" W × 12-9/16" D ice well—no more constant refills
- Rugged T-304 18 ga stainless steel construction with #4 polish finish
- 4" integrated backsplash helps contain splashes and protects walls
- Factory-installed ½" NPT drain for quick hookup to your bar sink or floor drain
- Galvanized pedestal base with removable SS front panel for easy clean-out
- Stainless steel sliding lids included—required for ice used in human consumption
- NSF listed for food-zone sanitation • Ships fully assembled
Dimensions & Capacities

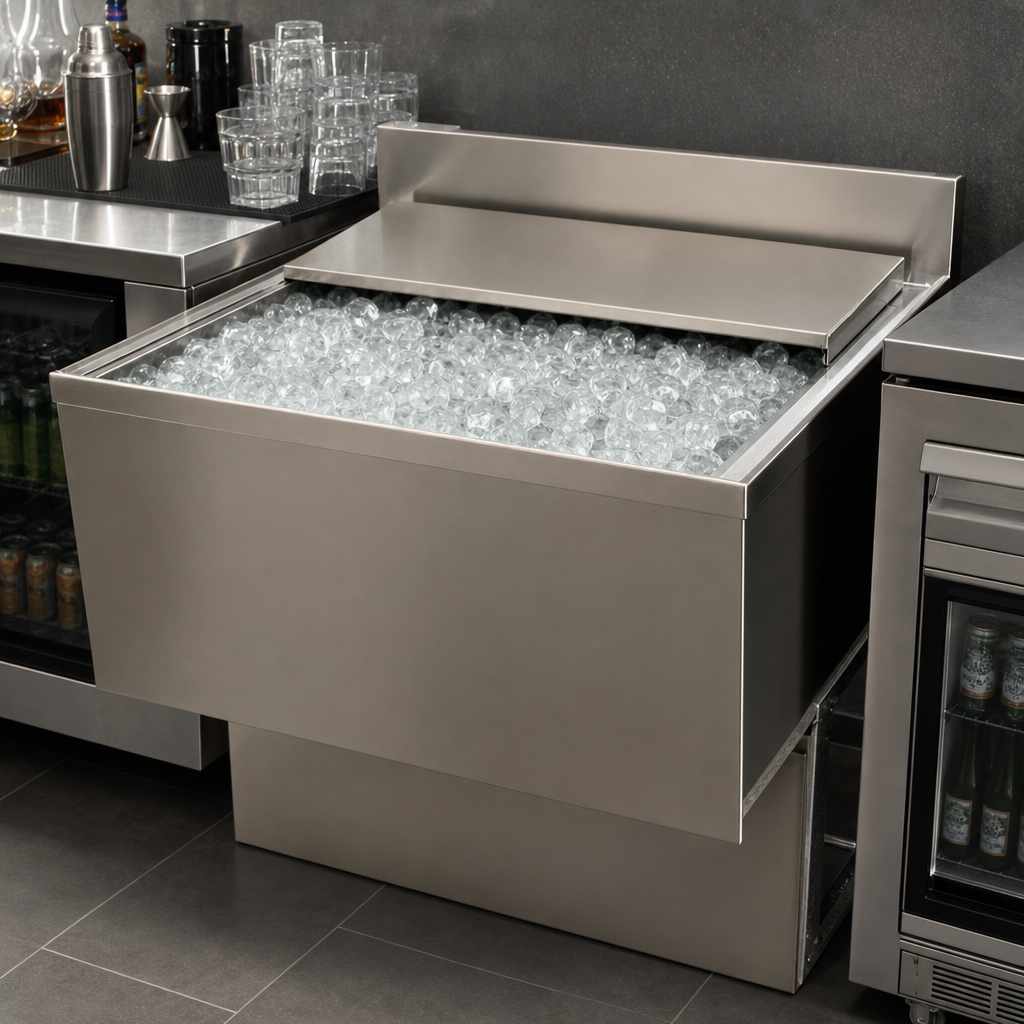

| Ice Bin Capacity | 167 lb (75.7 kg) |
|---|---|
| Ice Well (L × W × D) | 43" × 18" × 12-9/16" |
| Overall Size (L × W × H) | 48" × 21-1/4" × 34" |
| Backsplash Height | 4" |
| Cold Plate Circuits | 10 (aluminum) |
| Drain Connection | ½" NPT (male) |
| Material / Finish | T-304 18 ga stainless steel, #4 polish |
| Mounting Base | Galvanized pedestal, stainless steel front |
| Certifications | NSF |
Included With Your Purchase
- Insulated ice bin with factory-installed cold plate
- (2) Stainless steel sliding lids
- ½" NPT drain fitting
- User & installation manual
Need a different size or circuit count? BK Resources offers a full line of underbar ice bins. Contact us and we’ll help you find the perfect fit.
