BK Resources UBB-21-IBCP36-8 Bar Equipment
Description

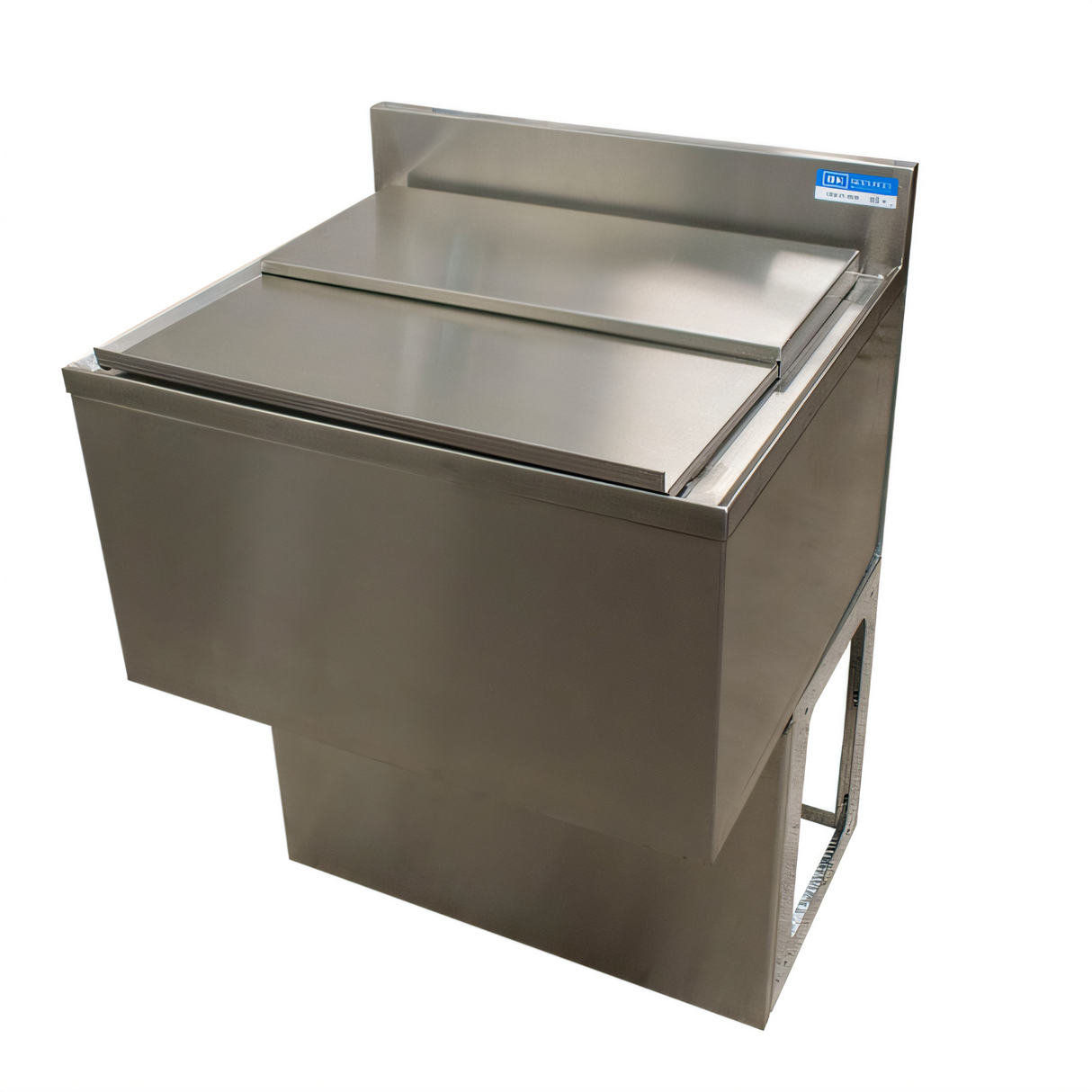

BK Resources Underbar Ice Bin w/ 8-Circuit Cold Plate – 120 lb
Model: UBB-21-IBCP36-8 (31" x 18" x 12-9/16" Ice Bin)Keep cocktails flowing and soft drinks perfectly chilled with BK Resources’ premium insulated ice bin. Engineered for high-volume bar service, this NSF-listed unit combines a generous 120 lb ice capacity with an integrated 8-circuit aluminum cold plate, delivering ice-cold beverages from the first pour to the last.
Key Features
- 8-circuit aluminum cold plate – pre-tapped for syrup & soda lines.
- Spacious 31" W x 18" D x 12-9/16" H insulated ice compartment (120 lb rated).
- Durable 18 ga T-304 stainless steel construction; #4 polished finish on exposed surfaces.
- 4" high, fully welded backsplash deflects splashes and protects surrounding walls.
- Galvanized pedestal base with removable stainless steel front panel for fast access.
- Includes stainless steel sliding lids to meet health-code requirements for human consumption.
- Factory-installed ½" NPT drain for quick, reliable melt-water removal.
- NSF certified for safe, sanitary food-contact use.
At-a-Glance Specs
| Ice Capacity | 120 lb |
|---|---|
| Ice Bin Interior (L × W × D) | 31" × 18" × 12-9/16" |
| Overall Footprint (L × W × H) | 36" × 21 ¼" × 34" |
| Cold Plate | 8 circuits, aluminum, factory sealed |
| Material / Gauge | 18 ga T-304 stainless steel (bin & front), galvanized steel base |
| Backsplash Height | 4" |
| Drain Connection | ½" NPT, center bottom |
| Certifications | NSF |
Why Choose BK Resources?
- Built to last – full stainless contact surfaces resist corrosion and pitting.
- Service friendly – removable pedestal panel simplifies plumbing & line routing.
- Consistent drink quality – cold plate chills syrup lines directly in the ice bed.
- Proudly engineered in the USA with strict quality control and rapid lead times.
Need a different size or circuit count? BK Resources offers a complete lineup of underbar ice bins – view all options.
