BK Resources UBB-21-IBCP24-8 Bar Equipment
Description

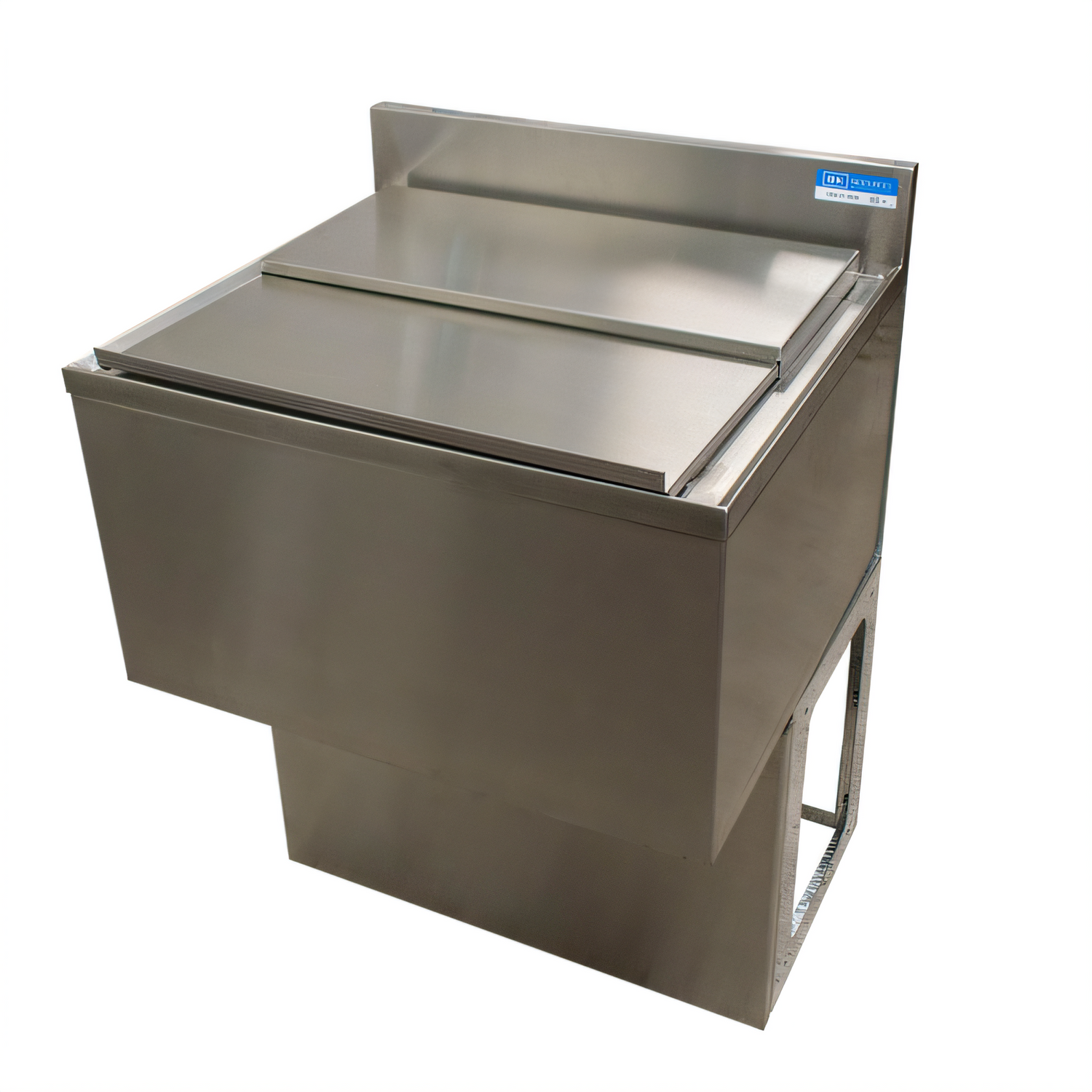

BK Resources Underbar Ice Bin with 8-Circuit Cold Plate – 80 lb Capacity
Model UBB-21-IBCP24-8 · NSF ListedDesigned for high-volume bars, restaurants, and event venues, this fully insulated pedestal-base ice bin keeps up to 80 pounds of ice cold and ready while simultaneously chilling eight beverage lines through its built-in aluminum cold plate.
Key Features

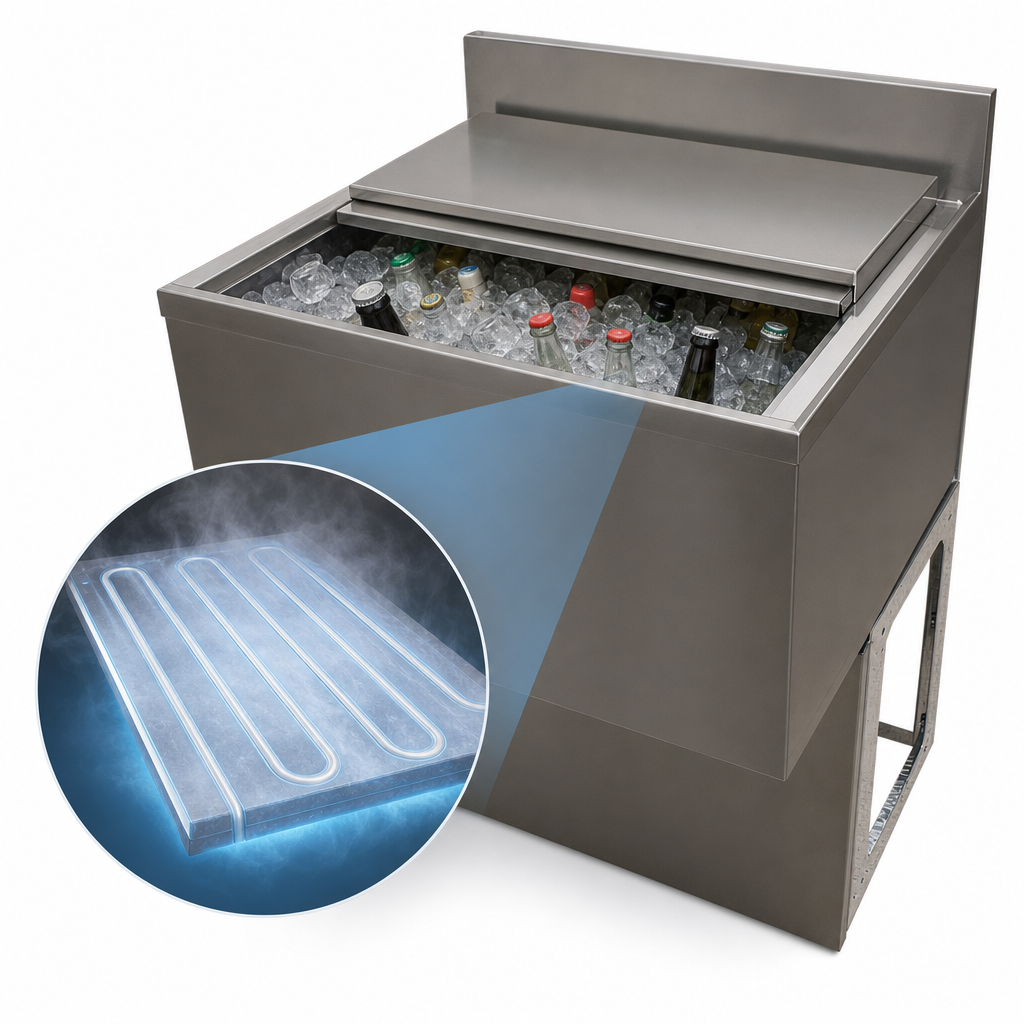

- Integrated 8-circuit aluminum cold plate for rapid, consistent beverage cooling

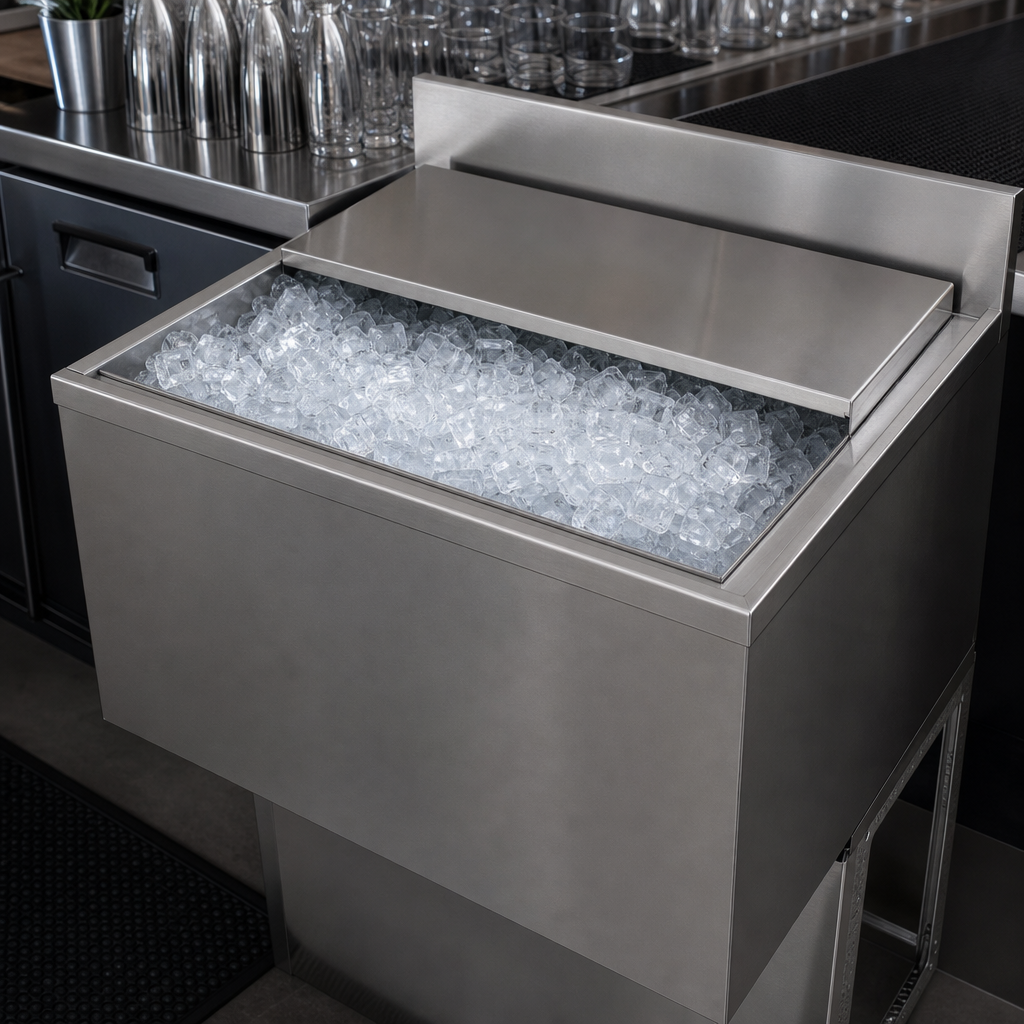

- 80 lb ice capacity with 12 9/16" deep bin minimizes restocking trips
- 18 ga, 304 stainless steel top, sides & interior for superior corrosion resistance
- 4" high backsplash protects surrounding walls from splashes
- Fully foamed-in-place insulation slows melt and improves energy efficiency
- Sliding stainless steel lids (included) comply with health codes when ice is for human consumption
- 1/2" NPT welded drain for quick, reliable water removal
- Galvanized pedestal base with stainless steel front — removable panel provides easy plumbing access
- NSF certification ensures adherence to strict sanitation standards
At-a-Glance Specifications
| Ice Bin Capacity | 80 lbs |
|---|---|
| Cold Plate | 8 circuits, aluminum |
| Ice Bin Interior (L × W × D) | 20 3/8" × 18" × 12 9/16" |
| Overall Dimensions (L × W × H) | 24" × 21 1/4" × 34" |
| Work Height | 30" |
| Backsplash Height | 4" |
| Material | 18 ga T-304 stainless steel (top & bowl) with galvanized pedestal base |
| Drain Connection | 1/2" NPT |
| Certifications | NSF |
Looking for a different size or circuit count? BK Resources offers a complete line of underbar ice bins to match any bar layout — reach out and we’ll be happy to help you find the perfect fit.
