BK Resources UBB-21-GC481 Bar Equipment
Description

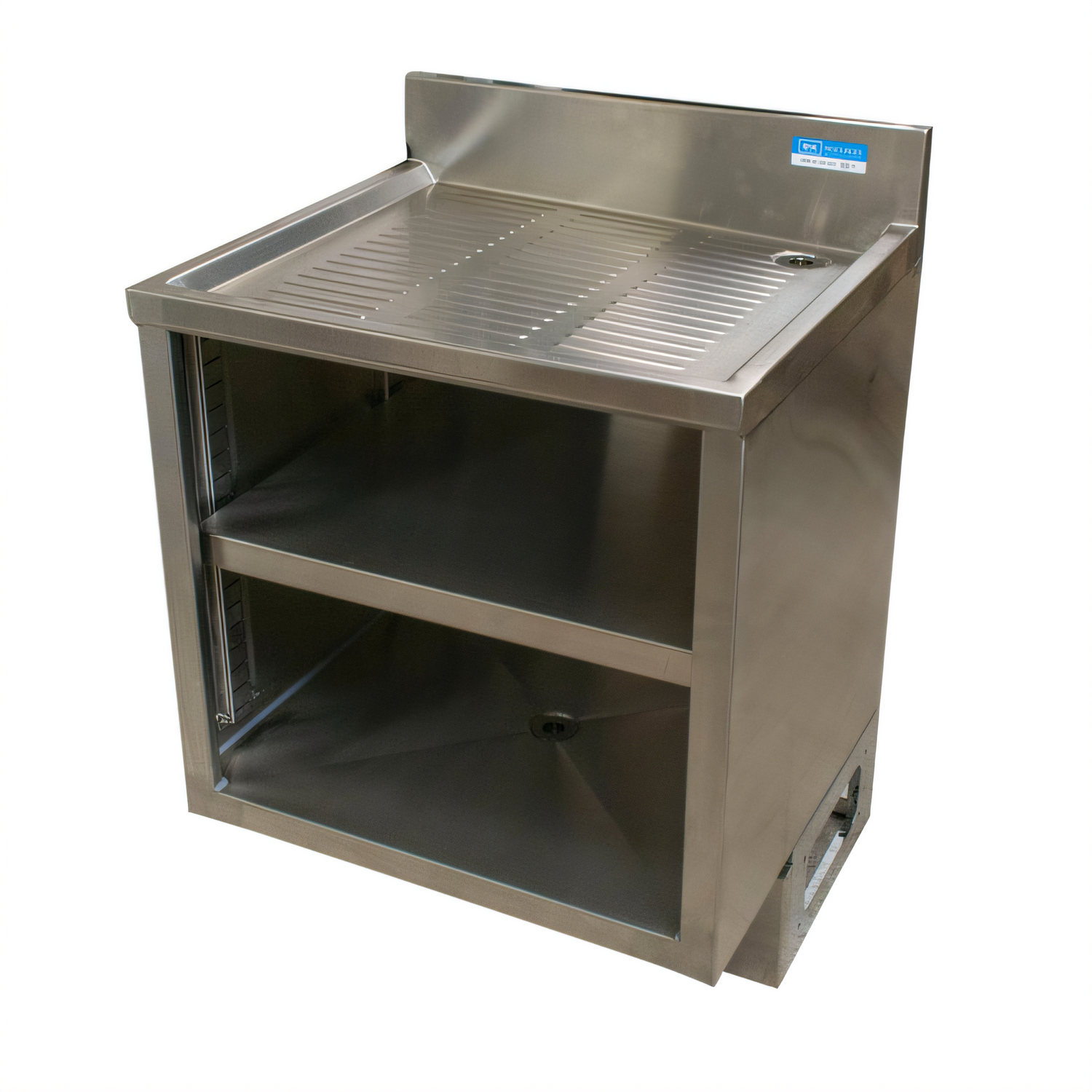

BK Resources 48" Underbar Glass Rack Drainboard Cabinet
Model: UBB-21-GC481-DB | Includes BKDR-15CP Drain AssemblyKeep glassware organized and ready for service with this 48 inch BK Resources underbar glass rack cabinet. Built from heavy-duty 18 gauge, 304 stainless steel and finished with a pitched drainboard top, it’s the perfect wet-area companion for bars, taprooms, tasting rooms, and busy restaurants.
Features at a Glance
- 48" W x 21" D footprint fits standard bar layouts

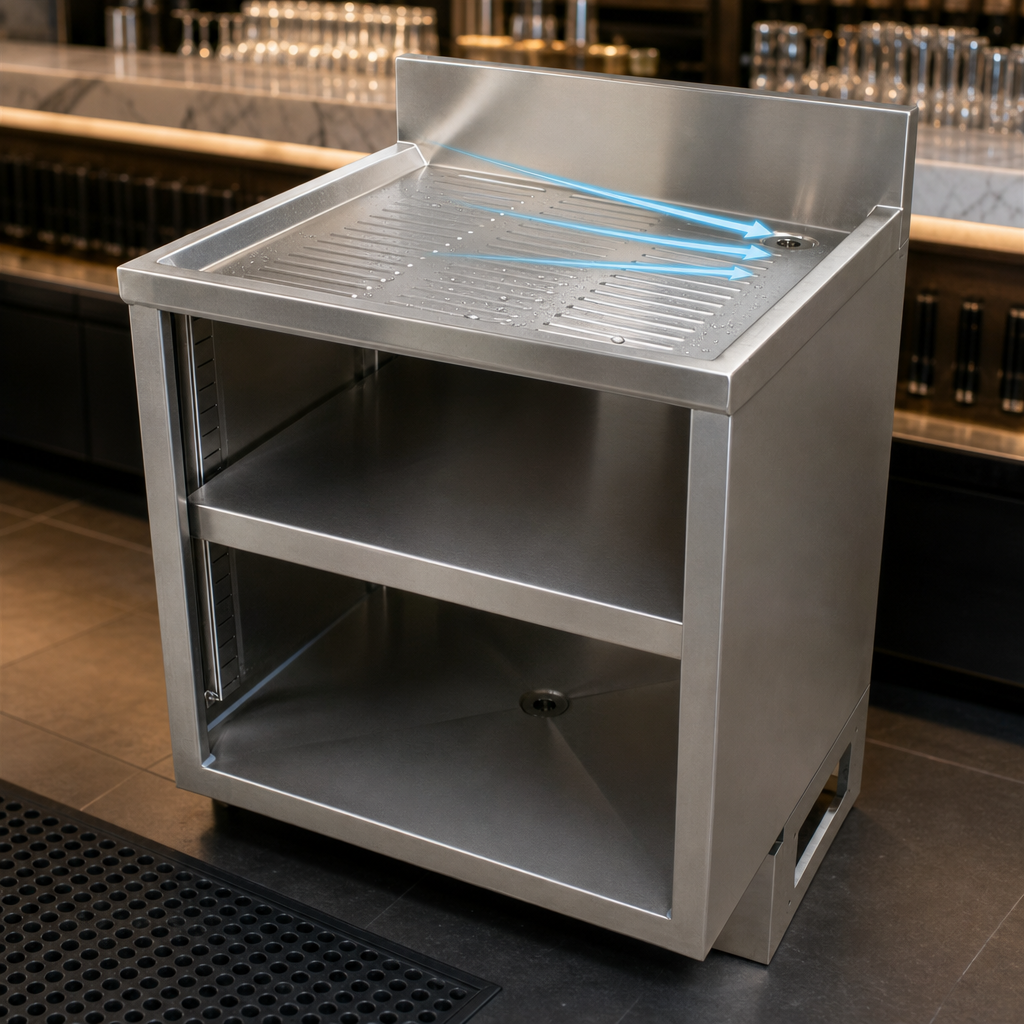

- Pitched drainboard top with 3" backsplash quickly sheds water into the included BKDR-15CP 1" NPS drain
- Open-front pedestal base for maximum leg room and easy floor cleaning

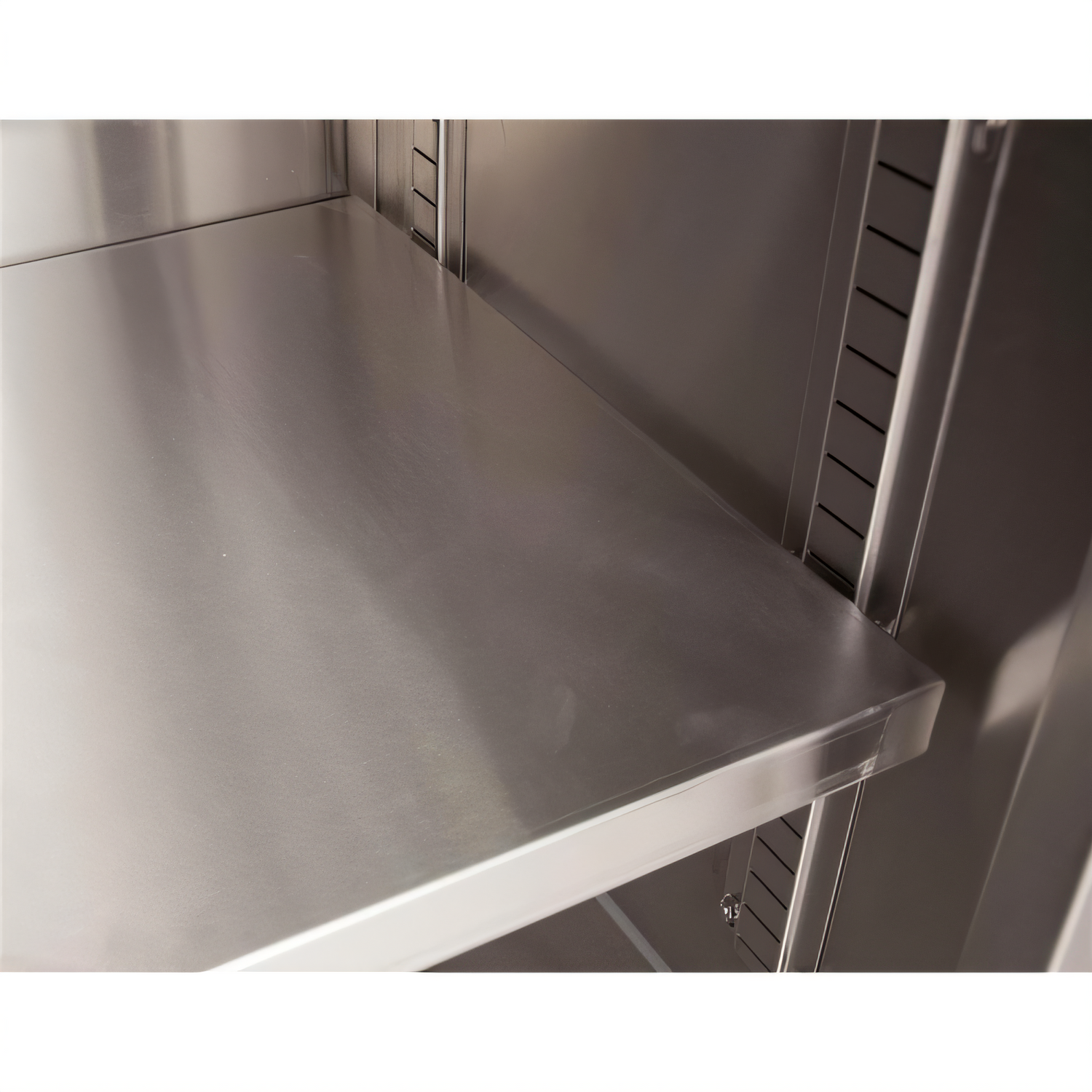

- Fully adjustable intermediate shelf accommodates various glass rack heights
- Rugged 18 ga / Type 304 stainless steel top and shelf; 18 ga stainless steel front panels with galvanized backing
- NSF certified for safe use in commercial foodservice environments
- Ships assembled and ready to drop into your underbar line-up
- Backed by a 1-year manufacturer’s warranty
Technical Specifications
| Overall Dimensions | 48" W × 21" D × 33 1⁄2" H |
|---|---|
| Work Surface | Pitched drainboard, 18 ga / 304 stainless steel |
| Backsplash Height | 3" |

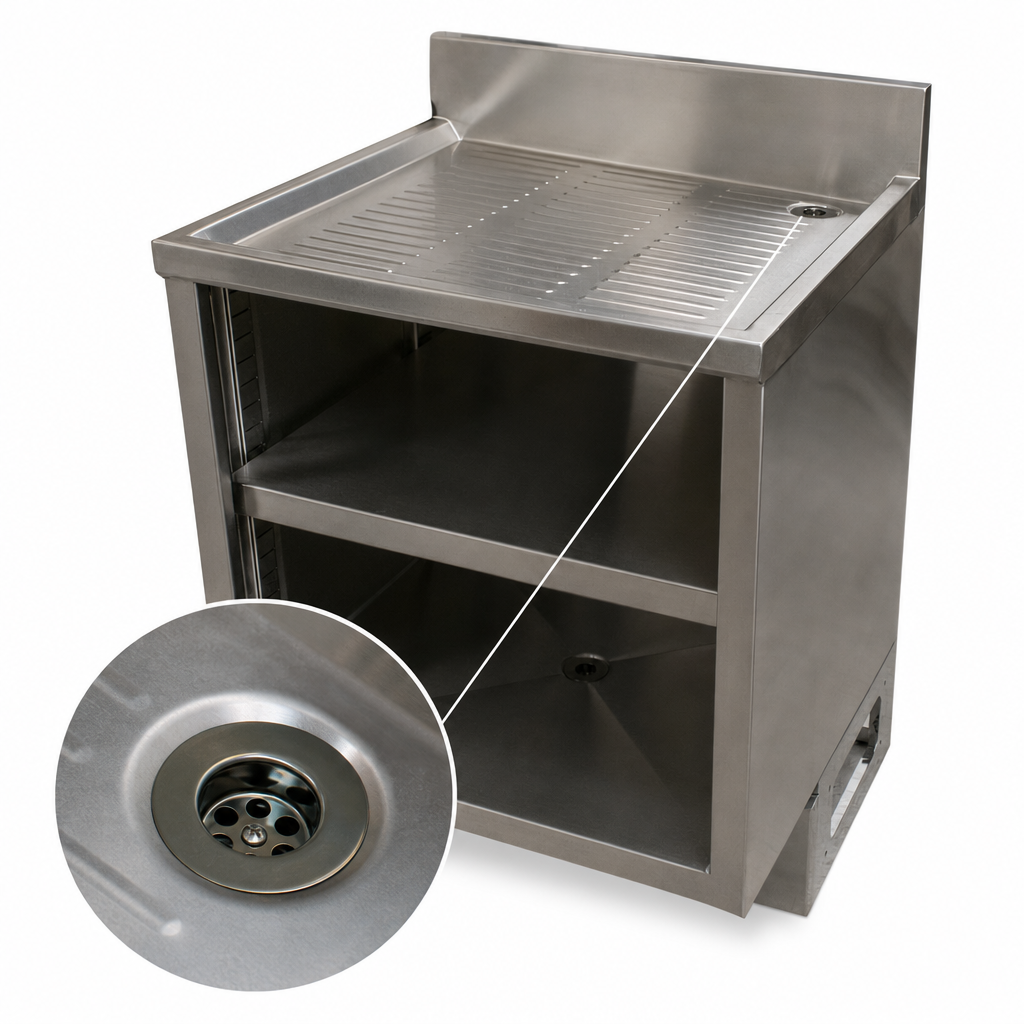

| Drain Connection | 1" NPS (BKDR-15CP included) |
| Base Style | Pedestal with open front |
| Intermediate Shelf | Adjustable, 18 ga / 304 stainless steel |

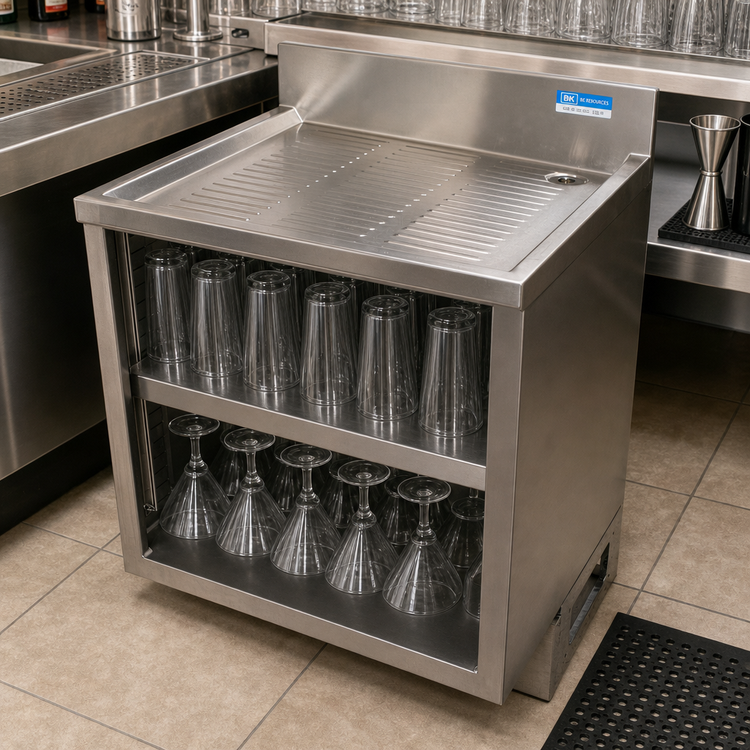

| Glass Rack Capacity | Accommodates standard 20" × 20" glass racks (not included) |
| Construction | All welded; #4 polished finish on exposed surfaces |
| Certifications | NSF |
| Warranty | 1 year parts & labor |
| Approx. Shipping Weight | 114 lb |
Glass racks, faucets, and cold-plate equipment are shown for demonstration only and are not included with the unit.
