BK Resources Four-Compartment Underbar Sink with Left and Right Drainboards, 96-Inch Wide, 304 Stainless Steel

Includes lead-free deck-mount faucets, basket drains, and removable overflow standpipes

This space-saving four-compartment underbar sink gives busy bars separate wash stations, dual drainboards, and an included plumbing package in durable stainless steel.

  • Four sink compartments provide separate areas for washing, rinsing, and staging.
  • Left and right 25-inch stamped drainboards add convenient landing space for glassware and tools.
  • 10" wide x 14" front-to-back x 10" deep compartments are sized for underbar use.
  • 4-1/2" backsplash helps contain splashes behind the sink.
  • Includes two 4" OC deck-mount lead-free faucets, basket drains, and removable overflow standpipes.
  • Stainless steel apron on the front and sides with a removable front panel on a galvanized pedestal base.

Overall Dimensions:

96.0"W x 34.0"D x 21.25"H

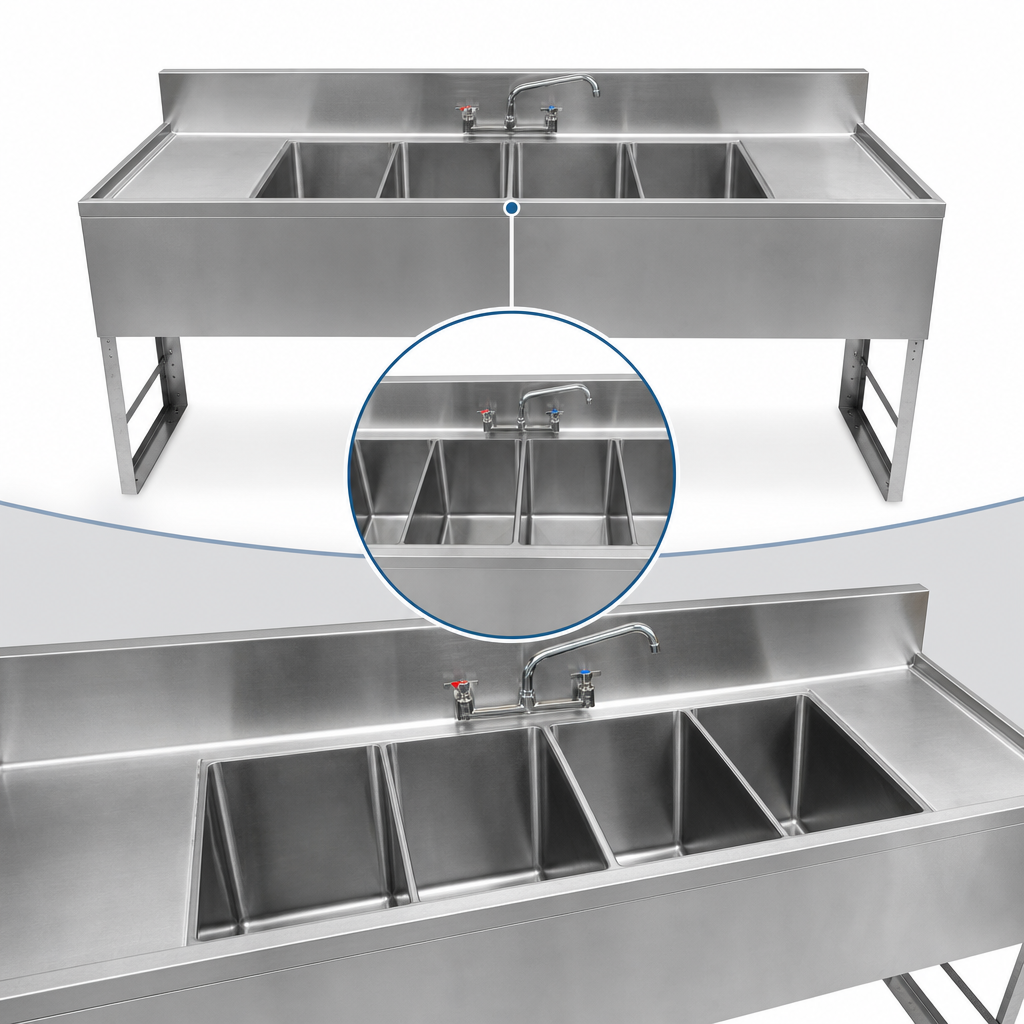

Four Compartment Layout

Provides four separate sink compartments for efficient underbar washing and handling.

Four Compartment Layout

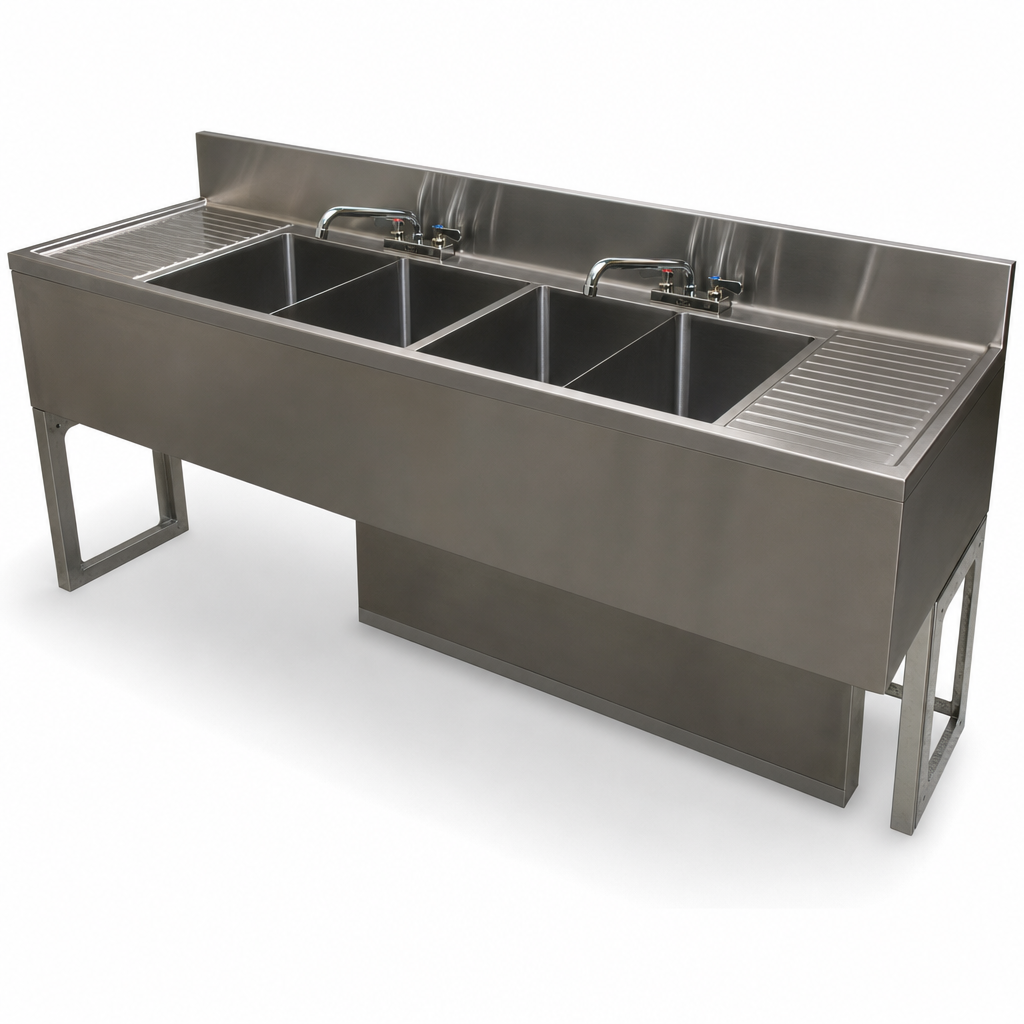

Dual Drainboards

Includes stamped drainboards on both the left and right sides for staging and drying.

Dual Drainboards

4-1/2 Inch Backsplash

Helps reduce splashing and keep surrounding areas cleaner.

Included Faucets

Supplied with two 4-inch on-center deck-mount lead-free faucets (BKD-10-G).

Included Drain Components

Includes basket drains (BKDR-2) and removable overflow standpipes (BK-OT-15075).

Stainless Steel Construction

Built from 18/304 stainless steel with stainless apron on the front and sides.

Removable Front Panel Base

Features a removable stainless steel front panel on a galvanized pedestal base for service access.

Type Underbar Sink
Style Four Compartment
Installation Type Floor Model
Material 304 Stainless Steel
Compartments 4
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Depth 34 Inches
Shipping Height 22 Inches
Shipping Weight 85 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has four compartments.
Each compartment measures 10" wide x 14" front-to-back x 10" deep.
Yes. It includes 25-inch stamped drainboards on both the left and right sides.
Yes. It includes two 4" on-center deck-mount lead-free faucets (BKD-10-G).
The sink includes basket drains (BKDR-2) and removable overflow standpipes (BK-OT-15075).
The overall size is 96"W x 21-1/4"D x 34"H.
