BK Resources  |  SKU: UBB-21-372TS

BK Resources UBB-21-372TS Bar Equipment

$1,724.57
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources 72" Three-Compartment Underbar Sink w/ Dual 19" Drainboards

Model UBB-21-372TS  |  NSF Listed

Engineered for the demands of busy bars, tasting rooms and cocktail stations, this 72-inch underbar sink combines three easy-to-clean compartments, spacious stamped drainboards on both sides and a full accessory package—everything you need to speed through glass-ware and small-ware sanitation in one compact footprint.

Key Features

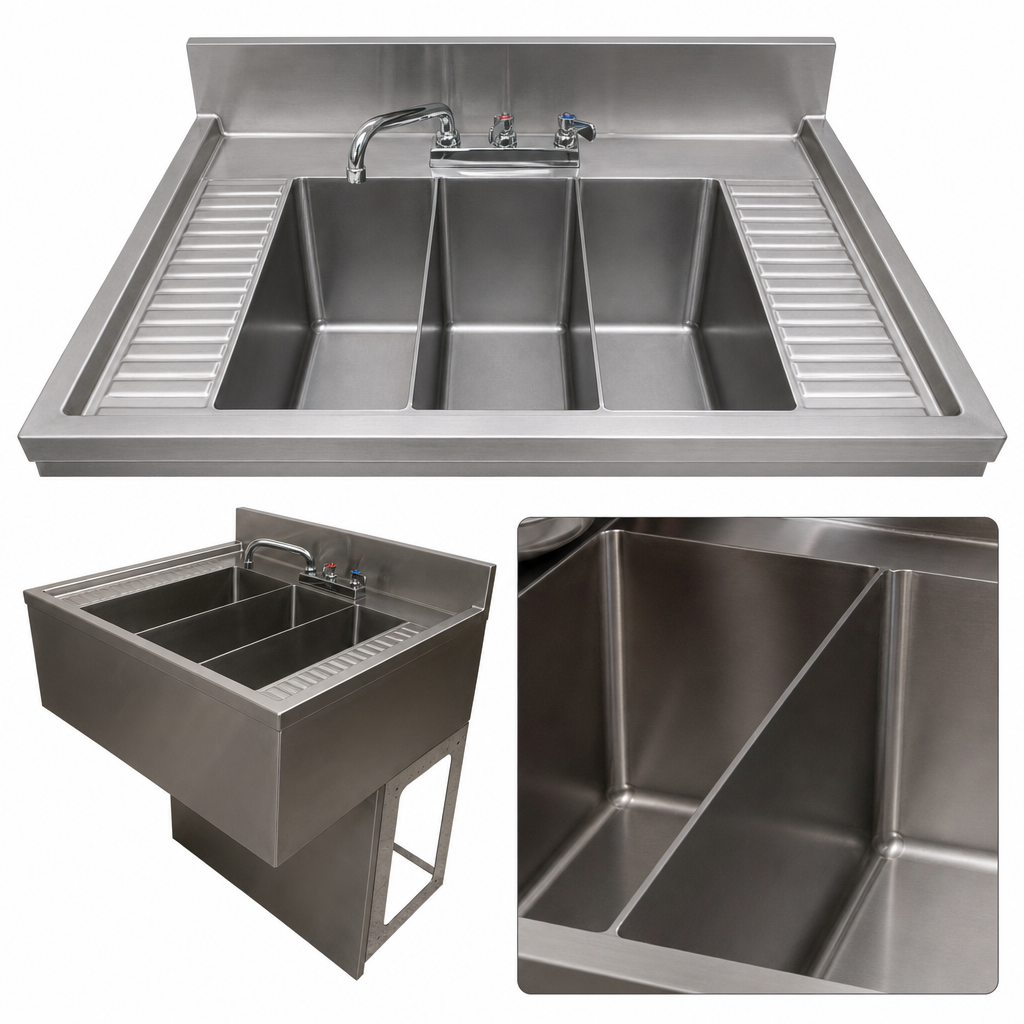

  • Three integrally welded bowls – 10" W × 14" F/B × 10" D each

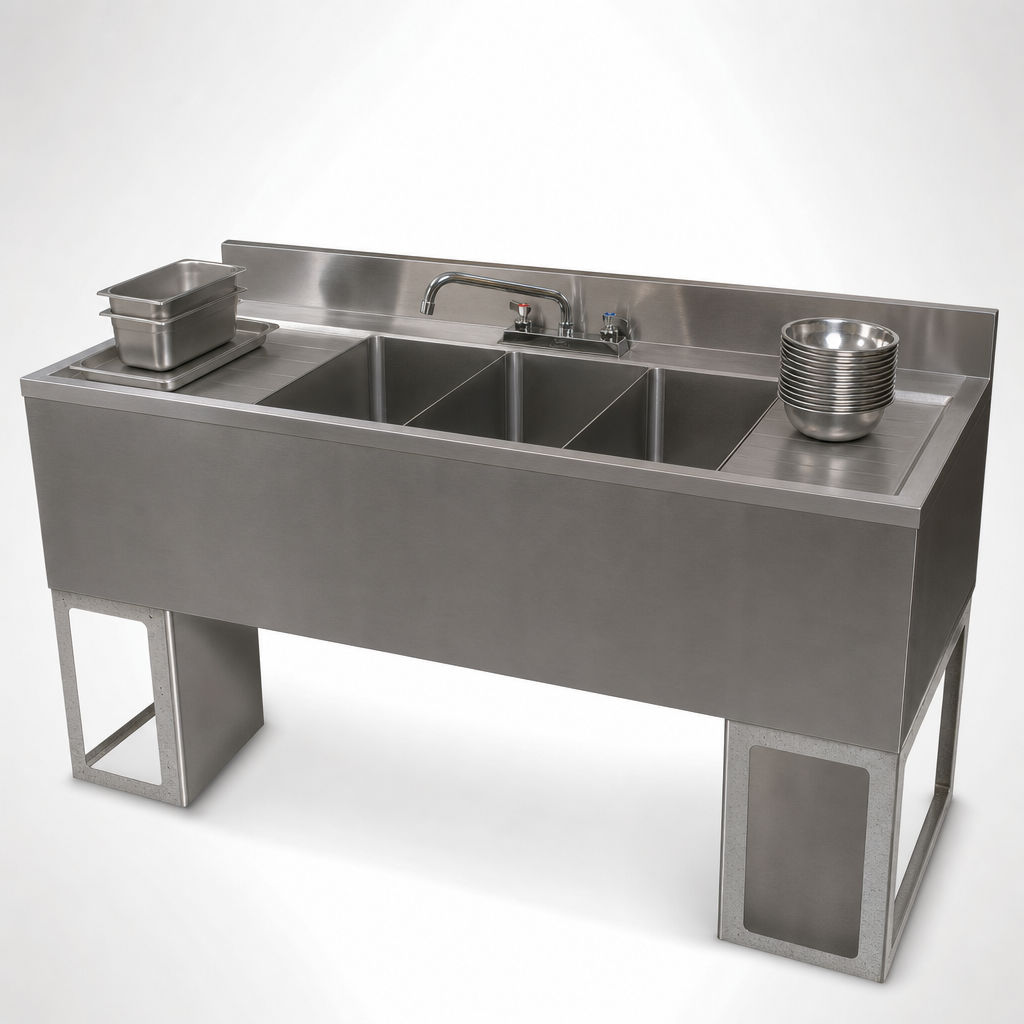

  • Dual 19" stamped & pitched drainboards (left and right) for efficient drying & staging
  • 4-1/2" high backsplash contains splashes and protects surrounding surfaces
  • Includes lead-free 4" O.C. deck-mount faucet (BKD-10-G)
  • Basket drains (BKDR-2) & removable 7" overflow standpipes (BK-OT-15075) included
  • 18 ga T-304 stainless steel bowls, apron front & sides for superior corrosion resistance
  • Removable stainless steel front panel on a galvanized pedestal base allows quick plumbing access
  • NSF certified for guaranteed food-service compliance

What’s in the Box

  • (1) UBB-21-372TS underbar sink assembly
  • (1) BKD-10-G 4" O.C. deck-mount faucet
  • (3) BKDR-2 basket drains
  • (3) BK-OT-15075 removable overflow standpipes

Technical Specifications

Overall dimensions 72" W × 21-1/4" D × 33" H (top of bowls)
Work height 30"
Backsplash height 4-1/2"
Compartment size (each) 10" W × 14" F/B × 10" D
Number of compartments 3
Drainboard length 19" (left) & 19" (right)
Faucet centers 4" on-center (deck mount)
Material & gauge 18 ga 304 stainless steel
Base Galvanized pedestal with removable stainless steel front panel
Certifications NSF

Perfect For

  • Craft cocktail & wine bars
  • Breweries and taprooms
  • Hotel banquet service areas
  • Catering & event venues
Special-Order Notice: This unit is built to order and is non-cancellable and non-returnable once production begins.

Need a different size or configuration? Contact our team—we can source any BK Resources underbar sink to fit your exact workflow.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Height

21.25in

Width

72.0in

Depth

34.0in

Construction

stainless steel top, front, ends & legs

Top Stainless Series

300 series

Bowl Size

10" x 14" front-to-back

Sink Compartments

(3)

Width (side - side) OA

67" - 72"

Depth (front - back) OA

20" - 21"

Bowl Depth (rim - drain)

10"

Splash

4"

Drainboards

drainboards on left & right

Specifications

Underbar Sink, three compartment, 72”W x 21-1/4"D x 33"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 19" stamped drainboards, 4-1/2"H backsplash, 4" OC deck mount lead-free faucet (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, removable stainless steel front panel on galvanized pedestal base, NSF
