BK Resources UBB-21-224S Bar Equipment
Description

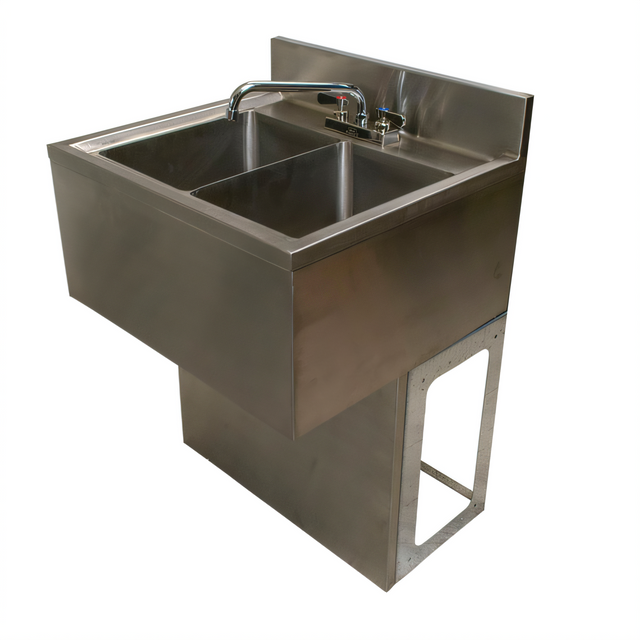

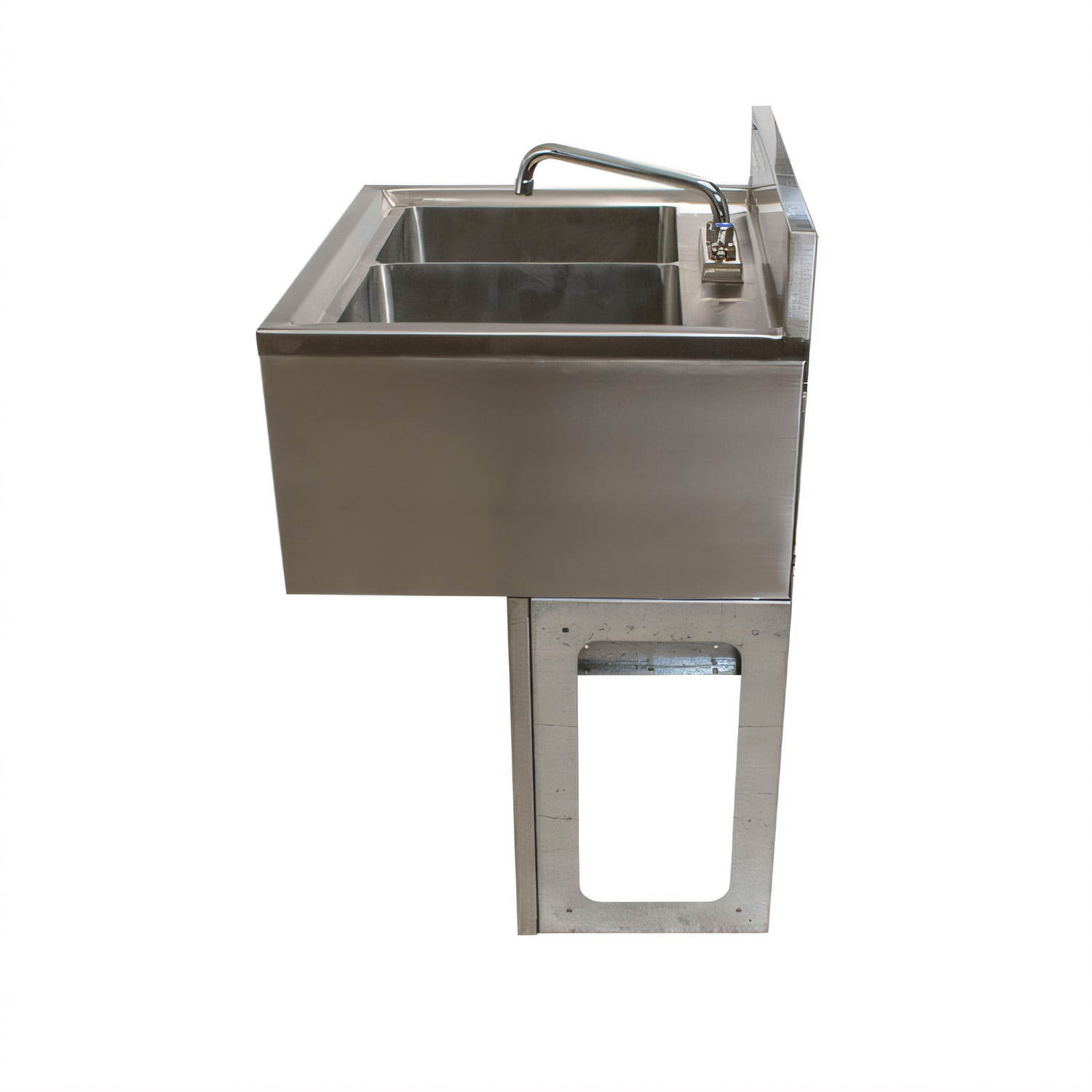

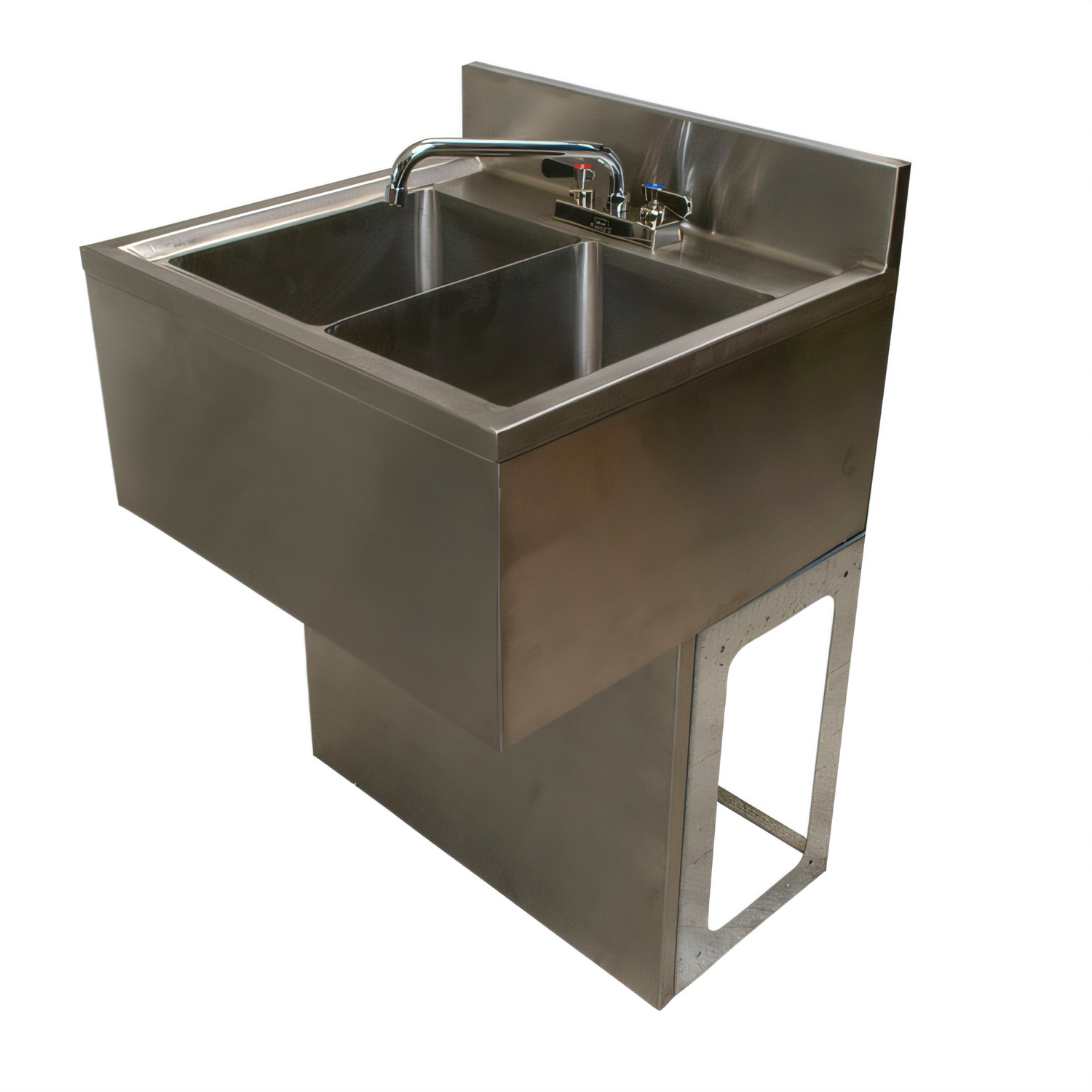

BK Resources Two-Compartment Underbar Sink – 24" Wide
Model: UBB-21-224S | NSF Certified 18 ga 304 Stainless SteelCompact in size yet big on performance, this BK Resources underbar sink is engineered for high-volume bars, cafés, tasting rooms, and satellite service stations that need uncompromising sanitation in a 24" footprint. Two integrally welded bowls, a lead-free deck-mount faucet, and all required plumbing accessories arrive in one ready-to-install package.
Key Features

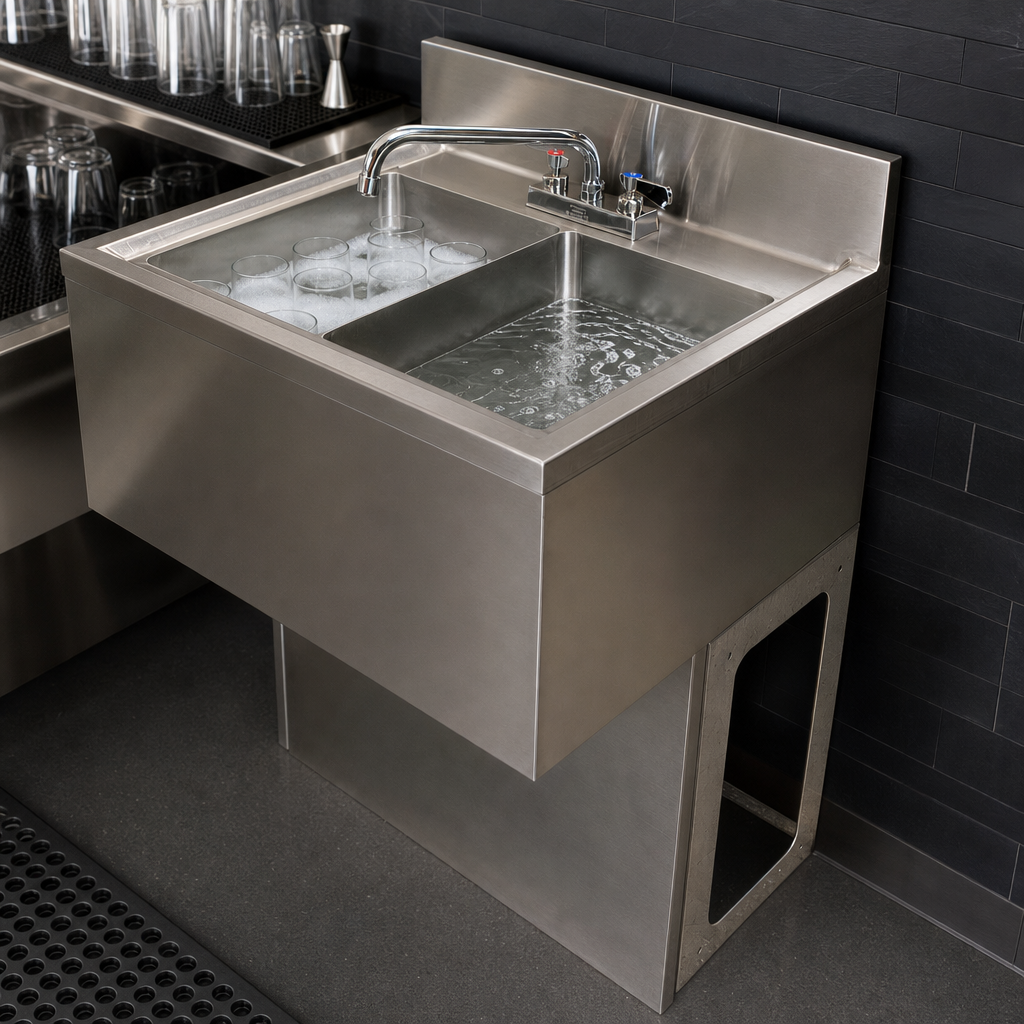

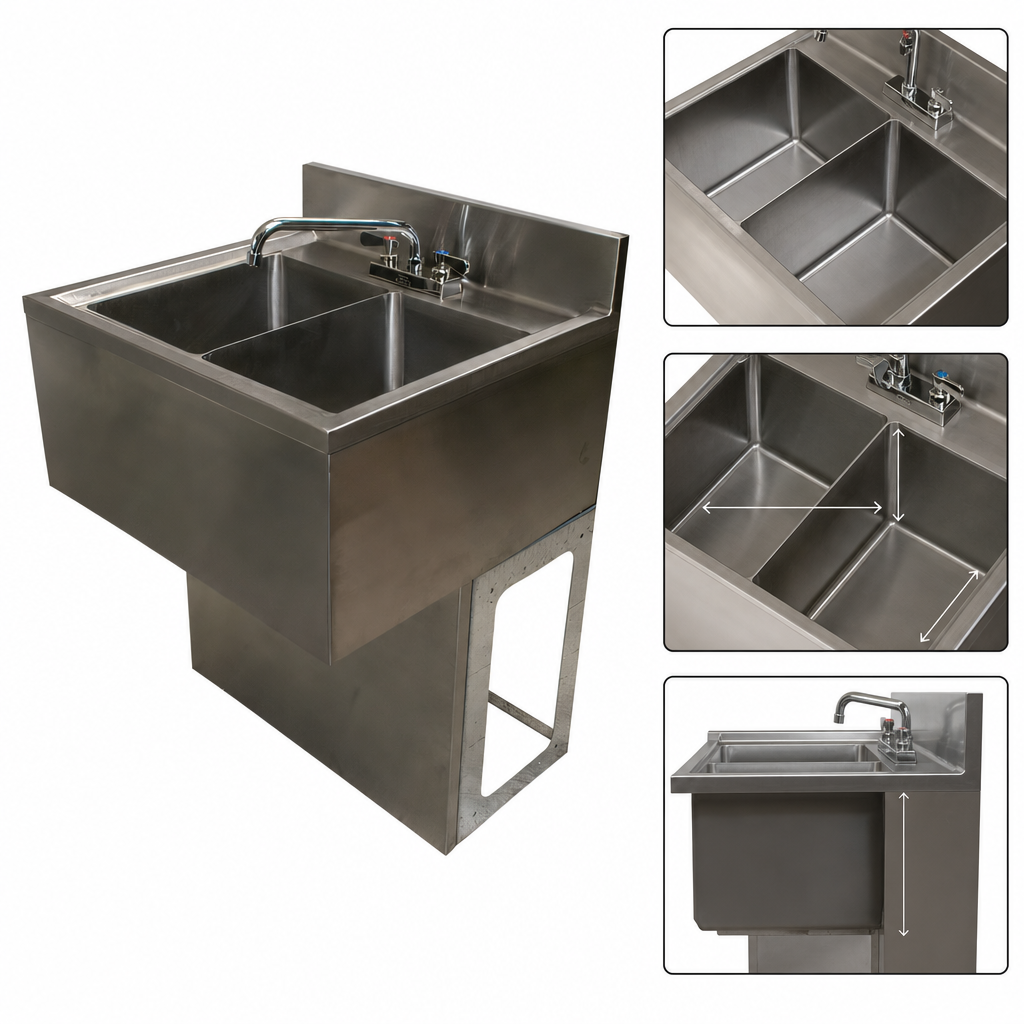

- Two 10" W × 14" F-B × 10" D compartments – perfect for quick wash & rinse cycles
- 18 ga, T-304 stainless steel throughout for superior corrosion resistance
- 4-1/2" high backsplash with pre-punched 4" on-center faucet holes
- Includes lead-free BKD-10-G deck-mount faucet (hot & cold, swing nozzles)
- BKDR-2 basket drains & BK-OT-15075 7" removable overflow standpipes included
- Stainless steel apron on front & sides plus a removable SS front panel on the galvanized pedestal base for easy access to plumbing
- 30" work height; 34" overall height with backsplash – comfortable, ergonomic reach
- NSF listed for food-service applications
What’s in the Box
- BK Resources UBB-21-224S underbar sink (fully welded, factory water-tested)
- BKD-10-G 4" O.C. deck-mount faucet – lead-free, chrome-plated brass
- (2) BKDR-2 1-1/2" basket drains with crumb cup
- (2) BK-OT-15075 7" overflow standpipes (removable)
Technical Specifications
| Overall dimensions | 24" W × 21-1/4" D × 34" H (to top of backsplash) |
|---|---|
| Work height | 30" (rim) |
| Number of compartments | 2 |
| Bowl interior (each) | 10" W × 14" F-B × 10" D |
| Backsplash | 4-1/2" high, 4" on-center faucet holes |
| Faucet included | BKD-10-G, lead-free deck-mount, 4" O.C. |
| Drain fittings | (2) BKDR-2 basket drains, 1-1/2" NPSM |
| Overflow | (2) BK-OT-15075 7" standpipes (removable) |
| Material & gauge | 18 ga, 304 stainless steel (sink, apron & front panel) |
| Base | Galvanized pedestal with removable SS front panel |
| Certifications | NSF |
Need a larger run or drainboards? Contact us for additional BK Resources underbar configurations made to the same exacting standards.
