BK Resources UBB-18-IBCP48-10 Bar Equipment
Description

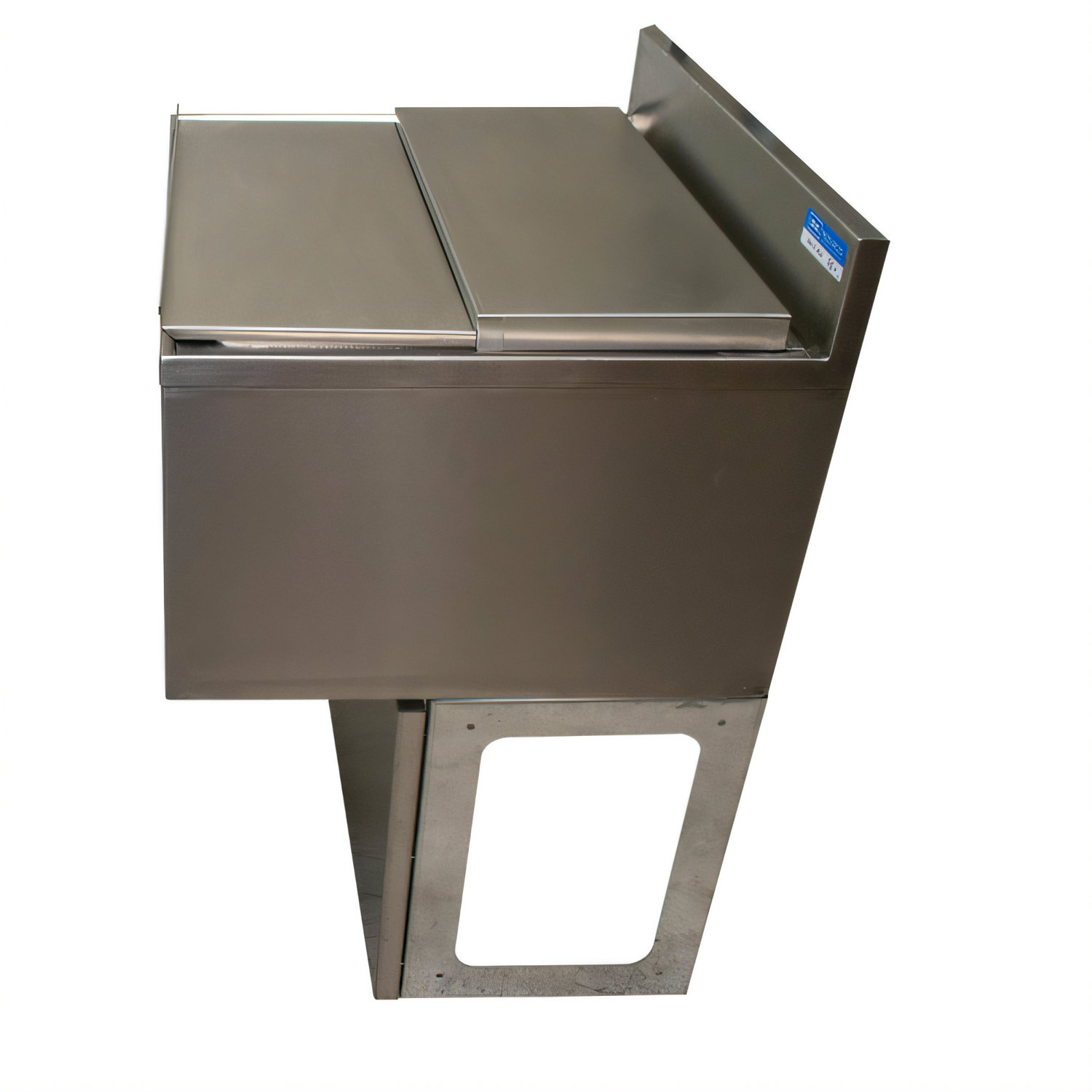

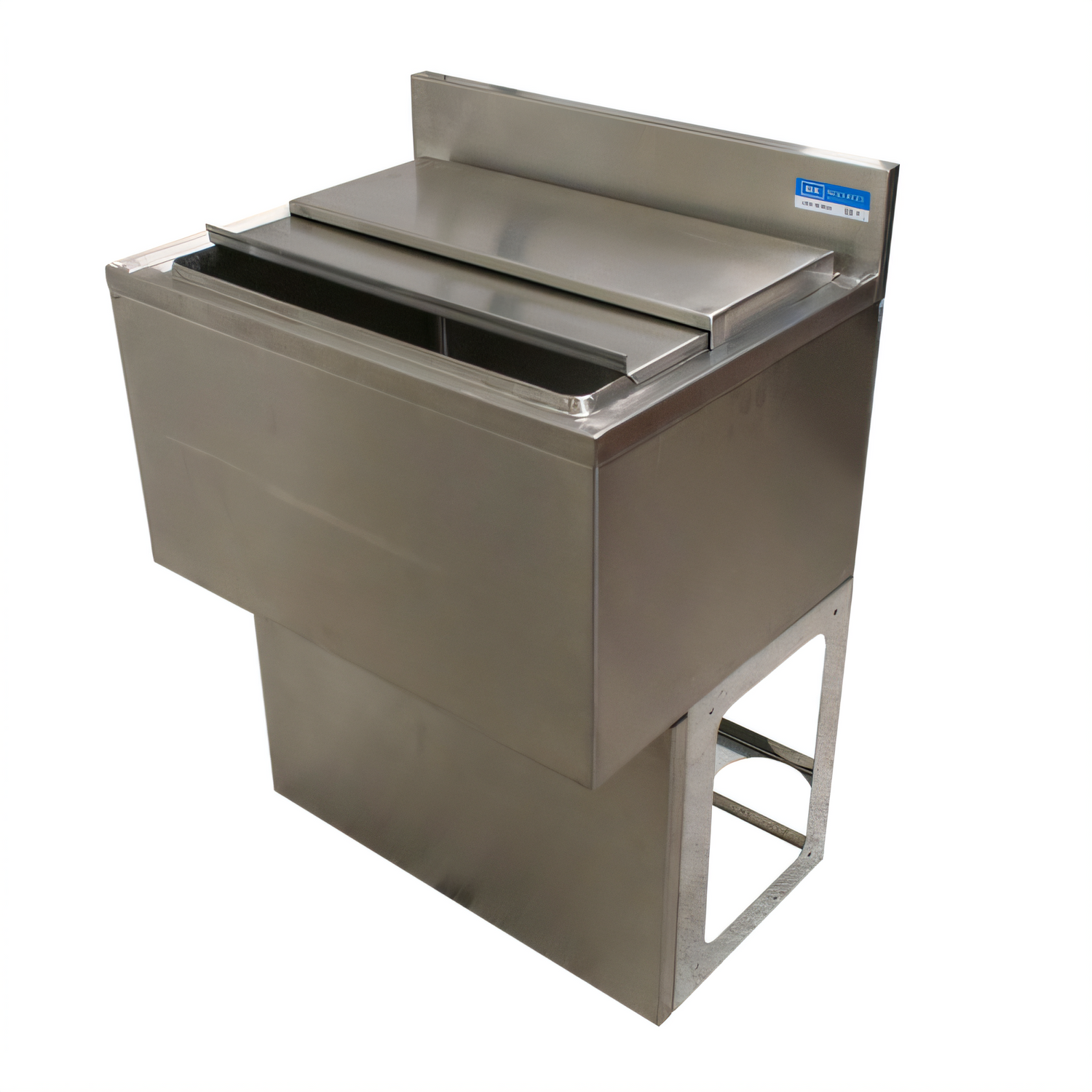

BK Resources UBB-18-IBCP48-10 Underbar Ice Bin with 10-Circuit Cold Plate
140 lb ice capacity • NSF CertifiedEngineered for busy bars, restaurants, and beverage stations, this fully-insulated underbar ice bin delivers high-volume ice storage and on-demand beverage chilling in one compact footprint. The built-in 10-circuit aluminum cold plate keeps your beverage lines ice-cold without diluting the ice your bartenders rely on for service.
Key Features

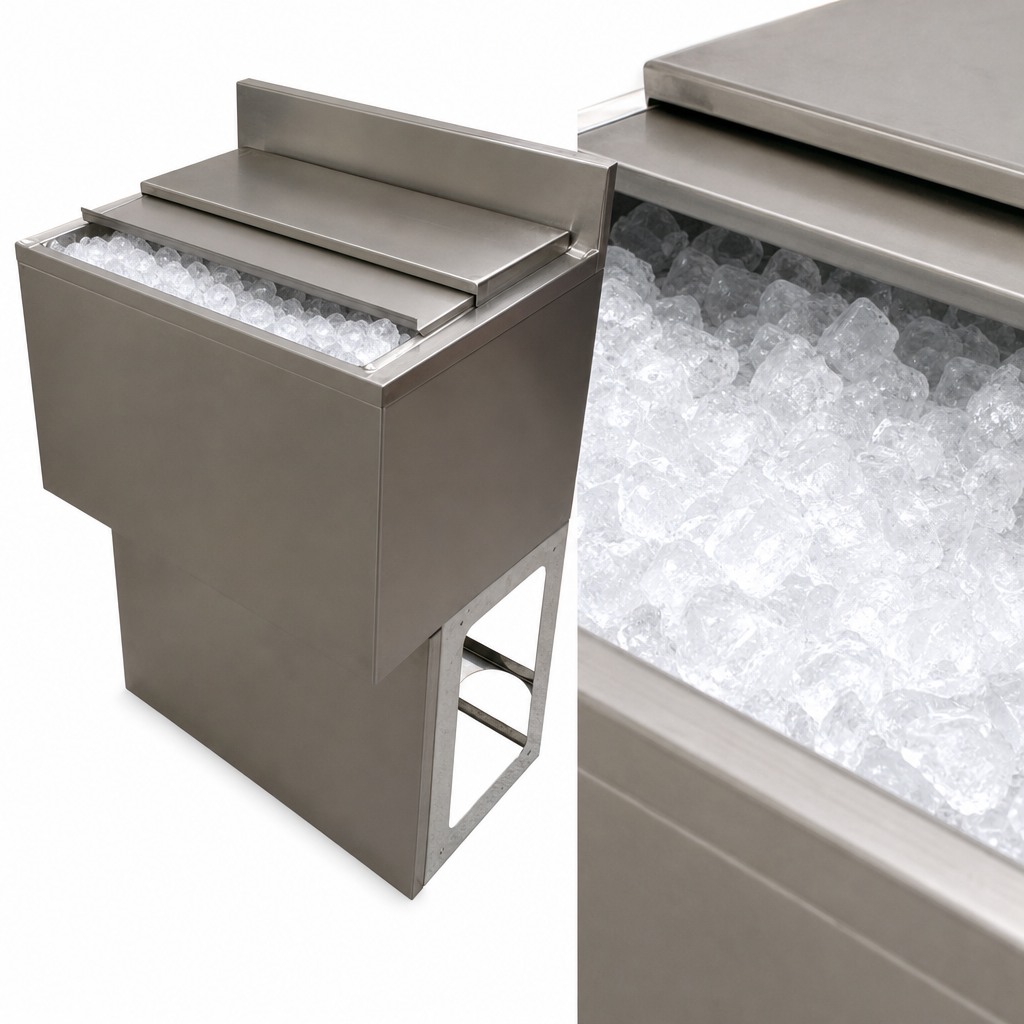

- 140 lb ice capacity in a generous 43" × 15" × 12-9/16" bin

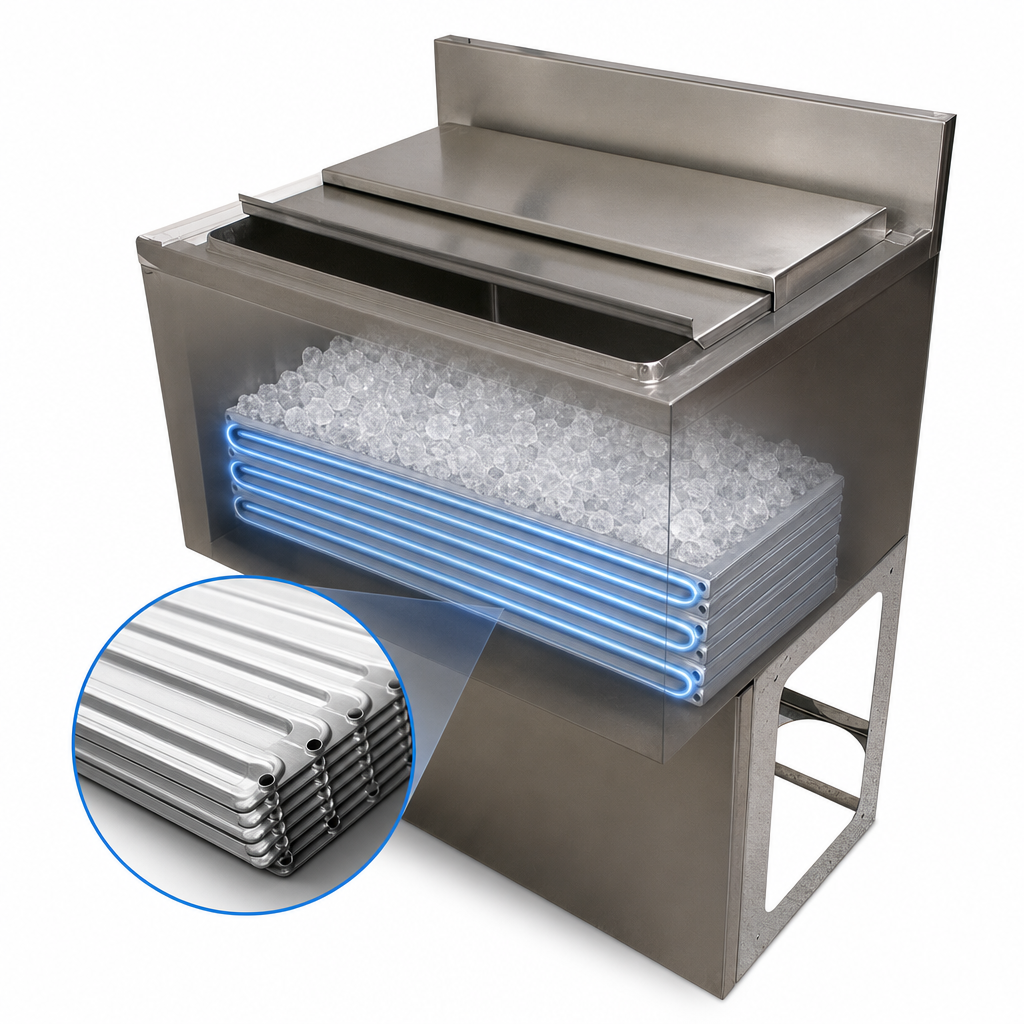

- Cast aluminum 10-circuit cold plate chills multiple beverage lines simultaneously
- 18 ga type 304 stainless steel top, sides, and lids with #4 polished finish
- 4" high integrated backsplash contains splashes and protects surrounding surfaces
- 1/2" NPT drain for quick, reliable melt-water removal
- Galvanized pedestal base with removable stainless steel front panel for easy service access
- Stainless steel sliding lids included (required when storing ice for human consumption)
- NSF listed for sanitation and safety compliance
At-a-Glance Specifications
| Manufacturer / Model | BK Resources UBB-18-IBCP48-10 |
|---|---|
| Overall Dimensions | 48" W × 18" D × 34" H |
| Ice Bin Interior | 43" W × 15" D × 12-9/16" H (140 lb capacity) |
| Cold Plate | 10-circuit cast aluminum |
| Backsplash Height | 4" |
| Work Height | 30" |
| Drain Connection | 1/2" NPT |
| Construction | 18 ga 304 stainless steel bin & lids; galvanized pedestal base with stainless front |
| Certifications | NSF |
Why Choose a Cold-Plate Ice Bin?
Unlike external chillers, a cold-plate system uses the natural cooling power of the ice itself. Beverage lines run through the cast aluminum plate beneath the ice, instantly dropping drink temperatures as they pass through. The result is consistently cold beverages without relying on separate refrigeration equipment.
Need additional underbar equipment? Contact our team for coordinated sinks, speed rails, and workstations from BK Resources.
