BK Resources UBB-18-IBCP36-7 Bar Equipment
Description

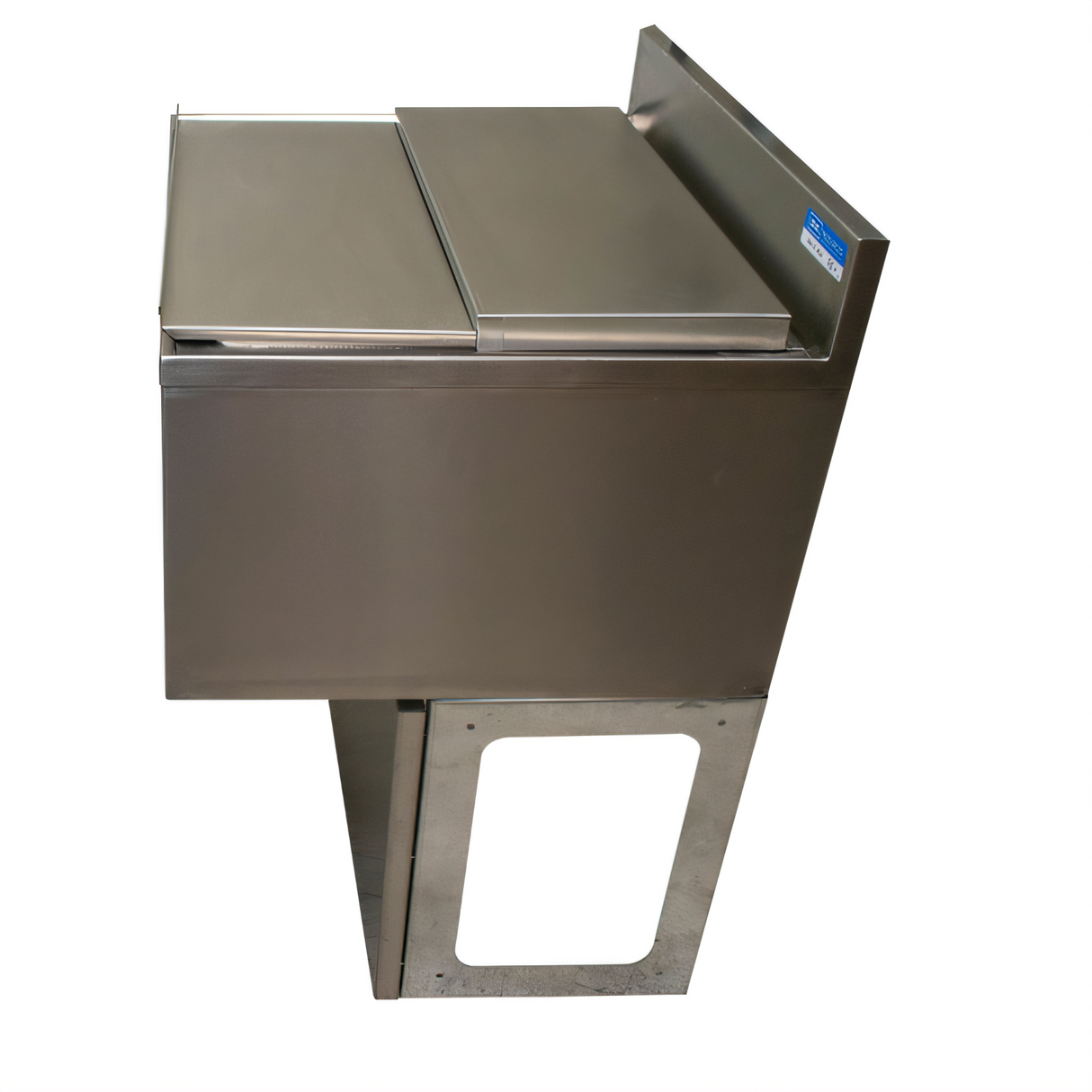

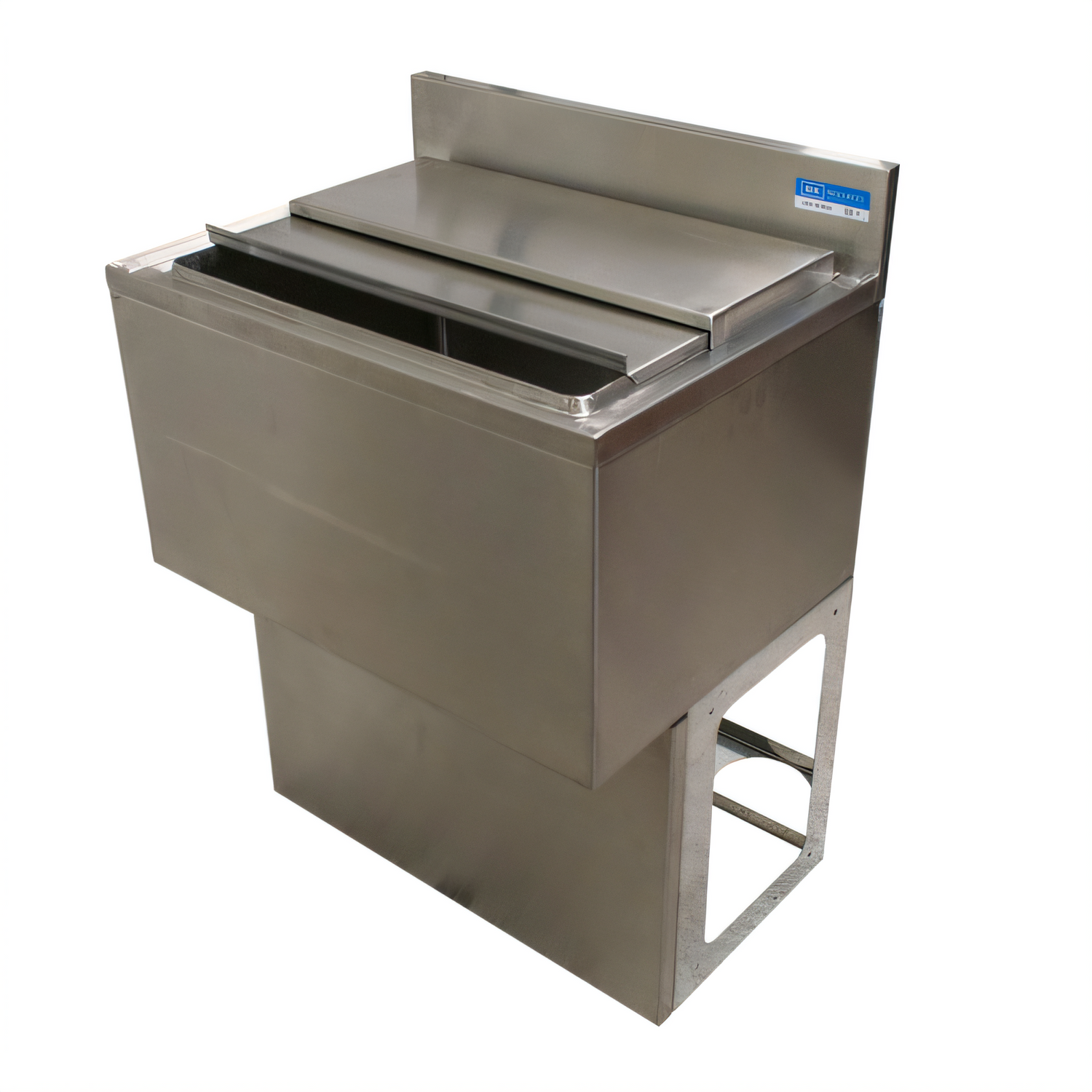

BK Resources Underbar Ice Bin with 7-Circuit Cold Plate – 100 lb Capacity
Model #: UBB-18-IBCP36-7Built to thrive in busy bar and beverage stations, this insulated ice bin combines rugged stainless-steel construction with a high-performance 7-circuit aluminum cold plate. Keep up to 100 pounds of ice at the perfect serving temperature while simultaneously chilling your beverage lines for ice-cold pours every time.
Key Features

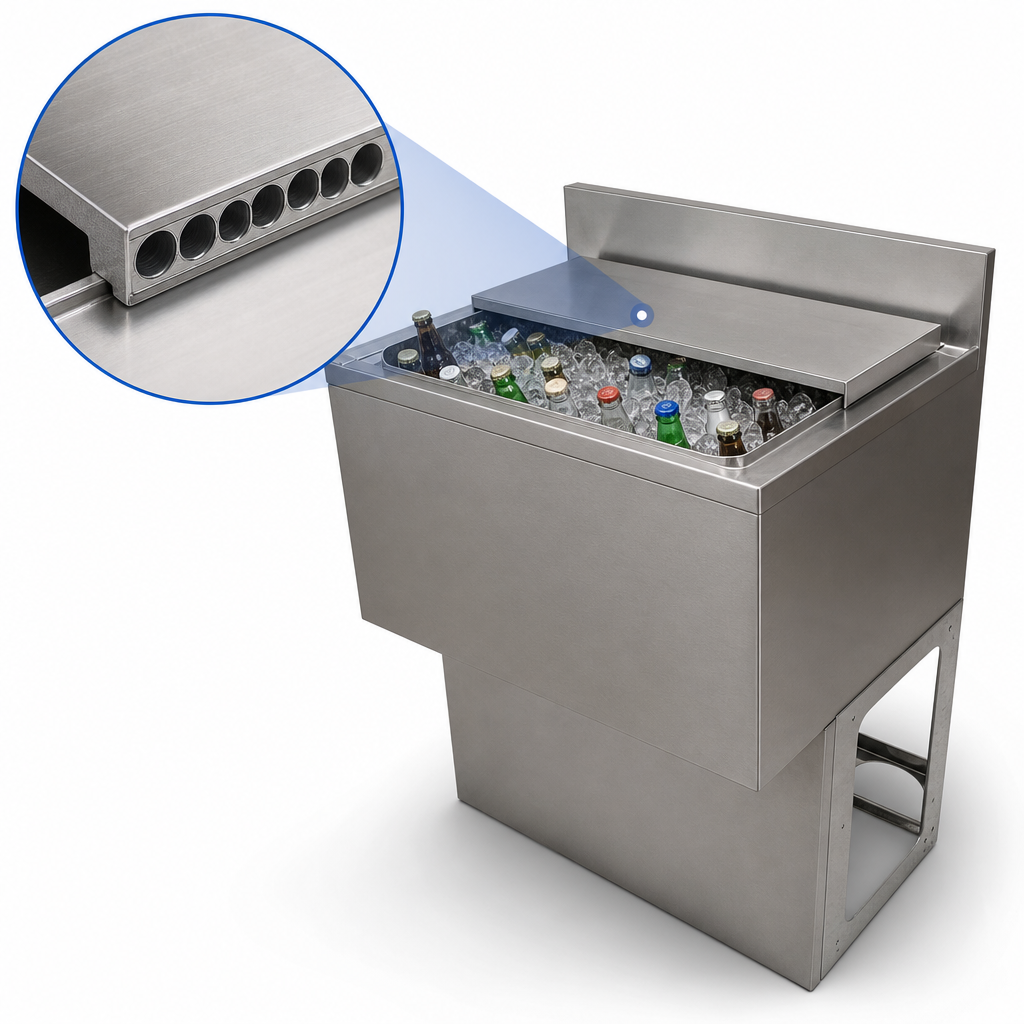

- Integrated 7-circuit aluminum cold plate for direct beverage line cooling.

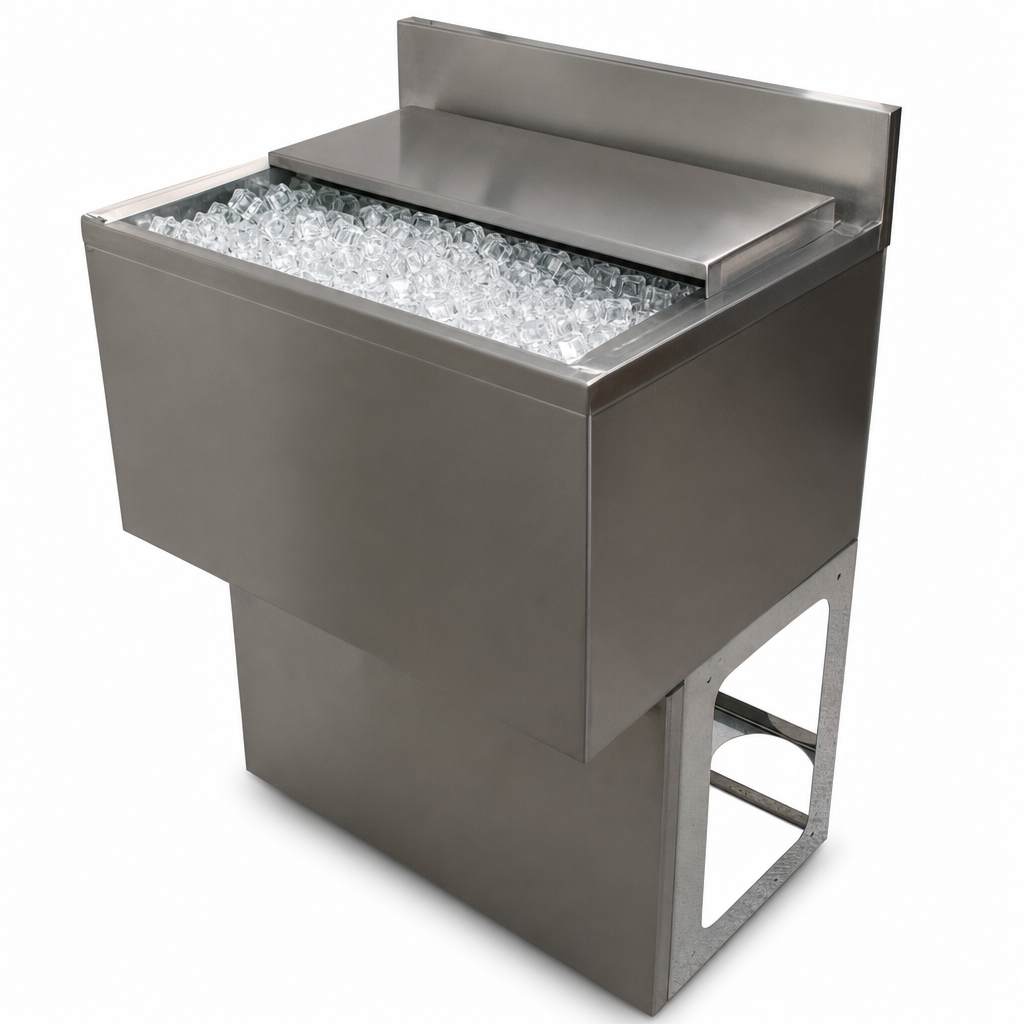

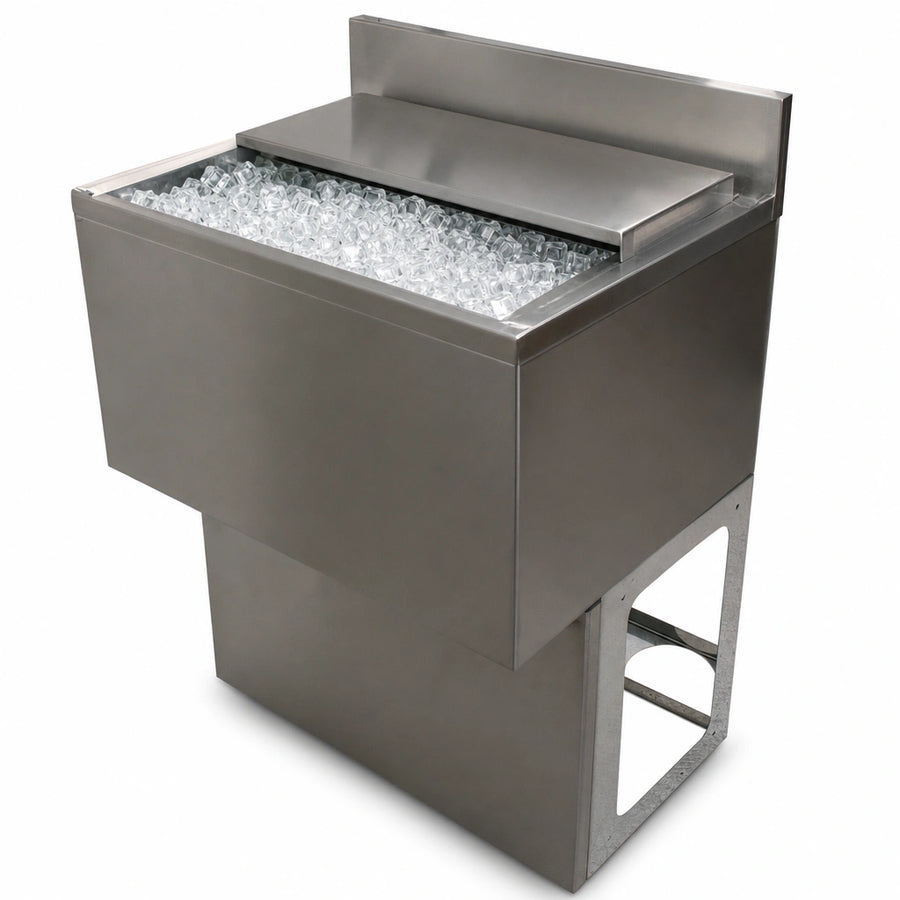

- Generous 100 lb ice capacity reduces refills during peak service.
- Foamed-in-place insulation and tight-fitting stainless-steel lids maintain ice integrity and sanitation.
- 18 ga T-304 stainless-steel bin & front panel withstand constant moisture and heavy use.
- Galvanized pedestal base with removable front panel offers rock-solid support and easy plumbing access.
- 4 inch backsplash contains splashes and meets health-code requirements.
- 1/2" NPT drain fitting for quick, secure waste-line connection.
- NSF listed for food-safe construction and easy code approval.
Dimensions & Specifications
| Ice Capacity | 100 lb (45.4 kg) |
|---|---|
| Cold Plate | 7-circuit aluminum (integrated) |
| Ice Bin Interior | 31" L × 15" W × 12-9/16" D |
| Overall Dimensions | 36" L × 18" W × 34" H |
| Work Height | 30" |
| Backsplash Height | 4" |
| Construction | 18 ga T-304 stainless-steel bin & front panels; galvanized pedestal base |
| Drain | 1/2" NPT |
| Certifications | NSF |
Looking for a different size or circuit count? BK Resources offers capacities from 66 lb to 167 lb and up to 10-circuit cold plates—contact us for details.
