BK Resources UBB-18-IBCP36-10 Bar Equipment
Description

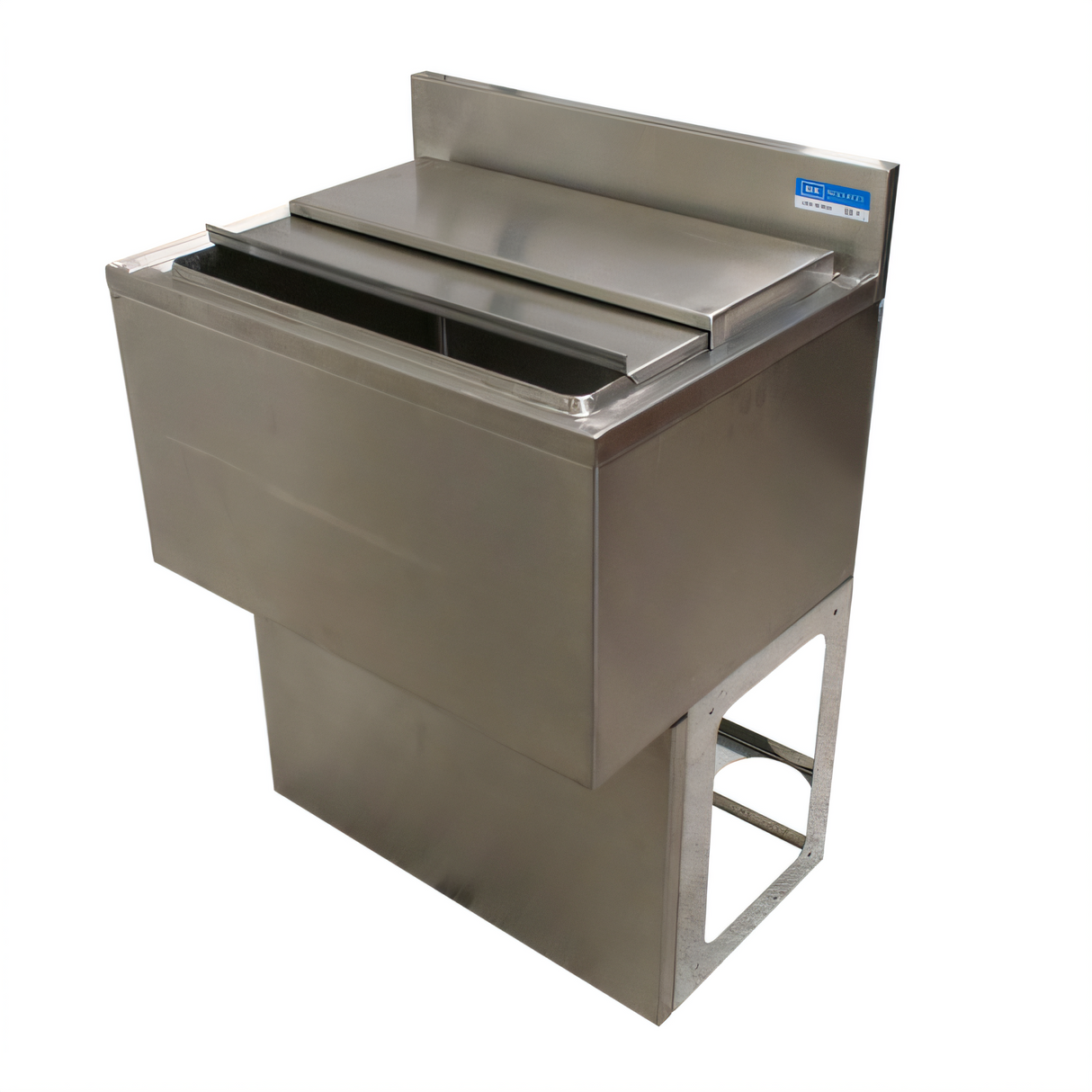

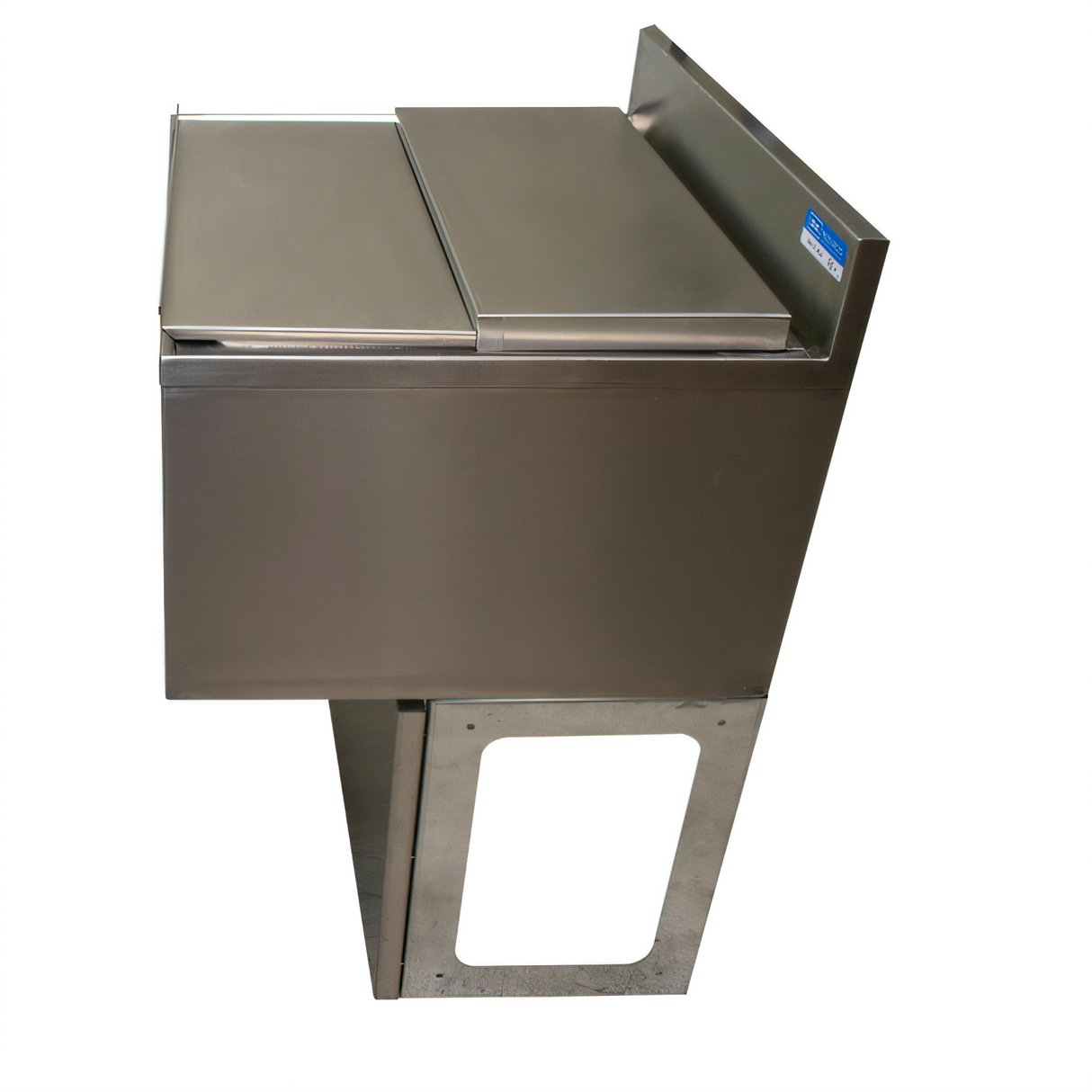

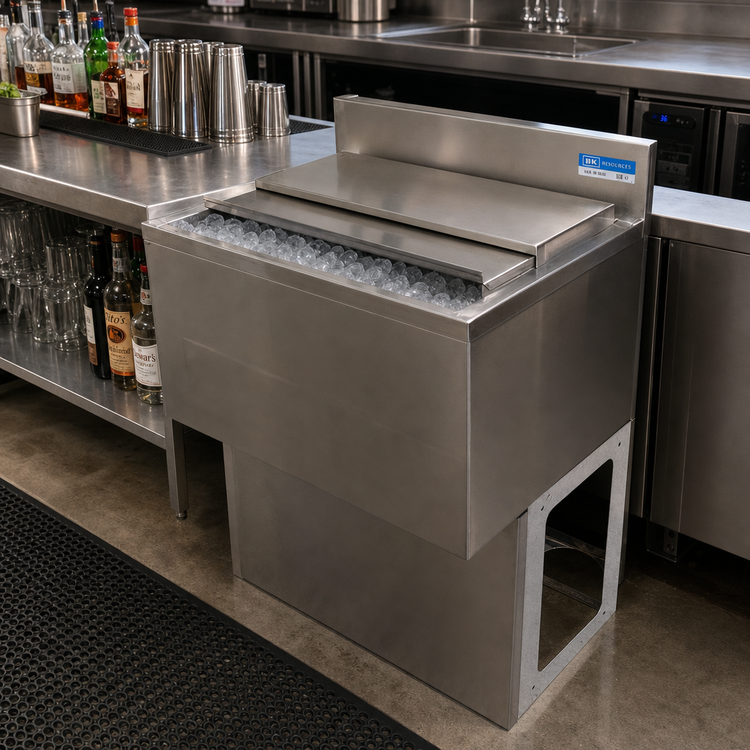

BK Resources UBB-18-IBCP36-10 Underbar Ice Bin with 10-Circuit Cold Plate
100 lb ice capacity • NSF ListedServe perfectly chilled drinks shift after shift with this heavy-duty, fully insulated ice chest. Designed for high-volume bar service, the 10-circuit aluminum cold plate chills your beverage lines while the spacious 100 lb bin keeps ice at the ready.
Key Features

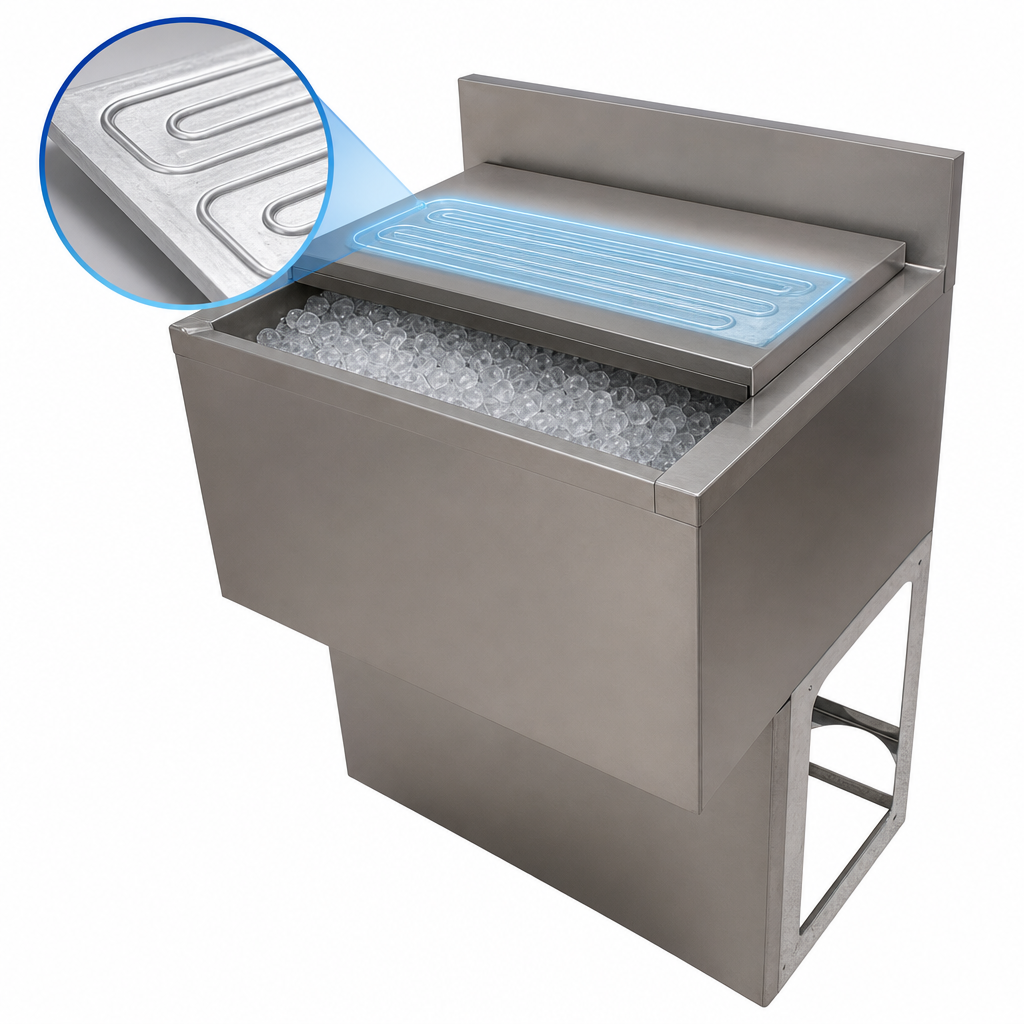

- Integrated 10-circuit cast-aluminum cold plate for consistent line chilling

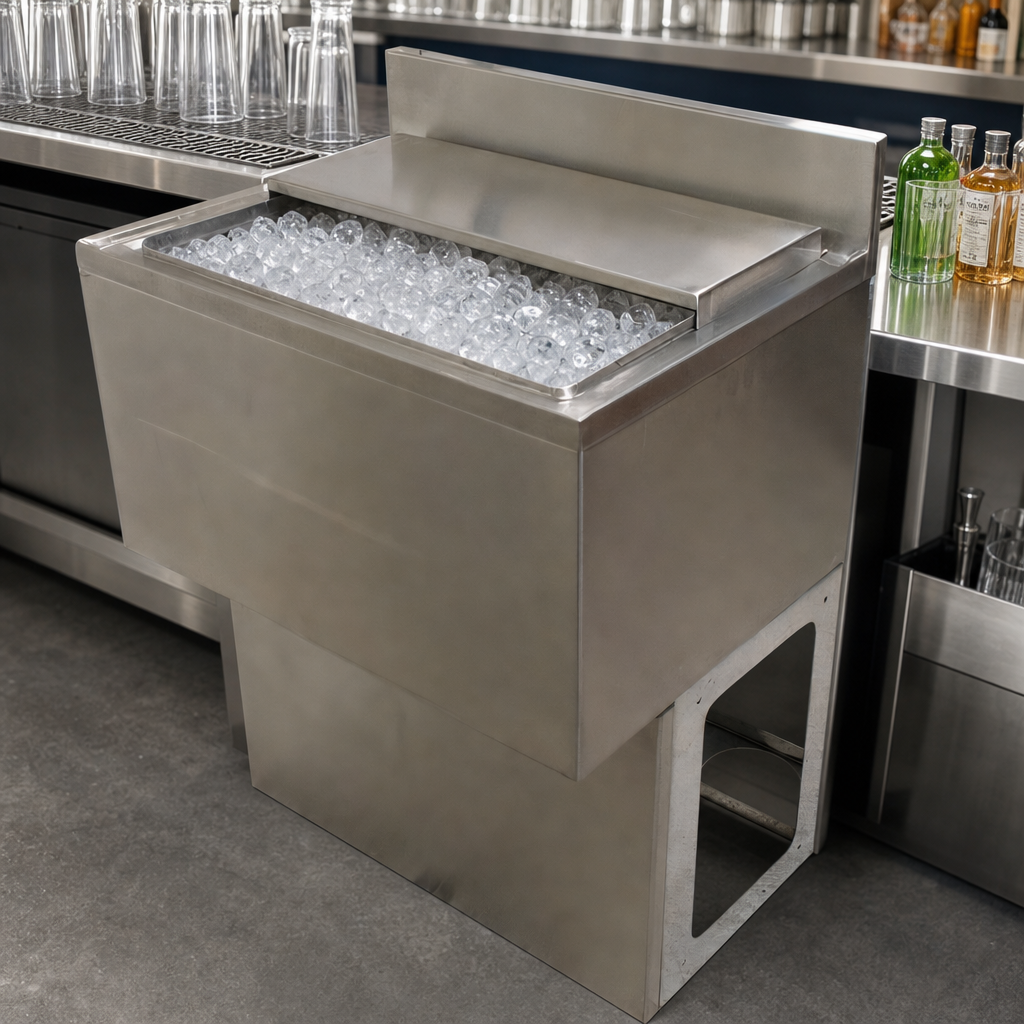

- Generous 31" W × 15" D × 12-9/16" H ice compartment holds up to 100 lbs
- T-304 18 ga stainless steel interior & exterior for maximum corrosion resistance
- 4" high rear backsplash helps contain splashes and protects wall surfaces
- 1/2" NPT drain connection with stainless steel baffle for quick, reliable plumbing hook-up
- Fully removable stainless steel lid (included) keeps ice sanitary and bar compliant
- Galvanized pedestal base with stainless steel front panel—front panel removes for easy access to lines & utilities
- Factory-applied insulation maintains ice integrity, reducing melt and waste
- NSF certification meets strict sanitation standards for commercial foodservice
Specifications
| Manufacturer | BK Resources |
|---|---|
| Model / Part # | UBB-18-IBCP36-10 |
| Ice Capacity | 100 lbs |
| Cold Plate | 10-circuit, cast aluminum, factory sealed |
| Bin Interior (L × W × D) | 31" × 15" × 12-9/16" |
| Overall Dimensions | 36" L × 18" W × 34" H (30" work height) |
| Backsplash Height | 4" |
| Drain Size | 1/2" NPT |
| Construction | 18 ga T-304 stainless steel bin & panels; galvanized pedestal base with SS front |
| Certifications | NSF |
| Warranty | 1-year limited manufacturer warranty |
Perfect For
- Cocktail bars & nightclubs
- Restaurant drink stations
- Hotel banquet & catering bars
- Stadium or arena concession stands
Looking for a different capacity or circuit count? This series is also available in 66-, 80-, 120-, 140- and 167-lb models with 7- or 8-circuit cold plates—contact us for details.
