BK Resources UBB-18-IBCP30-10 Bar Equipment
Description
BK Resources Underbar Ice Bin with 10-Circuit Cold Plate – 80 lb Capacity
Model: UBB-18-IBCP30-10Keep cocktails flowing and soda lines ice-cold with this 30" wide underbar ice bin from BK Resources. The integrated 10-circuit aluminum cold plate chills up to ten beverage lines while the fully-insulated stainless-steel bin holds a generous 80 lbs of ice.
Key Features

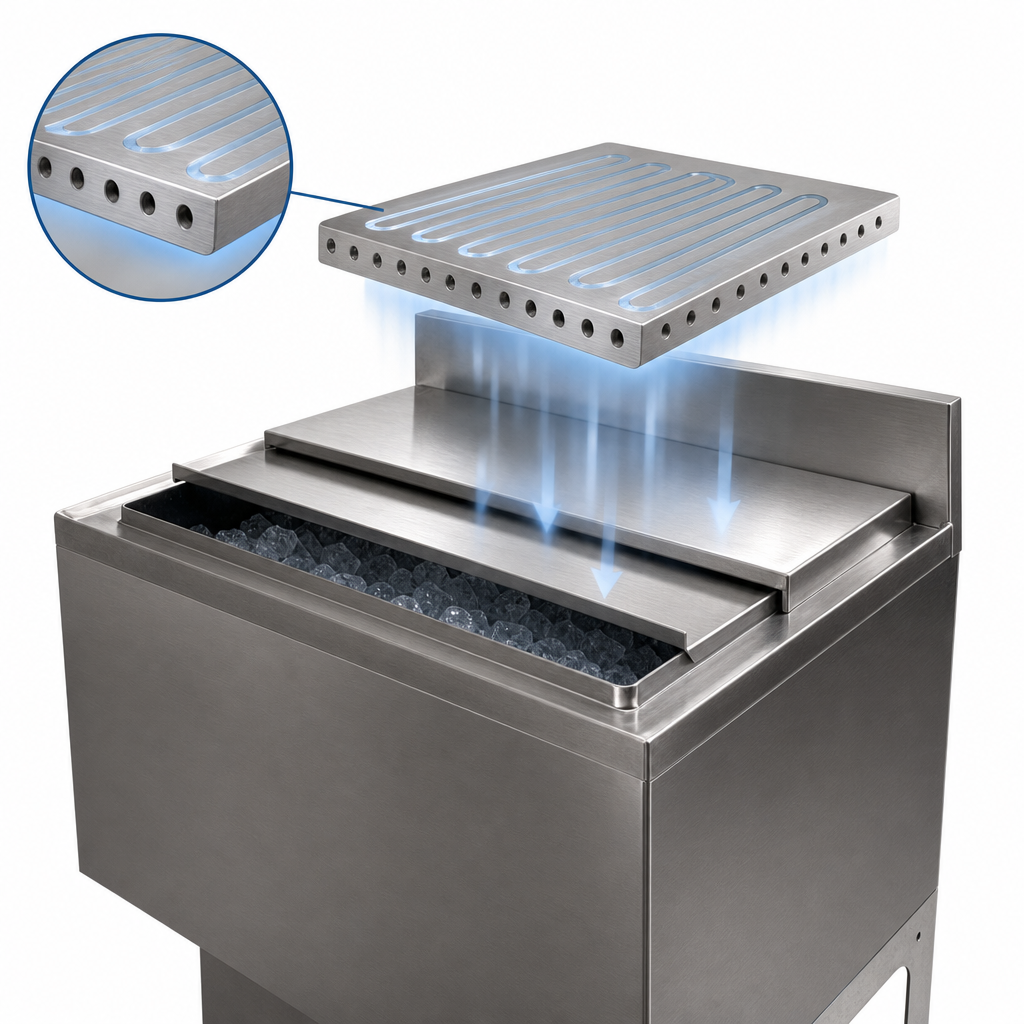

- 10-circuit cast aluminum cold plate for high-volume beverage service.

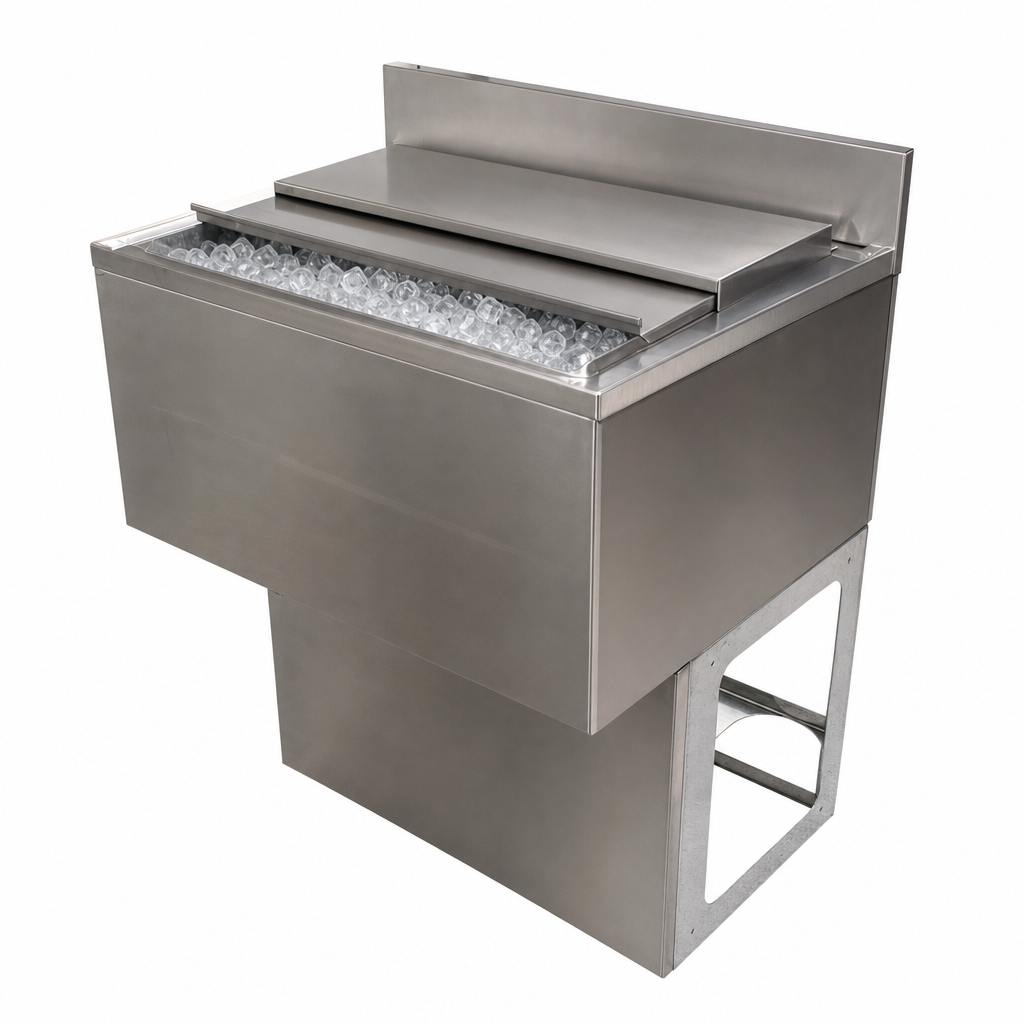

- 25" x 15" x 12-9/16" deep ice compartment stores 80 lbs of ice.
- T-304 18 ga stainless steel bin and lids resist corrosion and clean up fast.
- 4" stainless-steel backsplash protects surrounding surfaces from splashes.
- Stainless-steel sliding lid included to keep ice sanitary and meet health codes.
- 1/2" NPT center drain for rapid melt-water removal.
- Galvanized pedestal base with stainless front and removable access panel.
- NSF certified for food-safe performance.
At-a-Glance Specs
| Ice Storage Capacity | 80 lbs |
|---|---|
| Cold Plate | 10-circuit cast aluminum |
| Ice Bin Interior (L × W × D) | 25" × 15" × 12-9/16" |
| Overall Dimensions (L × W × H) | 30" × 18" × 34" |
| Work Height | 30" |
| Backsplash Height | 4" |
| Primary Materials | 18 ga T-304 stainless steel bin & lids; Galvanized pedestal base with stainless front |
| Drain | 1/2" NPT, centered |
| Certifications | NSF |
| Included | Stainless-steel sliding lid & drain fitting |
Part of BK Resources’ 18" deep underbar series — ideal for seamless line-ups with other BK underbar sinks, speed rails and glass racks.
