BK Resources UBB-18-IBCP24-8 Bar Equipment
Description

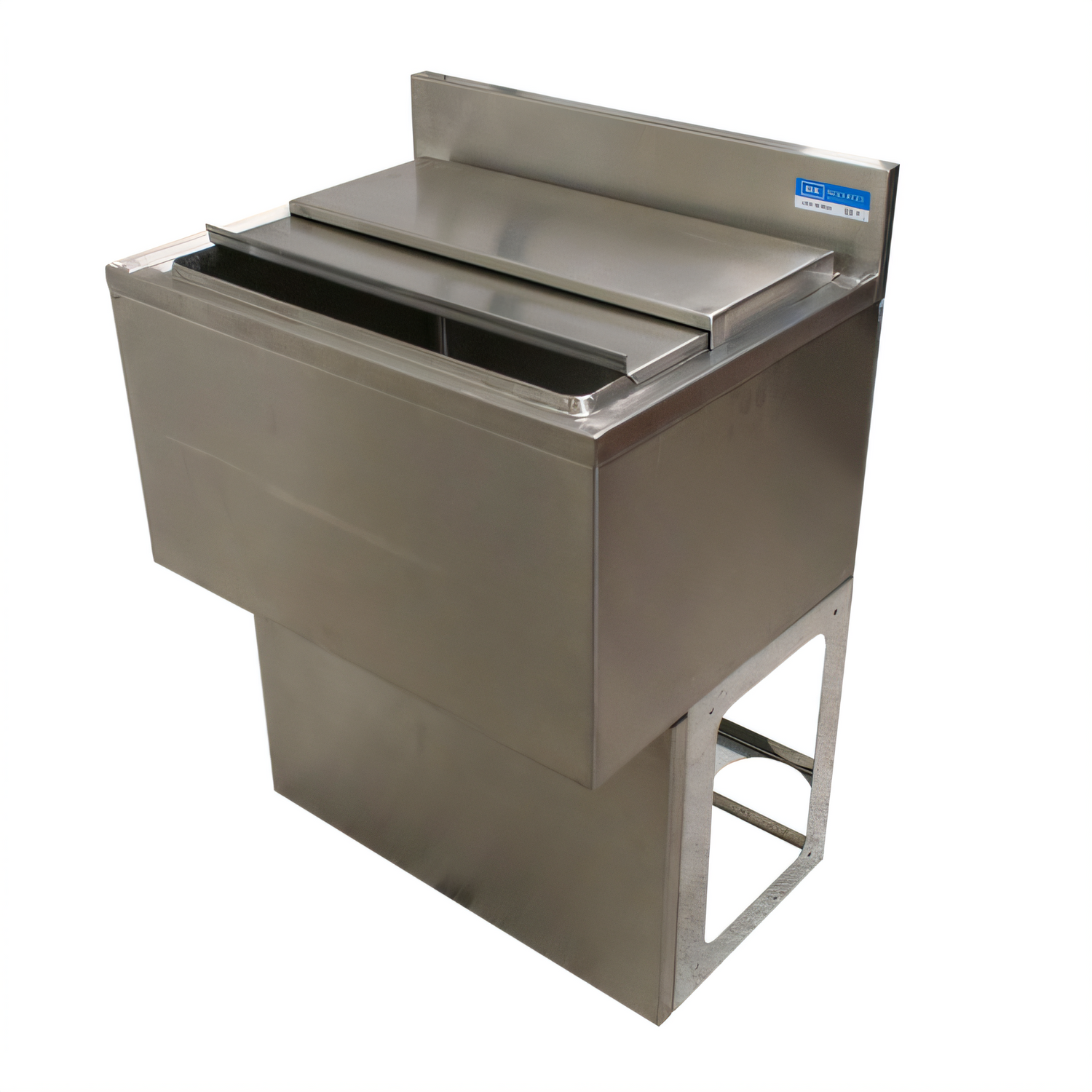

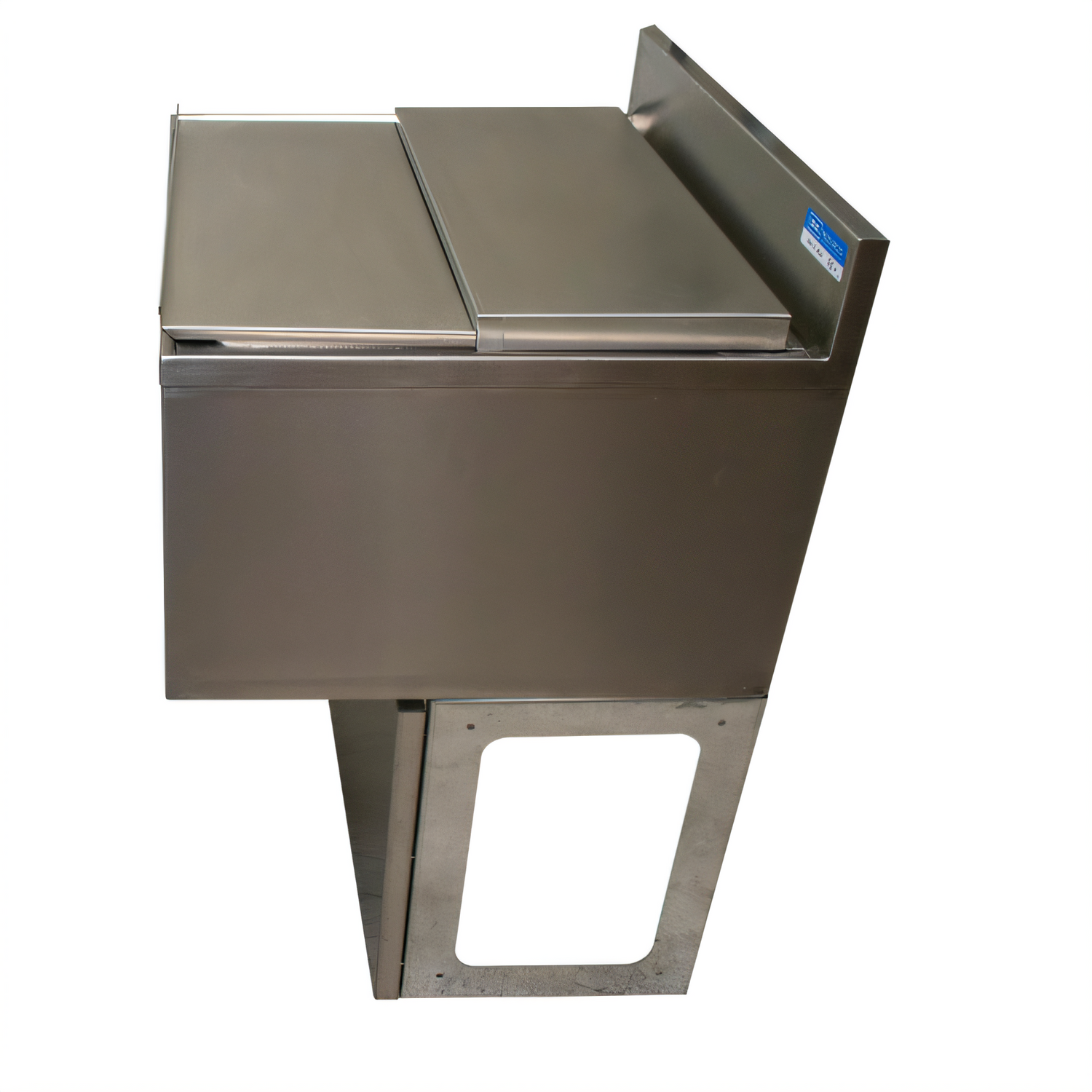

BK Resources Underbar Ice Bin with 8-Circuit Cold Plate
Model: UBB-18-IBCP24-8 | 66 lb Ice CapacityKeep cocktails ice-cold and fountain beverages perfectly chilled with this NSF-listed 24" underbar ice bin. Engineered for busy bars, the built-in 8-circuit aluminum cold plate lets you run up to eight soda lines directly through the ice—maximizing space and eliminating the need for a separate chiller.
Why You’ll Love It

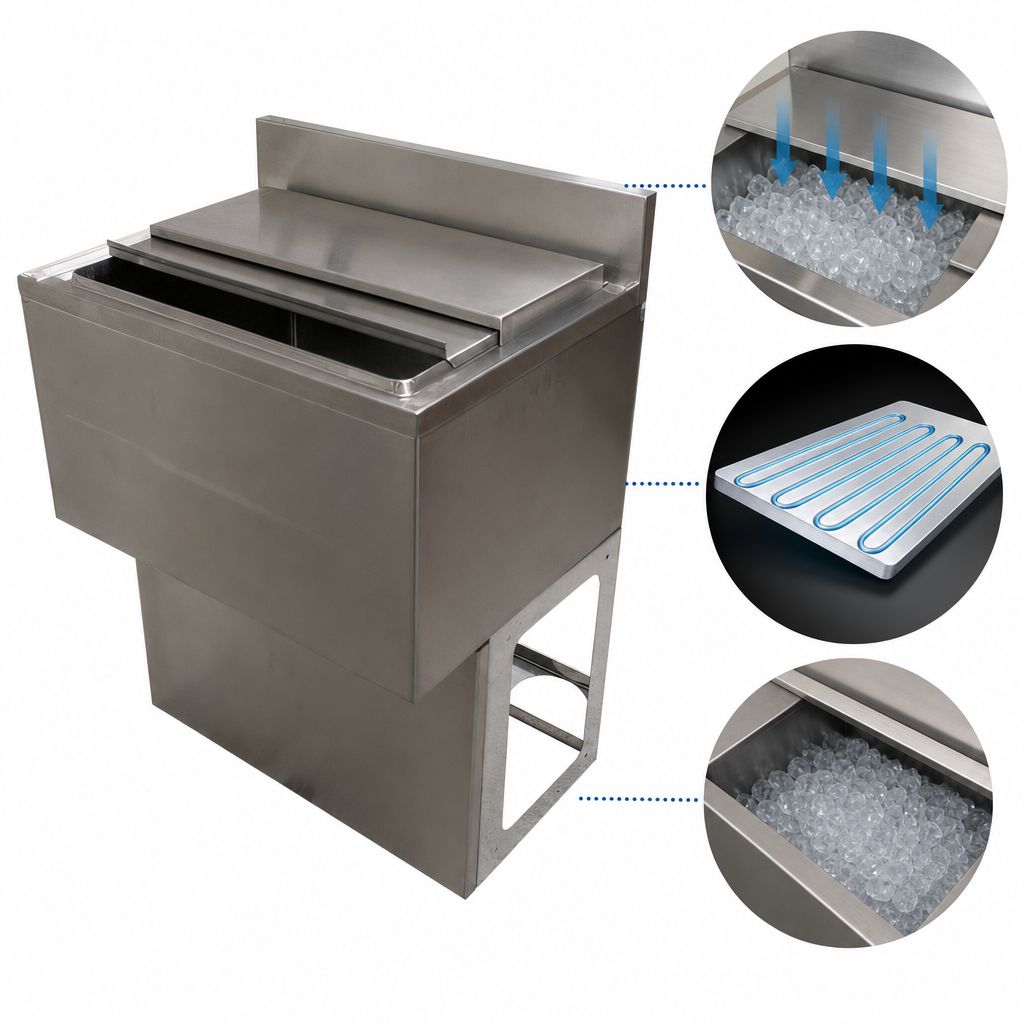

- Eight-Circuit Aluminum Cold Plate – Serve draft sodas at consistent, ice-cold temps.

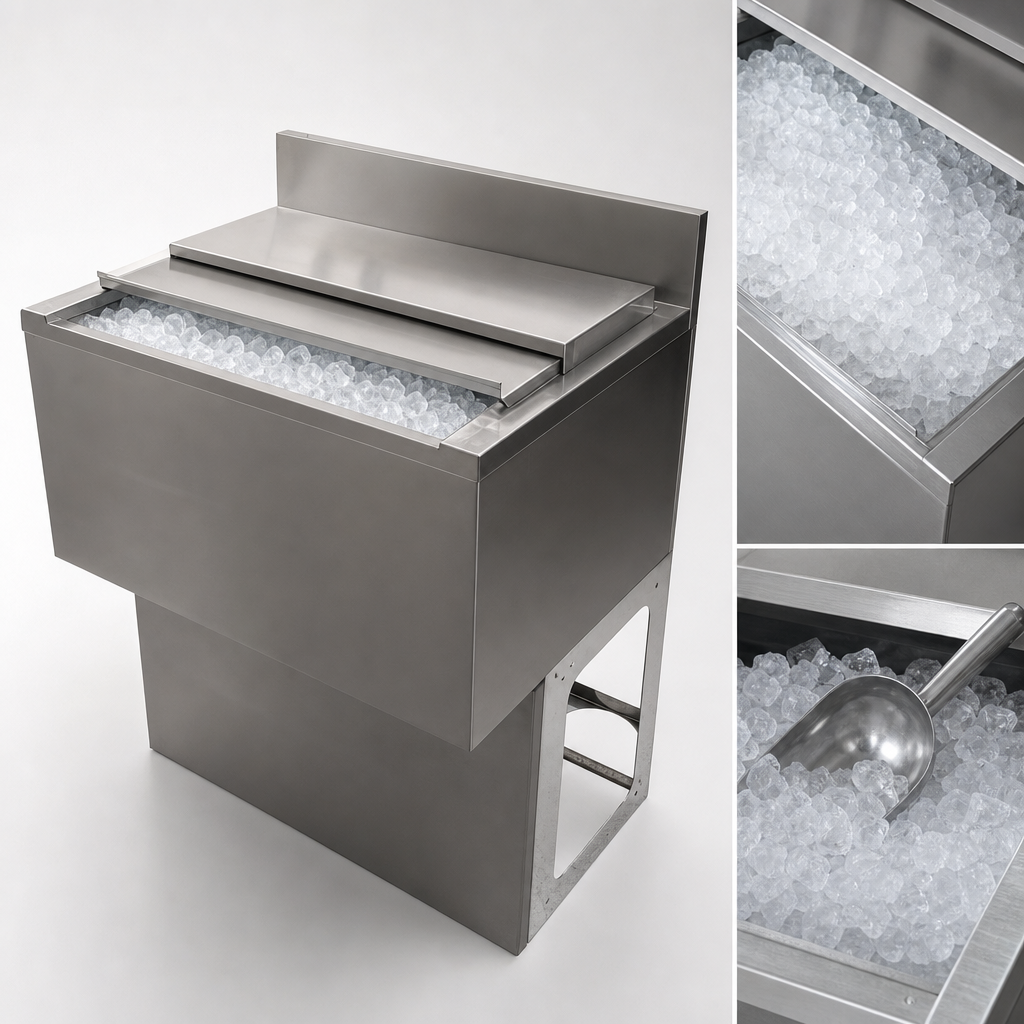

- High-Capacity, Insulated Bin – Holds 66 lb of ice in a 12-9/16" deep, fully foamed compartment.
- Food-Safe Stainless Steel – 18 ga, Type 304 construction resists corrosion and stands up to commercial wear.
- Space-Saving Pedestal Base – Raised design simplifies floor cleaning and provides rock-solid stability.
- Integrated 4" Backsplash – Protects walls from splashes while meeting health-code requirements.
- 1/2" NPT Drain – Quickly removes meltwater to keep ice fresher, longer.
- Included Hinged Lid – Shields ice from airborne contaminants; required for human consumption.
- NSF Certified – Meets strict sanitation standards for use in any commercial bar or restaurant.
Technical Specifications
| Ice Capacity | 66 lb (30 kg) |
|---|---|
| Cold Plate | 8 circuits, cast aluminum, factory installed |
| Ice Bin Interior (L × W × D) | 20 3/8" × 15" × 12 9/16" (517 mm × 381 mm × 320 mm) |
| Overall Dimensions (L × W × H) | 24" × 18" × 34" (610 mm × 457 mm × 864 mm) |
| Backsplash Height | 4" (102 mm) |
| Working Height | 30" (762 mm) |
| Construction | 18 ga Type 304 stainless steel; galvanized pedestal base with stainless front panel |
| Drain Size | 1/2" NPT |
| Certifications | NSF |
| Included | Stainless steel hinged lid, removable front panel, 1/2" drain fitting |
| Manufacturer Warranty | 1-Year Limited Parts & Labor |
Pro Installation Tips
- Position the pedestal on a level, non-combustible floor surface for optimal stability.
- Connect beverage tubing before loading ice to prevent melt-water infiltration.
- Use NSF-listed drain tubing and a floor sink to comply with local health codes.
Need a different size or circuit count? Browse the full BK Resources UBB series for capacities up to 167 lb.
