BK Resources  |  SKU: UBB-18-496TS

BK Resources UBB-18-496TS Bar Equipment

$1,982.97
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources Slim-Line 96" 4-Compartment Underbar Sink with Dual 25" Drainboards

Model UBB-18-496TS | NSF Certified T-304 Stainless Steel

Create a complete wash-rinse-sanitize station without eating up valuable bar real estate. This 96" Slim-Line underbar sink fits four deep compartments and generous drainboards into an ultra-compact 18-1/4" depth—ideal for tight back-of-house aisles, cocktail stations or mobile bars.

Key Features

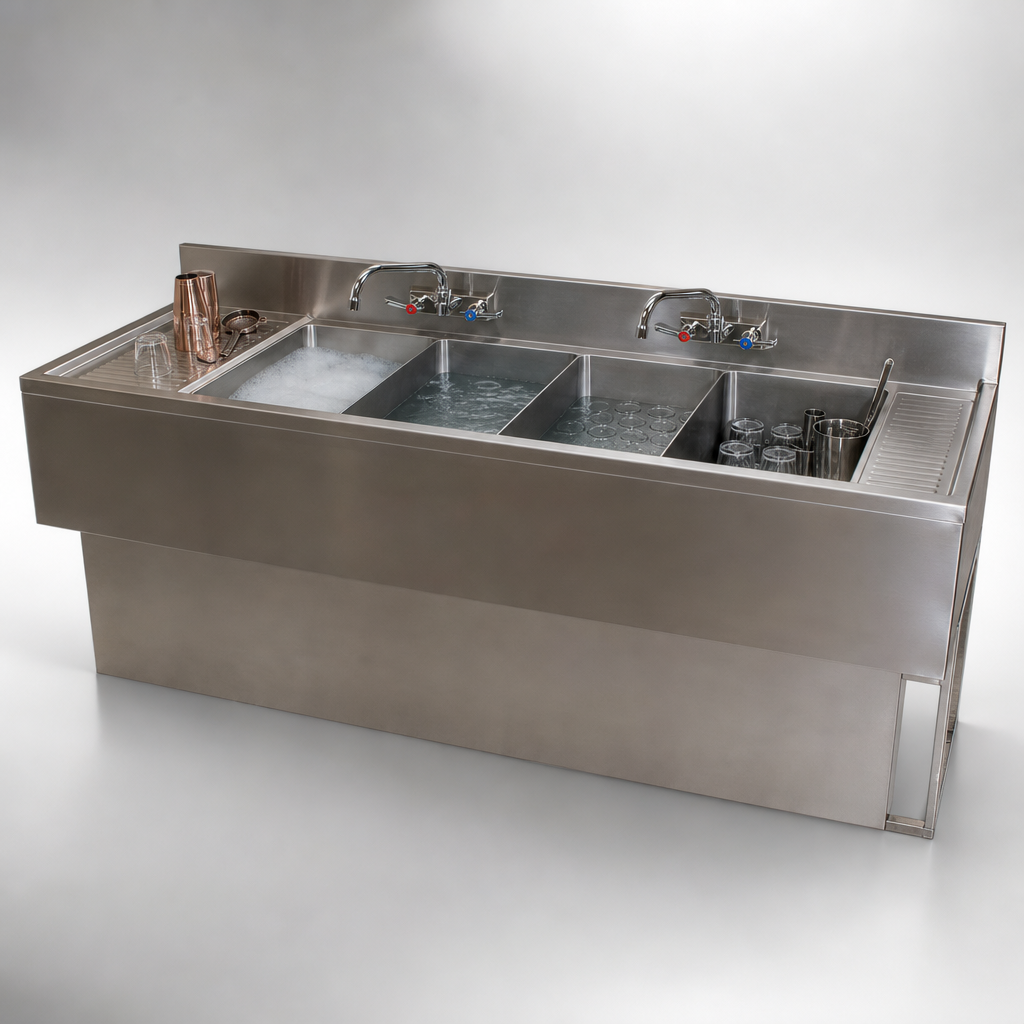

  • Four integrally welded bowls – 10" W x 14" F/B x 10" D each

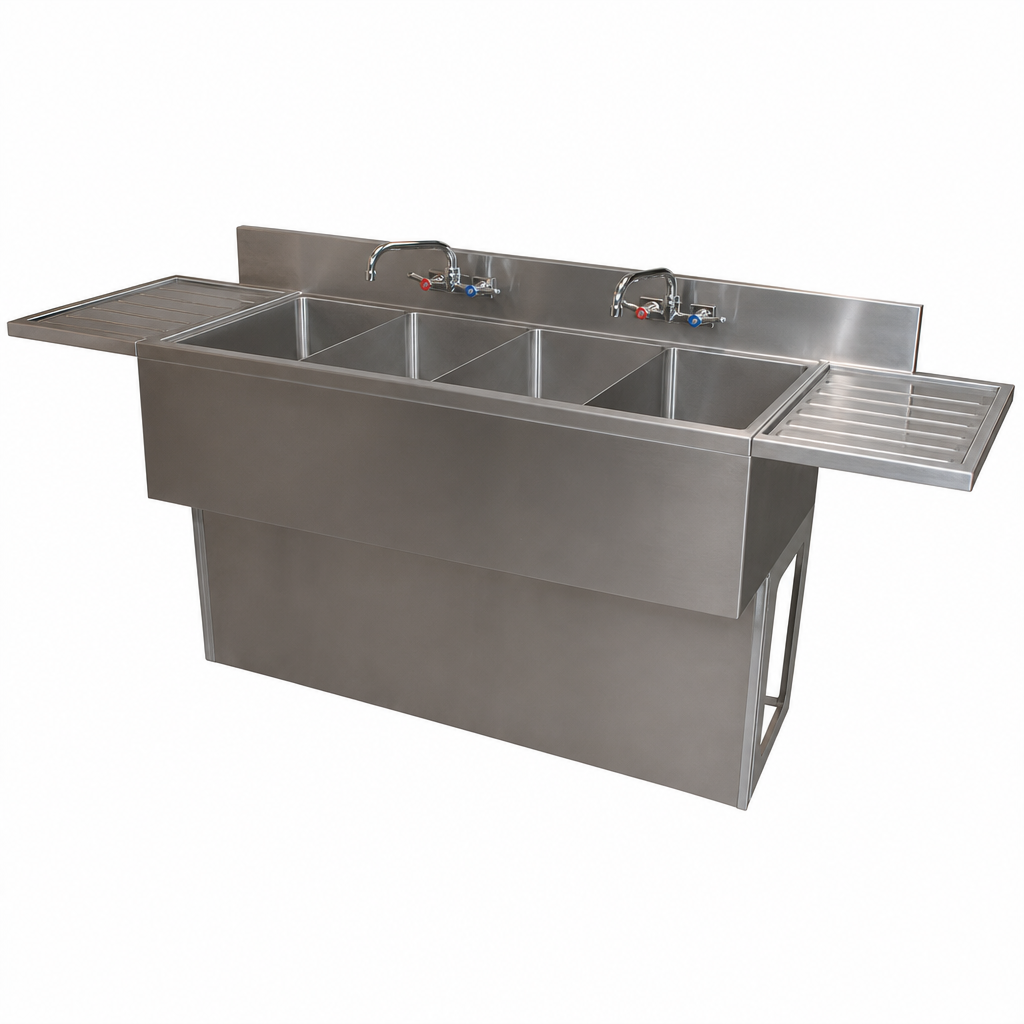

  • (2) 25" stamped & pitched drainboards (left & right) for efficient glass drying
  • 4-1/2" high backsplash with 4" on-center faucet punchings
  • (2) BKF-W2-10-G lead-free splash-mount gooseneck faucets included
  • Basket drains (BKDR-2) & 7" removable overflow standpipes (BK-OT-15075) included
  • 18-ga, type 304 stainless steel top, bowls & apron; galvanized pedestal base with removable SS front panel
  • Space-saving 18-1/4" depth & comfortable 30" work height
  • NSF listed & lead-free compliant

Perfect For

  • High-volume bars, taprooms & nightclubs
  • Coffee shops, juice & smoothie bars
  • Catering kitchens & event venues
  • Concession stands & stadium suites

Specifications

Overall dimensions 96" W x 18-1/4" D x 33-1/2" H (30" work height)
Compartment size (each) 10" W x 14" F/B x 10" D
Number of compartments 4
Drainboards (2) 25" L – stamped, pitched toward bowls
Backsplash 4-1/2" H with 2" return
Faucets (2) BKF-W2-10-G, 4" O.C. splash-mount, 10" gooseneck spout
Material 18-ga, type 304 stainless steel (bowls, top & apron)
Base Pedestal style, galvanized frame w/ removable stainless front panel
Drains 1-1/2" IPS basket drains with crumb cup (BKDR-2)
Overflow 7" removable standpipes (BK-OT-15075)
Certifications NSF, Lead-Free compliant
Shipping weight ≈ 125 lb (crated)
Special order: This sink is built to order and is non-cancelable & non-returnable once production begins. Verify dimensions and local code requirements before purchasing.

Need a different size or pre-plumbed battery? Chat with us—our team can source any BK Resources underbar solution.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Top Stainless Series

300 series

Depth (front - back) OA

18" - 19"

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Splash

4"

Sink Compartments

(4)

Drainboards

drainboards on left & right

Construction

stainless steel top, front, ends & legs

Width (side - side) OA

91" - 96"

Specifications

Slim-Line Underbar Sink, four compartment, 96”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 25" stamped drainboards, 4-1/2"H backsplash, (2) 4" OC splash mount lead-free faucets (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, pedestal base, NSF
