BK Resources  |  SKU: UBB-18-348RS

BK Resources UBB-18-348RS Bar Equipment

$1,312.74
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

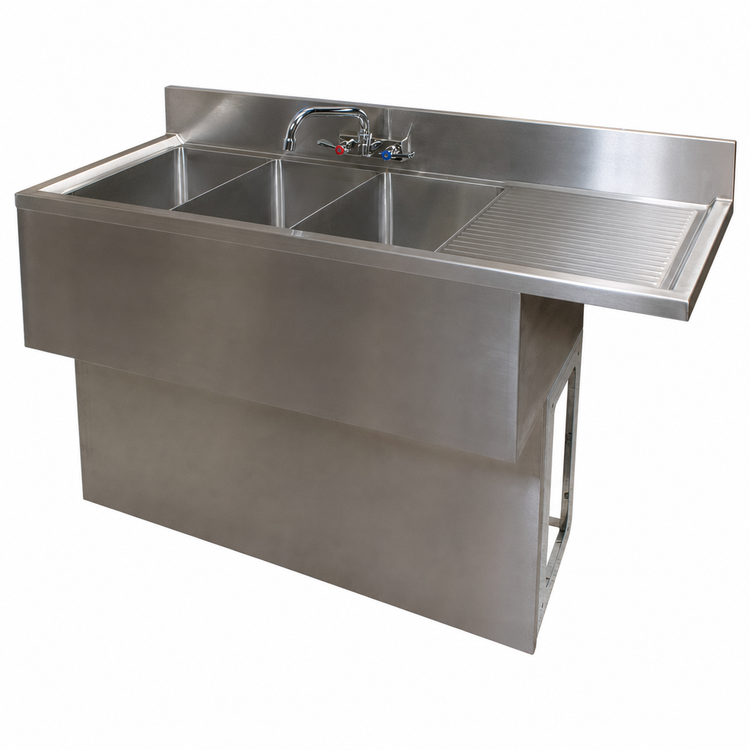

BK Resources UBB-18-348RS Slim-Line 3-Compartment Underbar Sink

48" W x 18-1/4" D, right-hand drainboard, faucet & accessories included

Designed for high-volume bar and beverage programs that refuse to compromise on usable space, the BK Resources Slim-Line underbar series delivers full-size performance in a compact 18-1/4" footprint. Built from heavy-duty 18 ga. type 304 stainless steel and supplied with everything you need to plumb and pass health inspection, this unit arrives ready to drop in, hook up and get to work.

Why You’ll Love It

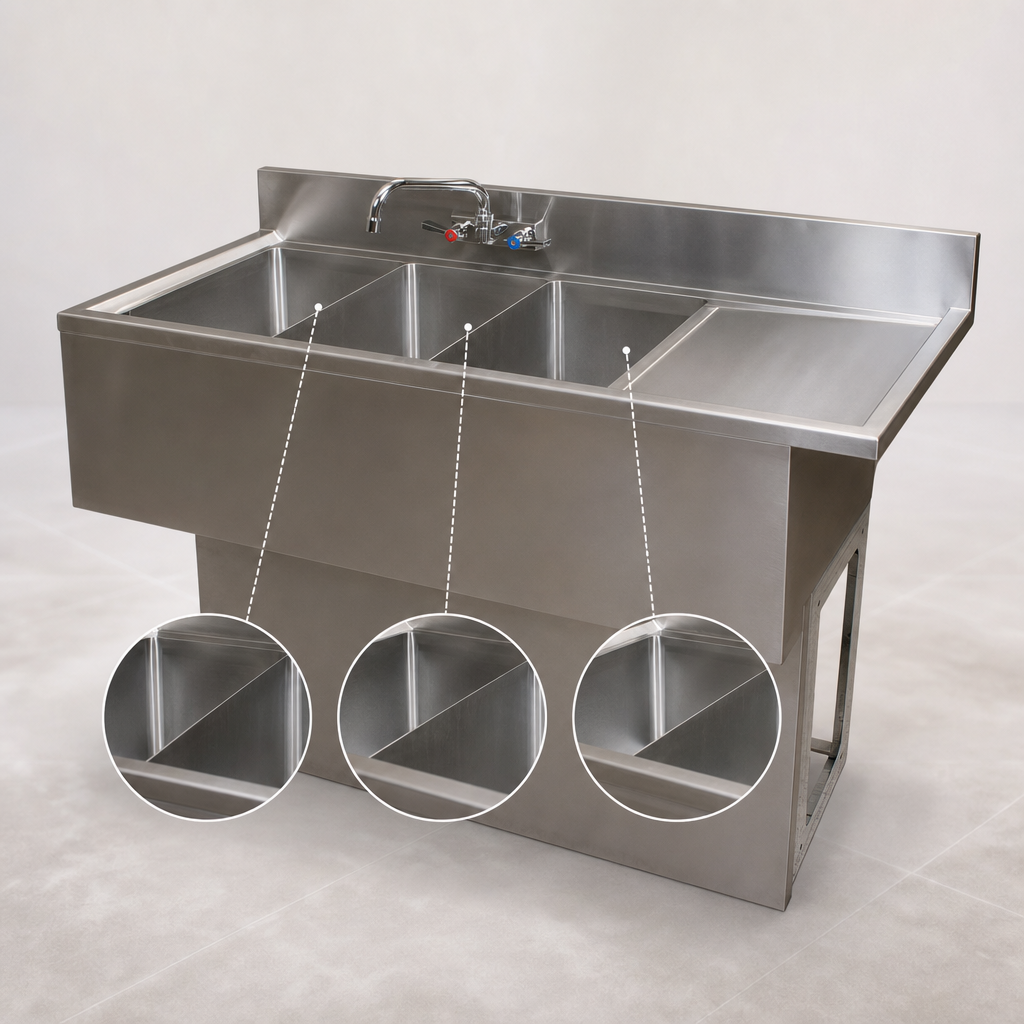

  • Three integrally-welded sink bowls: 10" W × 14" F-B × 10" D – perfect for wash, rinse & sanitize.

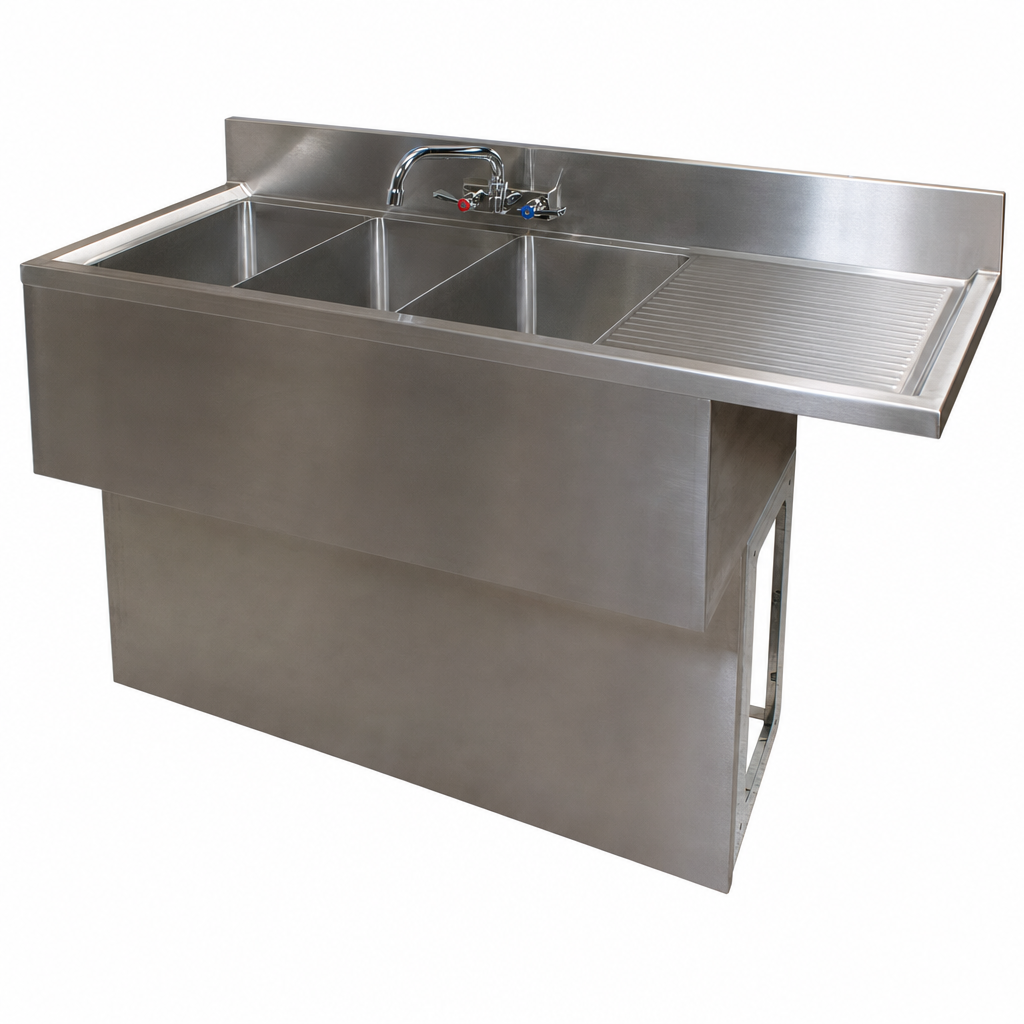

  • Stamped & pitched right-side drainboard (13-5/8") keeps glassware safely draining and off your worktop.
  • 4-1/2" backsplash with pre-drilled 4" on-center faucet holes for a clean, code-compliant install.
  • Lead-free splash-mount faucet included (BKF-W2-10-G) for immediate hook-up.
  • Basket drains (BKDR-2) and 7" removable overflow standpipes (BK-OT-15075) eliminate extra purchase steps.
  • Stainless steel front & side aprons plus a galvanized pedestal base for long-term durability.
  • NSF-listed for regulated food-service use.

At-a-Glance Specs

Brand / Model BK Resources – UBB-18-348RS
Overall Dimensions 48" W × 18-1/4" D × 33-1/2" H (work height)
Number of Compartments 3
Compartment Size (each) 10" W × 14" Front-to-Back × 10" Deep
Drainboard Right side, 13-5/8" L, stamped & pitched
Backsplash Height 4-1/2" with 4" O.C. holes
Included Faucet BKF-W2-10-G lead-free 4" O.C. splash-mount gooseneck
Included Drain Accessories (3) BKDR-2 basket drains  •  (3) BK-OT-15075 7" standpipes
Construction 18 ga. Type 304 stainless steel; galvanized pedestal base
Front / Side Panels Stainless steel removable apron
Certifications NSF
Ships From Altamont, IL USA

Faucet, drains and standpipes ship loose for field installation. Supply lines and waste plumbing not included. Always verify local code requirements before installation.

Made-to-Order: This slim-line configuration is built to order and is non-cancellable / non-returnable once production begins. Please double-check dimensions and specifications before purchasing.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Bowl Size

10" x 14" front-to-back

Bowl Depth (rim - drain)

10"

Width (side - side) OA

43" - 48"

Top Stainless Series

300 series

Drainboards

drainboard on right

Sink Compartments

(3)

Depth (front - back) OA

18" - 19"

Splash

4"

Construction

stainless steel top, front, ends & legs

Specifications

Slim-Line Underbar Sink, three compartment, 48”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 13-5/8” stamped drainboard on right, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, pedestal base, NSF
