BK Resources  |  SKU: UBB-18-348LS

BK Resources UBB-18-348LS Bar Equipment

$1,258.28
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources Slim-Line 48" 3-Compartment Underbar Sink – Left Drainboard

Model UBB-18-348LS | 18 ga 304 Stainless Steel | NSF Listed

Engineered for high-volume bars and tight prep areas, this Slim-Line sink packs three full-depth bowls, a pitched drainboard and a complete faucet & drain kit into a narrow 18-1/4" footprint—giving you the workflow you need without sacrificing valuable underbar space.

Key Features

  • Space-saving 48" W × 18-1/4" D slim-line profile.

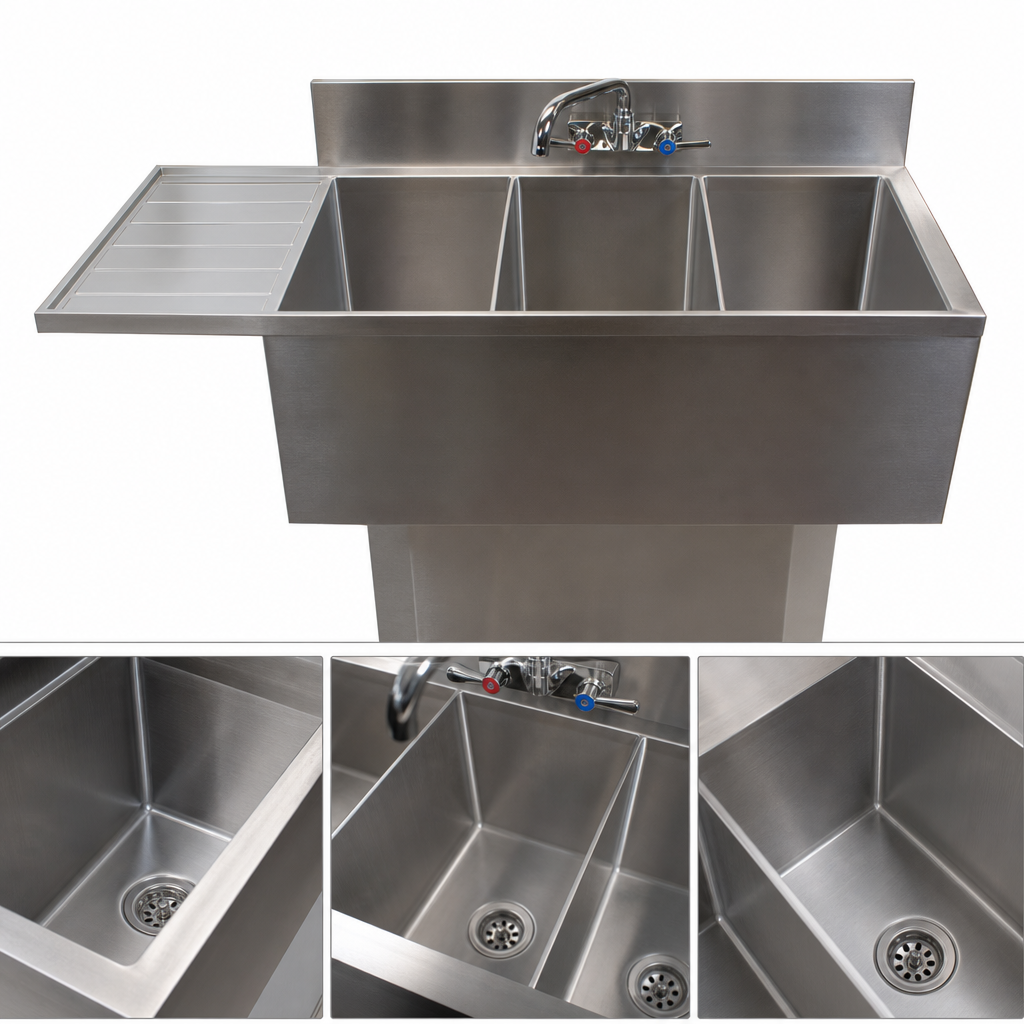

  • Three integrally welded bowls (10" W × 14" F-B × 10" D) for dedicated wash, rinse & sanitize stations.

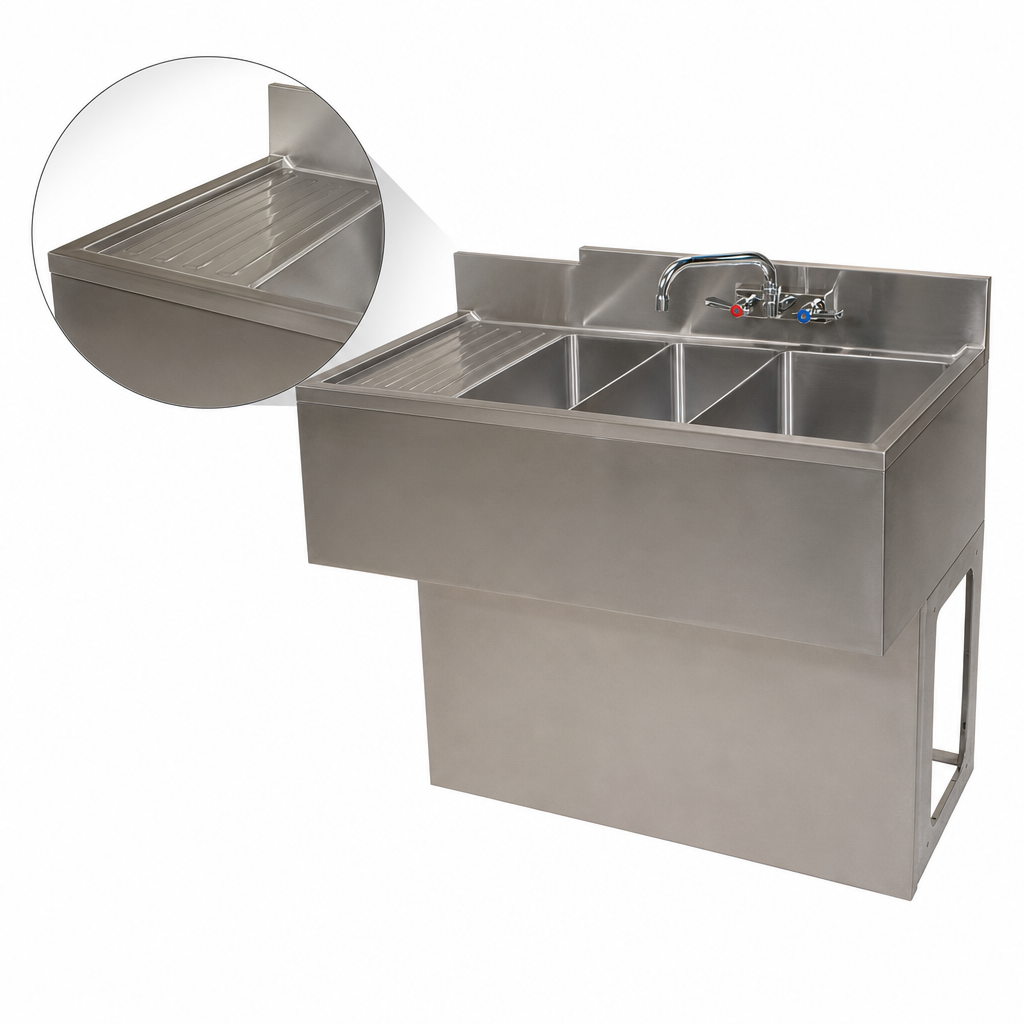

  • 13-5/8" stamped & pitched left-hand drainboard speeds drying and keeps countertops clear.
  • 4-1/2" backsplash with 4" on-center holes and included BKF-W2-10-G lead-free splash-mount faucet (10" gooseneck spout).
  • Heavy-duty 18 ga, type 304 stainless steel construction—corrosion-resistant and easy to clean.
  • Stainless steel apron on front & sides with pedestal base; removable front panel for quick plumbing access.
  • Complete drain kit: (2) BKDR-2 basket drains & (3) 7" BK-OT-15075 removable overflow standpipes.
  • NSF certified for food-service sanitation; lead-free components for potable water safety.

Specifications

Manufacturer BK Resources
Series / Model Slim-Line Underbar – UBB-18-348LS
Compartments 3
Bowl Size (each) 10" W × 14" F-B × 10" D
Overall Dimensions 48" W × 18-1/4" D × 33-1/2" H (30" work height + 4-1/2" backsplash)
Drainboard 13-5/8" L, left side, stamped & pitched
Backsplash 4-1/2" H with 1" return
Faucet Included BKF-W2-10-G, 4" OC splash-mount, 10" gooseneck spout (lead-free)
Drains (2) BKDR-2 basket drains, 1-1/2" NPS
Overflow Tubes (3) BK-OT-15075 removable 7" standpipes
Material & Gauge 18 ga, 304 stainless steel
Base Style Pedestal with removable stainless front panel
Certifications NSF, Lead-Free
Warranty 1-year limited manufacturer warranty

Need a right-hand drainboard or a different size? Chat with us—we’re an authorized BK Resources dealer and can source any model in the Slim-Line series.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Bowl Depth (rim - drain)

10"

Width (side - side) OA

43" - 48"

Drainboards

drainboard on left

Bowl Size

10" x 14" front-to-back

Sink Compartments

(3)

Depth (front - back) OA

18" - 19"

Top Stainless Series

300 series

Construction

stainless steel top, front, ends & legs

Splash

4"

Specifications

Slim-Line Underbar Sink, three compartment, 48”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 13-5/8” stamped drainboard on left, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, pedestal base, NSF
