BK Resources  |  SKU: UBB-18-336S

BK Resources UBB-18-336S Bar Equipment

$1,118.69
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

BK Resources Slim-Line 3-Compartment Underbar Sink – 36 in.

Includes faucet, basket drains & overflow standpipes

Pack more productivity into tight bar or prep areas with BK Resources’ Slim-Line underbar sink. The 36 in. model delivers three fully welded 10 × 14 × 10 in. bowls, a splash-mount faucet, and all required plumbing accessories—ready to drop in and get to work.

Key Features
  • Space-saving 36" W × 18 ¼" D footprint – perfect for back-bar and food-truck layouts.

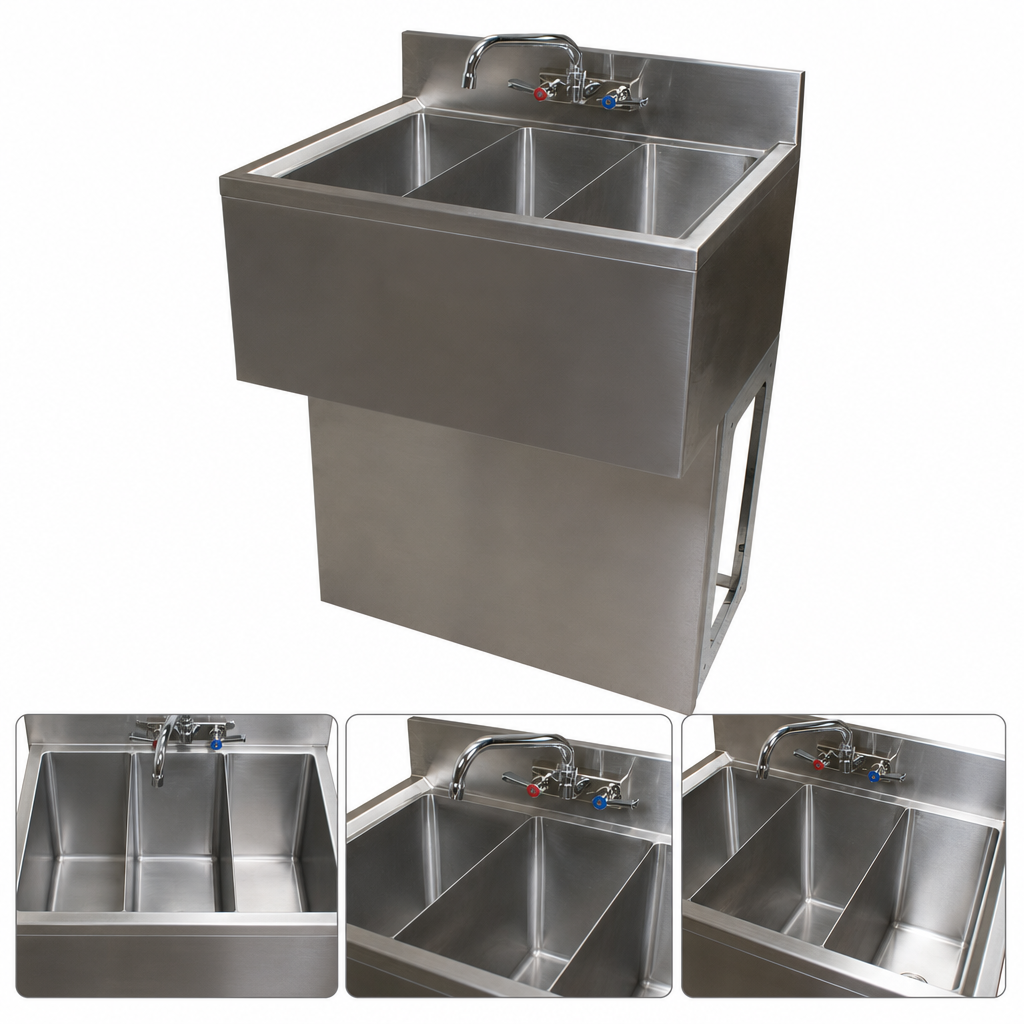

  • (3) 10" W × 14" F/B × 10" D integrally welded bowls for wash, rinse & sanitize.
  • 18 ga, Type 304 stainless steel construction with removable front & side apron.
  • 4 ½" backsplash with factory-punched 4" O.C. holes and included lead-free faucet (BKF-W2-10-G).
  • Complete plumbing kit: (3) BKDR-2 basket drains and (3) 7" BK-OT-15075 overflow standpipes.
  • Pedestal base keeps the floor clear for easy cleaning and unobstructed storage.
  • NSF listed – compliant with health-department three-sink ware-washing rules.
Specifications
Manufacturer BK Resources
Series / Part No. Slim-Line • UBB-18-336S
Overall dimensions 36" W × 18 ¼" D × 33 ½" H (to work surface)
Backsplash height 4 ½"
Bowl count & size (3) – 10" W × 14" F/B × 10" D
Material / gauge 18 ga Type 304 stainless steel
Faucet BKF-W2-10-G, 4" on-center, lead-free, splash mount
Drains (3) BKDR-2 basket drains, 2" outlet
Overflow tubes (3) BK-OT-15075 removable 7" standpipes
Base style Pedestal with stainless front panel (removable)
Certifications NSF
Perfect For
  • High-volume bars needing a full three-sink setup without sacrificing counter space
  • Cocktail stations and beer tap areas
  • Food trucks, kiosks, and concession stands
  • Compact prep rooms or satellite kitchens

Looking for matching drainboards or a different length? Chat with us—we stock the entire BK Resources Slim-Line series.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Top Stainless Series

300 series

Width (side - side) OA

31" - 36"

Sink Compartments

(3)

Bowl Size

10" x 14" front-to-back

Splash

4"

Depth (front - back) OA

18" - 19"

Bowl Depth (rim - drain)

10"

Construction

stainless steel top, front, ends & legs

Drainboards

without drainboards

Specifications

Slim-Line Underbar Sink, three compartment, 36”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, pedestal base, NSF
