Description

Slim-Line 48" Two-Compartment Underbar Sink

BK Resources • Model UBB-18-248TS • NSF Certified

Bring high-volume cleanup to tight bar stations with the BK Resources Slim-Line underbar sink. Its 18-1/4" slim depth tucks neatly into standard bar lines while dual drainboards, deep welded bowls and a lead-free faucet arrive ready for service right out of the box.

Key Features

  • Space-saving footprint: 48" W x 18-1/4" D x 33-1/2" H overall.

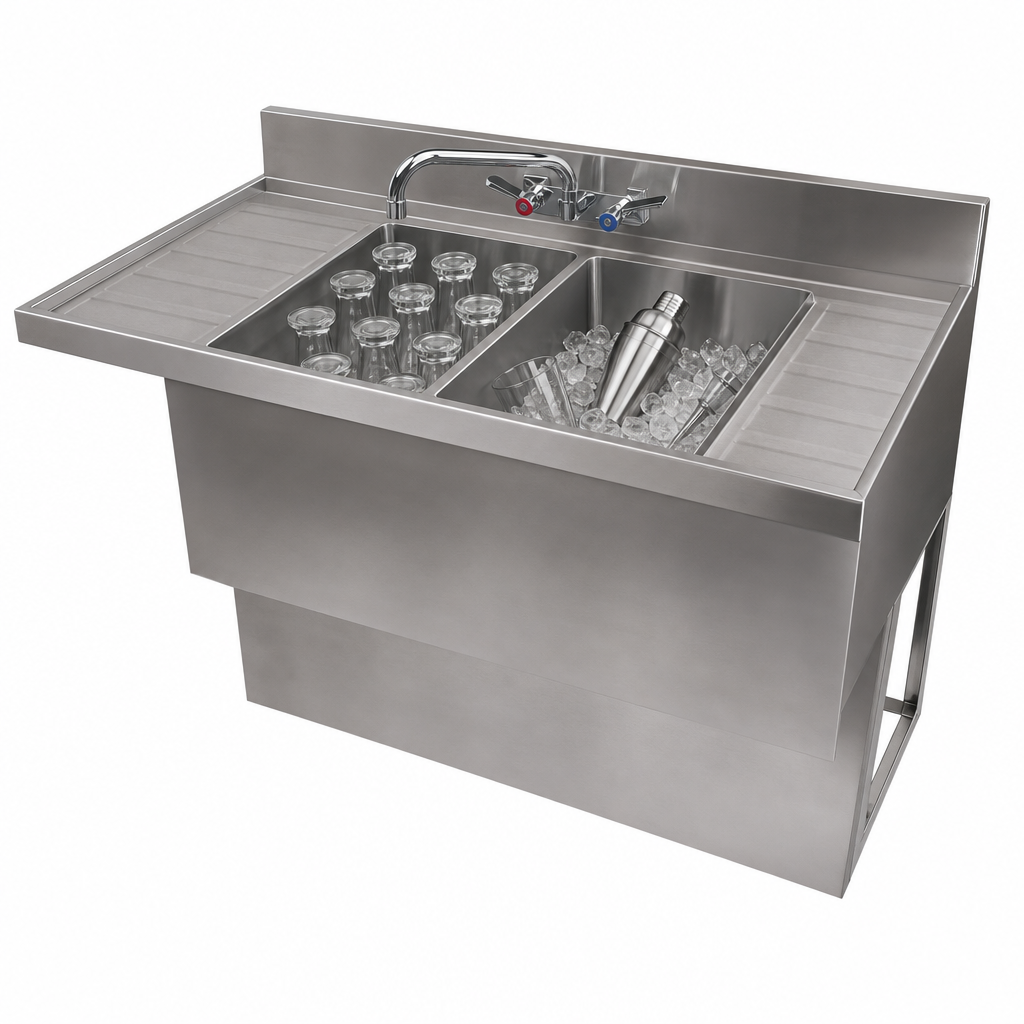

  • (2) integrally welded 10" W x 14" F-B x 10" D bowls handle high glassware volume.

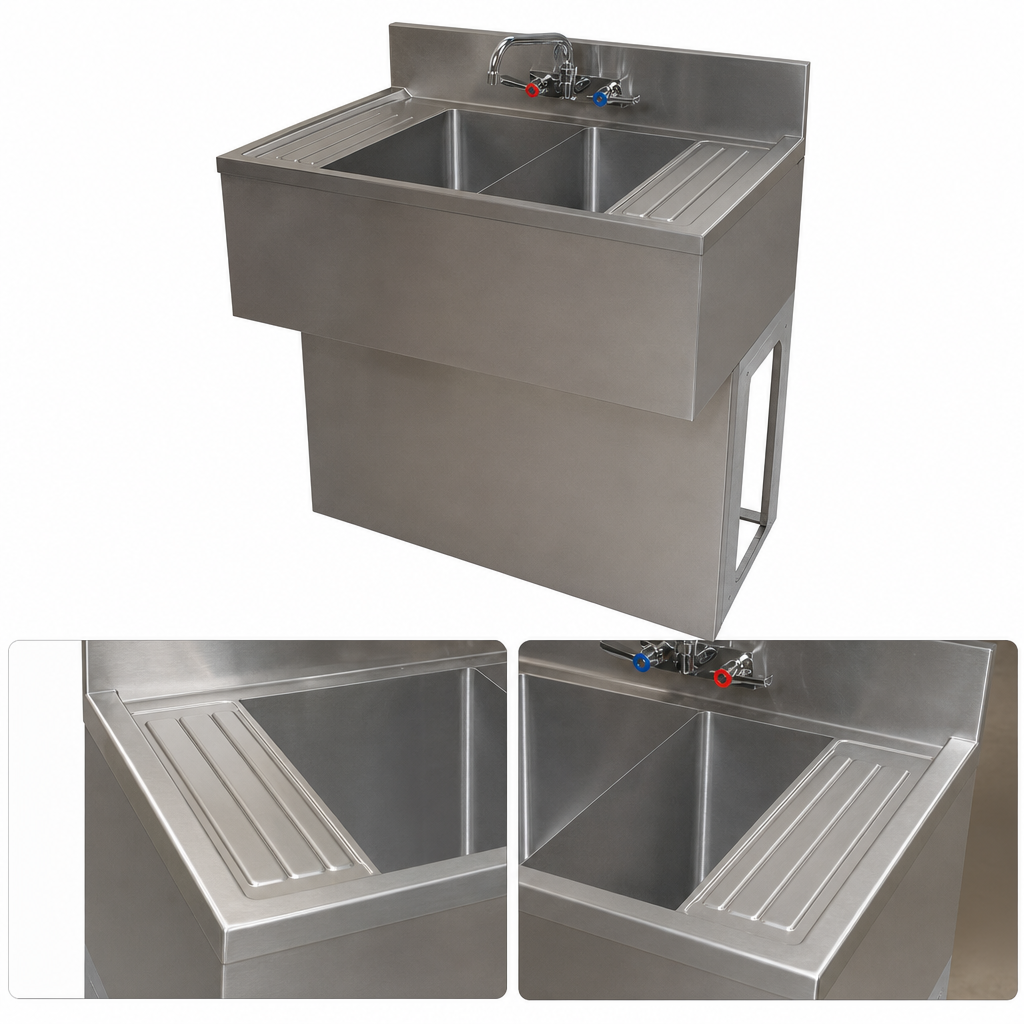

  • (2) 13-3/16" stamped & pitched drainboards (left and right) speed drying and direct runoff.
  • 4-1/2" backsplash with 4" on-center splash-mount faucet holes.
  • Includes BKF-W2-10-G lead-free faucet with 10" gooseneck spout.
  • Basket drains (BKDR-2)  +  7" removable overflow standpipes (BK-OT-15075) included.
  • 18-gauge, 304 stainless steel bowls, deck and backsplash for superior corrosion resistance.
  • Stainless steel front/side aprons; galvanized pedestal base with removable front panel for easy plumbing access.
  • NSF listed for commercial foodservice use.

Specifications

Overall width 48 in (1219 mm)
Overall depth 18-1/4 in (464 mm)
Work height 30 in to deck / 33-1/2 in to top of backsplash
Compartments 2
Bowl size (each) 10 in W × 14 in F-B × 10 in D
Drainboard size (2) 13-3/16 in L (left & right)
Backsplash height 4-1/2 in
Faucet centers 4 in on-center
Included faucet BKF-W2-10-G lead-free, 10" spout
Included drains (2) BKDR-2 basket drains
Overflow tubes (2) BK-OT-15075, 7 in removable stainless
Material 18 ga 304 stainless steel
Base Pedestal with removable SS front panel
Certifications NSF

Looking for matching speed rails, ice bins or custom bar layouts? Contact our team for package pricing and design assistance.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Top Stainless Series

300 series

Width (side - side) OA

43" - 48"

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Splash

4"

Depth (front - back) OA

18" - 19"

Sink Compartments

(2)

Construction

stainless steel top, front, ends & legs

Drainboards

drainboards on left & right

Specifications

Slim-Line Underbar Sink, two compartment, 48”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 13-3/16" stamped drainboards, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, pedestal base, NSF
