Description

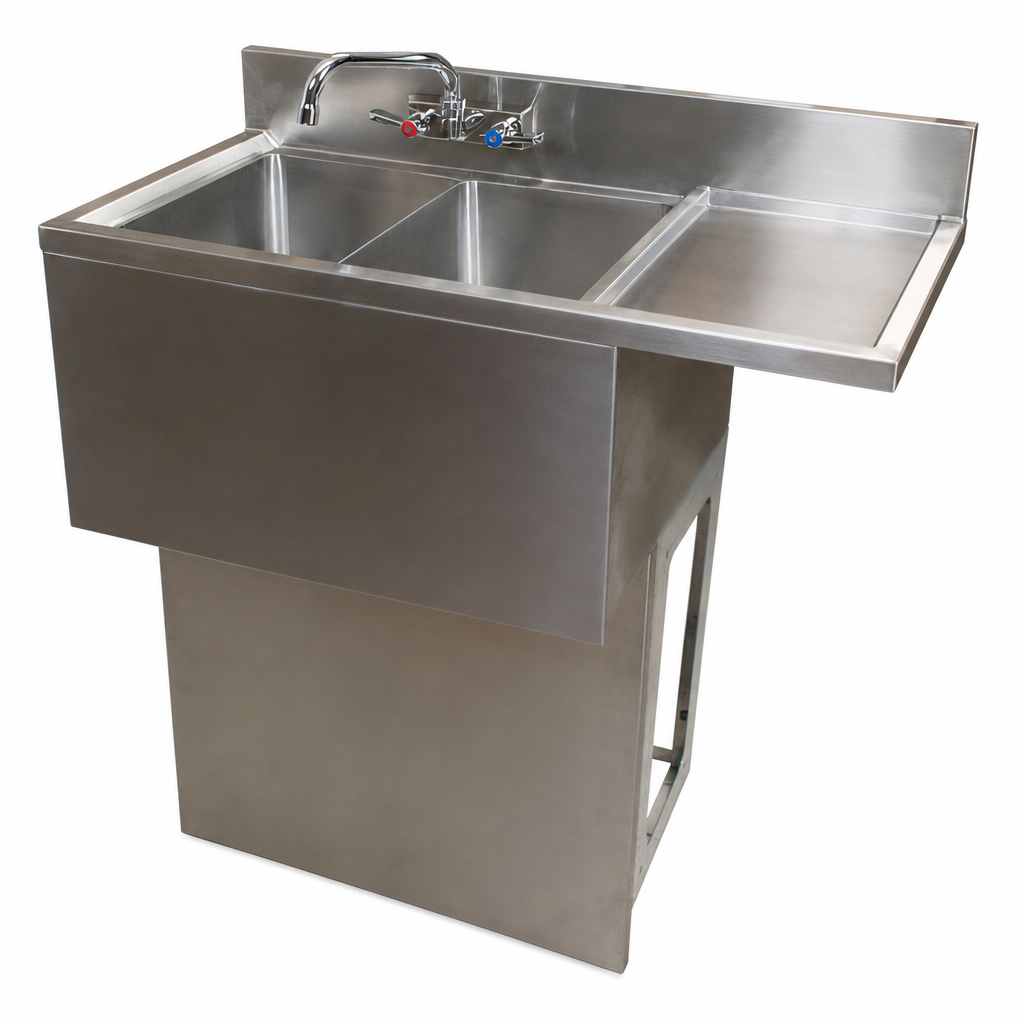

BK Resources Slim-Line 36″ Underbar Sink – 2 Compartment, Right Drainboard

Model UBB-18-236RS | NSF Certified 18 ga 304 Stainless Steel

Engineered for busy bars and beverage stations with limited space, this Slim-Line sink delivers full-size performance in a compact 18-¼″ footprint. Two deep welded bowls, a right-side stamped drainboard, and all required plumbing accessories arrive ready to install—saving you time, labor, and headaches.

Why You’ll Love It

  • Space-saving Slim-Line design: only 18-¼″ front-to-back.
  • (2) 10″ × 14″ × 10″ deep welded compartments handle glassware, bar utensils, and prep tasks.

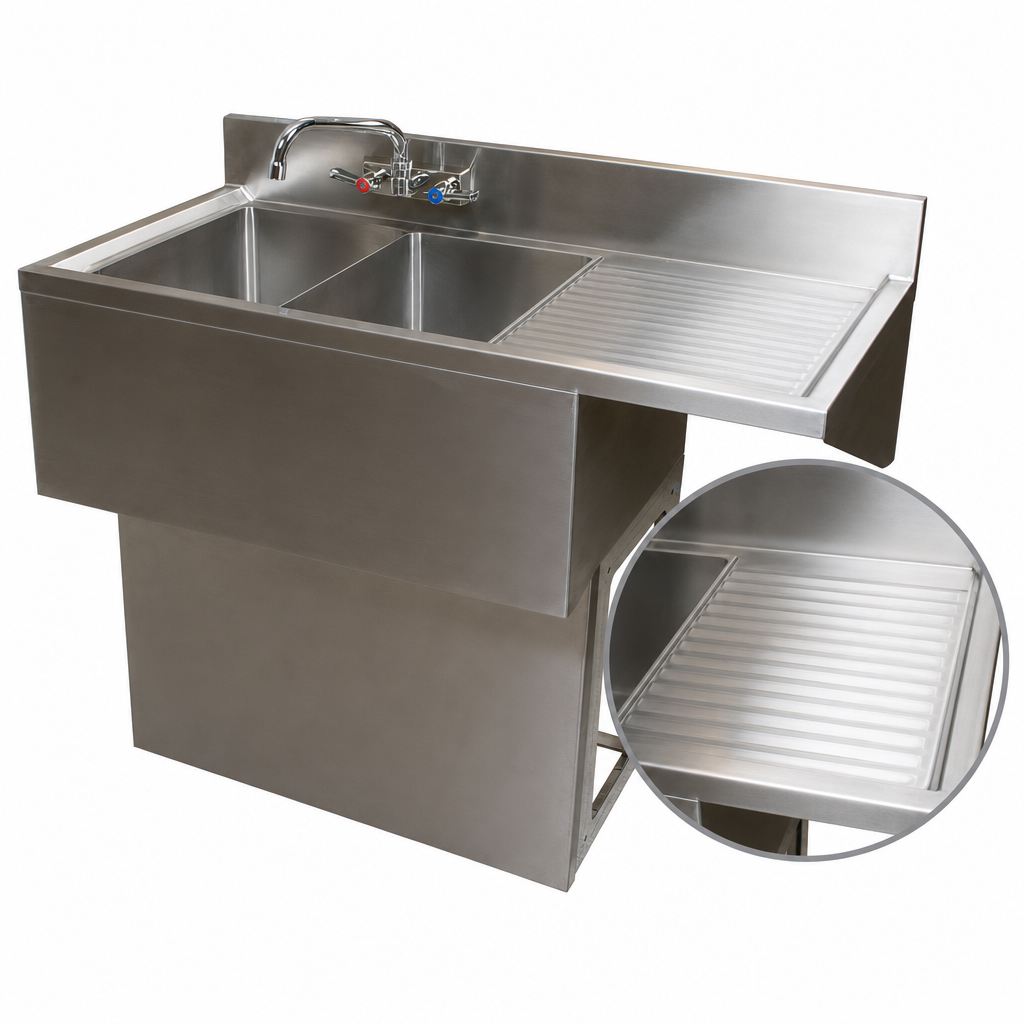

  • 12-¾″ right-hand stamped & pitched drainboard speeds drying and keeps counters clear.
  • 4-½″ integral backsplash with 4″ on-center faucet holes protects surrounding surfaces.
  • Includes lead-free splash-mount faucet (BKF-W2-10-G) for code compliance right out of the box.
  • Kit comes complete with (2) BKDR-2 basket drains and (2) 7″ BK-OT-15075 removable overflow standpipes.
  • All-around 18 ga 304 stainless steel—including front & side aprons—for superior corrosion resistance.
  • Pedestal base maximizes under-sink clearance for plumbing and easy floor cleaning.
  • NSF listed for safe, sanitary commercial use.

Technical Specifications

Model / Part No. UBB-18-236RS
Overall Size (W × D × H) 36″ × 18-¼″ × 33-½″
Compartments 2 bowls, each 10″ W × 14″ F-B × 10″ D
Drainboard 12-¾″ right side, stamped & pitched
Backsplash 4-½″ high with 4″ on-center faucet holes
Included Faucet BKF-W2-10-G lead-free splash-mount, 4″ OC
Included Drains (2) BKDR-2 basket drains
Overflow Tubes (2) 7″ BK-OT-15075 removable standpipes
Material & Thickness 18 ga type 304 stainless steel (bowls, top, aprons)
Base Style Pedestal with removable stainless front panel
Certifications NSF, Lead-Free

What’s Included

  • Slim-Line 2-compartment sink with right drainboard
  • BKF-W2-10-G 4″ OC splash-mount faucet
  • (2) BKDR-2 basket drains
  • (2) BK-OT-15075 7″ overflow standpipes

Need additional bar equipment or custom configurations? Contact our team—we’re happy to help.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Sink Compartments

(2)

Bowl Size

10" x 14" front-to-back

Top Stainless Series

300 series

Drainboards

drainboard on right

Bowl Depth (rim - drain)

10"

Construction

stainless steel top, front, ends & legs

Splash

4"

Depth (front - back) OA

18" - 19"

Width (side - side) OA

31" - 36"

Specifications

Slim-Line Underbar Sink, two compartment, 36”W x 18-1/4"D x 33-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, 12-3/4” stamped drainboard on right, 4-1/2"H backsplash, 4" OC splash mount lead-free faucet (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, pedestal base, NSF
