BK Resources UBB-18-236LS Bar Equipment
Description

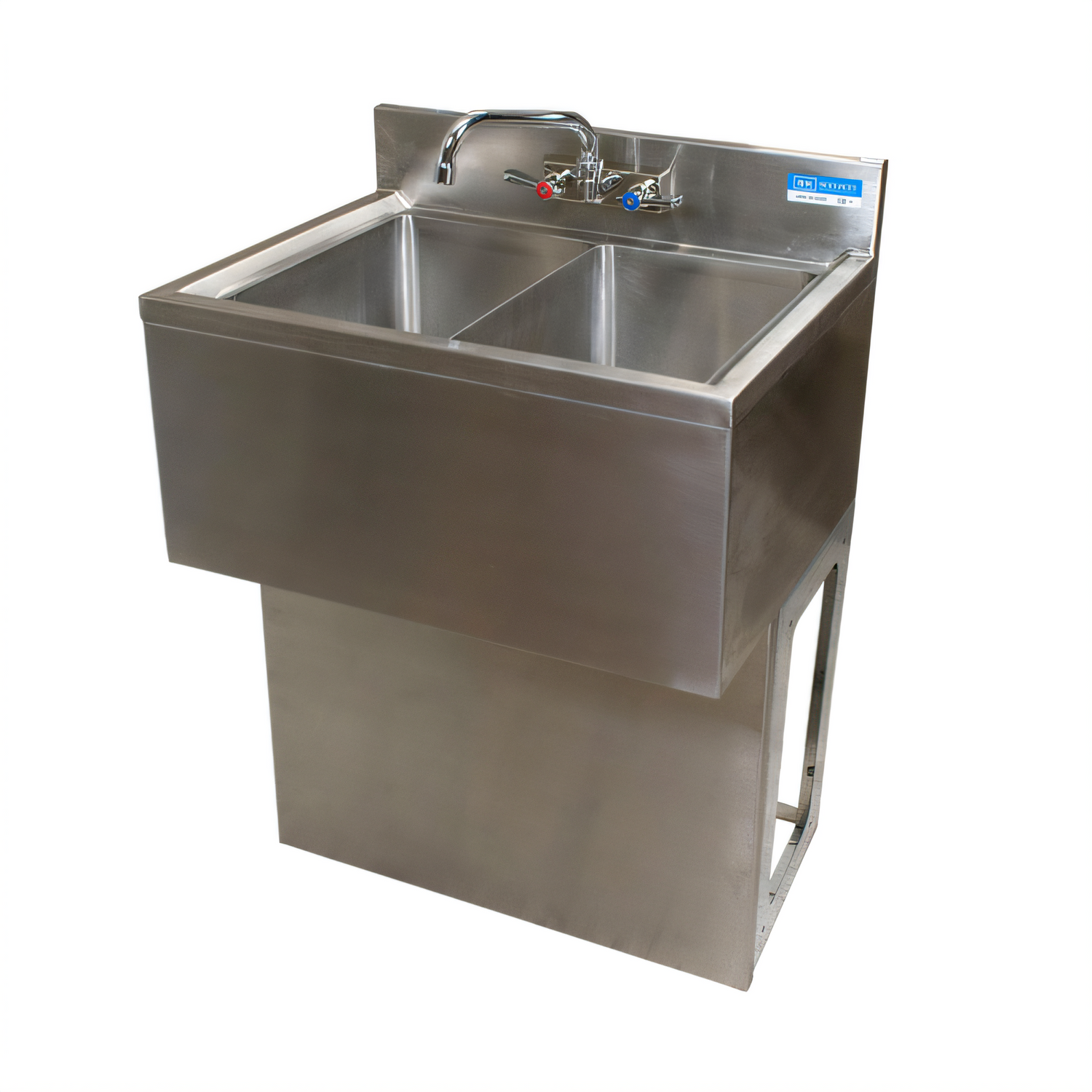

BK Resources Slim-Line 36" Two-Compartment Underbar Sink
Left-Hand Drainboard • Model UBB-18-236LS • NSF CertifiedEngineered for crowded bar layouts that still demand high-capacity warewashing, the Slim-Line underbar sink from BK Resources delivers rugged performance in a space-saving 18-¼" footprint. Heavy-duty 18 ga, type 304 stainless steel construction, a factory-installed faucet, and all required plumbing accessories get you up and running right out of the box.
Key Features

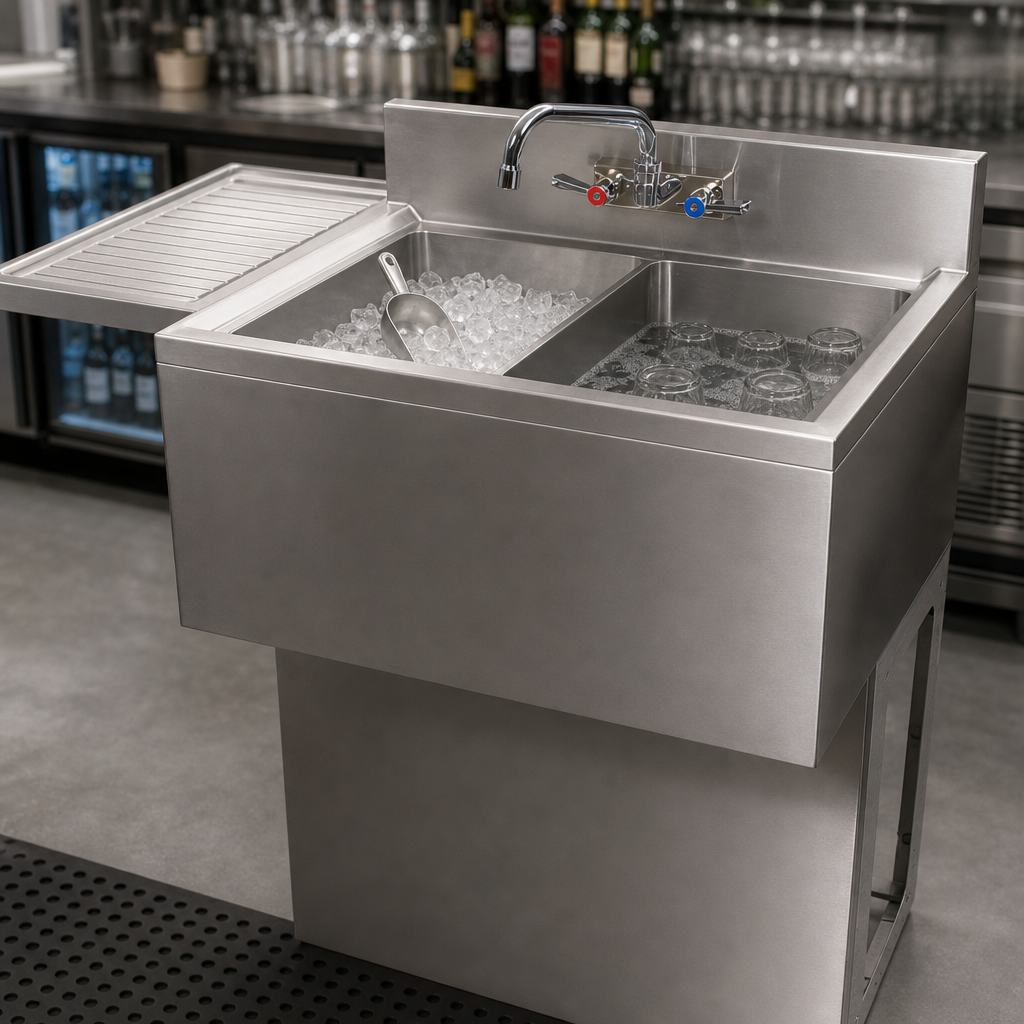

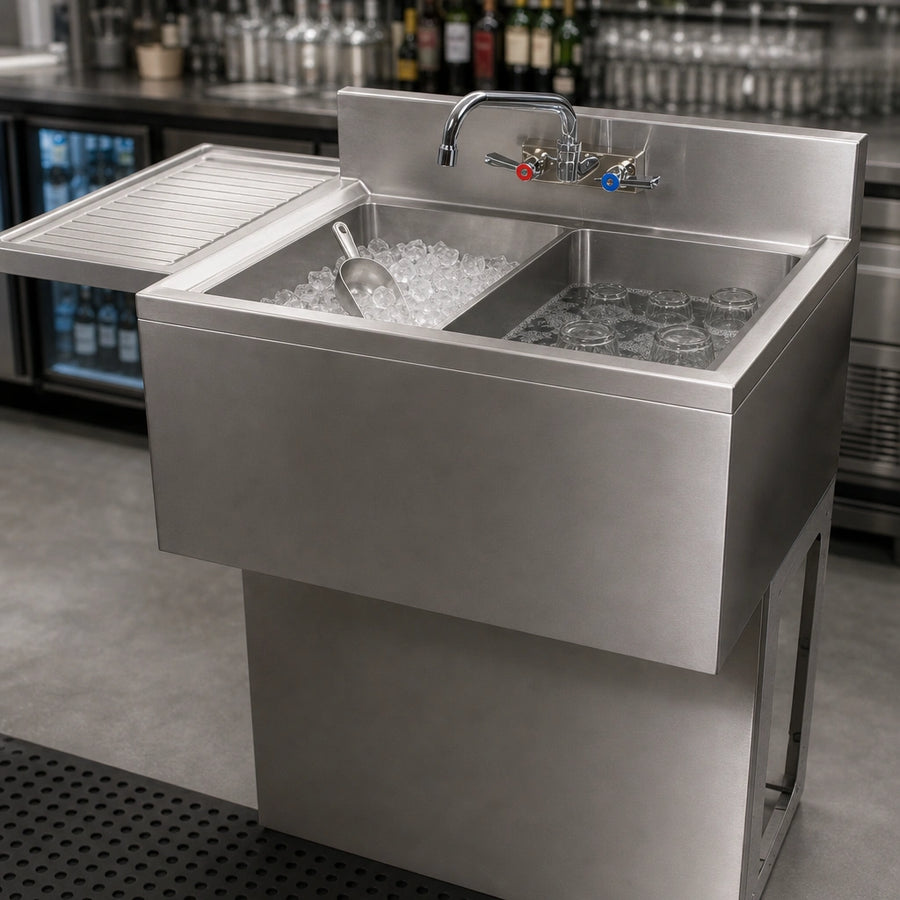

- Two integrally welded bowls – 10" W × 14" F-B × 10" D each

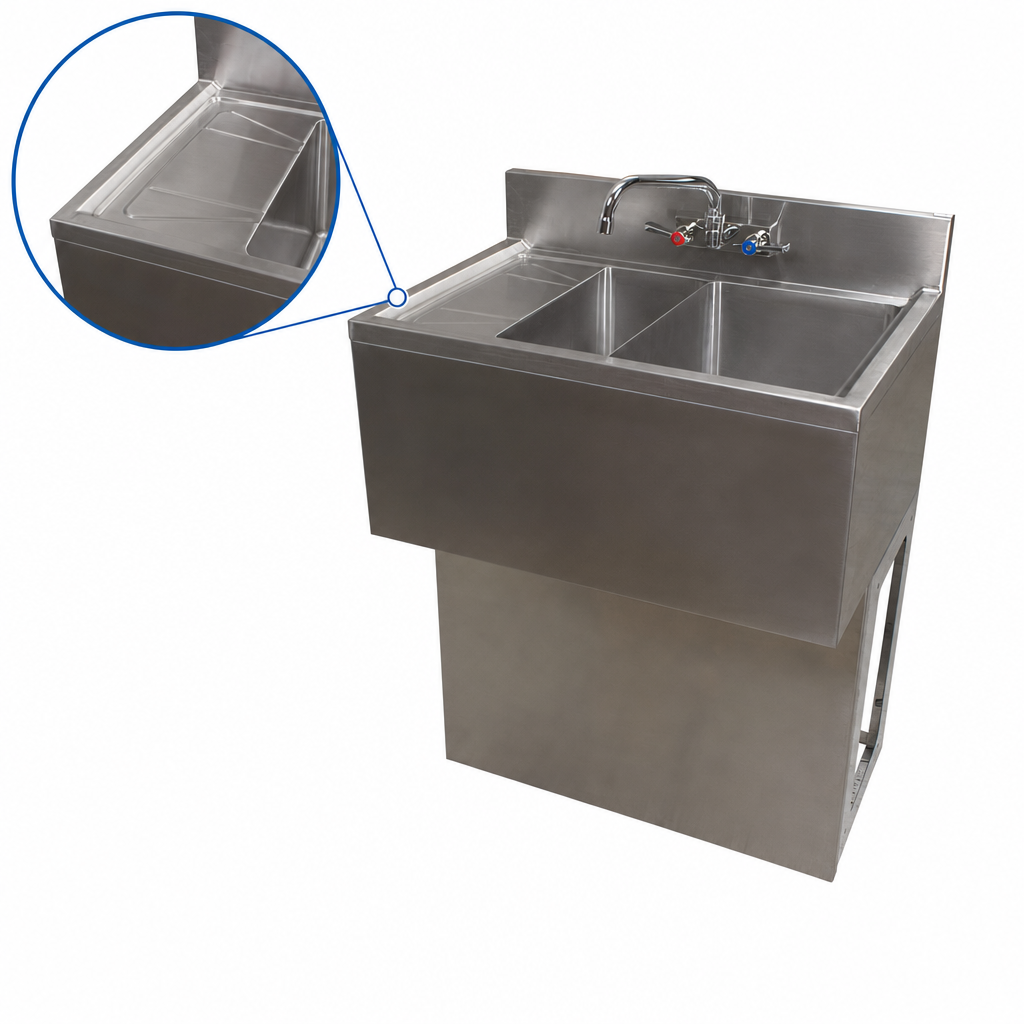

- 12-¾" stamped & pitched drainboard on the left keeps glassware drying and out of the wash zone
- 4-½" high backsplash contains splashes, protecting walls and meeting health-code requirements
- Lead-free 4" OC splash-mount faucet with 10" spout (BKF-W2-10-G) included and pre-drilled
- Stainless steel apron panels on front & sides for a clean, professional appearance
- Pedestal base with removable front panel for unobstructed clean-out and service access
- 18 ga T-304 stainless steel throughout – resists corrosion from acidic juices & bar chemicals
- NSF listed for foodservice sanitation and AB1953 lead-free compliant
What's Included
- (1) Slim-Line two-compartment underbar sink
- (1) BKF-W2-10-G 4" OC splash-mount faucet with 10" spout
- (2) BKDR-2 basket drains
- (2) BK-OT-15075 removable overflow standpipes
- Installation hardware & documentation
Technical Specifications
| Overall dimensions | 36" W × 18-¼" D × 33-½" H* |
|---|---|
| Work height | 30" |
| Number of compartments | 2 |
| Bowl size (each) | 10" W × 14" F-B × 10" D |
| Drainboard | Left-hand, 12-¾" L (stamped & pitched) |
| Backsplash height | 4-½" |
| Faucet centers | 4" on-center splash mount |
| Material / gauge | 18 ga type 304 stainless steel |
| Front & side panels | Stainless steel apron |
| Base style | Pedestal with removable front panel |
| Certifications | NSF, Lead-Free (NSF/ANSI 61 & AB1953) |
| Included drains | 1-½" basket drains with overflow standpipes |
*Height measured to top of backsplash. Need a right-hand drainboard or additional accessories? Chat with us — we’re happy to help customize your BK Resources bar set-up.
