Description

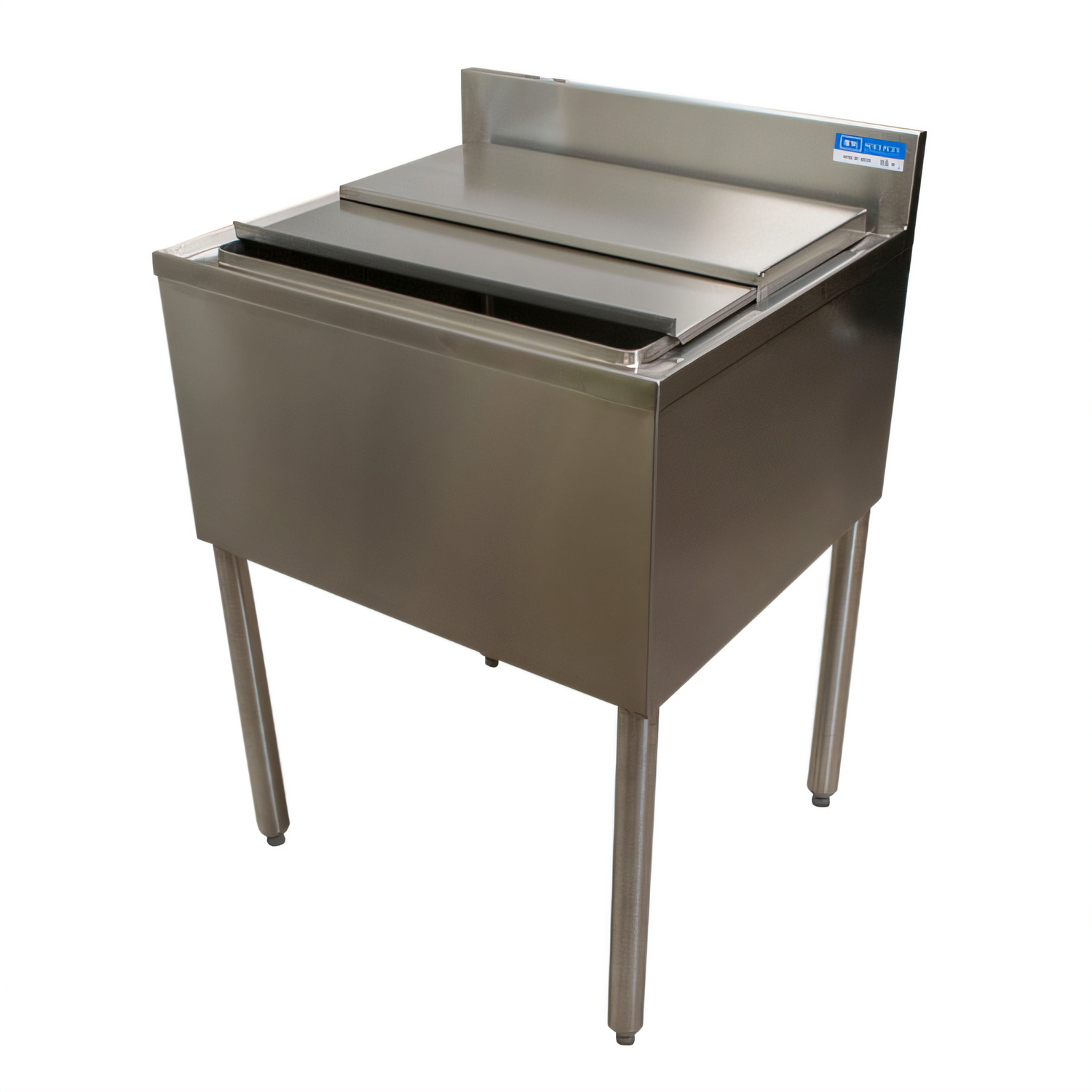

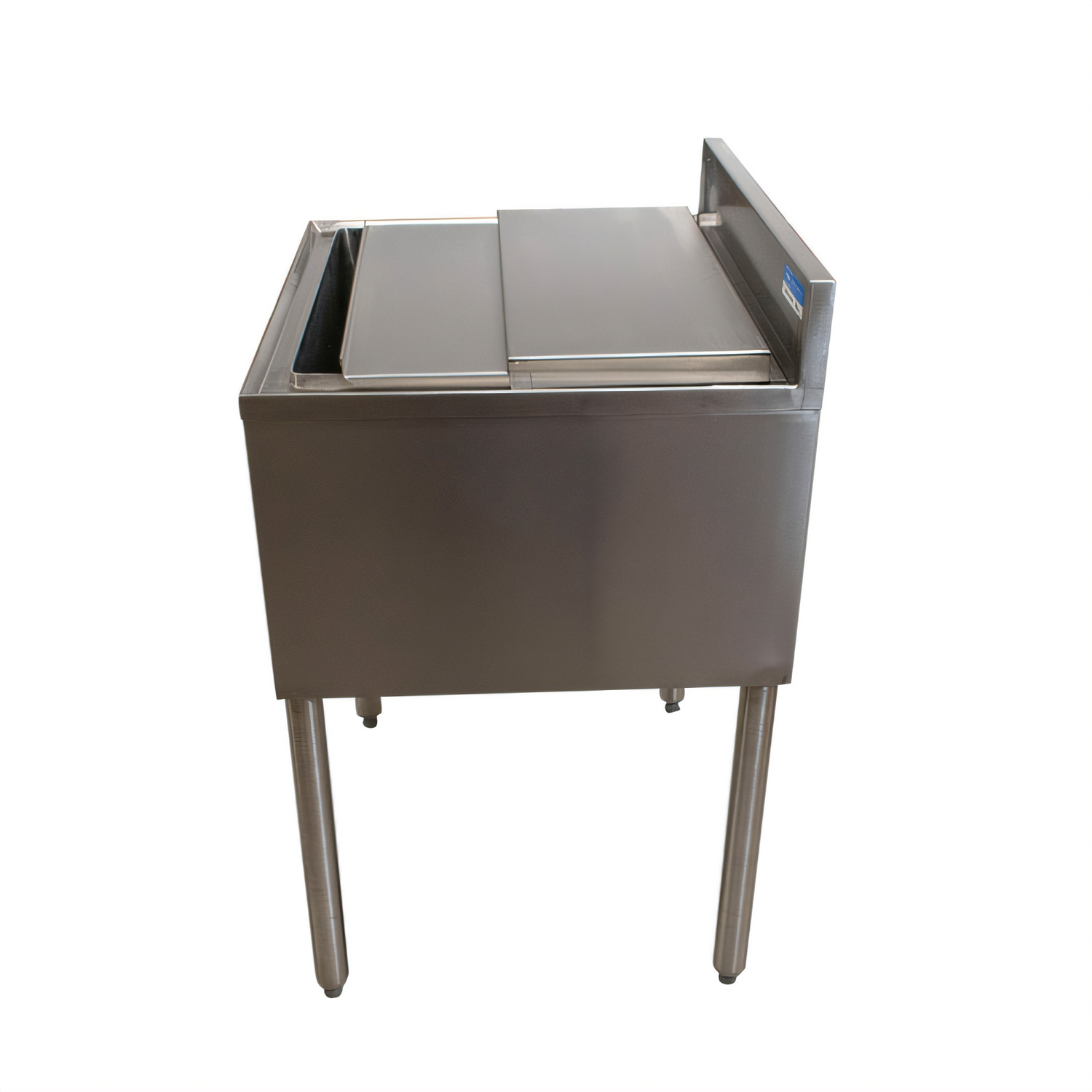

BK Resources 48" Underbar Ice Bin w/ 8-Circuit Cold Plate – 167 lb Capacity

Model UB4-21-IBCP48-8 | BKIB-CP8-4812-21S

Engineered for high-volume bars and beverage stations, this NSF-listed ice bin pairs a roomy, fully-insulated interior with an 8-circuit aluminum cold plate that chills product lines right where the action happens. Expect faster service, colder drinks, and rock-solid durability shift after shift.

Highlights

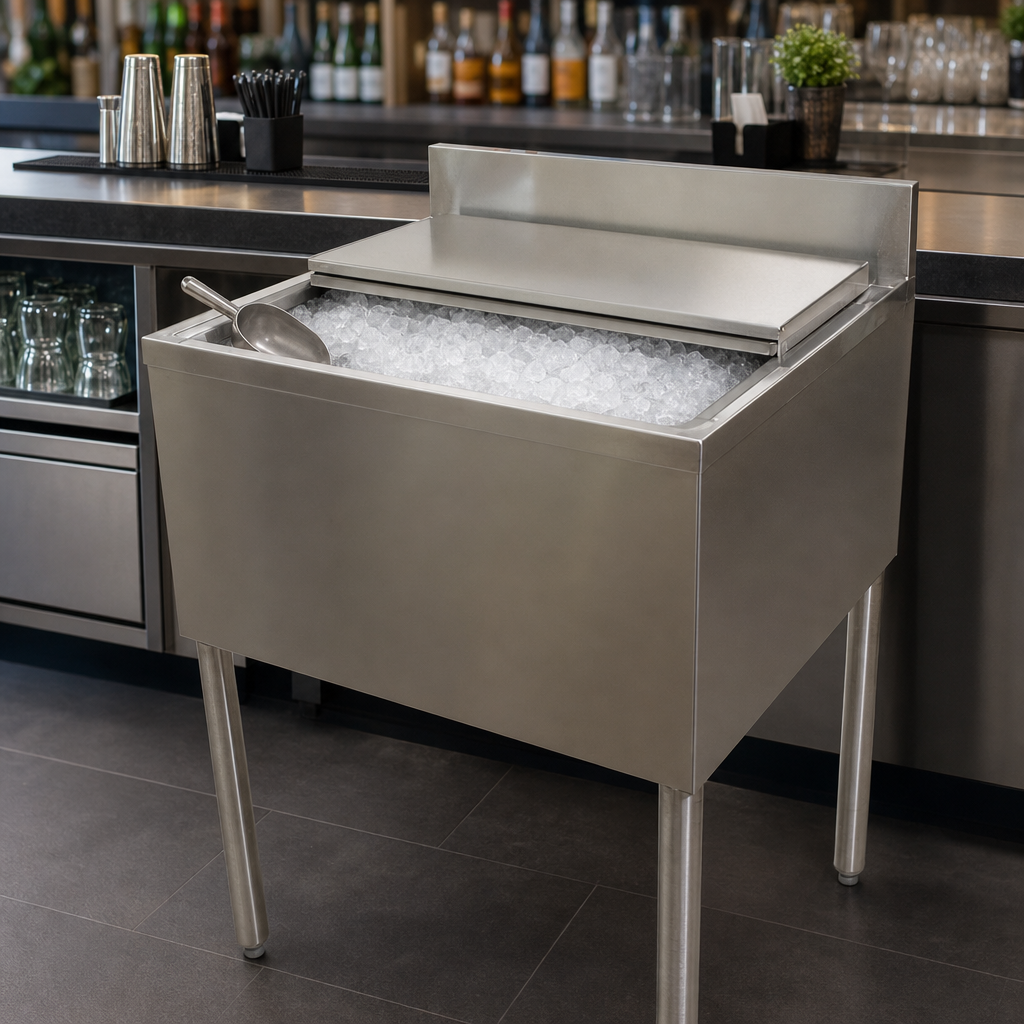

  • 167 lb ice capacity keeps service flowing during peak hours

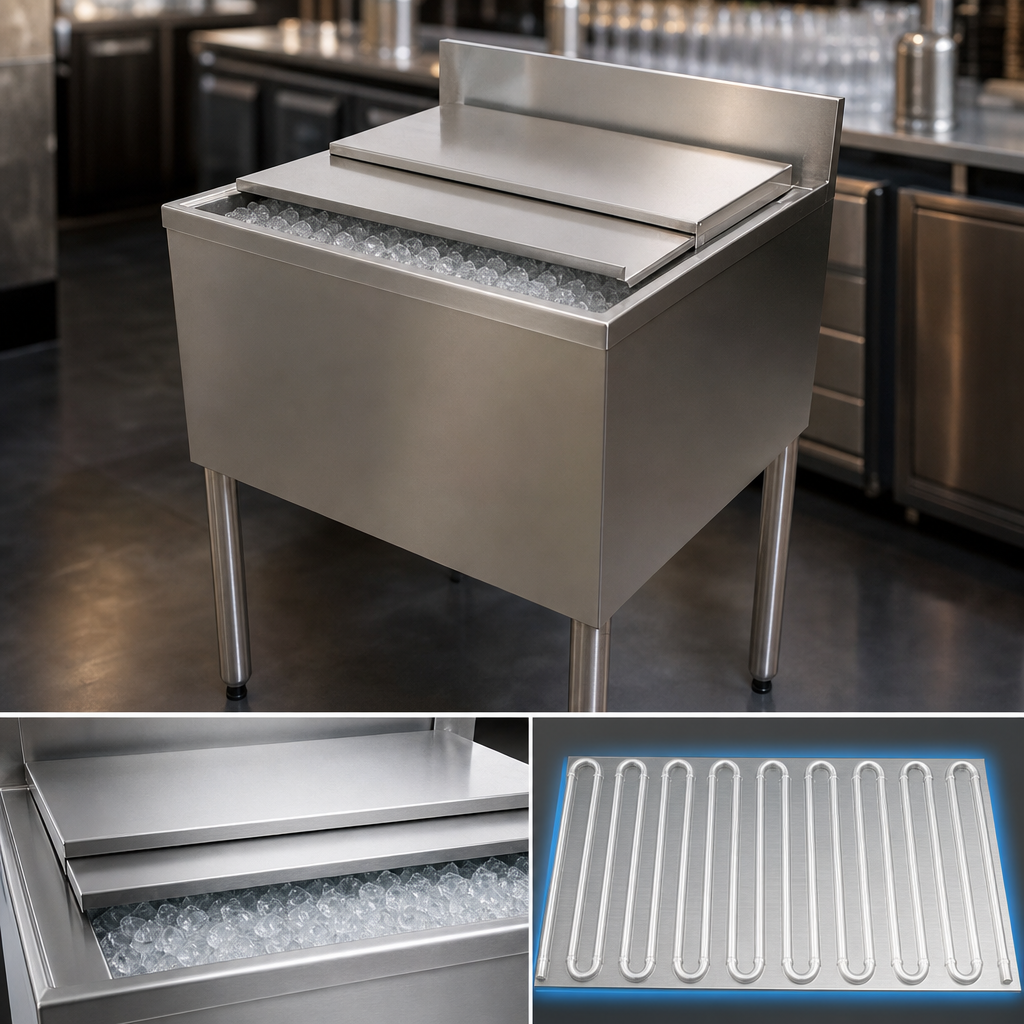

  • Built-in 8-circuit aluminum cold plate for post-mix or pre-mix beverage lines
  • Ice bin interior: 43" W × 21" D × 12-9/16" H, fully insulated to slow melt-off
  • 4" rear backsplash contains splashes and meets most health-code requirements
  • T-304 18-gauge stainless steel body – corrosion-resistant & easy to sanitize
  • Stainless steel legs with side bracing for maximum stability
  • Adjustable high-impact corrosion-resistant feet level the unit on uneven floors
  • Includes 1" I.D. drain with garden-hose fitting for quick melt-water removal
  • NSF certified for safe food-contact use
Specifications
Ice Capacity 167 lb (75.7 kg)
Cold Plate 8-circuit cast aluminum
Interior Ice Bin (W × D × H) 43" × 21" × 12-9/16" (1092 × 533 × 320 mm)
Overall Dimensions (W × D × H) 48" × 21-1/4" × 33-1/2" (1219 × 540 × 851 mm)
Work Height 28-1/2"
Backsplash Height 4"
Construction 18-ga 304 stainless steel
Legs / Bracing Stainless steel legs with stainless side bracing
Feet Adjustable high-impact corrosion-resistant bullet feet
Certification NSF

Lid assemblies, speed rails, and beverage tubing sold separately.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Height

32.5in

Width

48.0in

Depth

21.25in

Shipping Weight

185.0lbs

Construction

stainless steel construction

Depth (front - back) OA

20" - 21"

Bin Depth

12" deep ice bin

Cold Plate

(8) circuit

Width (side - side) OA

43" - 48"

Ice Capacity

150 - 199 lbs.

Splash

4"

Specifications

Underbar Ice Bin, with 8-circuit aluminum cold plate, 167 lbs capacity, 43" wide x 21" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, stainless steel legs & side bracing, adjustable corrosion resistant feet, NSF
