BK Resources UB4-21-IBCP48-10 Bar Equipment
Description

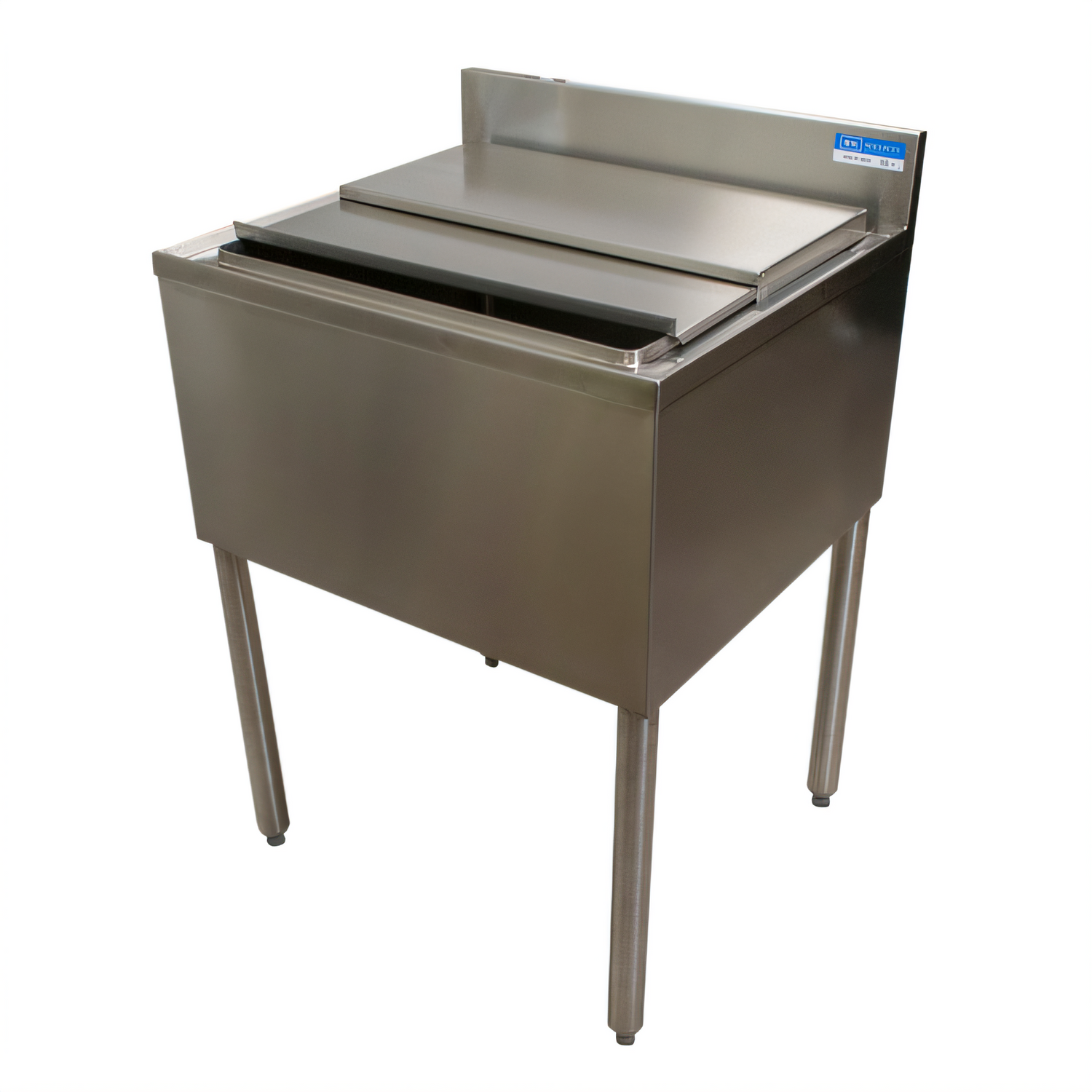

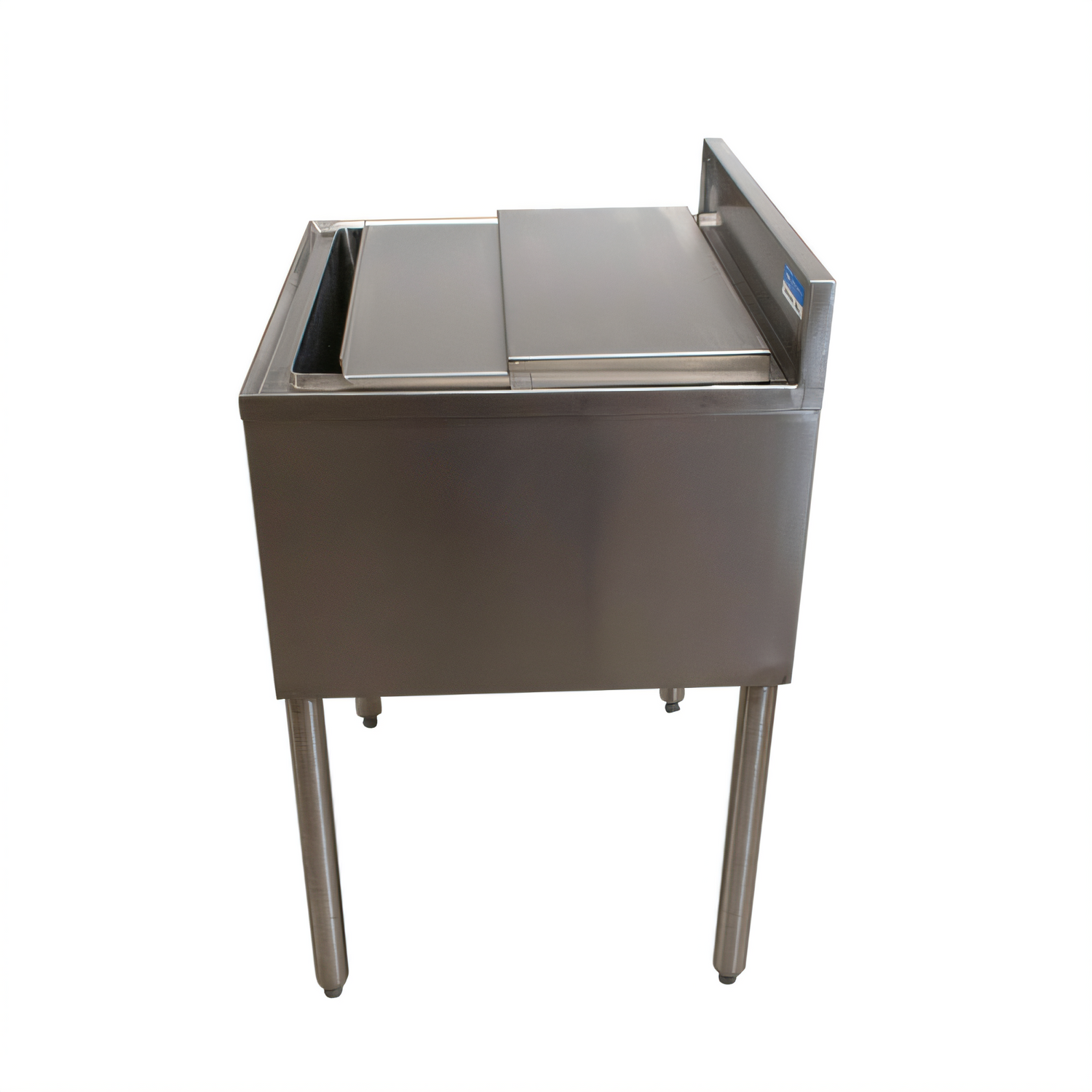

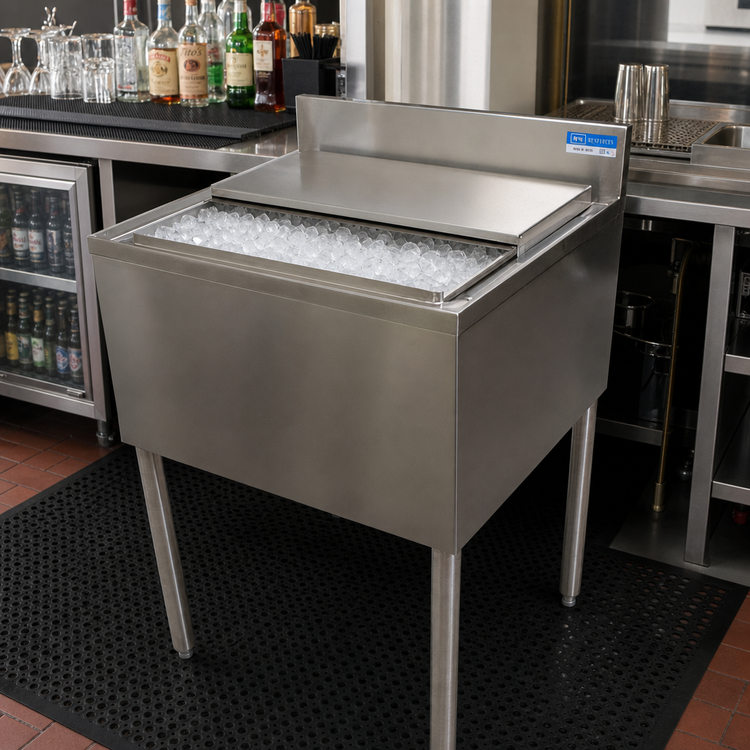

BK Resources 48" Underbar Ice Bin w/ 10-Circuit Cold Plate
Model # UB4-21-IBCP48-10 • 167 lb Ice CapacityEngineered for high-volume beverage programs, this NSF-listed underbar ice bin marries a huge 167 lb ice capacity with a 10-circuit aluminum cold plate—so your ice stays solid and every pour hits the glass frosty-cold. Heavy-duty 18 ga 304 stainless steel, a 4" backsplash, and corrosion-resistant adjustable feet make it a rock-solid performer behind any bar.
Highlights
- 10-circuit aluminum cold plate chills up to ten beverage lines for consistent, ice-cold drinks.

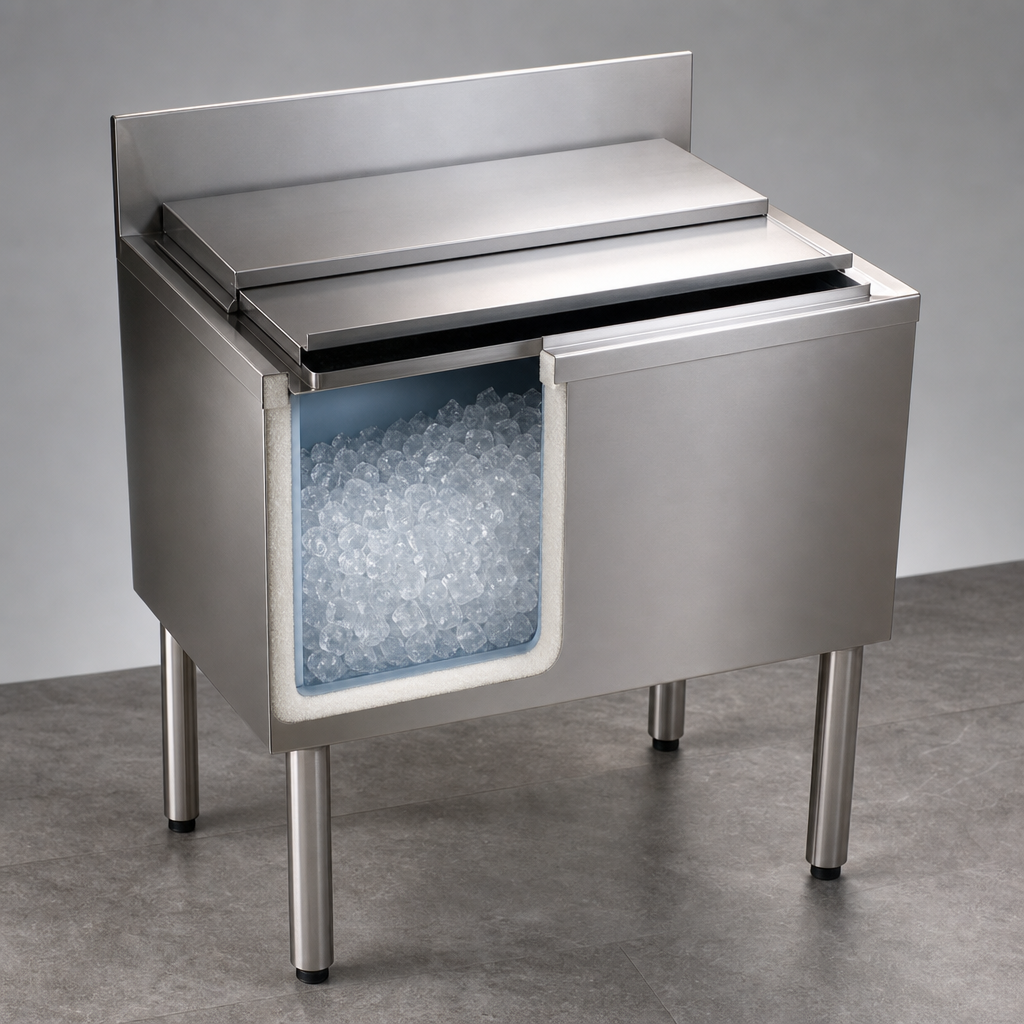

- Fully insulated 43" × 18" × 12-9/16" bin minimizes melt and reduces restocking trips.
- Rugged 18 ga 304 stainless steel construction—including lids, legs, and side bracing.
- 4" high backsplash protects walls and surrounding equipment from splashes.
- Legs install directly into the sink body for maximum stability.
- High-impact, corrosion-resistant adjustable feet level the unit on uneven floors.
- NSF certified for sanitation and code compliance.
Specifications
| Part Number | UB4-21-IBCP48-10 |
|---|---|
| Ice Capacity | 167 lbs |

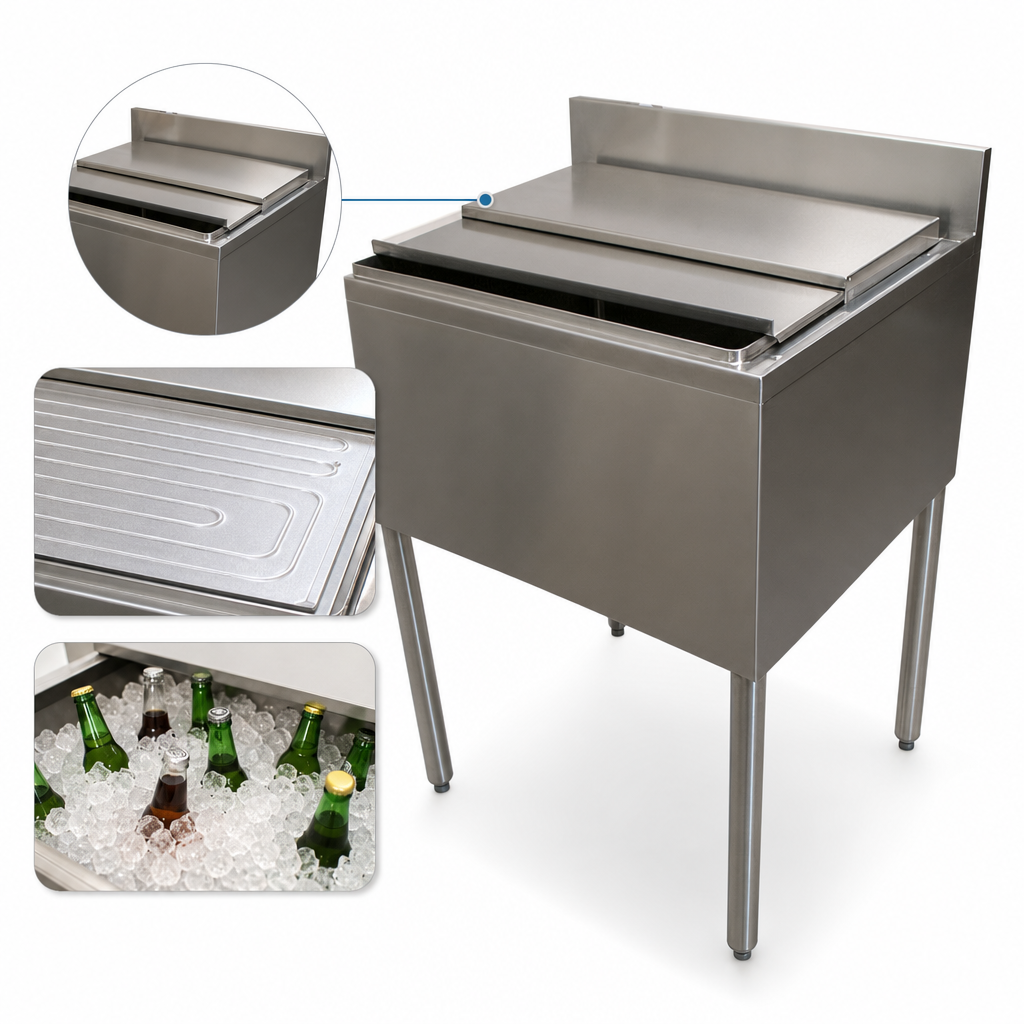

| Cold Plate | 10-circuit aluminum (factory installed) |
| Overall Dimensions (W × D × H) | 48" × 21 1/4" × 33 1/2" |
| Bin Interior (W × D × H) | 43" × 18" × 12-9/16" |
| Backsplash Height | 4" |
| Working Height | 28 1/2" |
| Construction | 18 ga 304 stainless steel body & lids |
| Legs & Bracing | Stainless steel legs with stainless side bracing; adjustable corrosion-resistant feet |
| Drain | 1 1/2" I.D. (1 7/8" O.D.) drain opening |
| Certifications | NSF |
Cold Plate Advantage
- Serves as an on-demand chiller—no remote cooling equipment required.
- Reduces foaming and preserves carbonation for sodas and mixers.
- Streamlines bar layouts by consolidating ice storage and beverage chilling in one footprint.
Looking for other sizes or circuit counts? BK Resources offers this ice bin in 24", 30", and 36" widths with 7- or 8-circuit cold plates. Contact us for a custom quote.
