BK Resources | SKU:
UB4-21-IBCP36-8
BK Resources UB4-21-IBCP36-8 Bar Equipment
$1,828.52
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
BK Resources UB4-21-IBCP36-8 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UB4-21-IBCP36-8 Bar Equipment
$1,828.52
Unit price
/
Unavailable
Description
BK Resources 36" Underbar Ice Bin with 8-Circuit Cold Plate – 120 lb Capacity
Model UB4-21-IBCP36-8 | NSF ListedBuilt for high-volume bars that refuse to compromise on drink quality, this fully-insulated ice bin pairs a spacious 120-pound ice well with an 8-circuit aluminum cold plate—so every cube and every pour stays perfectly chilled.
Key Features

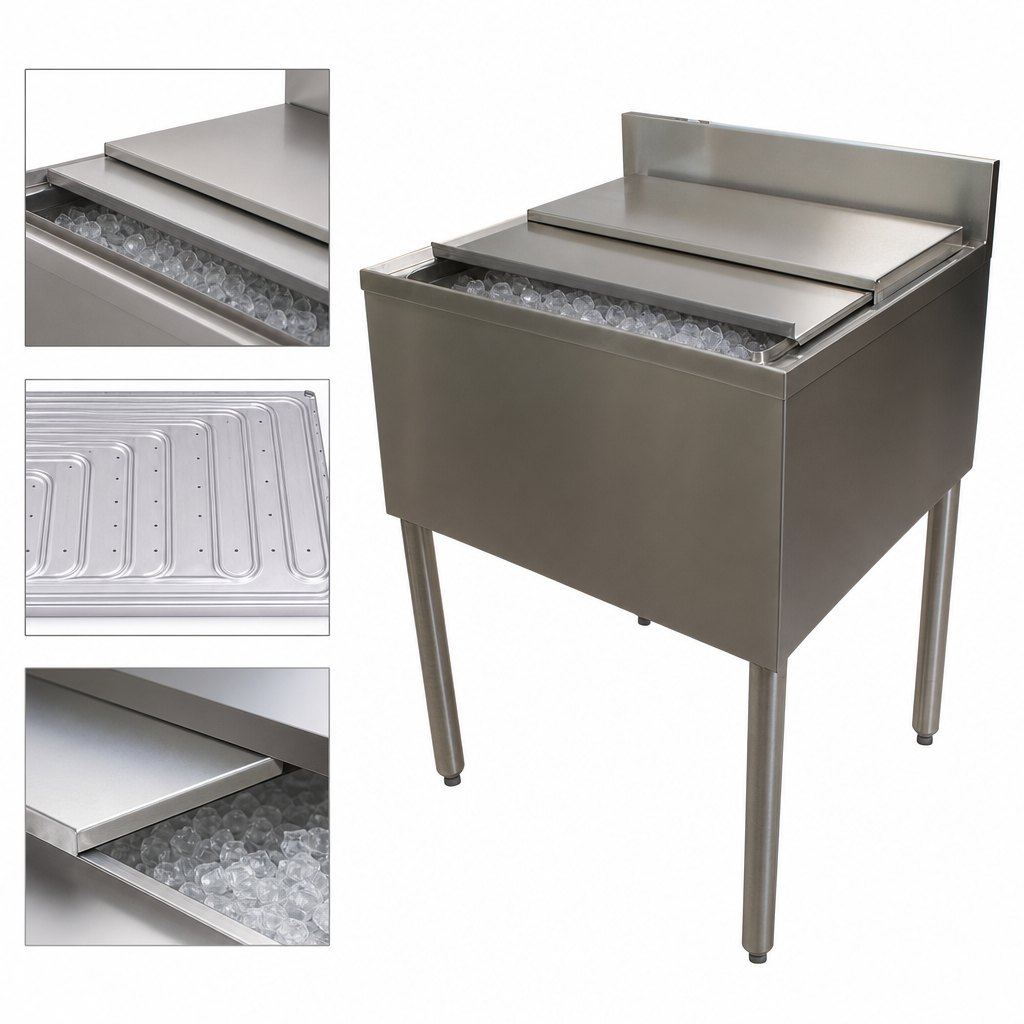

- 8-circuit embedded aluminum cold plate chills up to eight beverage lines simultaneously.

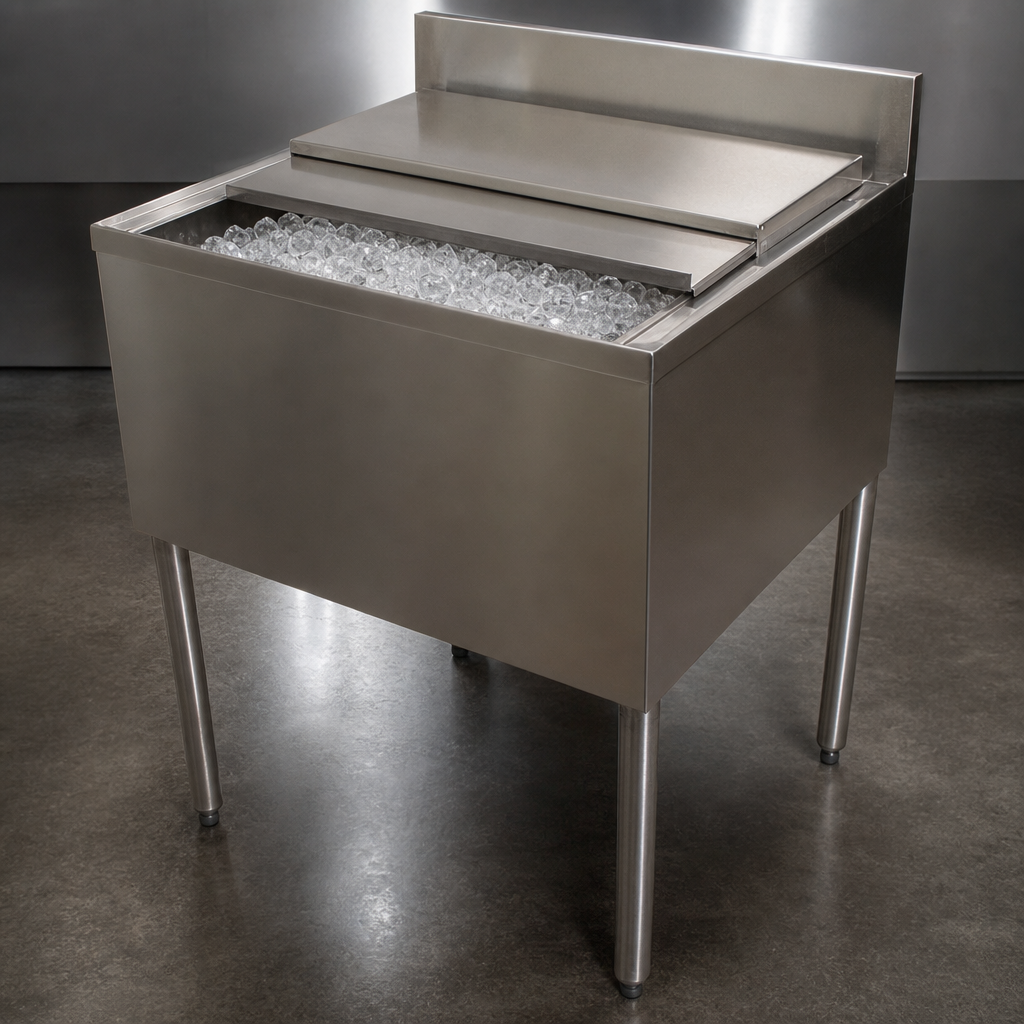

- Generous 31" × 18" × 12-9/16" ice well holds approximately 120 lbs of ice.
- Rugged 18-gauge 304 stainless steel construction—including sliding lids—for superior corrosion resistance.
- 4" high backsplash protects surrounding walls and countertops from splashes.
- Stainless steel legs with side bracing provide rock-solid stability.
- Adjustable, high-impact corrosion-resistant bullet feet make leveling quick and easy.
- Fully insulated bin minimizes ice melt and prevents exterior sweating.
- 1" IPS drain with plug speeds melt-water removal.
Specifications
| Ice Capacity | 120 lbs |
|---|---|
| Cold Plate | 8-circuit aluminum (embedded) |
| Ice Bin Interior (L × W × D) | 31" × 18" × 12-9/16" |
| Overall Dimensions (L × W × H) | 36" × 21-1/4" × 33-1/2" |
| Backsplash Height | 4" |
| Working Height | 28-1/2" |
| Material | 18-ga 304 stainless steel |
| Legs / Bracing | Stainless steel legs with side bracing |
| Feet | Adjustable corrosion-resistant bullet feet |
| Drain | 1" IPS drain (BKDR-325CP) |
| Certifications | NSF |
Perfect For
- High-volume cocktail bars & nightclubs
- Restaurant beverage stations
- Hotel lounges & banquet facilities
- Catering and mobile bar setups
Looking for matching speed rails or other underbar accessories? Contact us for package pricing and recommendations.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Height
32.5in
Width
36.0in
Depth
21.25in
Shipping Weight
159.0lbs
Width (side - side) OA
31" - 36"
Cold Plate
(8) circuit
Ice Capacity
100 - 149 lbs.
Depth (front - back) OA
20" - 21"
Bin Depth
12" deep ice bin
Splash
4"
Construction
stainless steel construction
Specifications
Underbar Ice Bin, with 8-circuit aluminum cold plate, 120 lbs capacity, 31" wide x 21" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, stainless steel legs & side bracing, adjustable corrosion resistant feet, NSF
