Description

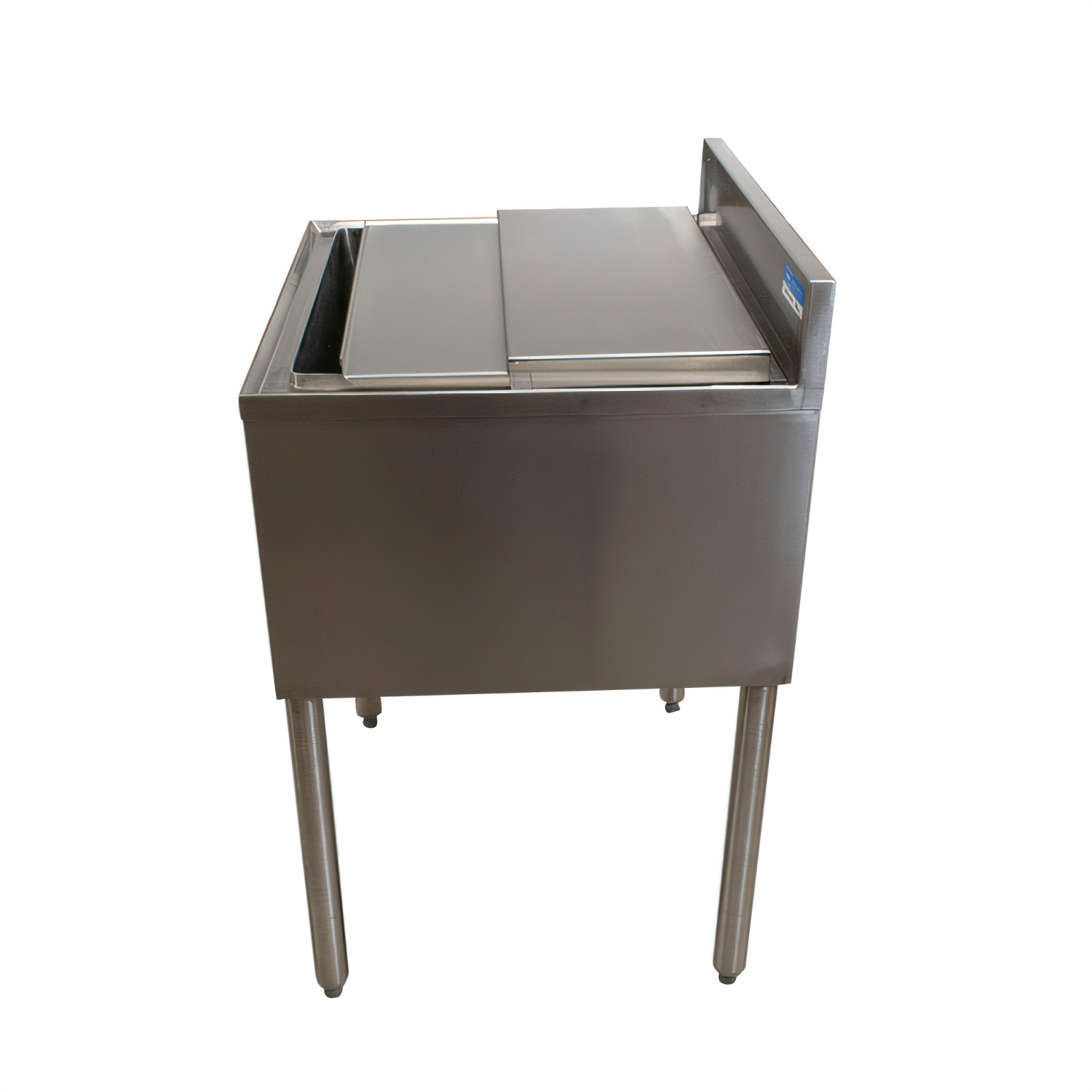

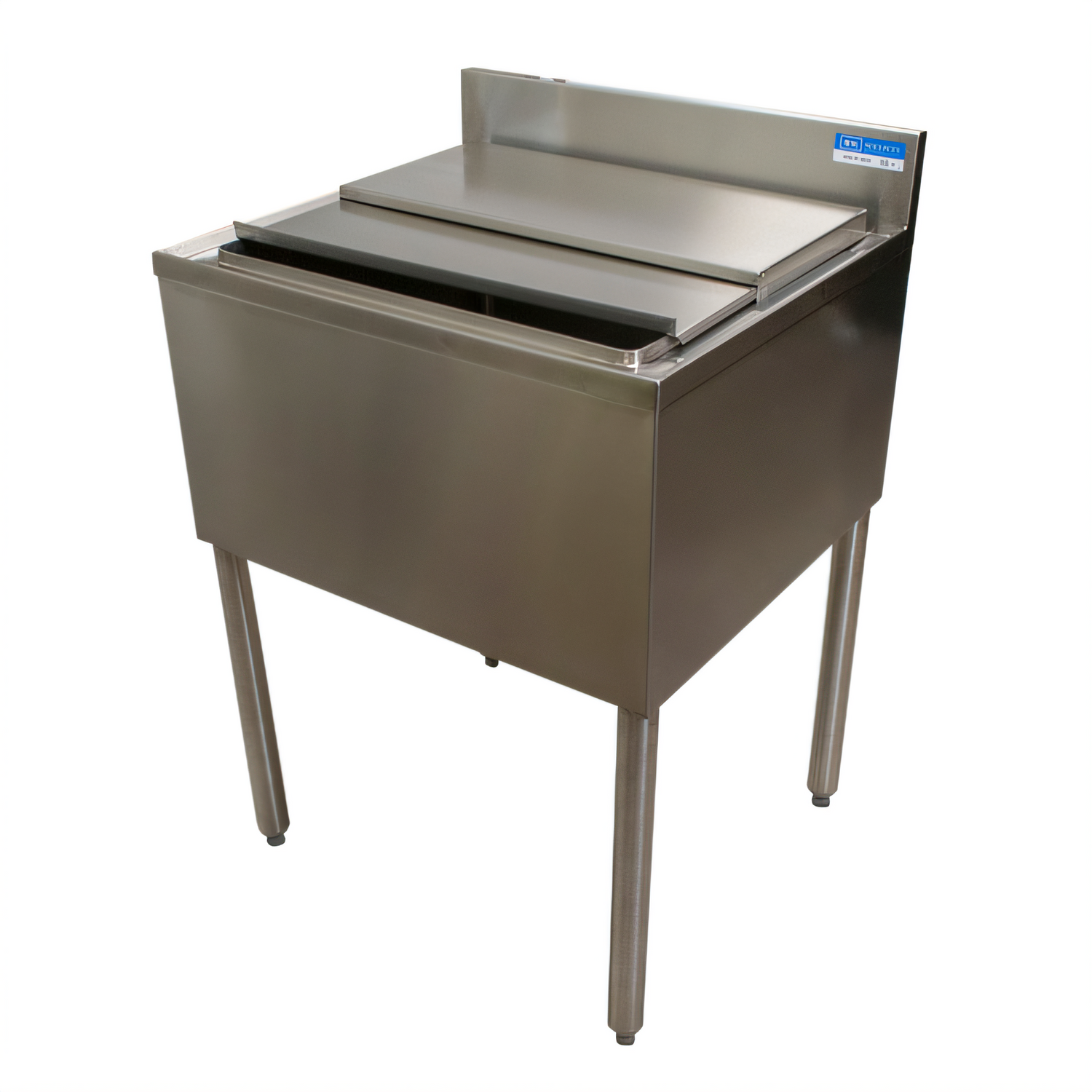

BK Resources Underbar Ice Bin w/ 7-Circuit Cold Plate

Model UB4-21-IBCP36-7  |  120 lb Ice Capacity

Keep beverages ice-cold and service running smoothly with this heavy-duty, fully-insulated ice bin from BK Resources. A built-in 7-circuit aluminum cold plate chills up to seven separate beverage lines while the spacious 120 lb bin holds enough ice for the busiest bar rushes.

Key Features

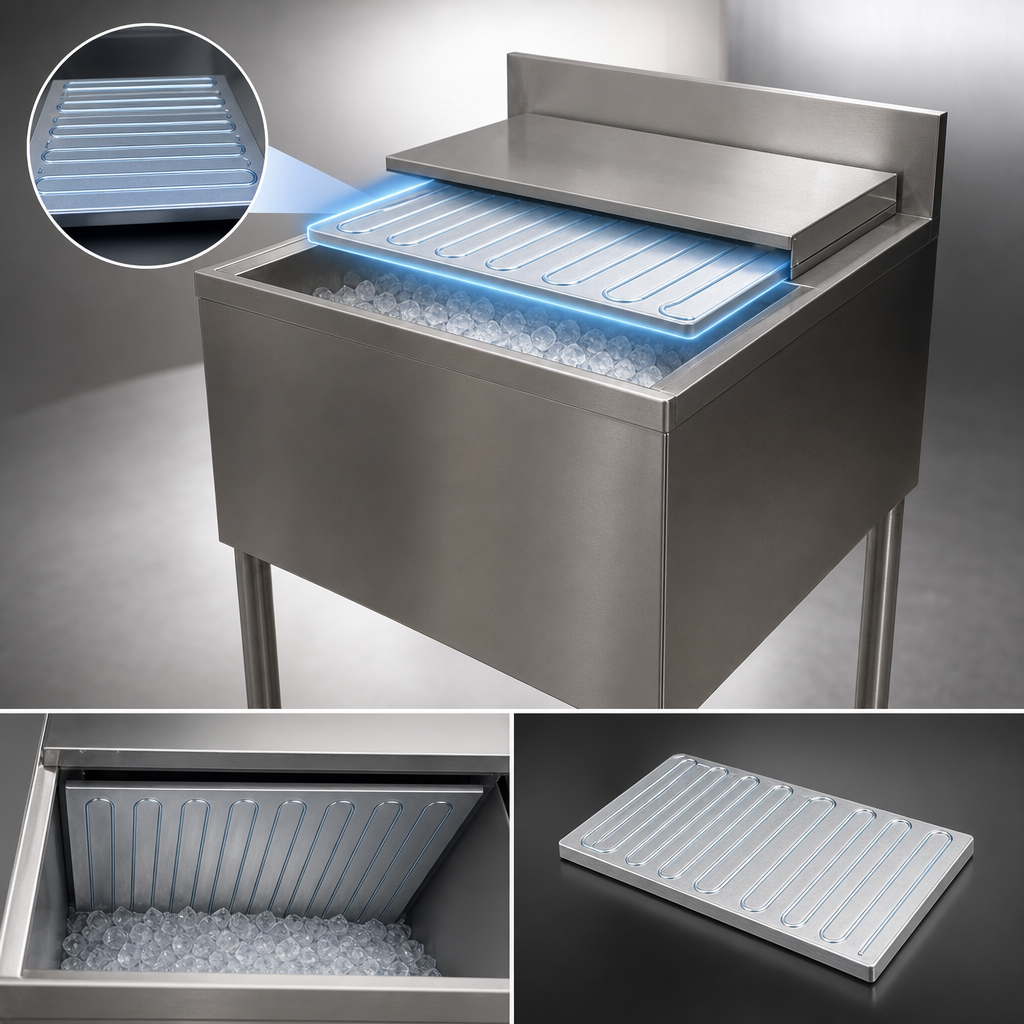

  • 7-circuit aluminum cold plate chills up to seven soda or juice lines simultaneously.
  • Large 120 lb capacity ice well (31" W x 21" D x 12-9/16" H) minimizes restocking trips.

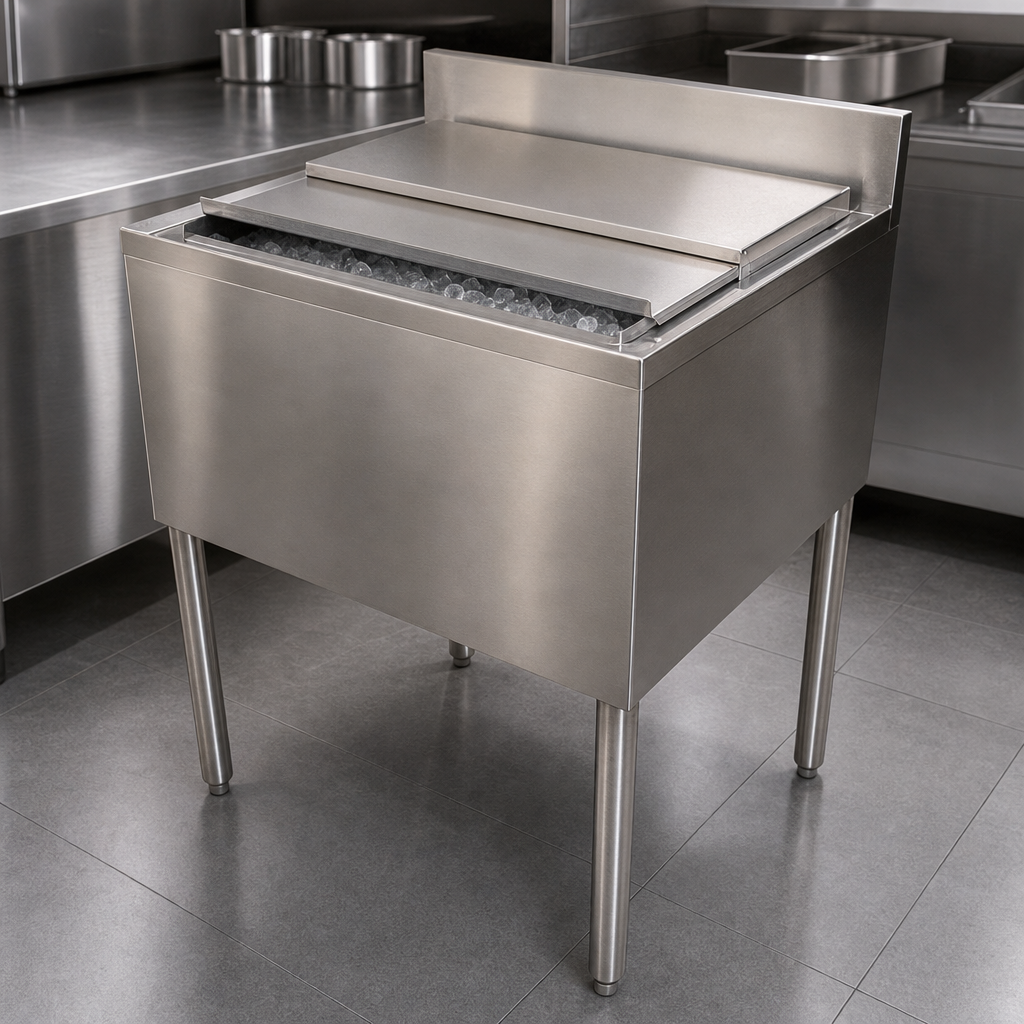

  • 18 ga T-304 stainless steel construction—corrosion-resistant, durable and easy to sanitize.
  • 4" high backsplash protects surrounding equipment and walls from splashes.
  • Stainless steel legs with side bracing provide rock-solid stability in high-traffic environments.
  • Adjustable high-impact, corrosion-resistant feet level the unit on uneven floors.
  • Fully insulated ice well slows melt rate, reducing ice costs and water runoff.
  • NSF listed for safe food contact and sanitary design.

Specifications

Manufacturer BK Resources
Model / Part # UB4-21-IBCP36-7
Ice Bin Capacity 120 lbs
Cold Plate 7-circuit aluminum
Interior Bin Dimensions 31" W × 21" D × 12-9/16" H
Overall Work Height 32 1/2"
Backsplash Height 4"
Construction 18 ga 304 stainless steel
Legs & Bracing Stainless steel with side bracing
Feet Adjustable high-impact, corrosion-resistant
Drain 1" I.D. welded drain with garden-hose adapter
Certifications NSF

Perfect For

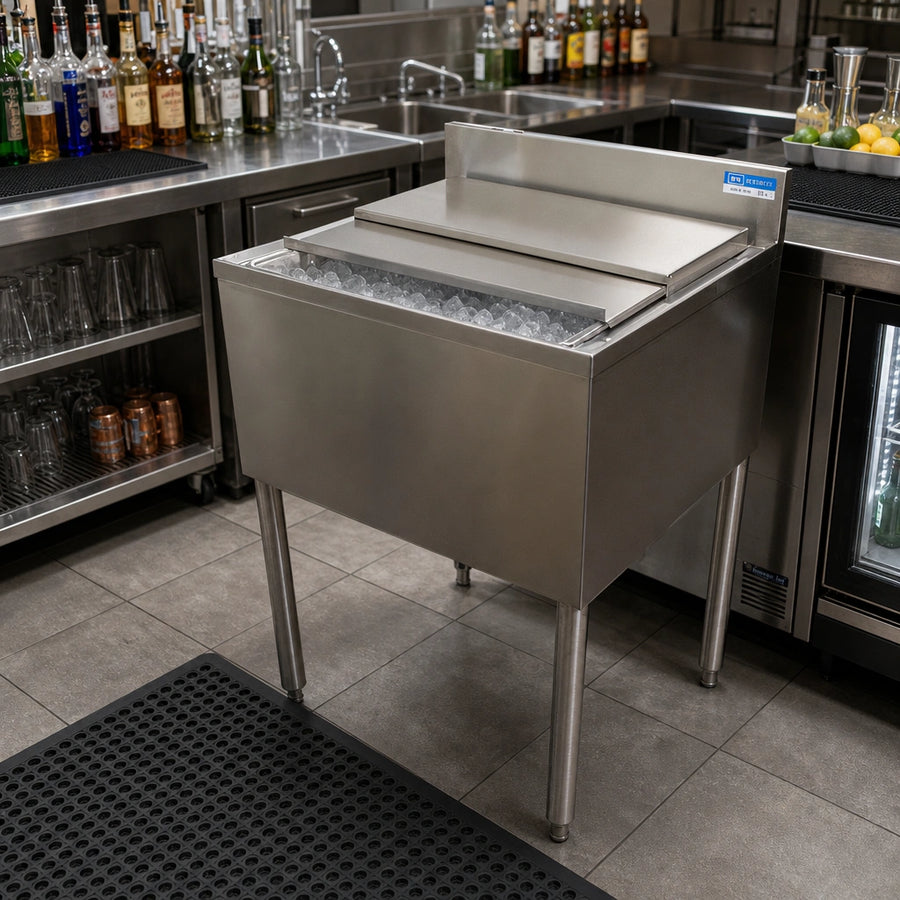

  • Cocktail & craft-beer bars
  • Nightclubs and music venues
  • Hotel banquet or event stations
  • Stadium suites and concession stands
  • Fast-casual restaurants with fountain beverage programs

Lid kit, line connectors and drain fittings are sold separately.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Height

32.5in

Width

36.0in

Depth

21.25in

Shipping Weight

161.0lbs

Depth (front - back) OA

20" - 21"

Width (side - side) OA

31" - 36"

Cold Plate

(7) circuit

Ice Capacity

100 - 149 lbs.

Splash

4"

Bin Depth

12" deep ice bin

Construction

stainless steel construction

Specifications

Underbar Ice Bin, with 7-circuit aluminum cold plate, 120 lbs capacity, 31" wide x 21" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, stainless steel legs & side bracing, adjustable corrosion resistant feet, NSF
