BK Resources | SKU:
UB4-21-IBCP30-10
BK Resources UB4-21-IBCP30-10 Bar Equipment
$1,682.99
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
BK Resources UB4-21-IBCP30-10 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UB4-21-IBCP30-10 Bar Equipment
$1,682.99
Unit price
/
Unavailable
Description

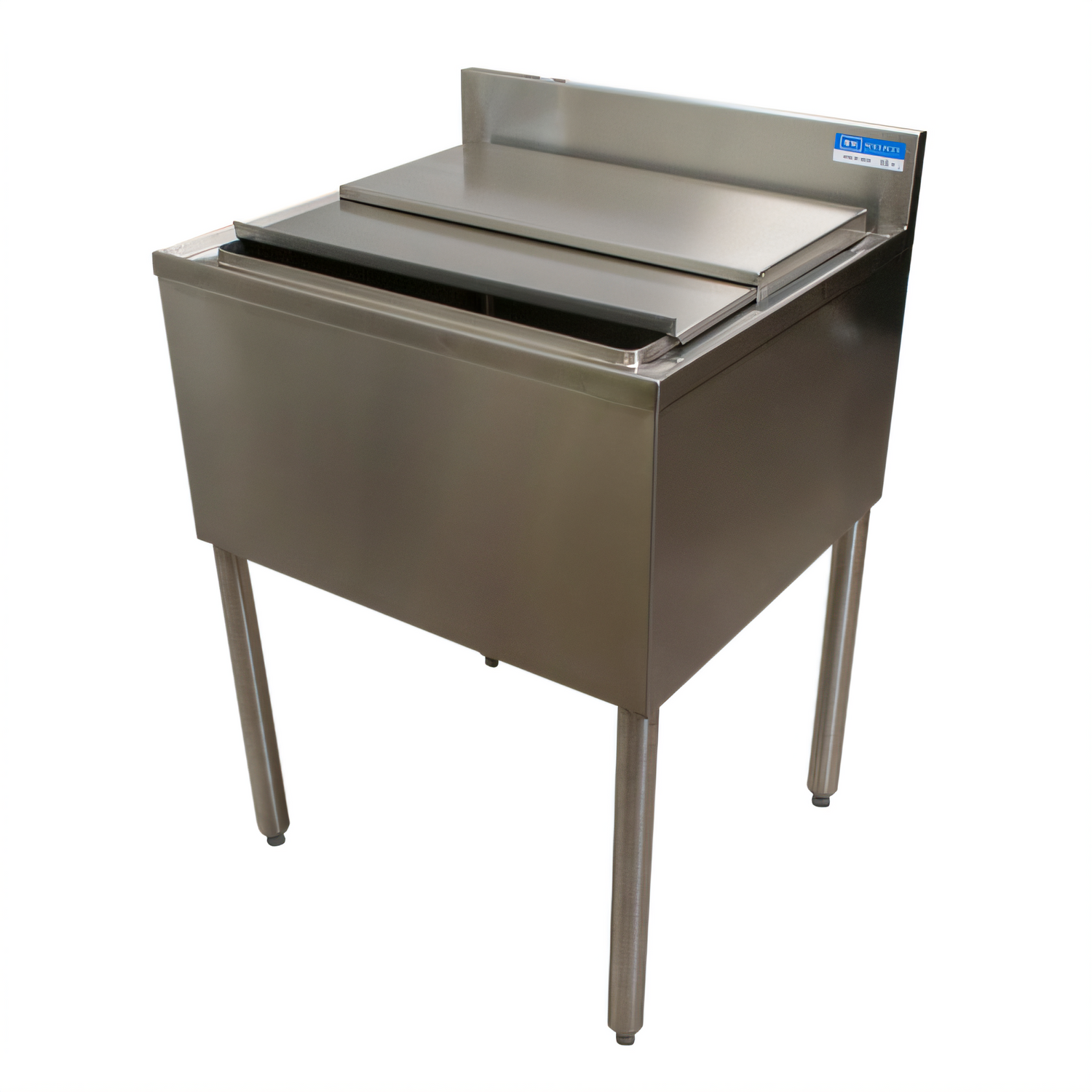

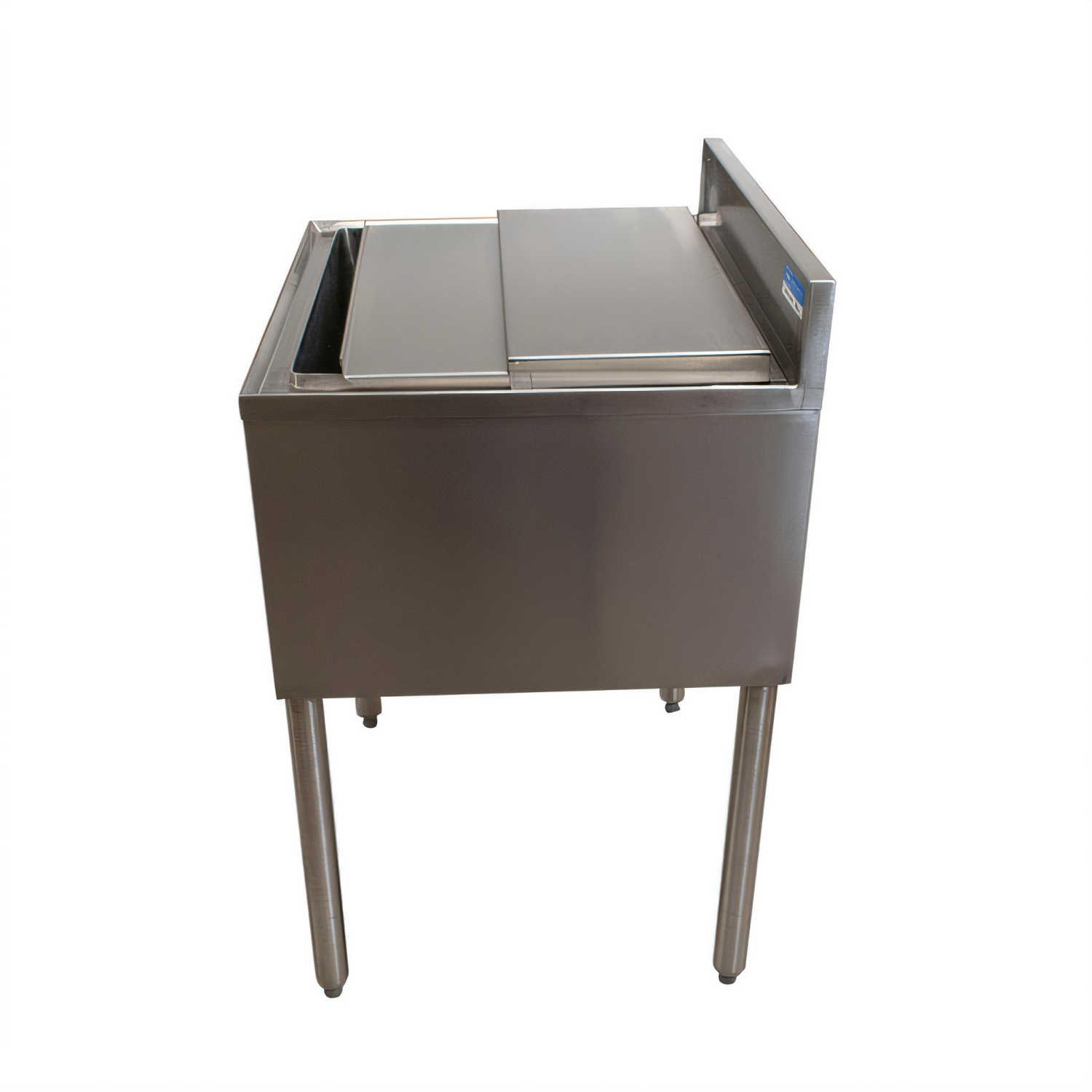

BK Resources Underbar Ice Bin with 10-Circuit Cold Plate – 97 lb Capacity
Model UB4-21-IBCP30-10 | NSF CertifiedBuilt for high-volume bar service, this BK Resources ice bin combines a generous 97 lb ice capacity with a 10-circuit aluminum cold plate—keeping both ice and beverage lines perfectly chilled in one compact station.
Key Features

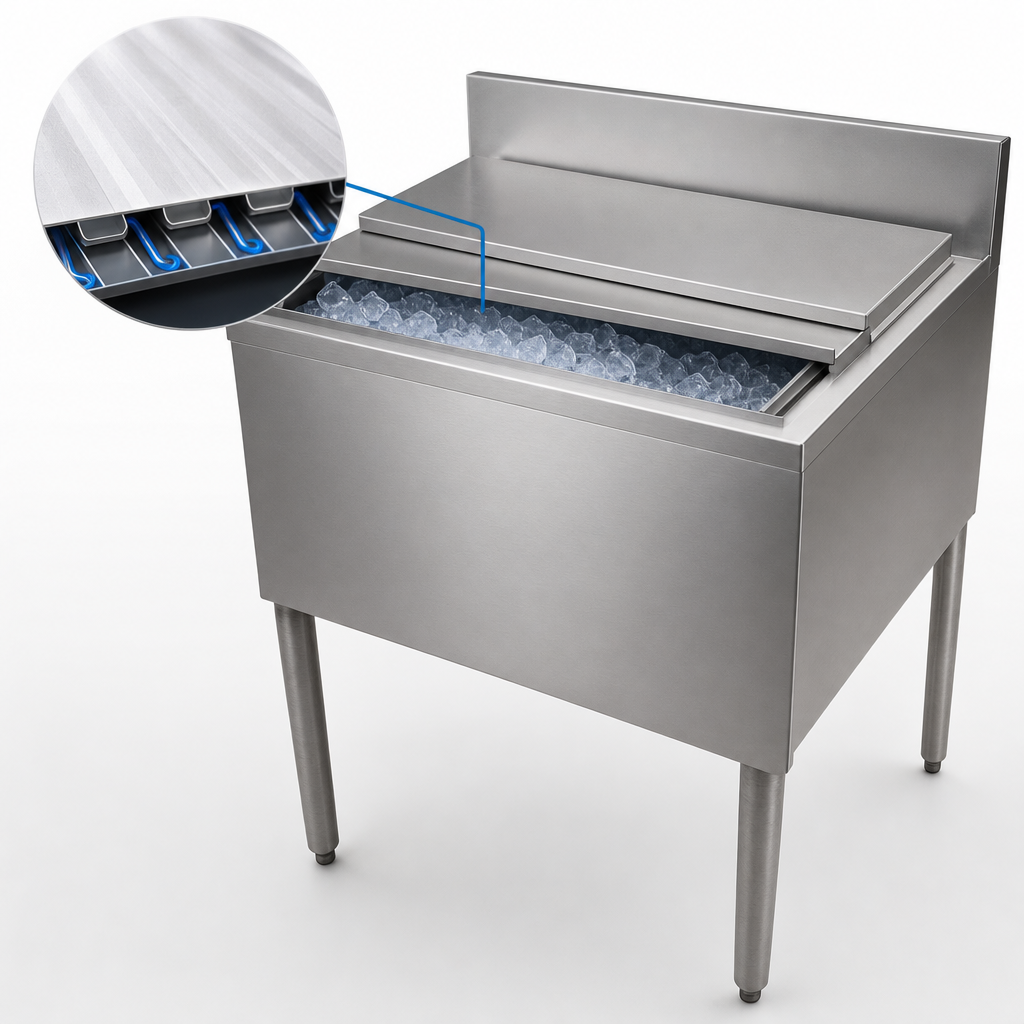

- 10-circuit aluminum cold plate chills up to ten syrup or soda lines for consistently cold pours.

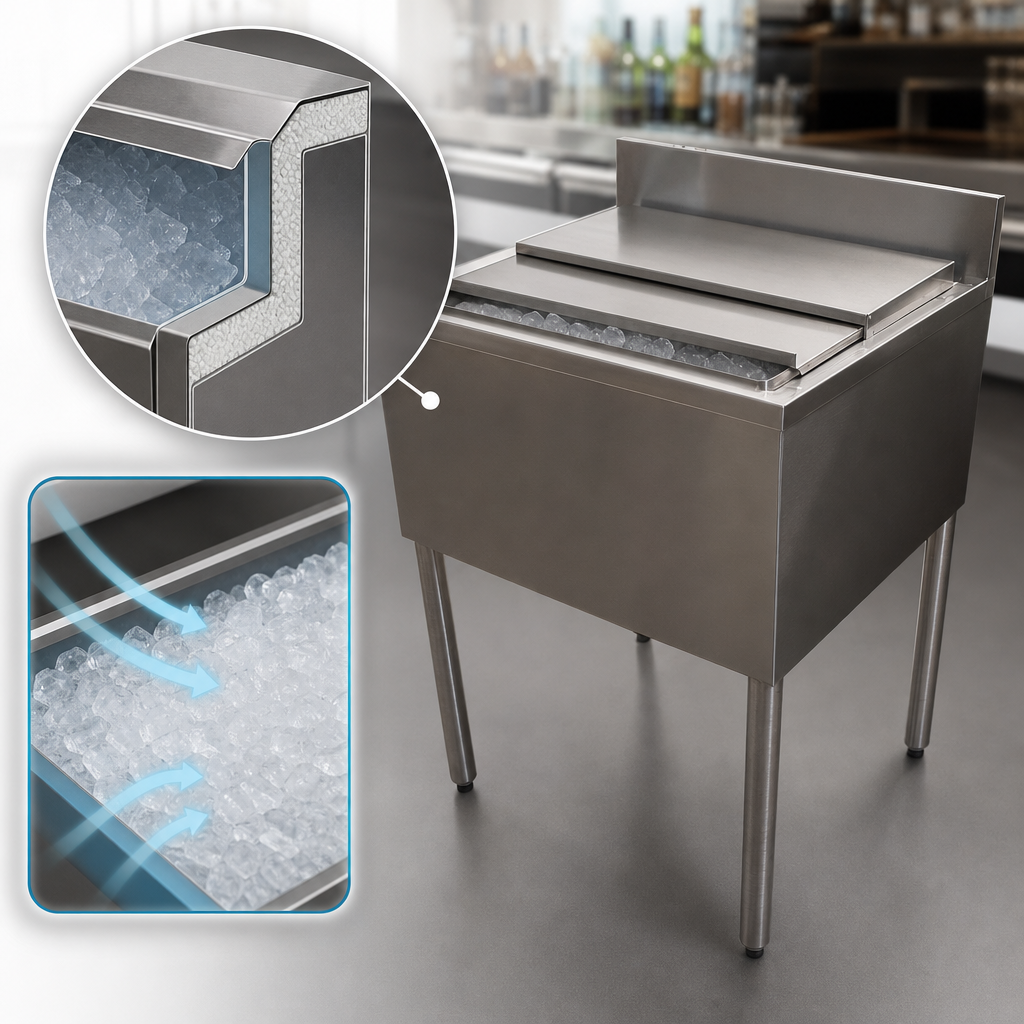

- Fully insulated 25" × 21" ice well holds 97 lbs of ice, reducing melt and waste.
- 4" rear backsplash helps contain splashes and protects surrounding surfaces.
- 18 ga, 304 stainless steel construction for superior corrosion resistance and easy cleaning.
- Stainless steel sliding covers keep ice sanitary when the bin is not in use.
- Sturdy stainless steel legs with side bracing withstand the rigors of a busy bar.
- Adjustable, high-impact corrosion-resistant bullet feet level the unit on uneven floors.
Technical Specifications
| Ice Capacity | 97 lbs (44 kg) |
|---|---|
| Cold Plate | 10-circuit aluminum |
| Bin Interior (L × W × D) | 25" × 21" × 12-9/16" (635 × 533 × 319 mm) |
| Overall Dimensions (L × W × H) | 30" × 21-1/4" × 33-1/2" (762 × 540 × 851 mm) |
| Backsplash Height | 4" (102 mm) |
| Work Height | 28-1/2" (724 mm) |
| Construction | 18-gauge, 304 stainless steel |
| Legs & Bracing | Stainless steel tubular legs with side bracing |
| Feet | Adjustable, corrosion-resistant bullet feet |
| Certifications | NSF |
Need complementary underbar equipment? Search “BK Resources UB4” for matching sinks, drainboards, and speed rails.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Height
32.5in
Width
30.0in
Depth
21.25in
Shipping Weight
150.0lbs
Splash
4"
Bin Depth
12" deep ice bin
Cold Plate
(10) circuit
Construction
stainless steel construction
Width (side - side) OA
25" - 30"
Ice Capacity
70 - 99 lbs.
Depth (front - back) OA
20" - 21"
Specifications
Underbar Ice Bin, with 10--circuit aluminum cold plate, 97 lbs capacity, 25" wide x 21" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, stainless steel legs & side bracing, adjustable corrosion resistant feet, NSF
