Description

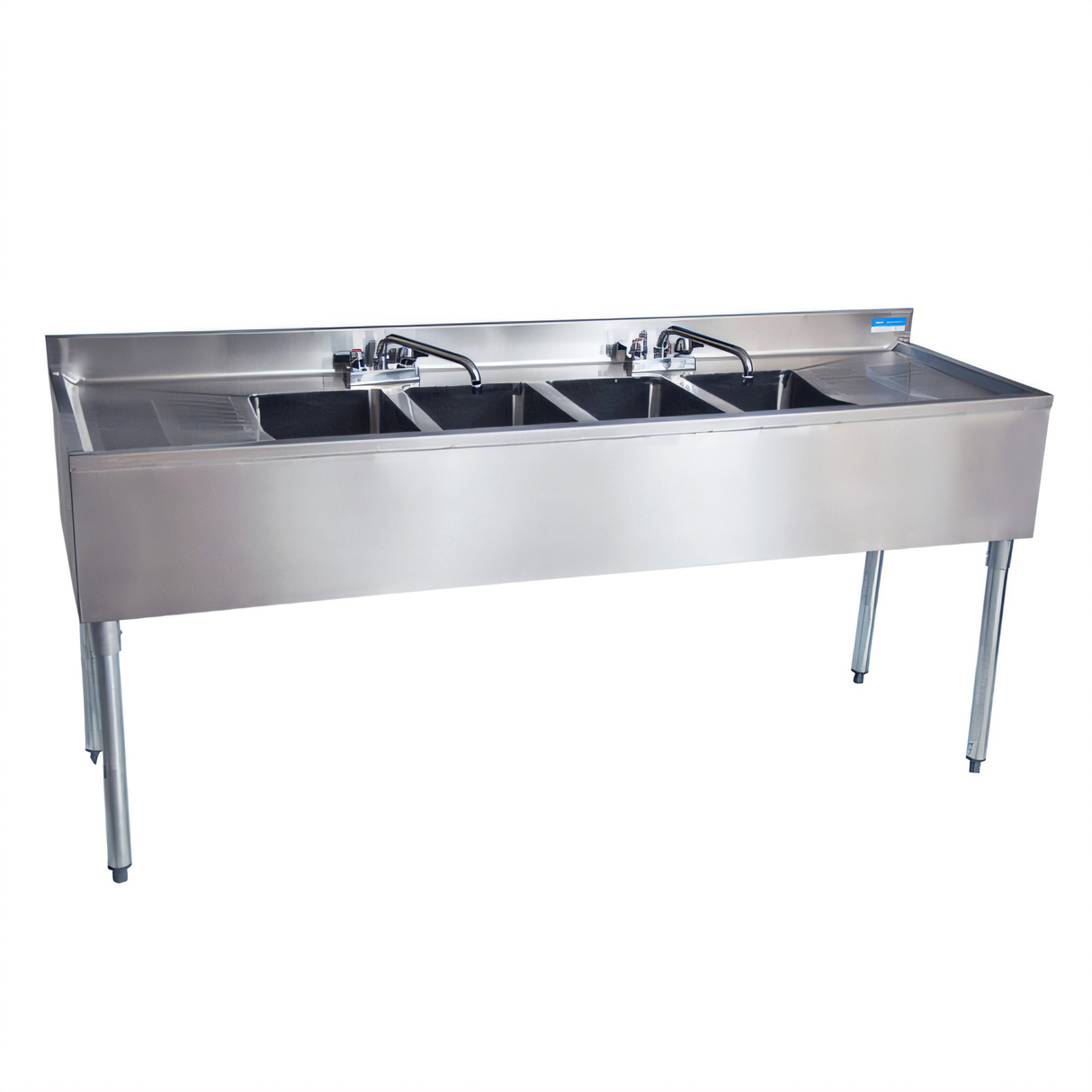

84" Four-Compartment Underbar Sink

BK Resources – Model UB4-21-484TS (NSF)

Give your bar or beverage station the professional edge with BK Resources’ 84-inch stainless steel underbar sink. Four integrally-welded bowls, dual 19" stamped drainboards and a complete faucet & plumbing kit arrive ready to install, keeping glass-ware, barware and utensils cycling smoothly during the busiest shifts.

Why You’ll Love It

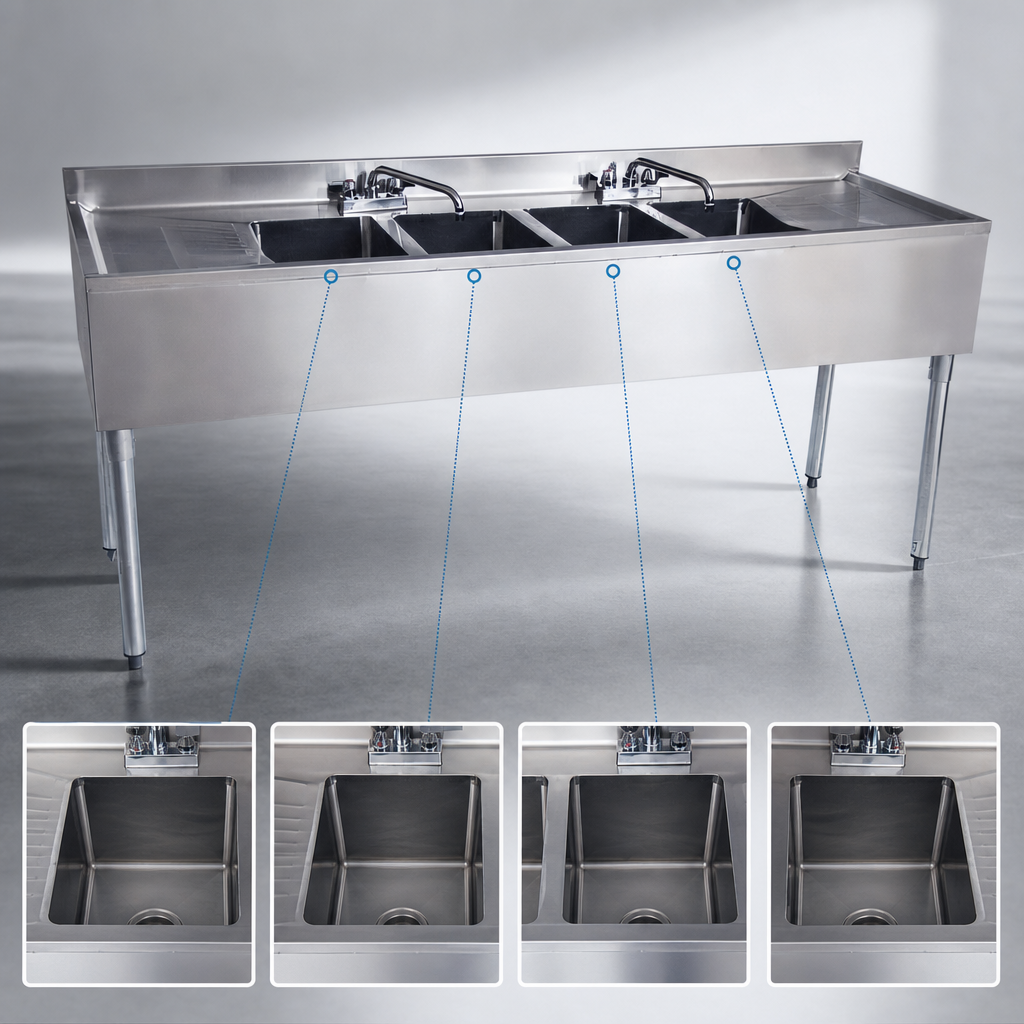

  • Four compartment design speeds up washing, rinsing, sanitizing & draining.

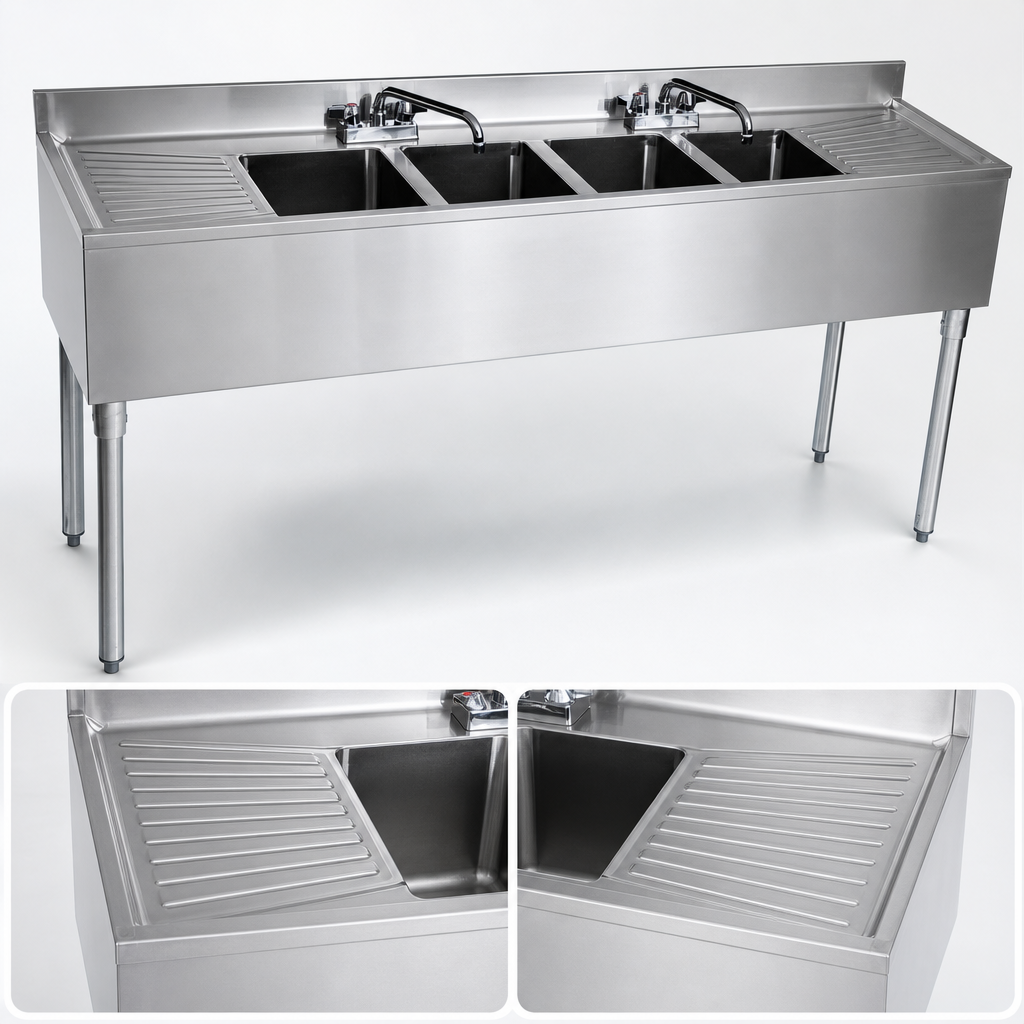

  • Dual 19" left & right drainboards are stamped and pitched for fast water run-off.
  • Integrally welded bowls (10"L × 14"W × 10"D) prevent leaks and promote sanitation.
  • 18 ga 304 stainless steel body with a stainless apron on front and sides resists rust, harsh chemicals and dents.
  • 4 1/2" high backsplash helps keep surrounding work surfaces dry.
  • Stainless steel legs install directly into the sink body with adjustable side bracing for rock-solid stability.
  • High-impact, corrosion-resistant, height-adjustable feet simplify leveling on uneven floors.
  • NSF listed for food-service applications.

Everything Included

  • (2) 4" on-center lead-free deck-mount faucets – BKD-10-G
  • (4) Basket drains – BKDR-2
  • (4) Removable 7" overflow standpipes – BK-OT-15075

Technical Specifications

Overall dimensions 84" W × 21 1/4" D × 32 1/2" H
Compartments (qty 4) 10" L × 14" W × 10" D
Drainboards (2) × 19" (left & right), stamped & pitched
Backsplash height 4 1/2"
Material & gauge 18 ga 304 stainless steel
Faucets included (2) BKD-10-G, 4" OC deck-mount, lead-free
Drain fittings (4) BKDR-2 basket drains & (4) BK-OT-15075 overflow standpipes
Legs & bracing Stainless steel legs with adjustable side bracing
Feet High-impact, corrosion-resistant, height-adjustable
Certifications NSF

Need upgraded bullet feet or additional accessories? Chat with our team before checkout and we’ll customize the sink to fit your exact workflow.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Height

32.5in

Width

84.0in

Depth

21.25in

Shipping Weight

98.0lbs

Sink Compartments

(4)

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Depth (front - back) OA

20" - 21"

Construction

stainless steel top, front, ends & legs

Drainboards

drainboards on left & right

Top Stainless Series

300 series

Width (side - side) OA

79" - 84"

Splash

4"

Specifications

Underbar Sink, four compartment, 84”W x 21-1/4"D x 32-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 19" stamped drainboards, 4-1/2"H backsplash, (2) 4" OC deck mount lead-free faucets (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, stainless steel legs & adjustable side bracing, adjustable high impact corrosion resistant feet, NSF
