Description

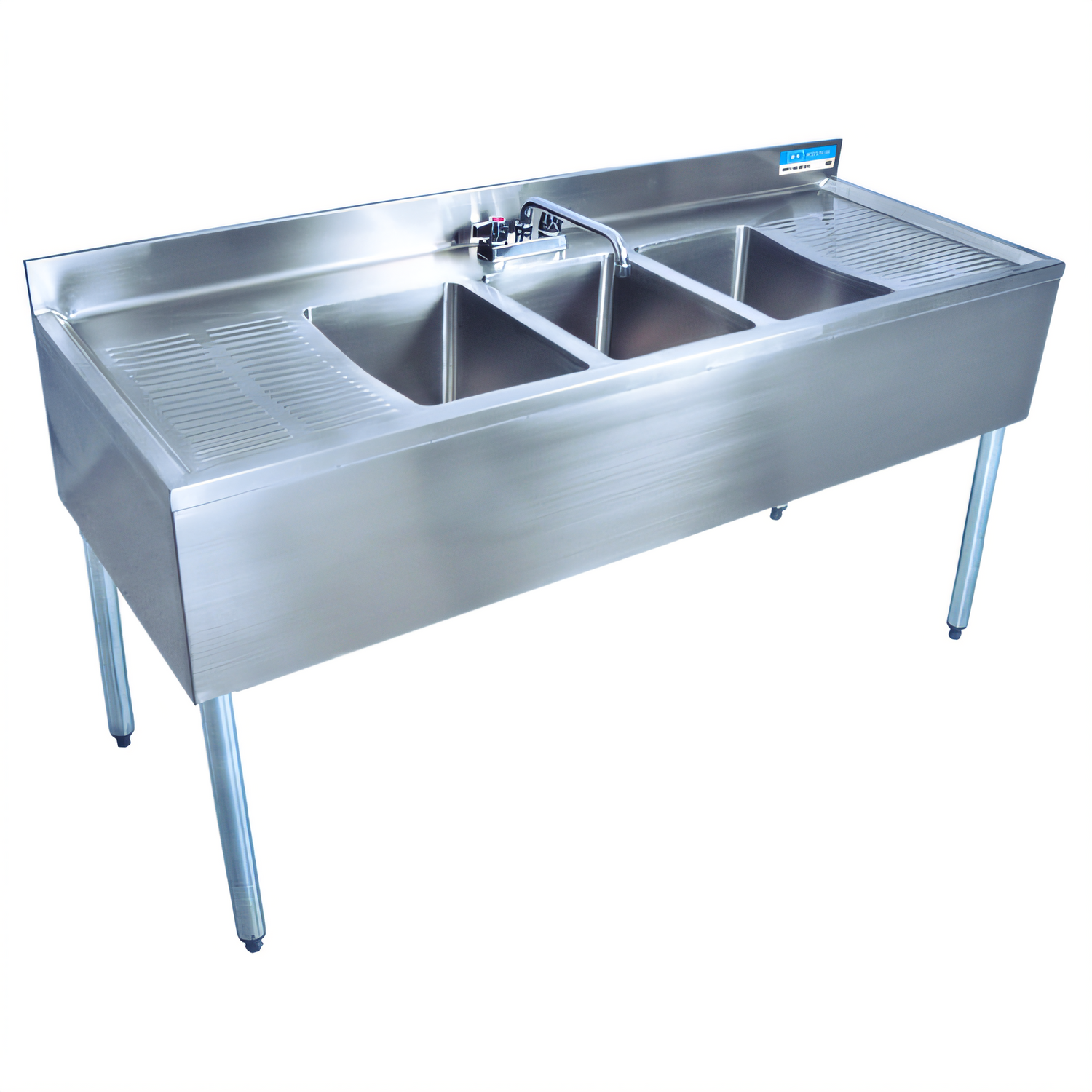

96" Three-Compartment Underbar Sink with Twin 31" Drainboards
BK Resources | Model UB4-21-396TSEngineered for high-volume bars and prep lines, this NSF-listed underbar sink delivers uncompromising durability, lightning-fast workflow, and complete installation hardware—right out of the box.
Why This Sink Stands Out
- Full 96" width with integrally welded 31" drainboards on both the left and right for maximum landing space.

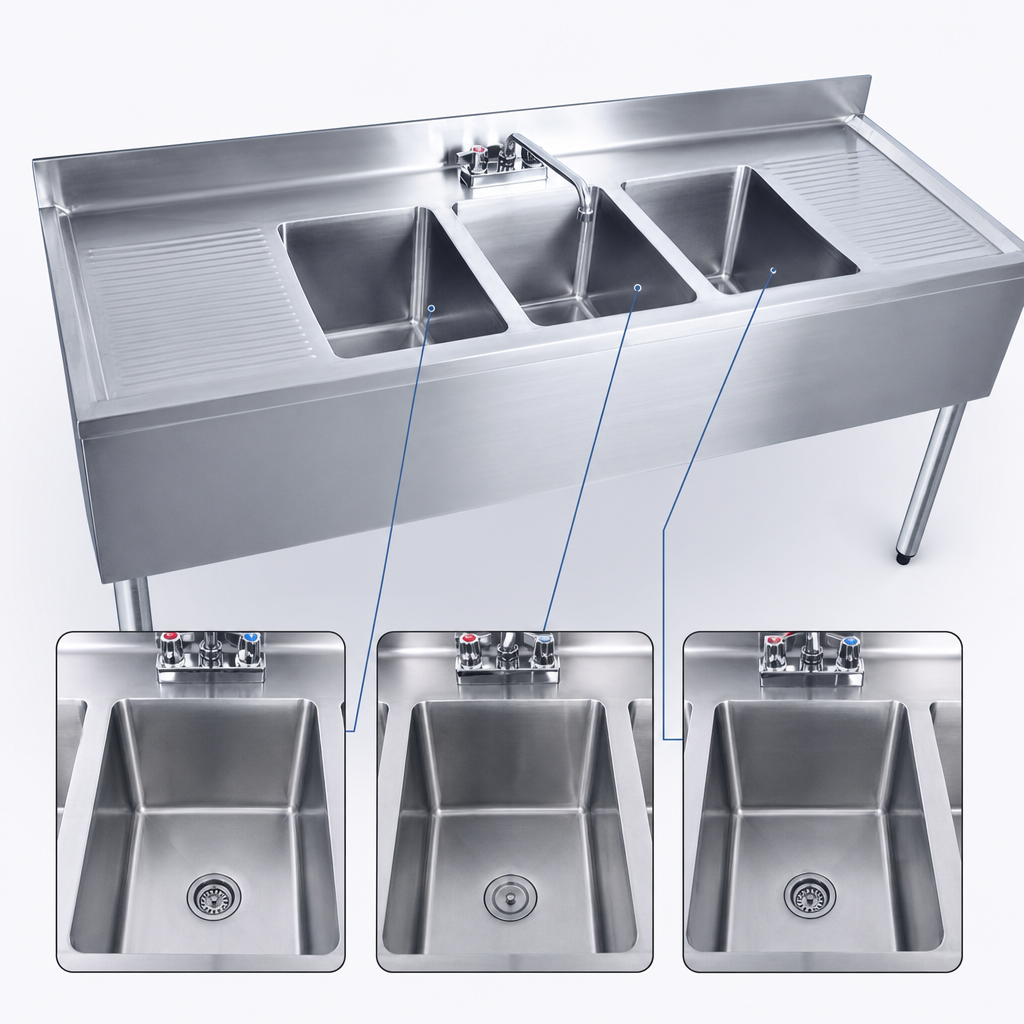

- (3) 10" W x 14" F-B x 10" D compartments meet most health-code warewashing requirements.
- Constructed from 18 ga, type 304 stainless steel—resists corrosion, dents, and bar chemicals.
- Includes 4" O.C. lead-free deck-mount faucet (BKD-10-G)—no extra plumbing purchase needed.

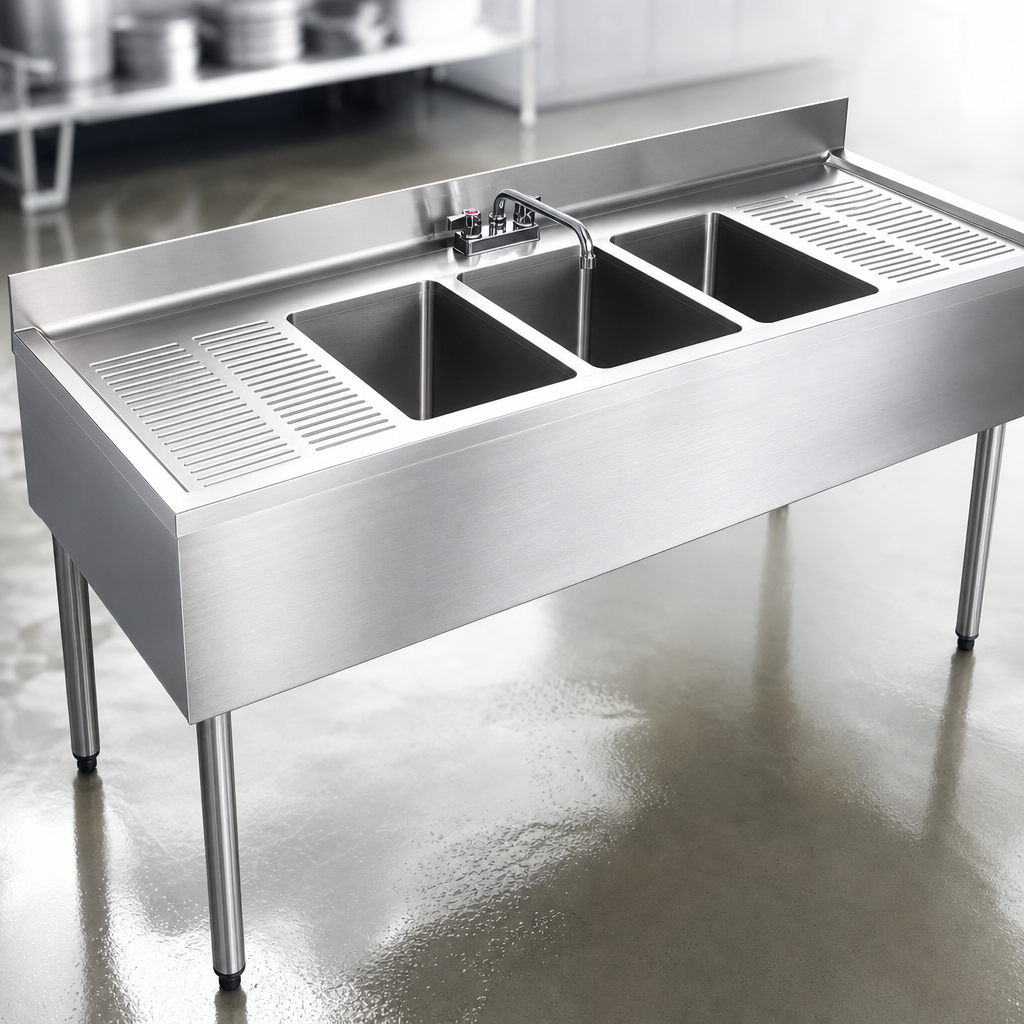

- Stamped & pitched drainboards speed runoff to the bowls to keep glassware moving.
- Complete kit: basket drains (BKDR-2) + 7" removable overflow standpipes (BK-OT-15075) included.
- Adjustable side bracing and high-impact, corrosion-resistant bullet feet ensure a rock-solid, level install.
- 4-1/2" backsplash protects walls and meets most local code requirements.
- NSF certified for food-service sanitation.
What’s Included
- UB4-21-396TS stainless steel sink body
- 4" O.C. deck-mount faucet (BKD-10-G)
- (3) Basket drains (BKDR-2)
- (3) 7" Overflow standpipes (BK-OT-15075)
- Stainless steel legs with adjustable side bracing & bullet feet
Technical Specifications
| Overall dimensions | 96" W × 21-1/4" D × 32-1/2" H |
|---|---|
| Work height | 32-1/2" (adjustable via bullet feet) |
| Compartment size (each) | 10" W × 14" F-B × 10" D |
| Drainboards | (2) × 31" stamped & pitched (left & right) |
| Backsplash height | 4-1/2" |
| Material / gauge | 18 ga T-304 stainless steel (bowls, apron, & drainboards) |
| Legs & bracing | Stainless steel, 1-5/8" O.D. with adjustable side bracing |
| Feet | High-impact, corrosion-resistant bullet feet, height adjustable |
| Faucet drilling | 4" on-center deck mount (faucet included) |
| Included drain hardware | (3) BKDR-2 basket drains, (3) BK-OT-15075 7" overflow tubes |
| Certifications | NSF |
| Approx. ship weight | 76 lb |
Ships knocked down for lower freight cost. Simple tool-free leg assembly required.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Height
32.5in
Width
96.0in
Depth
21.25in
Shipping Weight
100.0lbs
Bowl Size
10" x 14" front-to-back
Sink Compartments
(3)
Construction
stainless steel top, front, ends & legs
Splash
4"
Drainboards
drainboards on left & right
Depth (front - back) OA
20" - 21"
Bowl Depth (rim - drain)
10"
Top Stainless Series
300 series
Width (side - side) OA
91" - 96"
Specifications
Underbar Sink, three compartment, 96”W x 21-1/4"D x 32-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 31" stamped drainboards, 4-1/2"H backsplash, 4" OC deck mount lead-free faucet (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, stainless steel legs & adjustable side bracing, adjustable high impact corrosion resistant feet, NSF
