BK Resources UB4-21-384TS Bar Equipment
$1,224.74
Unit price
/
Unavailable
Description

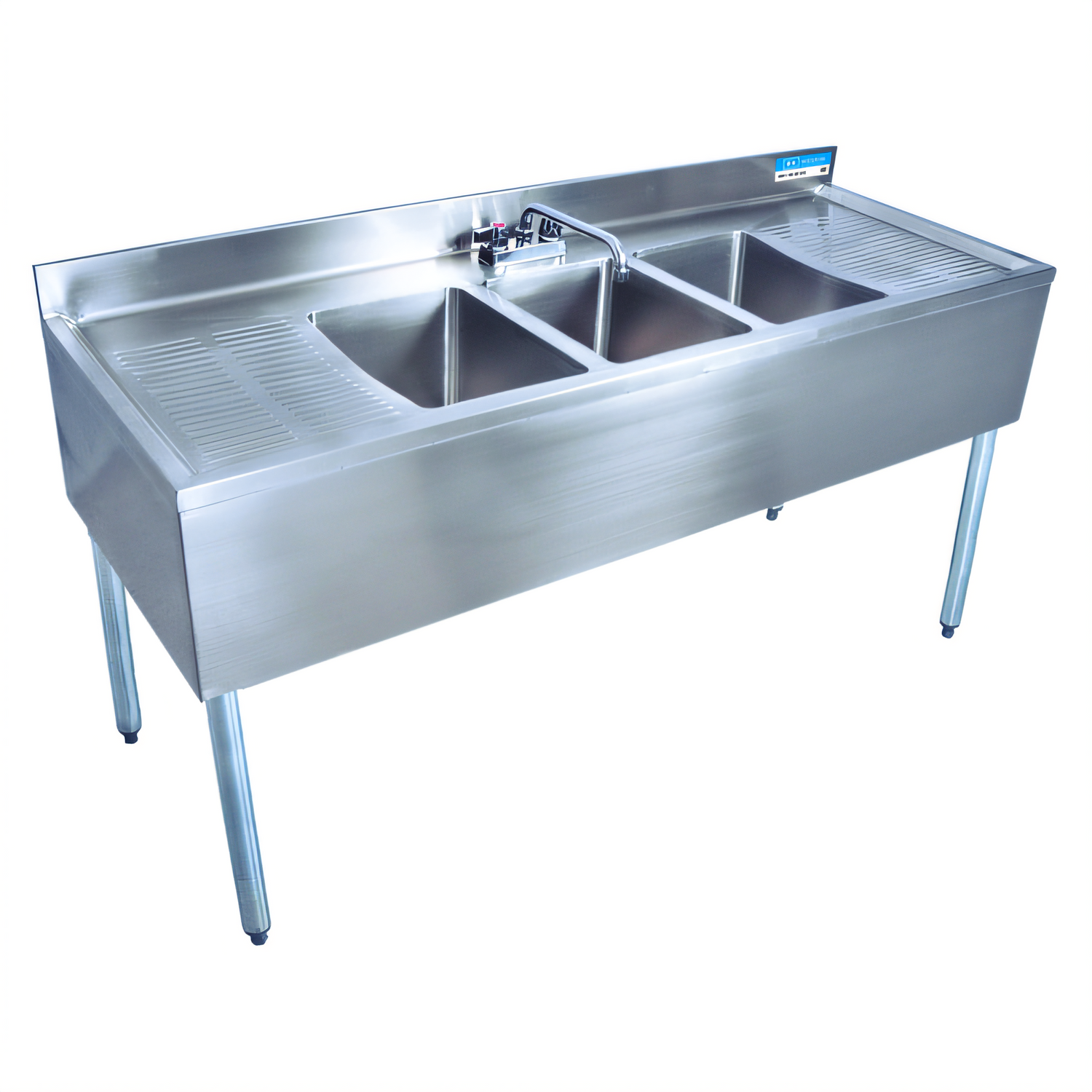

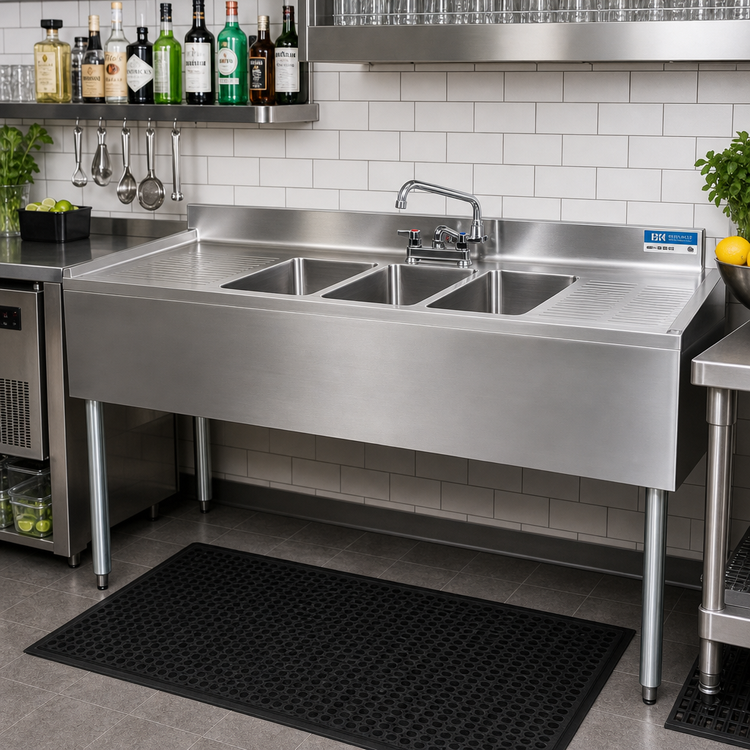

84" Stainless Steel 3-Compartment Underbar Sink w/ Dual 25" Drainboards
BK Resources Model UB4-21-384TS | NSF CertifiedBuilt for high-volume bars and food-service operations, this fully equipped sink packs three welded bowls, two oversized drainboards, and all required plumbing accessories into one rugged 18 ga T-304 stainless steel workstation.
Key Benefits

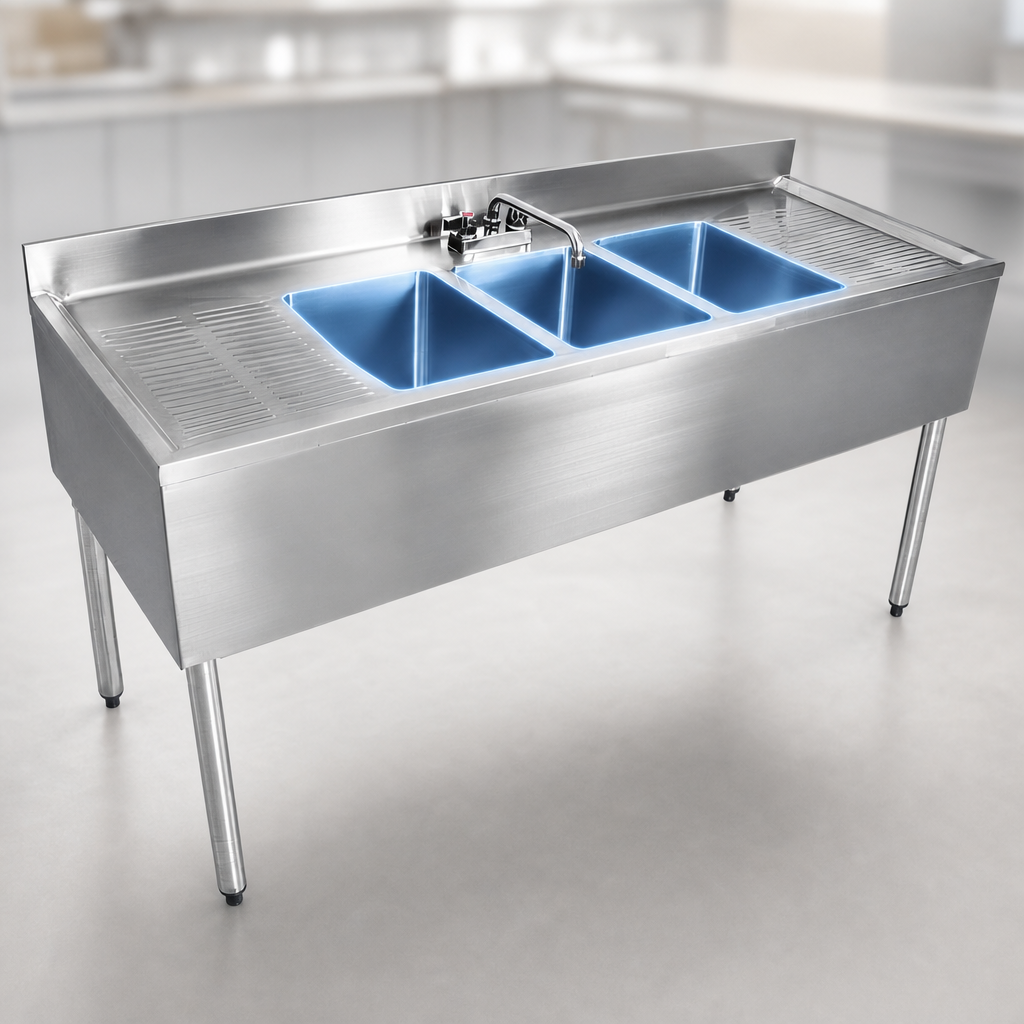

- Three 10" × 14" × 10" integrally welded bowls for dedicated wash, rinse & sanitize tasks.

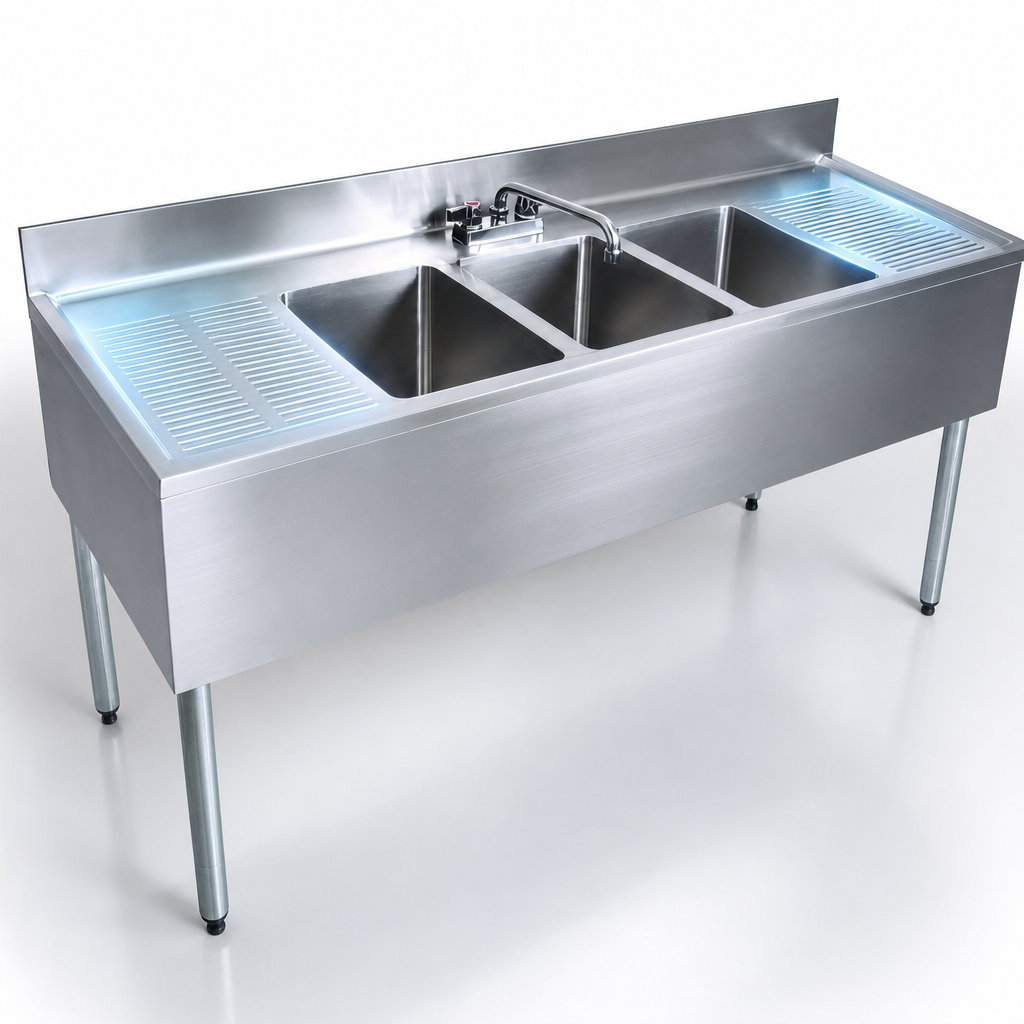

- Left & right 25" stamped, pitched drainboards accelerate drying and keep glassware organized.
- 4-1/2" backsplash controls splashes; front & side stainless apron delivers a clean, finished look.
- Factory-installed 4" O.C. lead-free faucet (BKD-10-G) eliminates extra sourcing and installation time.
- Includes basket drains (BKDR-2) and 7" removable overflow standpipes (BK-OT-15075) for every bowl.
- Stainless steel legs mount directly into the sink body; adjustable side bracing adds rock-solid stability.
- High-impact, corrosion-resistant feet level the unit on uneven floors.
- NSF certification meets the most stringent health-code requirements.
Complete Package
- 1 × UB4-21-384TS sink assembly
- 1 × BKD-10-G 4" deck-mount gooseneck faucet (lead-free)
- 3 × BKDR-2 basket drains
- 3 × BK-OT-15075 7" overflow tubes / standpipes
Perfect For
- Main or satellite bar glass-washing stations
- Breweries and taprooms
- Cocktail prep & garnish areas
- Catering bars and concession stands
Specifications
| Overall width | 84" (2134 mm) |
|---|---|
| Front-to-back depth | 21-1/4" (540 mm) |
| Working height | 32-1/2" (826 mm) |
| Backsplash height | 4-1/2" (114 mm) |
| Compartment interior (each) | 10" W × 14" D × 10" H |
| Number of compartments | 3 |
| Drainboards | 25" left & 25" right, stamped & pitched |
| Faucet centers | 4" on-center (holes pre-punched) |
| Material | 18 ga 304 stainless steel |
| Legs / bracing | Stainless steel legs with adjustable side bracing |
| Feet | Adjustable high-impact, corrosion-resistant |
| Included accessories | BKD-10-G faucet, BKDR-2 basket drains, BK-OT-15075 overflow tubes |
| Certifications | NSF |
| Approx. ship weight | 74 lb (33.6 kg) |
| Warranty | Limited manufacturer’s warranty |
Need upgraded bullet feet or additional plumbing kits? Contact us before checkout—most options ship with your sink.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Height
32.5in
Width
84.0in
Depth
21.25in
Shipping Weight
91.0lbs
Sink Compartments
(3)
Construction
stainless steel top, front, ends & legs
Depth (front - back) OA
20" - 21"
Bowl Size
10" x 14" front-to-back
Bowl Depth (rim - drain)
10"
Top Stainless Series
300 series
Drainboards
drainboards on left & right
Width (side - side) OA
79" - 84"
Splash
4"
Specifications
Underbar Sink, three compartment, 84”W x 21-1/4"D x 32-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 25" stamped drainboards, 4-1/2"H backsplash, 4" OC deck mount lead-free faucet (BKD-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, stainless steel legs & adjustable side bracing, adjustable high impact corrosion resistant feet, NSF
