Description

BK Resources UB4-18-IBCP36-8 Underbar Ice Bin with 8-Circuit Cold Plate

100 lb Capacity • 36" W x 18" D footprint • NSF Listed

Engineered for high-volume beverage programs, this BK Resources underbar ice bin pairs generous 100 lb ice capacity with an integrated 8-circuit aluminum cold plate—delivering ice-cold drinks and rock-solid reliability in even the busiest bar environments.

Built for Speed & Sanitation

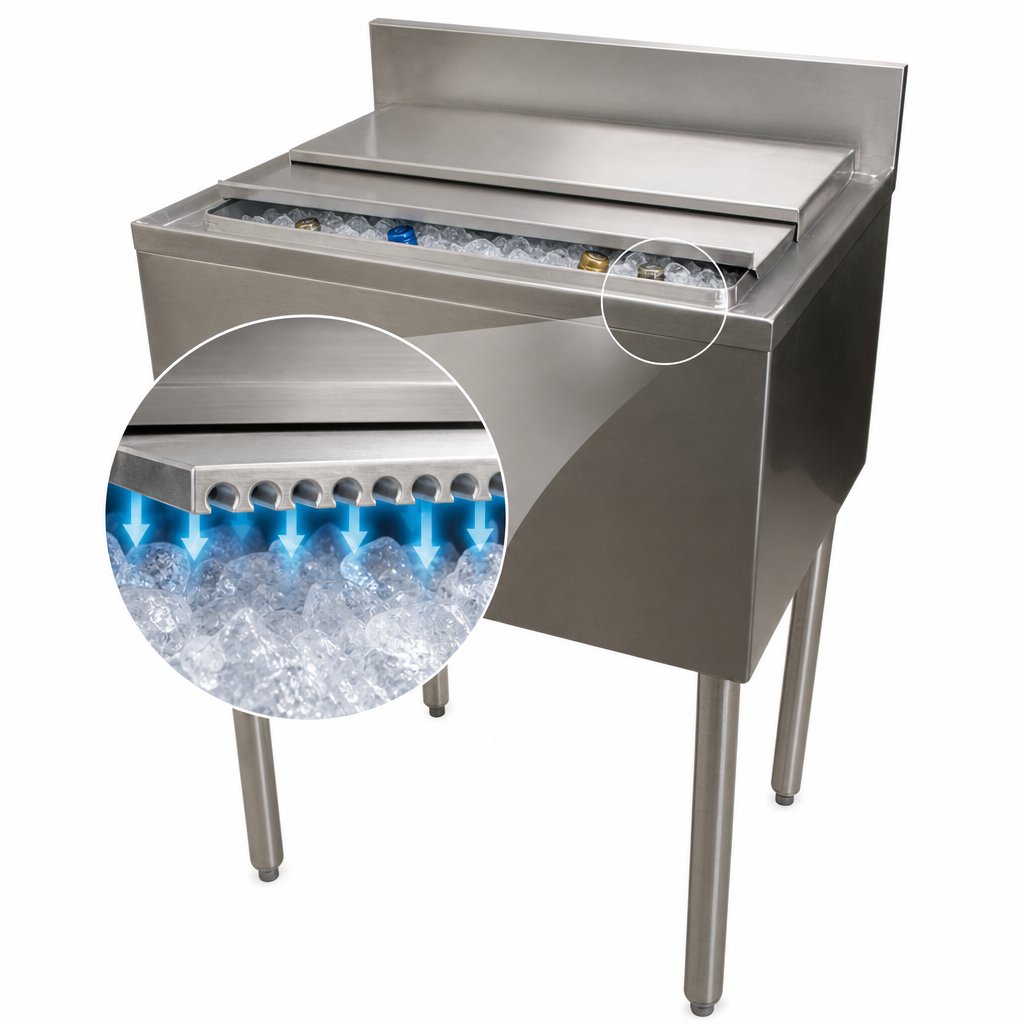

  • 8-Circuit Aluminum Cold Plate pre-chills eight beverage lines for consistent pour temperatures.

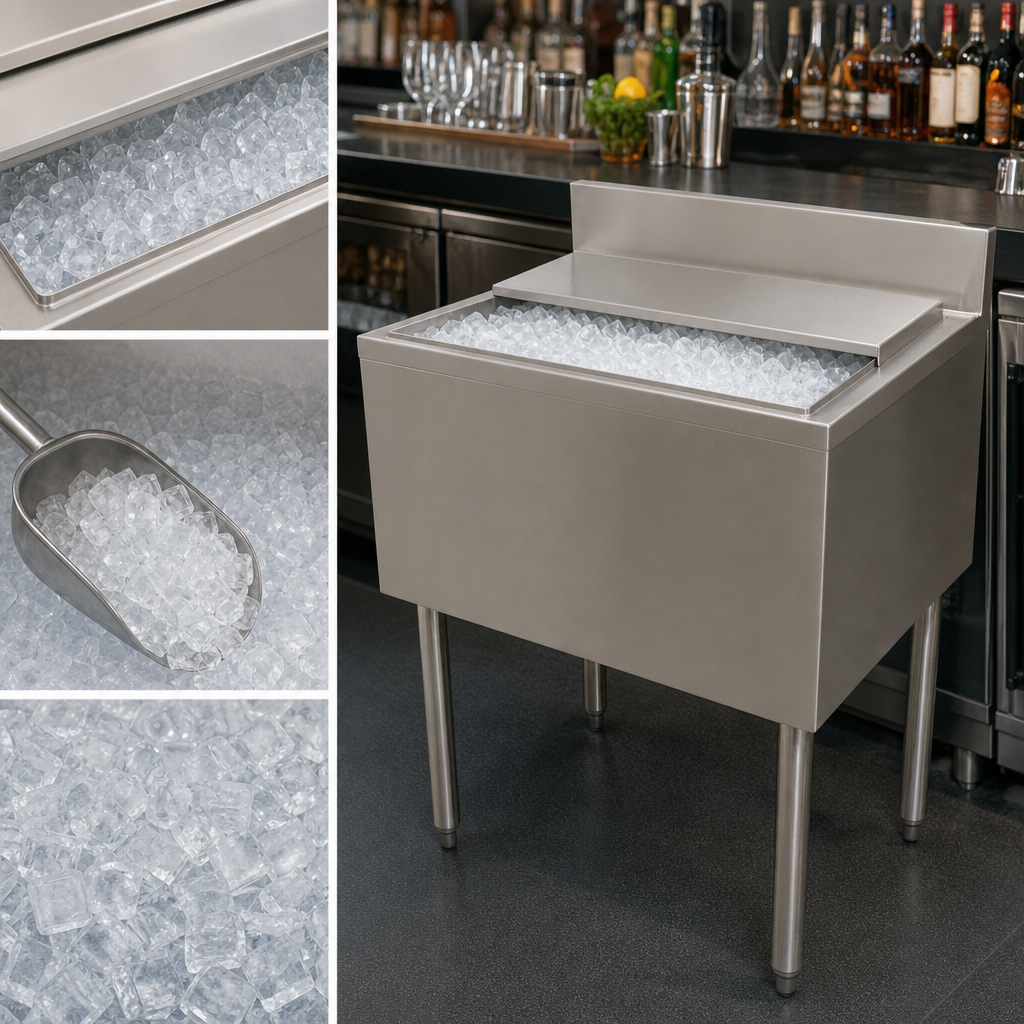

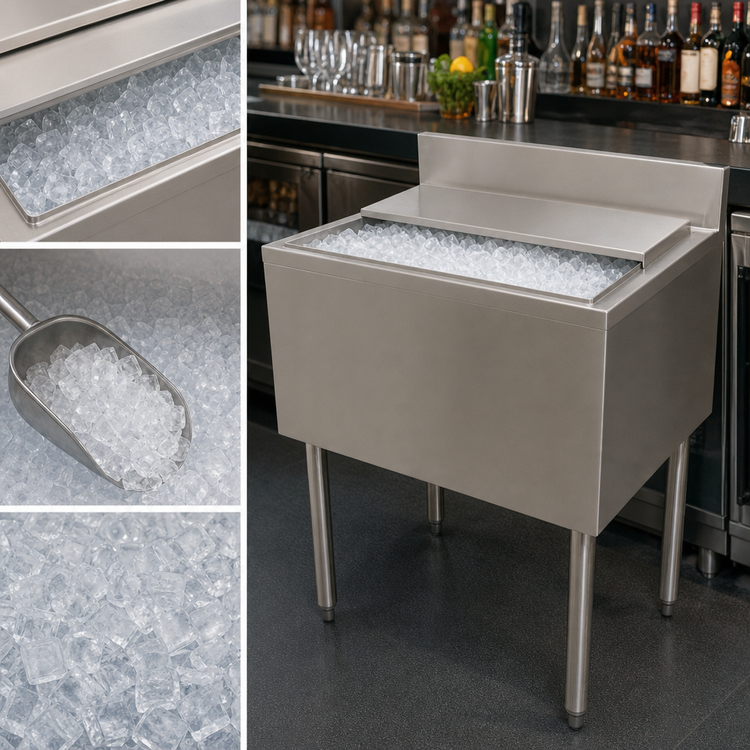

  • Fully Insulated 12-9/16" Deep Ice Well (31" L x 15" W) holds up to 100 lb of ice to keep service flowing.
  • 18 ga Type 304 Stainless Steel construction—superior corrosion resistance and easy cleanup.
  • 4" High Backsplash protects walls and contains splashes for a cleaner work zone.
  • Two Sliding Stainless Steel Lids shield ice from contamination when not in use.
  • Stainless Steel Legs & Side Bracing add stability; legs install directly into the sink body.
  • Adjustable High-Impact Bullet Feet level the unit on uneven floors and resist corrosion.
  • NSF Certified for safe, sanitary beverage service.

Specifications

Manufacturer / Model BK Resources UB4-18-IBCP36-8
Ice Capacity 100 lb (45 kg)
Cold Plate 8-circuit aluminum
Overall Dimensions 36" W × 18" D × 33 1⁄2" H (including 4" backsplash)
Ice Bin Interior 31" L × 15" W × 12 9⁄16" D
Work Height 28 1⁄2"
Material 18 ga 304 stainless steel (body, lids, legs & bracing)
Feet Adjustable, high-impact, corrosion-resistant bullet feet
Drain Standard 1" IPS with BK Resources BKDR-325CP drain assembly
Certifications NSF
Shipping Weight Approx. 163 lb

For optimal performance, connect beverage lines to the cold plate immediately after installation and level the unit using the adjustable feet.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Height

32.5in

Width

36.0in

Depth

18.0in

Shipping Weight

155.0lbs

Splash

4"

Bin Depth

12" deep ice bin

Cold Plate

(8) circuit

Construction

stainless steel construction

Width (side - side) OA

31" - 36"

Depth (front - back) OA

18" - 19"

Ice Capacity

100 - 149 lbs.

Specifications

Underbar Ice Bin, with 8-circuit aluminum cold plate, 100 lbs capacity, 31" wide x 15" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, stainless steel legs & side bracing, adjustable corrosion resistant feet, NSF
