BK Resources UB4-18-IBCP36-7 Bar Equipment
$1,694.87
Unit price
/
Unavailable
Description

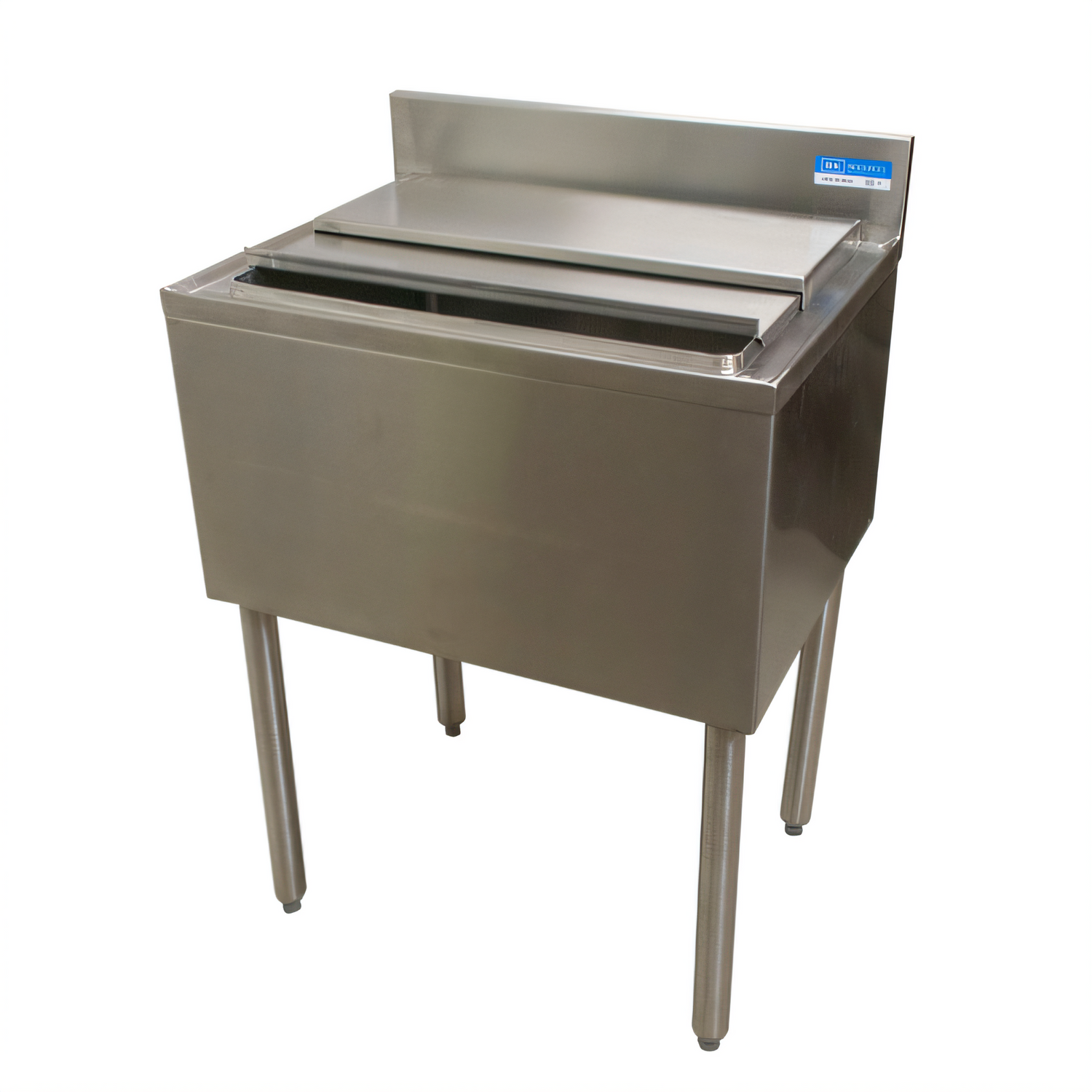

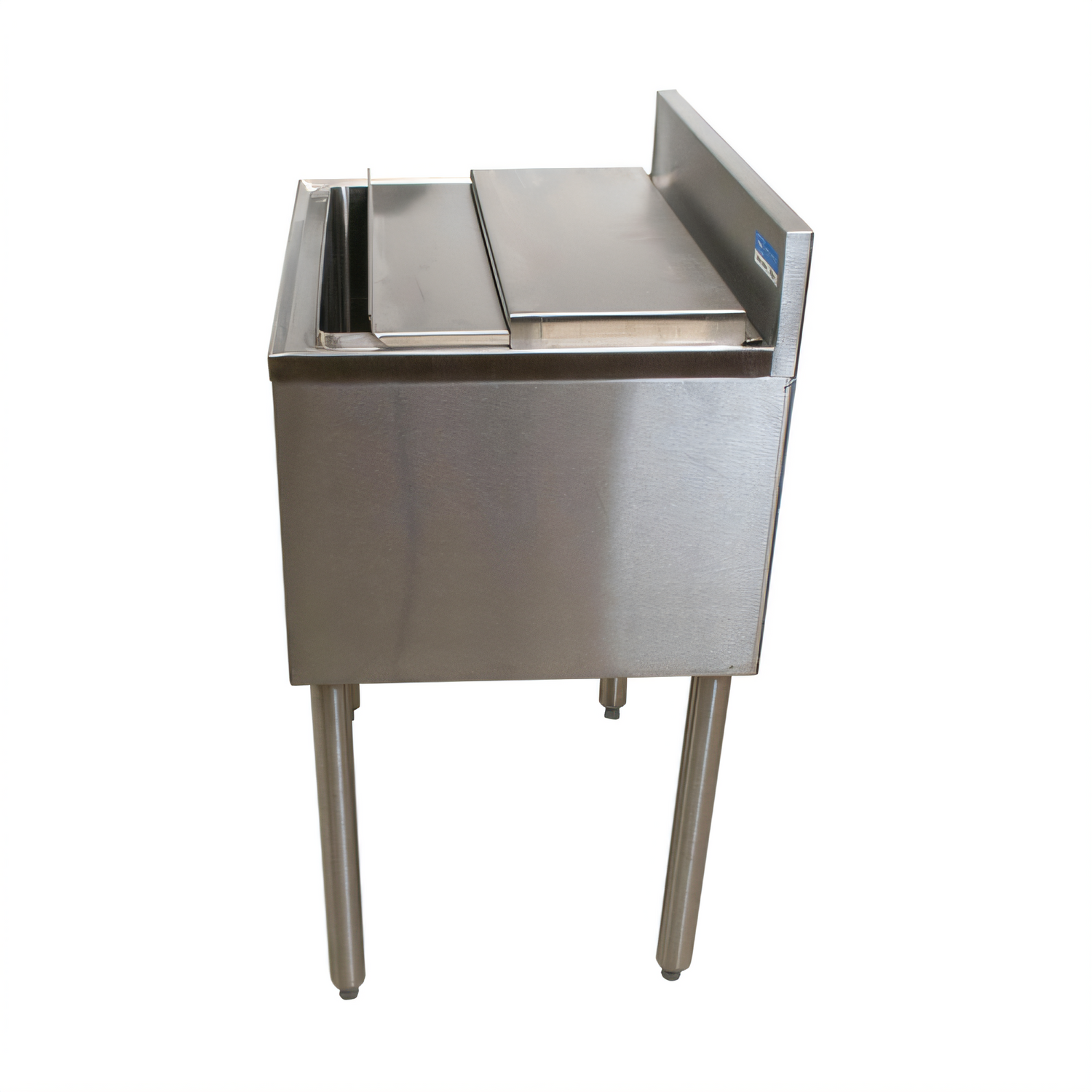

BK Resources Underbar Ice Bin with 7-Circuit Cold Plate – 100 lb Capacity
31" L × 15" W × 12-9/16" D Ice Bin | 18 ga T-304 Stainless Steel | NSFEngineered for fast-paced bar service, this BK Resources ice bin pairs a generous 100 lb ice capacity with a 7-circuit aluminum cold plate, delivering ice-cold beverages shift after shift while maintaining stringent NSF sanitation standards.
Why You’ll Love It

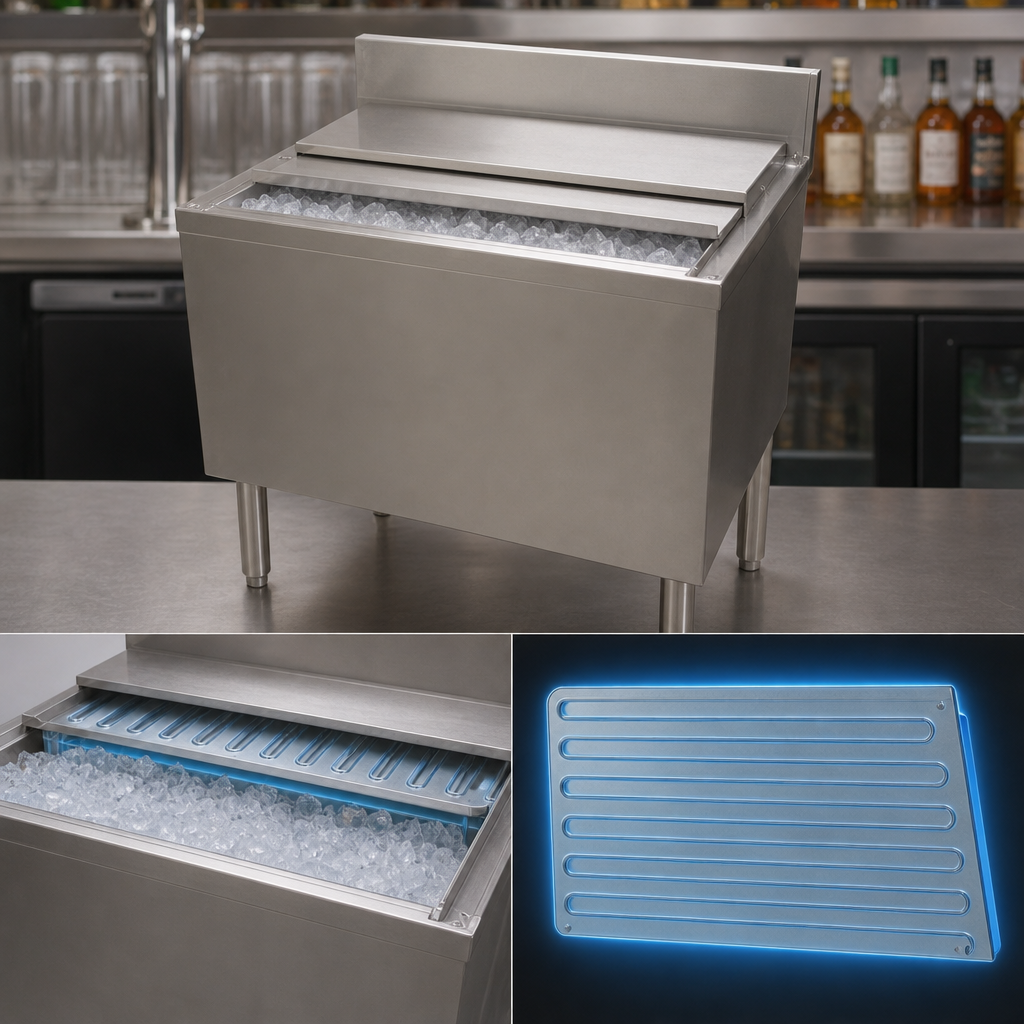

- 7-circuit aluminum cold plate chills up to seven beverage lines for consistent, frosty pours.

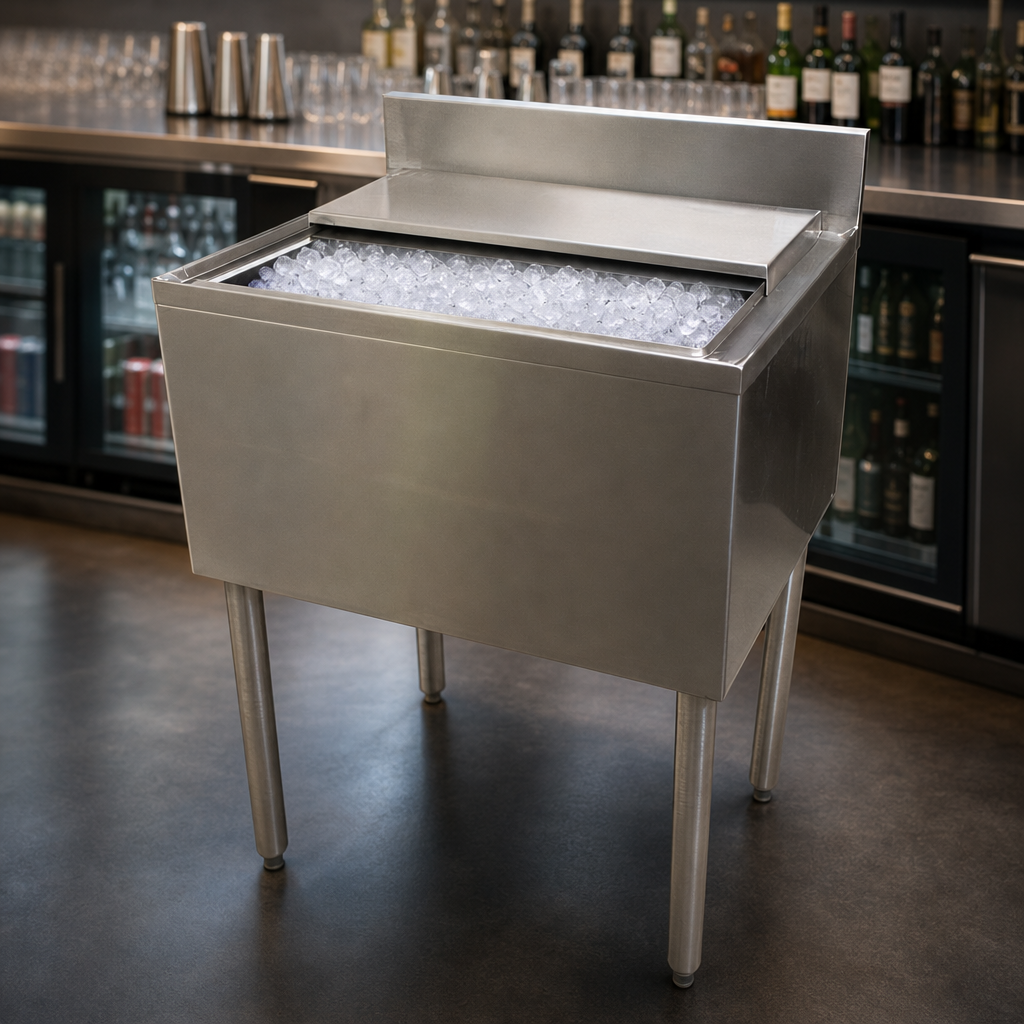

- High-capacity, fully insulated bin holds 100 lbs of ice – ideal for peak-hour demand.
- Durable 18 ga 304 stainless steel body, 4" integral backsplash, and stainless steel side bracing resist dents, rust, and everyday abuse.
- Adjustable high-impact, corrosion-resistant feet keep the unit level and stable on uneven floors.
- Includes smooth-glide stainless steel lids to keep ice clean and reduce melt.
- NSF certified for worry-free compliance behind the bar.
Technical Specs
| Ice Bin Capacity | 100 lbs |
|---|---|
| Cold Plate | 7-circuit aluminum |
| Ice Bin Interior (L × W × D) | 31" × 15" × 12-9/16" |
| Overall Dimensions (L × W × H) | 36" × 18" × 33-1/2" |
| Backsplash Height | 4" |
| Construction | 18 ga T-304 stainless steel |
| Legs / Bracing | Stainless steel legs with side bracing |
| Feet | Adjustable, high-impact, corrosion-resistant |
| Drain Fitting | 1" I.D. threaded drain (BKDR-325CP) |
| Certifications | NSF |
Note: Beverage tubing and installation hardware are sold separately.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Height
32.5in
Width
36.0in
Depth
18.0in
Shipping Weight
156.0lbs
Cold Plate
(7) circuit
Width (side - side) OA
31" - 36"
Splash
4"
Construction
stainless steel construction
Bin Depth
12" deep ice bin
Ice Capacity
100 - 149 lbs.
Depth (front - back) OA
18" - 19"
Specifications
Underbar Ice Bin, with 7-circuit aluminum cold plate, 100 lbs capacity, 31" wide x 15" front-to-back x 12-9/16" deep ice bin, 4"H backsplash, 18/304 stainless steel construction, stainless steel legs & side bracing, adjustable corrosion resistant feet, NSF
