BK Resources UB4-18-IBCP30-7 Bar Equipment
Description

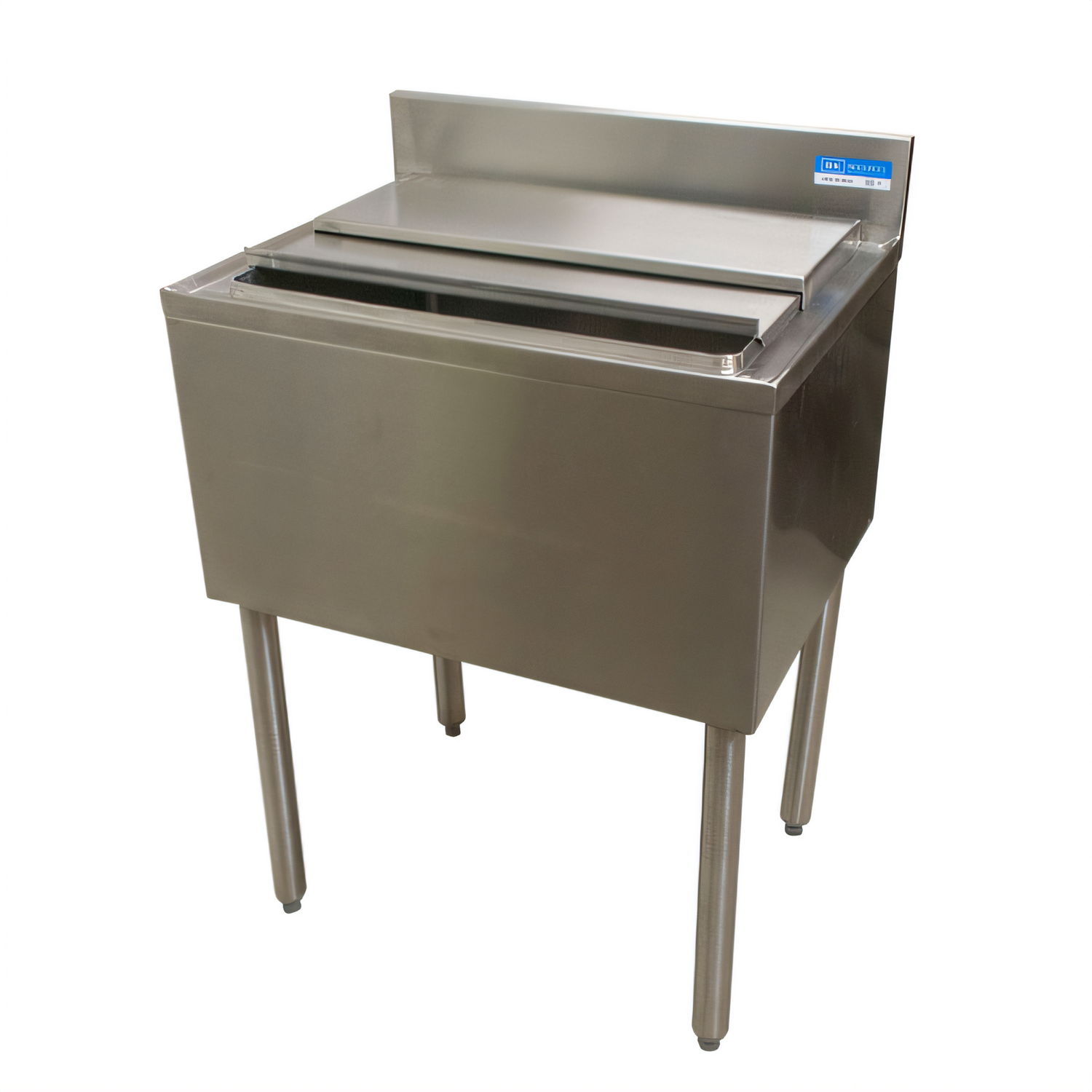

BK Resources 30" Underbar Insulated Ice Bin w/ 7-Circuit Cold Plate
Model UB4-18-IBCP30-7 | NSF ListedKeep cocktails flowing, sodas icy-cold, and service running smoothly with this heavy-duty underbar ice bin from BK Resources. The built-in 7-circuit aluminum cold plate chills up to seven beverage lines while the fully insulated, 80 lb bin preserves every cube for peak serving quality.
Key Features

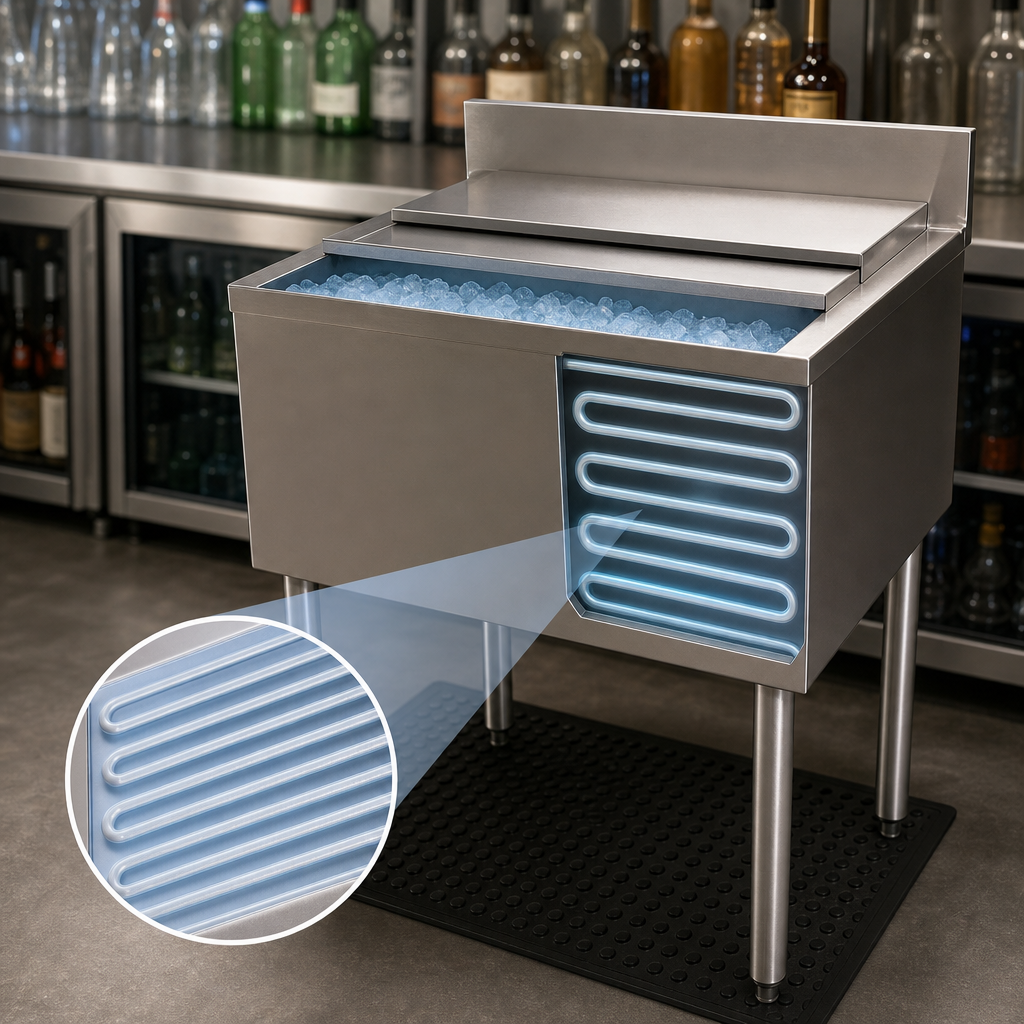

- 7-circuit aluminum cold plate chills syrup or soda lines before dispensing.

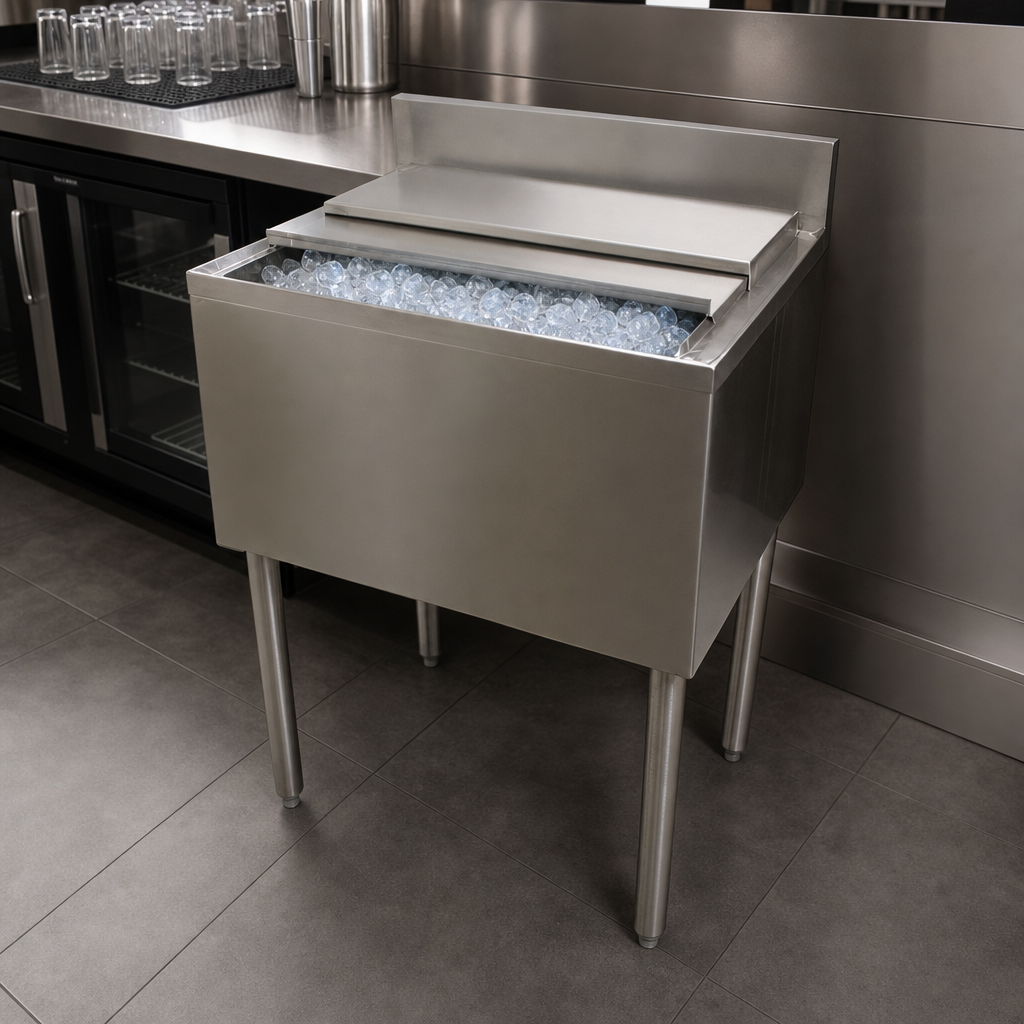

- Large 80 lb ice capacity with a 25" L × 15" W × 12-9/16" D insulated bin.
- Built from sanitary 18-ga T-304 stainless steel for superior corrosion resistance.
- 4" rear backsplash contains splashes and protects surrounding walls.
- Sliding stainless steel lids safeguard ice and allow quick one-handed access.
- Stainless steel legs & side bracing bolt directly into the sink body for rock-solid stability.
- Adjustable high-impact, corrosion-resistant feet level the unit on uneven floors.
- NSF certification meets the latest food-service sanitation standards.
Specifications
| Ice Capacity | 80 lb |
|---|---|
| Cold Plate | 7-circuit aluminum |
| Ice Bin Interior (L × W × D) | 25" × 15" × 12-9/16" |
| Overall Dimensions (L × W × H) | 30" × 18" × 33-1/2" |
| Backsplash Height | 4" |
| Work Height | 28-1/2" |
| Construction | 18-ga T-304 stainless steel |
| Legs / Bracing | Stainless steel with side bracing |
| Feet | Adjustable, high-impact, corrosion-resistant |
| Certifications | NSF |
| Shipping Weight | Approx. 152 lb |
Looking for a different size or circuit count? BK Resources offers insulated ice bins from 66 lb to 140 lb capacities in 7-, 8-, and 10-circuit configurations.
