BK Resources UB4-18-IBCP24-8 Bar Equipment
BK Resources UB4-18-IBCP24-8 Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

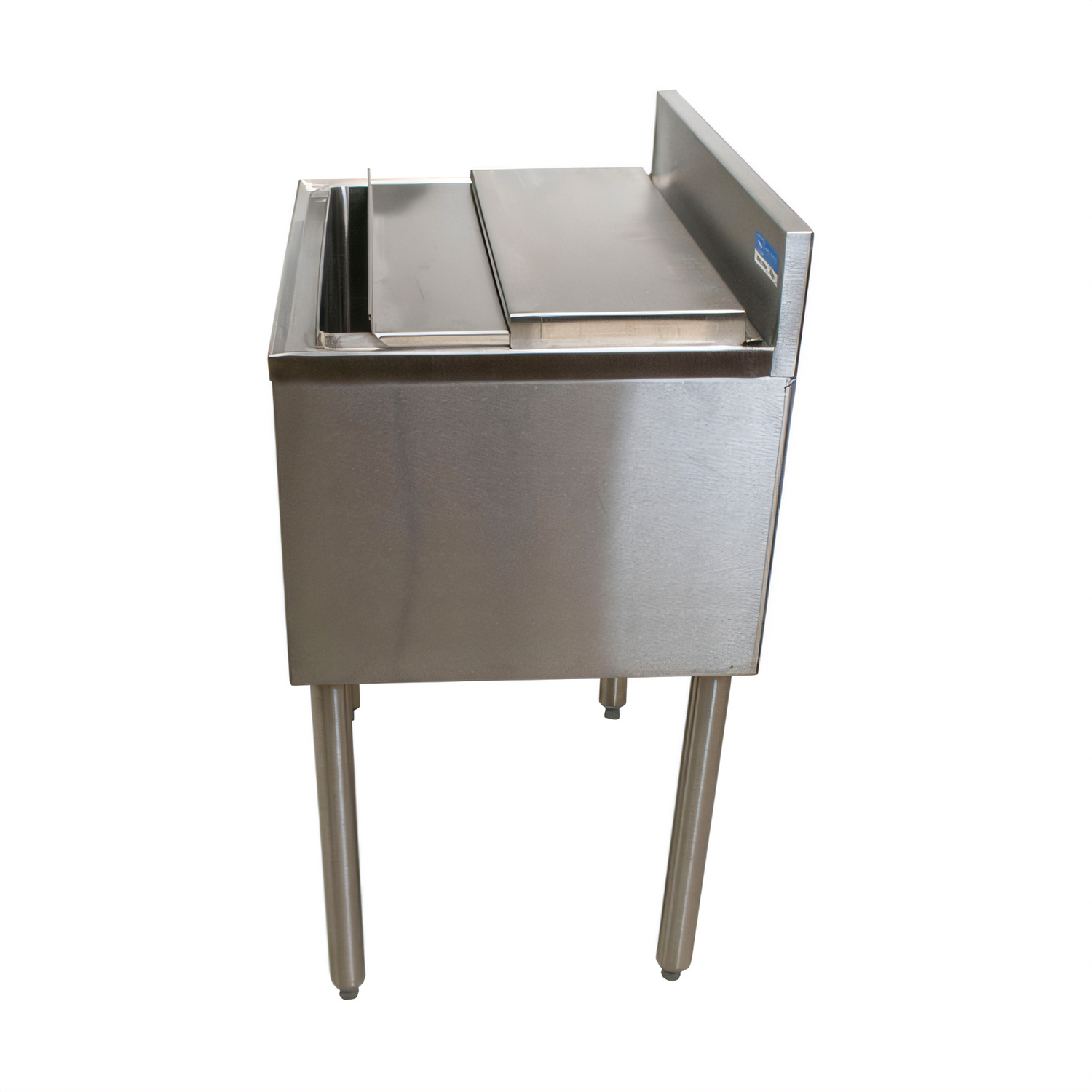

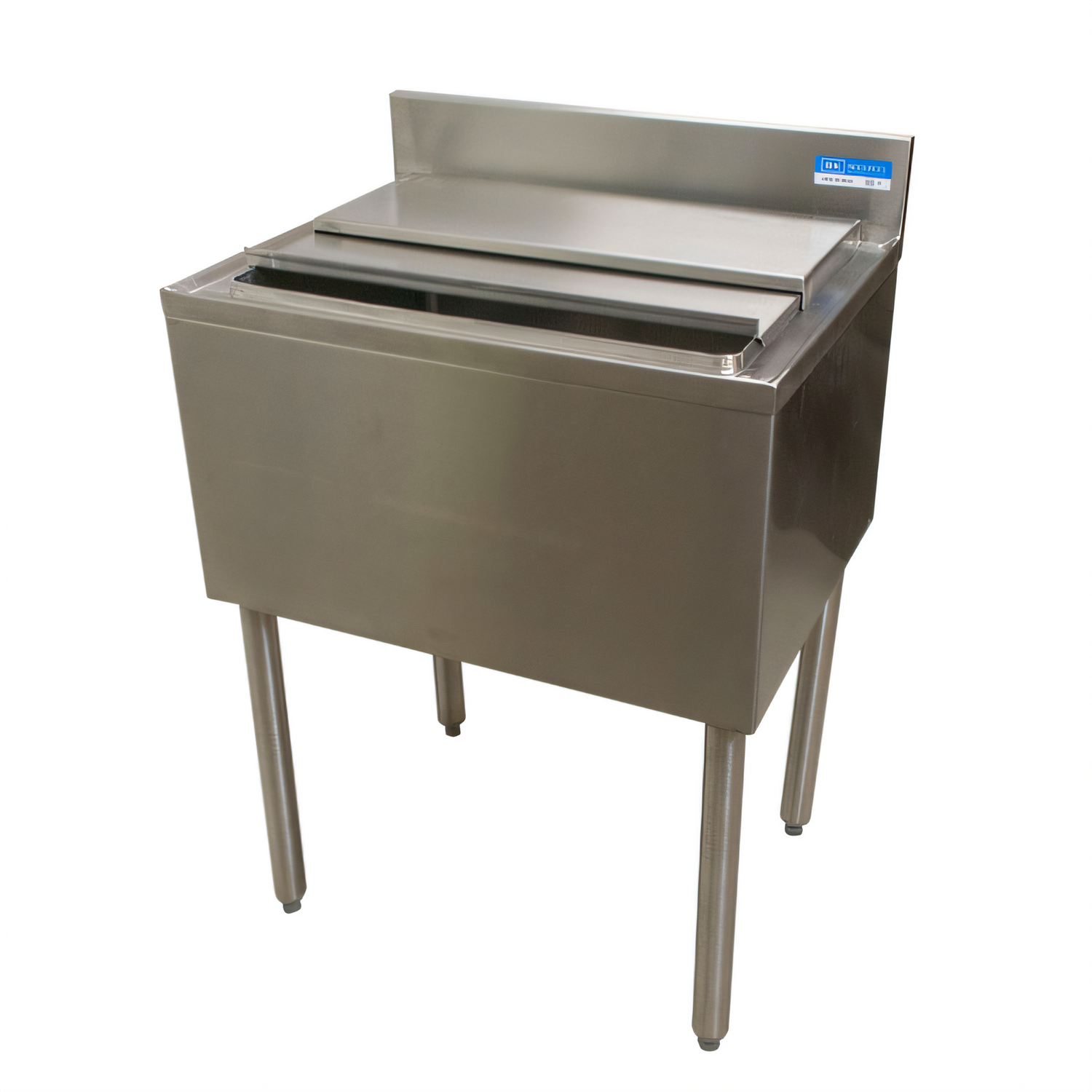

BK Resources 24" Underbar Ice Bin with 8-Circuit Cold Plate – 66 lb Capacity
Model UB4-18-IBCP24-8 | BKIB-CP8-2412-18SKeep drinks ice-cold and service lines moving with BK Resources’ compact, high-efficiency underbar ice bin. A fully insulated 66 lb ice well is paired with an 8-circuit aluminum cold plate, letting you chill up to eight beverage lines while always having fresh ice within reach. Built from durable 18 ga type 304 stainless steel, this NSF-listed unit is the professional choice for bars, restaurants and concession operations that demand reliability shift after shift.
Why You’ll Love It

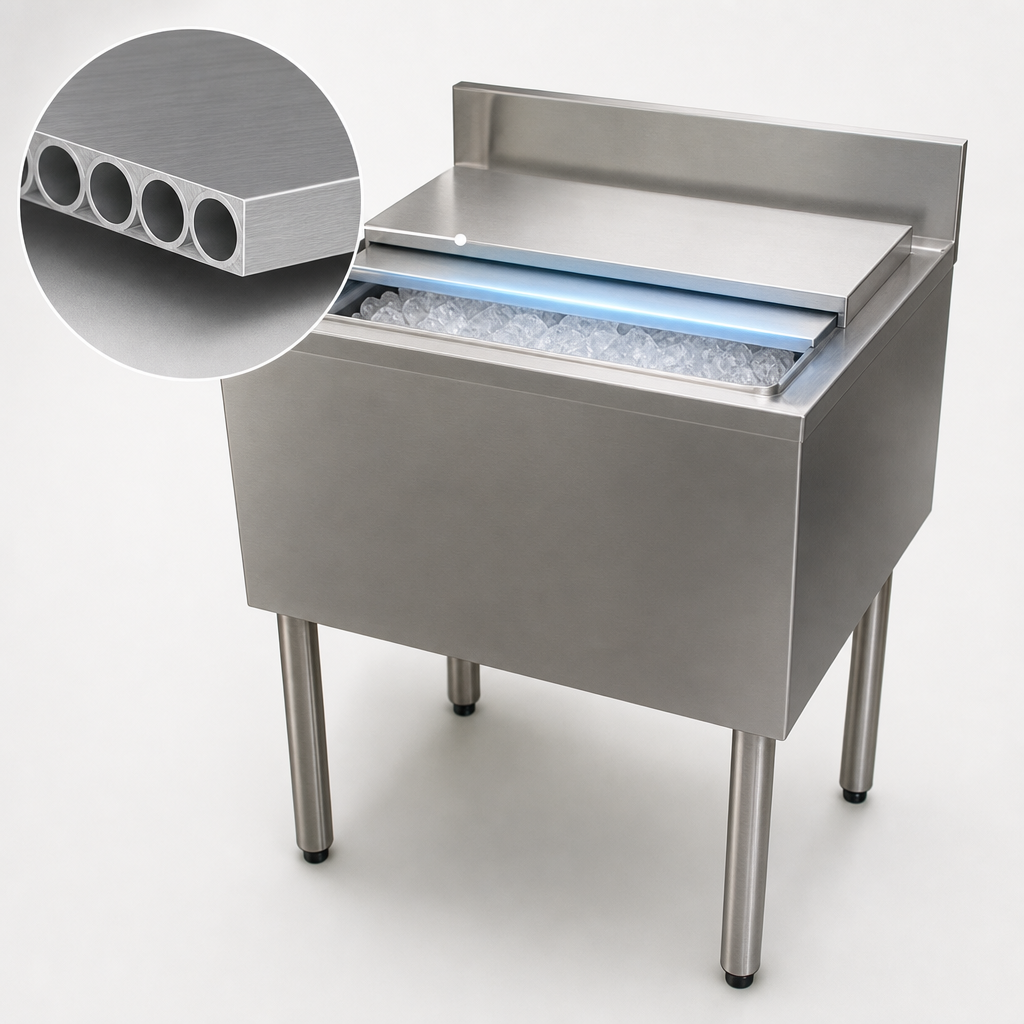

- 8-circuit aluminum cold plate chills multiple soda or beer lines right in the ice bin for consistently frosty pours.

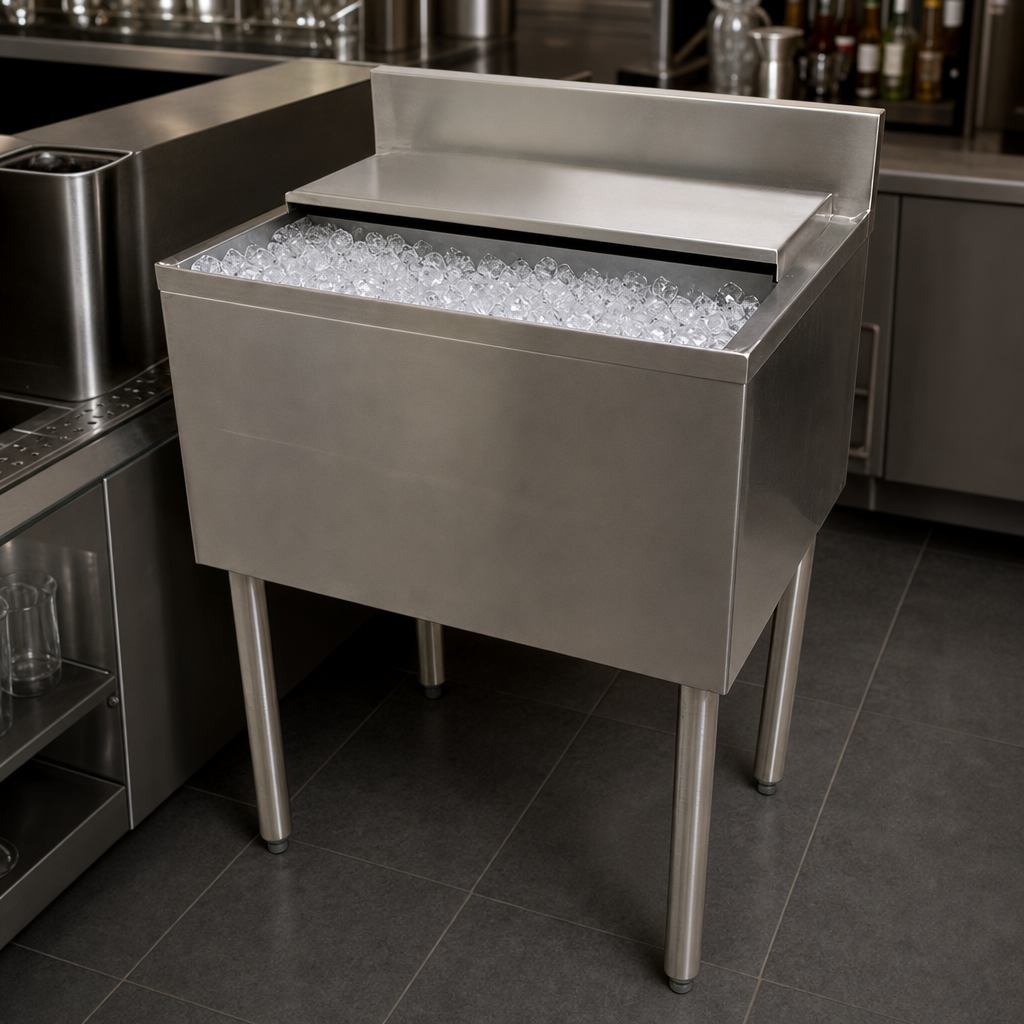

- 66 lb ice capacity with 12 9⁄16" deep, fully foamed-in-place insulation slows melt and reduces re-fill trips.
- Heavy-duty 18 ga 304 stainless steel body, legs & side bracing resist corrosion in the toughest back-bar environments.
- 4" integrated backsplash keeps walls dry and sanitary while containing ice splash.
- Adjustable high-impact bullet feet level the unit on uneven floors and are corrosion-resistant for long life.
- Two-piece sliding stainless steel lid (included) protects ice from contaminants when not in use.
- NSF certified for safe food-contact and easy health-department approvals.
Specifications
Ice Bin Capacity | 66 lb (30 kg) |
---|---|
Cold Plate | 8-circuit aluminum, factory-installed |
Interior Bin Dimensions | 20 3⁄8" L × 15" W × 12 9⁄16" D |
Overall Dimensions | 24" L × 18" W × 33 1⁄2" H |
Work Height | 28 1⁄2" |
Backsplash Height | 4" |
Material | 18 ga type 304 stainless steel |
Legs / Bracing | Stainless steel legs with side bracing |
Feet | Adjustable corrosion-resistant bullet feet |
Drain | 1" IPS drain included |
Certifications | NSF |
Shipping Weight | 136 lb |
Need a longer run? Matching 30", 36" & 48" wide cold-plate models are also available from BK Resources.
