BK Resources | SKU:
UB4-18-484TS
BK Resources UB4-18-484TS Bar Equipment
$1,332.53
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
BK Resources UB4-18-484TS Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
BK Resources UB4-18-484TS Bar Equipment
$1,332.53
Unit price
/
Unavailable
Description

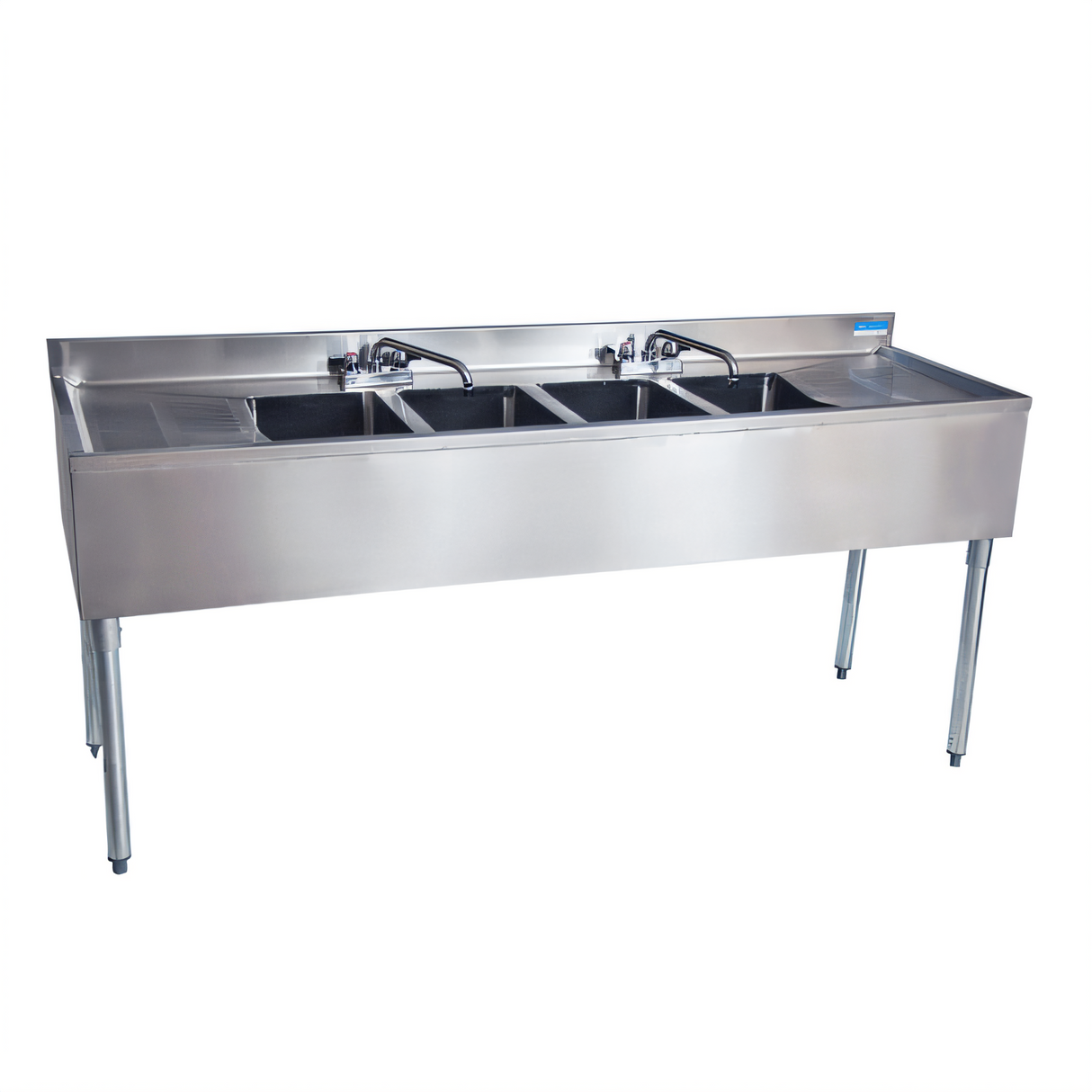

BK Resources Slim-Line 84" Underbar Sink – 4 Compartments
Model UB4-18-484TS | NSF CertifiedGive your bartenders the room they need without crowding the aisle. This 18-inch-deep Slim-Line sink packs four full 10" × 14" × 10" bowls, dual 19" drainboards, and all required accessories into a rugged 84" stainless-steel unit that arrives ready to plumb, pour, and perform.
Key Features

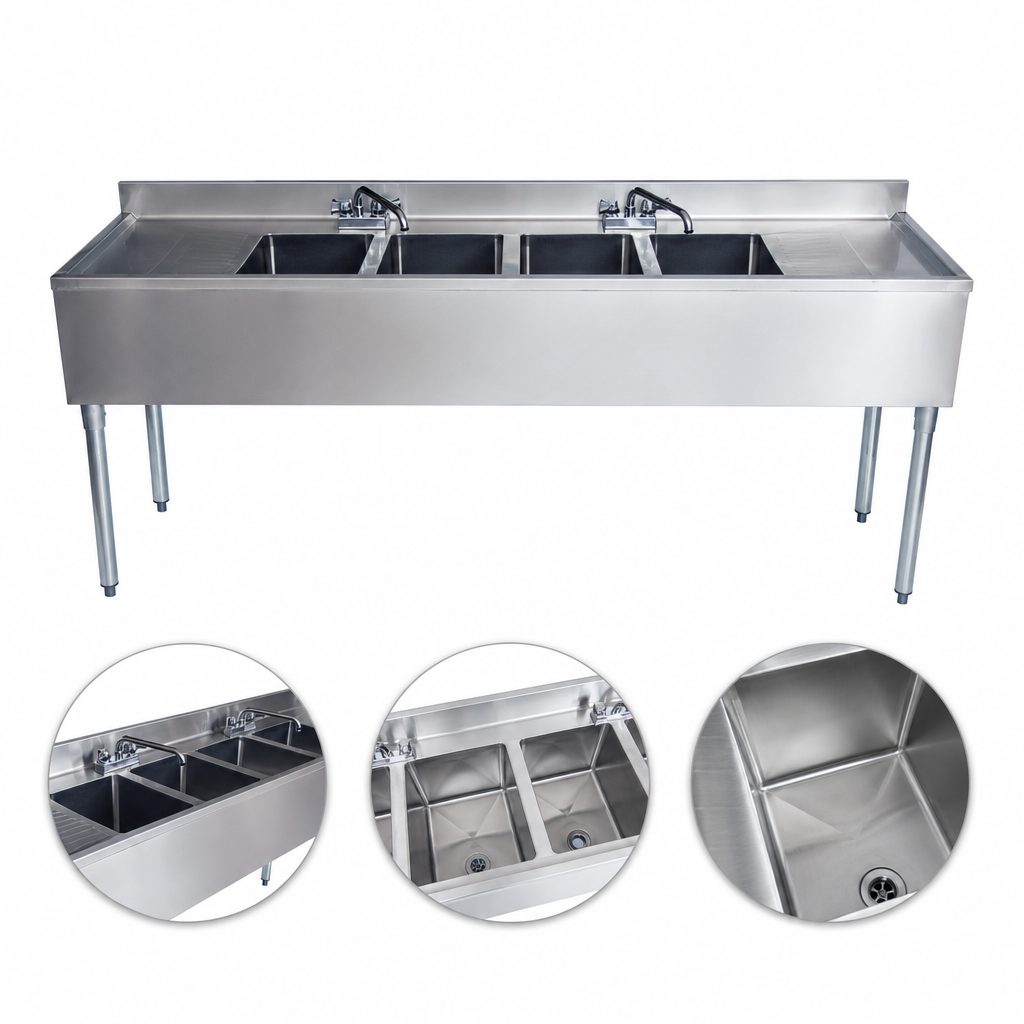

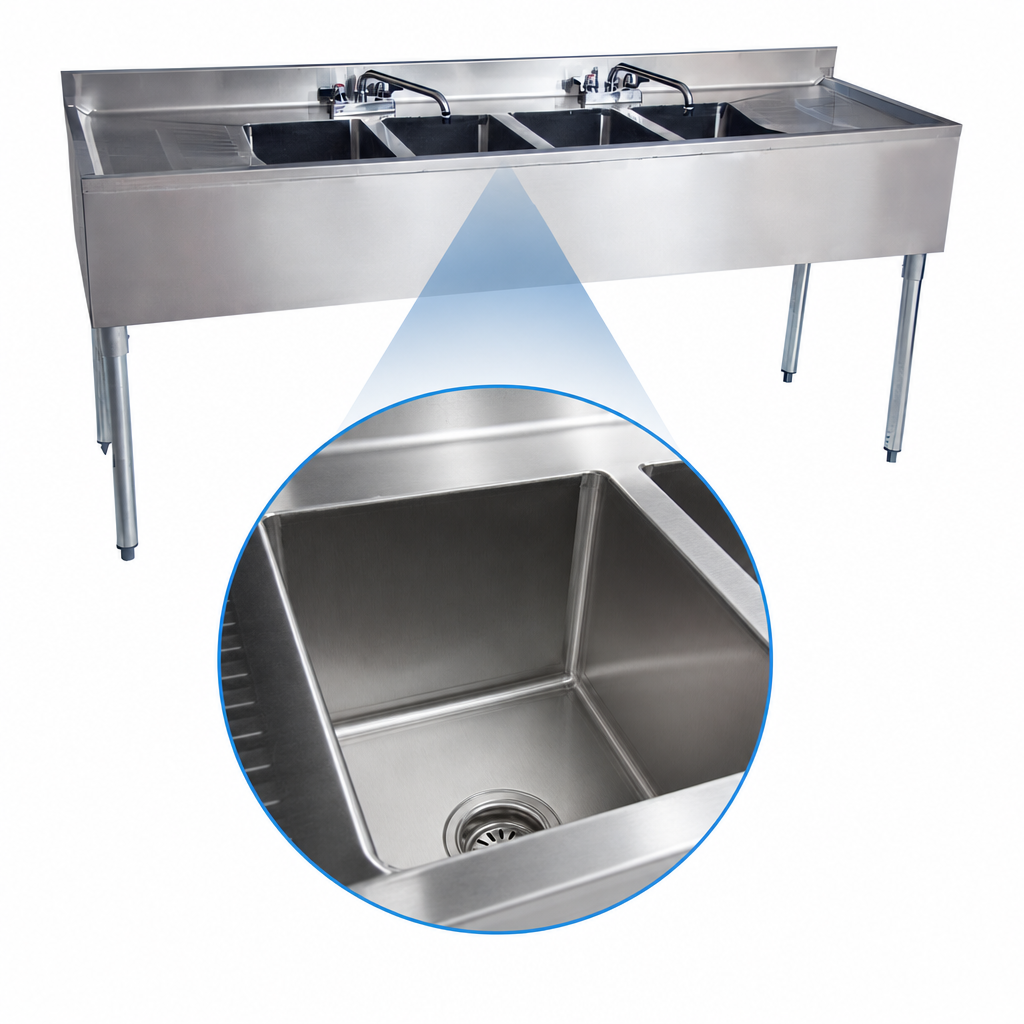

- Four integrally welded bowls – 10″ W × 14″ F/B × 10″ D each.
- (2) 19″ stamped & pitched drainboards (left and right) speed drying and glass-ware turnover.
- Space-saving 18-1/4″ slim depth fits narrow back-bar aisles.
- 4-1/2″ backsplash protects walls and meets health-code splash requirements.
- (2) lead-free 4″ O.C. splash-mount faucets (BKF-W2-10-G) included.
- Complete with basket drains (BKDR-2) and 7″ removable overflow standpipes (BK-OT-15075).
- 18 ga T-304 stainless steel top, bowls, apron, legs, and bracing – built for daily commercial abuse.
- Legs install directly into the sink body for rock-solid support.
- Adjustable, high-impact corrosion-resistant feet level the sink on uneven floors.
- NSF listed for food-service sanitation.
Ideal For
- Bars, pubs & taverns
- Hotel & resort beverage stations
- Coffee shops and cafés
- Catering & event venues
Technical Specifications
| Overall width | 84″ (2134 mm) |
|---|---|
| Front-to-back depth | 18-1/4″ (464 mm) |
| Working height | 32-1/2″ (826 mm) |
| Backsplash height | 4-1/2″ (114 mm) |
| Number of compartments | 4 |
| Compartment size (each) | 10″ W × 14″ F/B × 10″ D |
| Drainboards | (2) × 19″, left & right, stamped & pitched |
| Faucets included | (2) BKF-W2-10-G, 4″ O.C. splash-mount, lead-free |
| Drain fittings | BKDR-2 basket drains & BK-OT-15075 7″ overflow tubes |
| Material & gauge | 18 ga 304 stainless steel |
| Support structure | Stainless steel legs with adjustable side bracing & bullet feet |
| Certifications | NSF |
| Approx. net weight | 75 lb (34 kg) |
Need extra leveling range? Optional upgraded bullet feet are available.
Features & Specs
Features & Specs
Manufacturer
BK Resources
Certifications
NSF
Height
32.5in
Width
84.0in
Depth
18.25in
Shipping Weight
91.5lbs
Bowl Size
10" x 14" front-to-back
Bowl Depth (rim - drain)
10"
Sink Compartments
(4)
Top Stainless Series
300 series
Depth (front - back) OA
18" - 19"
Drainboards
drainboards on left & right
Construction
stainless steel top, front, ends & legs
Width (side - side) OA
79" - 84"
Splash
4"
Specifications
Slim-Line Underbar Sink, four compartment, 84”W x 18-1/4"D x 32-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 19" stamped drainboards, 4-1/2"H backsplash, (2) 4" OC splash mount lead-free faucets (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, stainless steel legs & adjustable side bracing, adjustable high impact corrosion resistant feet, NSF
