Description

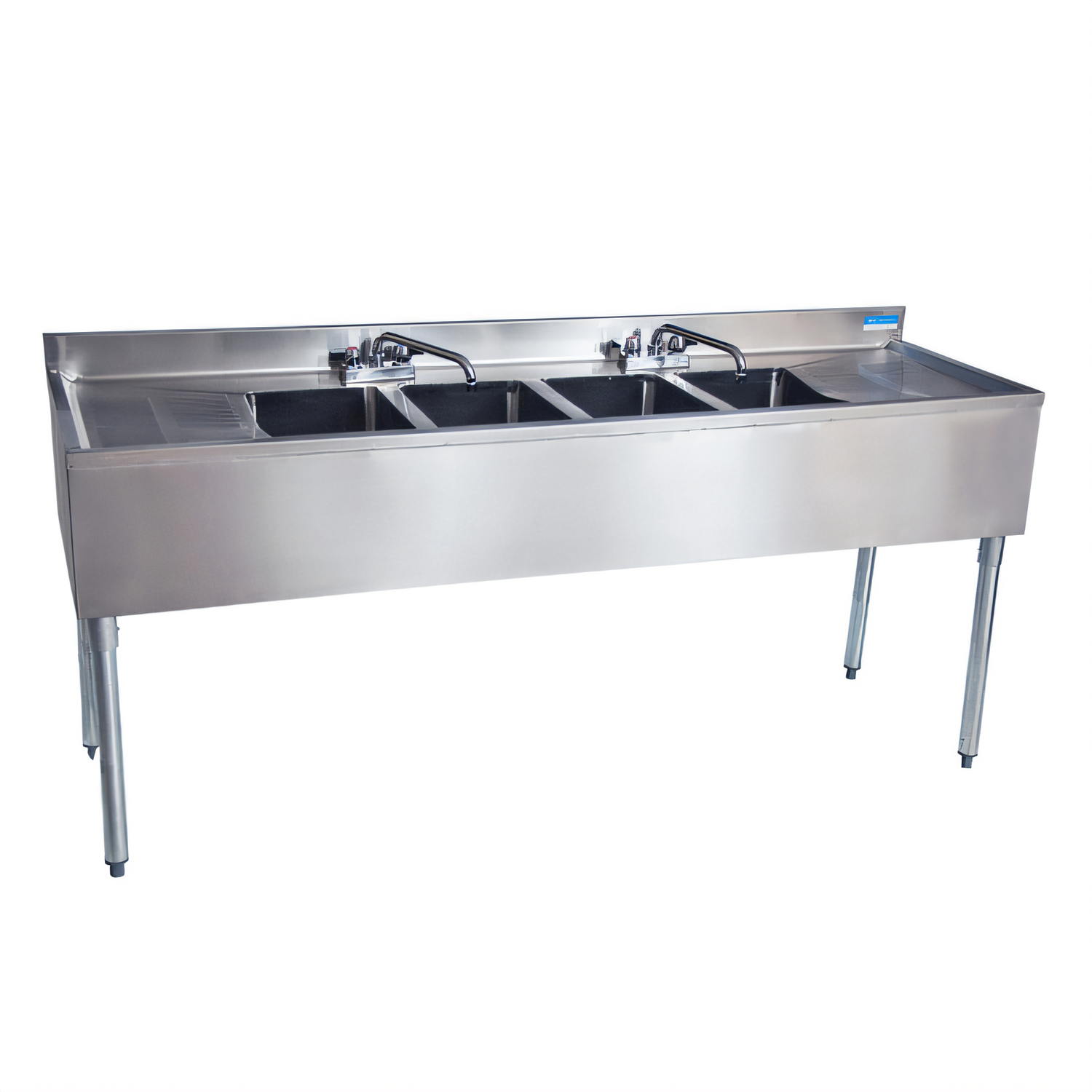

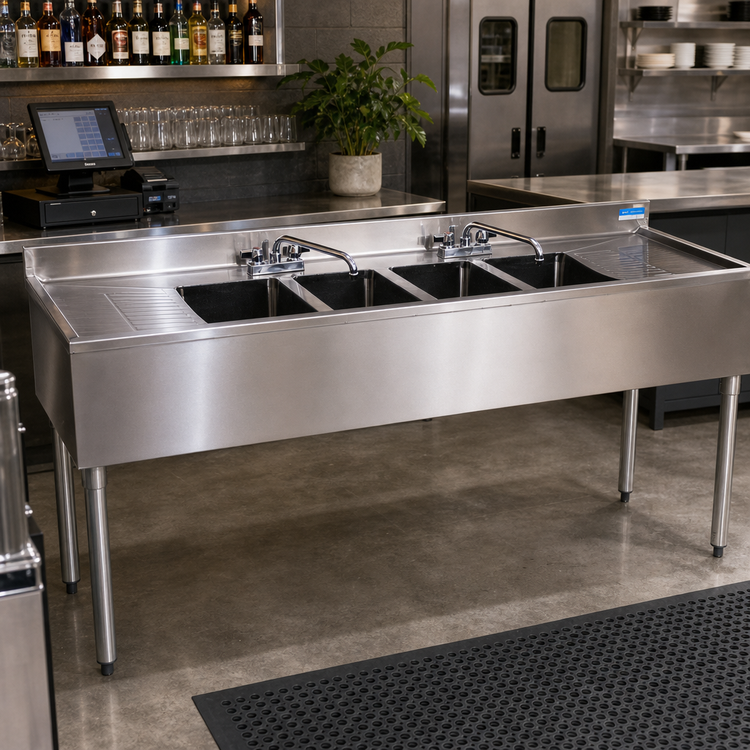

BK Resources Slim-Line 72" Four-Compartment Underbar Sink

Model UB4-18-472TS • NSF Certified • 18 ga. Type 304 Stainless Steel

Engineered for high-volume bar and beverage programs that demand durability in a compact footprint, the BK Resources Slim-Line underbar sink delivers four integrally welded compartments, dual drainboards, and everything you need to speed through glassware, utensil, or prep sink tasks—all in one turnkey package.

Key Features

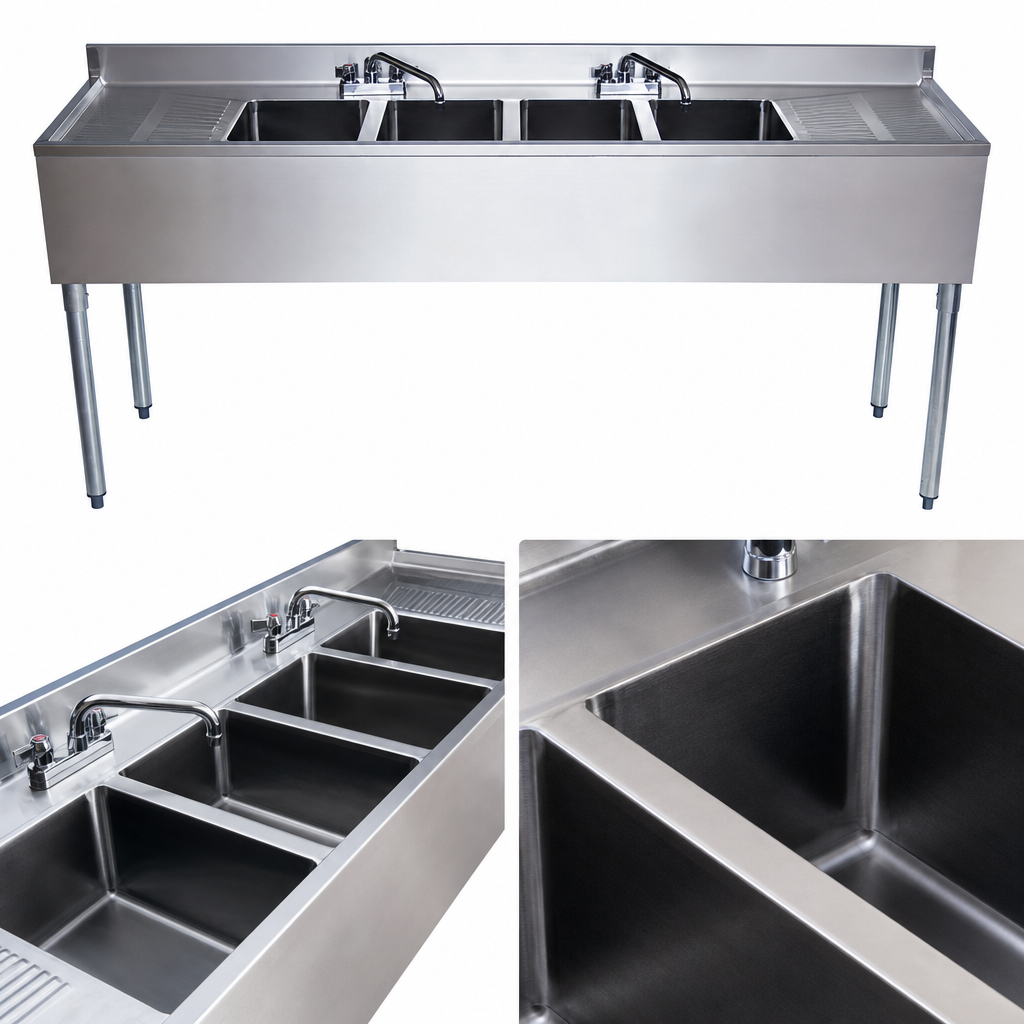

  • Four 10" W x 14" F-B x 10" D bowls – perfect for wash, rinse, sanitize & dump.

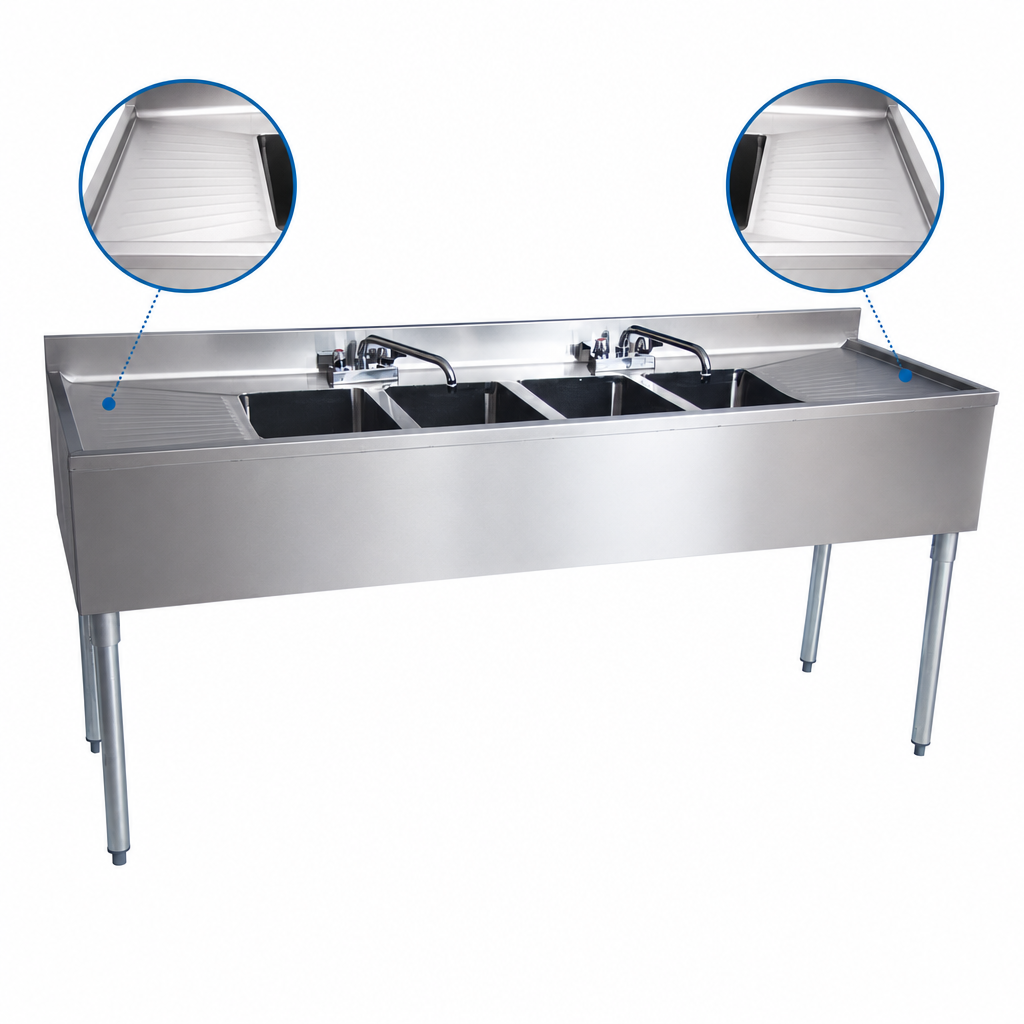

  • (2) 13-3/4" stamped & pitched drainboards (left & right) for fast draining and air-drying.
  • 4-1/2" integrated backsplash helps protect walls from splashes.
  • (2) lead-free splash-mount faucets, 4" on-center (BKF-W2-10-G) included & pre-punched.
  • Front & side wrap-around stainless steel apron for a clean, professional look.
  • 18 ga. Type 304 stainless steel body, bowls, and drainboards—corrosion-resistant and easy to sanitize.
  • Stainless steel legs with adjustable side bracing for rock-solid stability.
  • High-impact corrosion-resistant adjustable feet level the unit on uneven floors.

What’s in the Box

  • (1) Slim-Line four-compartment sink body
  • (2) 4" OC splash-mount faucets (BKF-W2-10-G)
  • (4) Basket drains (BKDR-2)
  • (4) 7" removable overflow standpipes (BK-OT-15075)
  • Pre-installed stainless steel legs with side bracing & adjustable feet

Specifications

Overall Width 72"
Overall Depth 18-1/4"
Overall Height 32-1/2" to rim (36-1/2" to top of backsplash)
Bowl Interior (each) 10" W x 14" F-B x 10" D
Drainboard Size 13-3/4" L & R, stamped & pitched
Backsplash Height 4-1/2"
Faucet Mounting Centers 4" on-center
Material / Gauge 18 ga. Type 304 stainless steel
Certifications NSF
Included Accessories (2) faucets, (4) basket drains, (4) overflow standpipes
Approx. Shipping Weight ≈ 70 lb

NSF certification meets public health & safety standards. Always verify local plumbing codes before installation.

Installation Required: Unit ships knocked down. Professional assembly, faucet hookup, and drain connections are recommended for optimal performance and compliance.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Height

32.5in

Width

72.0in

Depth

18.25in

Shipping Weight

82.0lbs

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Top Stainless Series

300 series

Sink Compartments

(4)

Drainboards

drainboards on left & right

Depth (front - back) OA

18" - 19"

Splash

4"

Construction

stainless steel top, front, ends & legs

Width (side - side) OA

67" - 72"

Specifications

Slim-Line Underbar Sink, four compartment, 72”W x 18-1/4"D x 32-1/2"H overall size, 10" wide x 14" front-to-back x 10" deep compartments, (2) left & right 13-3/4" stamped drainboards, 4-1/2"H backsplash, (2) 4" OC splash mount lead-free faucets (BKF-W2-10-G), stainless steel apron on front & sides, includes basket drains (BKDR-2) & removable overflow standpipes (BK-OT-15075), 18/304 stainless steel construction, stainless steel legs & adjustable side bracing, adjustable high impact corrosion resistant feet, NSF
