BK Resources Slim-Line 3-Compartment Underbar Sink, 36 Inch, 304 Stainless Steel, with Faucet and Drains

SKU: UB4-18-336S
GTIN: 840653128139
$783.08
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment BK Resources Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

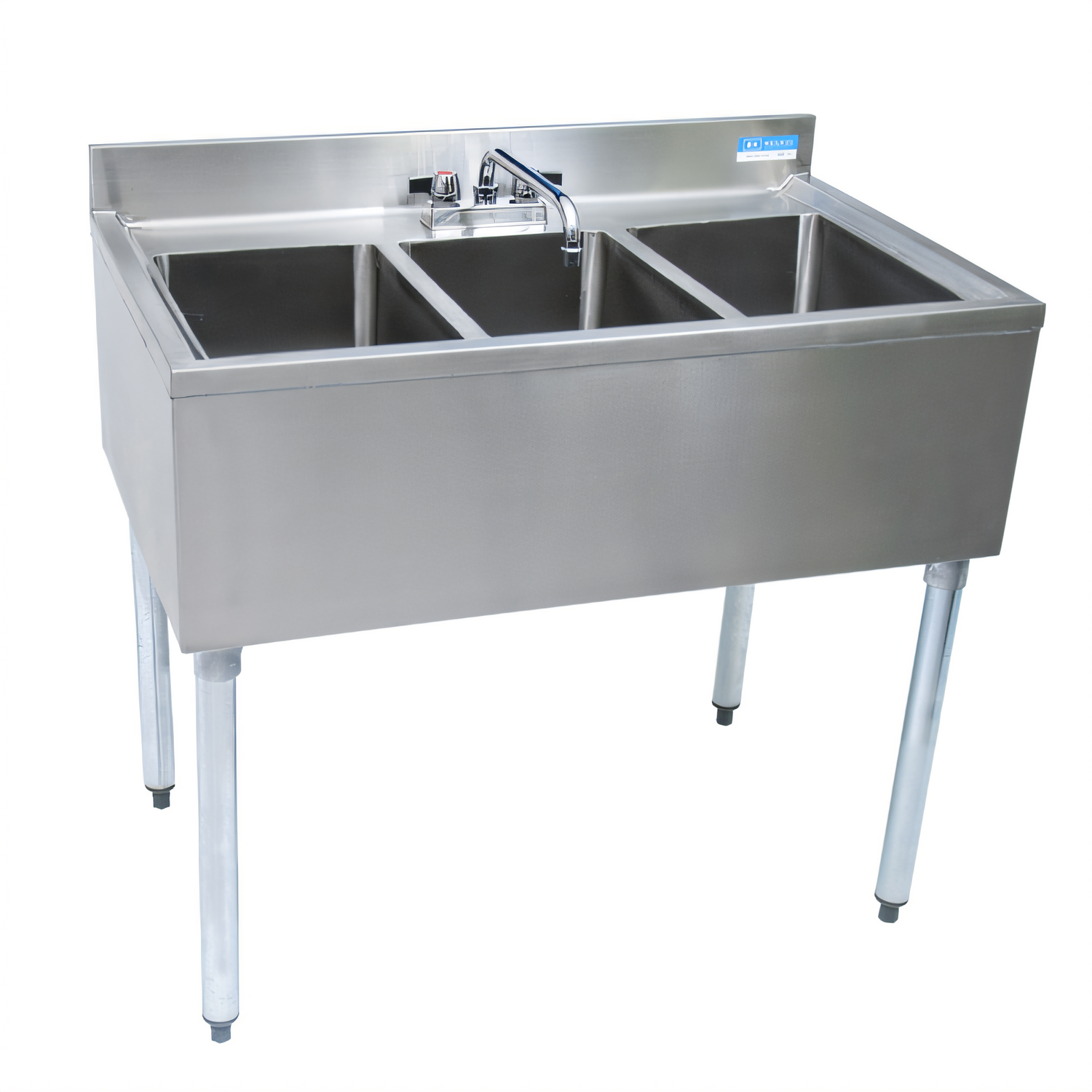

BK Resources Slim-Line 3-Compartment Underbar Sink, 36 Inch, 304 Stainless Steel, with Faucet and Drains

18-1/4 Inch Deep, 4-1/2 Inch Backsplash, No Drainboards

This compact underbar sink gives bar operators three deep compartments and includes the faucet, drains, and overflow parts needed for a smoother install.

  • Three welded 10" x 14" x 10" compartments handle glassware and barware washing.
  • 36" wide slim-line footprint fits compact underbar spaces.
  • Includes BKF-W2-10-G faucet, BKDR-2 basket drains, and BK-OT-15075 overflow standpipes.
  • T-304 18-gauge stainless steel construction with stainless apron, legs, and side bracing.
  • 4-1/2" backsplash helps contain splashes behind the sink.
  • Adjustable high-impact corrosion-resistant feet help level the sink.
  • No drainboards keeps the layout compact.

Overall Dimensions:

36.0"W x 18.25"D x 32.5"H

Product Weight:

60.5 lb

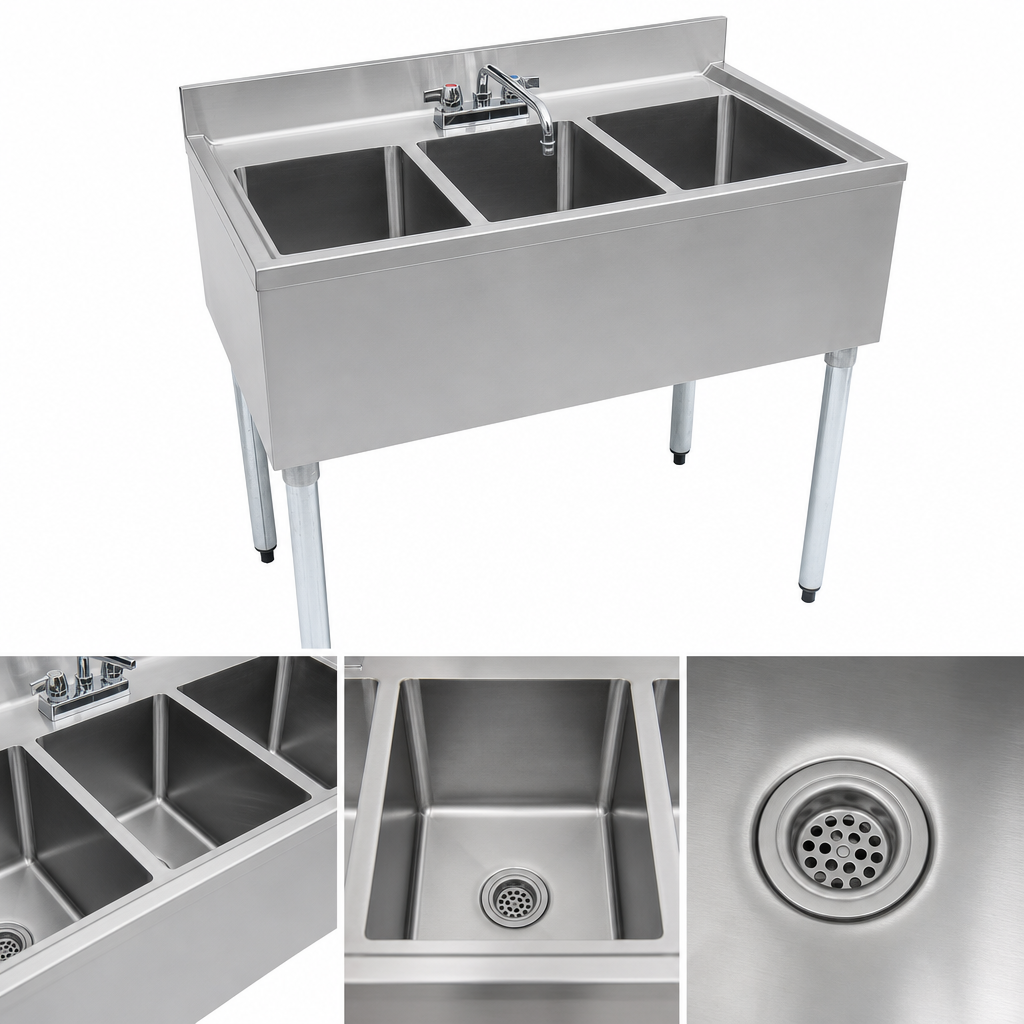

Three Welded Compartments

Integrally welded bowls provide three sink sections, each measuring 10" wide x 14" front-to-back x 10" deep.

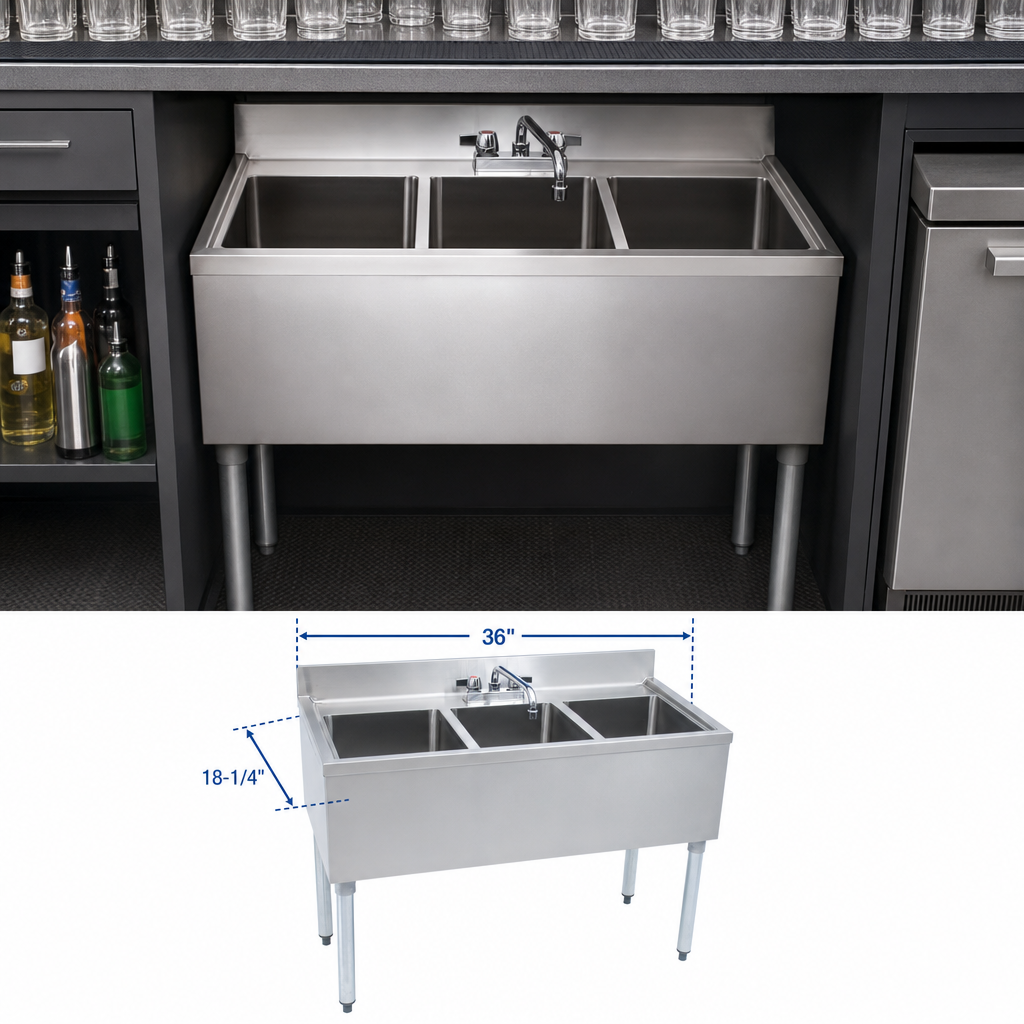

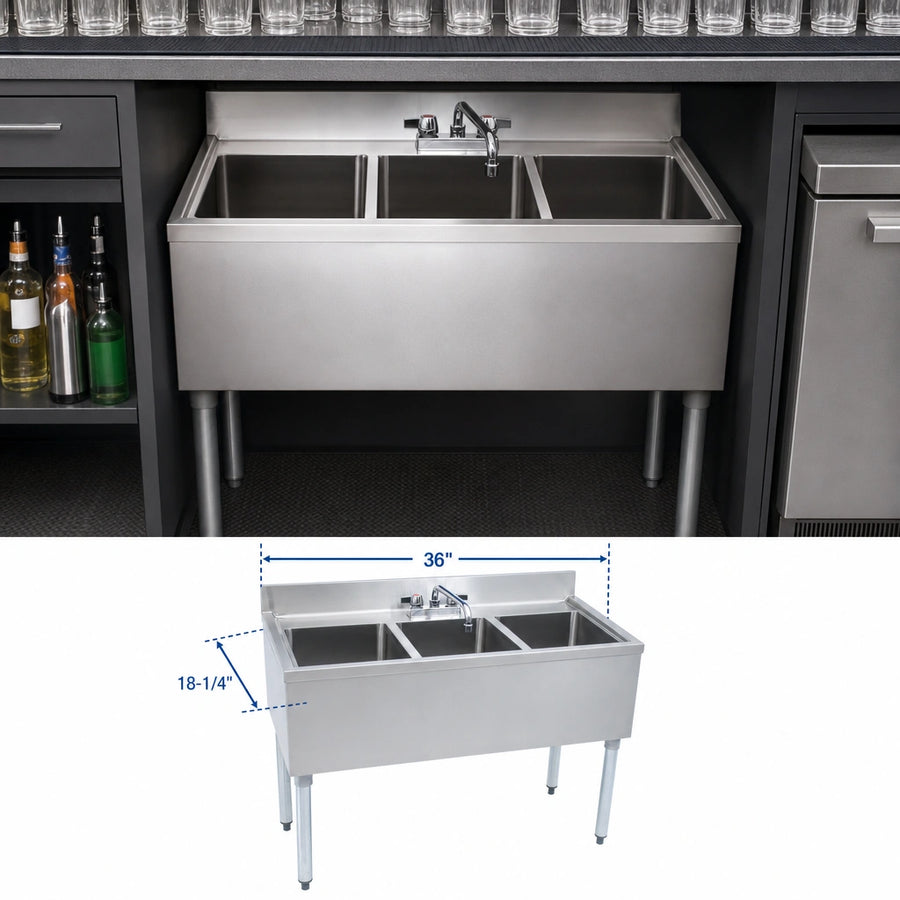

Slim-Line Footprint

The 36" wide by 18-1/4" deep overall size is designed to fit tighter underbar installations.

4-1/2 Inch Backsplash

Helps protect the wall area behind the sink from splashes and overspray.

Included Faucet and Drain Hardware

Ships with a BKF-W2-10-G splash mount faucet, BKDR-2 basket drains, and BK-OT-15075 removable overflow standpipes.

304 Stainless Steel Construction

Built from T-304 18-gauge stainless steel with a stainless apron on the front and sides for durability.

Stainless Legs and Side Bracing

Stainless steel legs install directly into the sink body, and adjustable side bracing helps support the unit.

Adjustable Corrosion-Resistant Feet

High-impact feet help stabilize and level the sink on uneven floors.

No Drainboards

This model is configured without drainboards for a more compact footprint.

Type Underbar Sink
Style Slim-Line
Installation Type Freestanding
Material 304 Stainless Steel
Compartments 3
Bowl Size 10 Inches x 14 Inches x 10 Inches Deep
Backsplash Height 4.5 Inches
Drainboards None
Faucet Hole Sets 1
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 19 Inches
Shipping Height 33 Inches
Shipping Weight 60.5 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The sink measures 36"W x 18-1/4"D x 32-1/2"H overall.
It has three compartments.
Each compartment measures 10" wide x 14" front-to-back x 10" deep.
It includes a BKF-W2-10-G faucet, BKDR-2 basket drains, and BK-OT-15075 removable overflow standpipes.
No, this model is listed without drainboards.
It is made from T-304 18-gauge stainless steel with stainless legs and adjustable corrosion-resistant feet.
