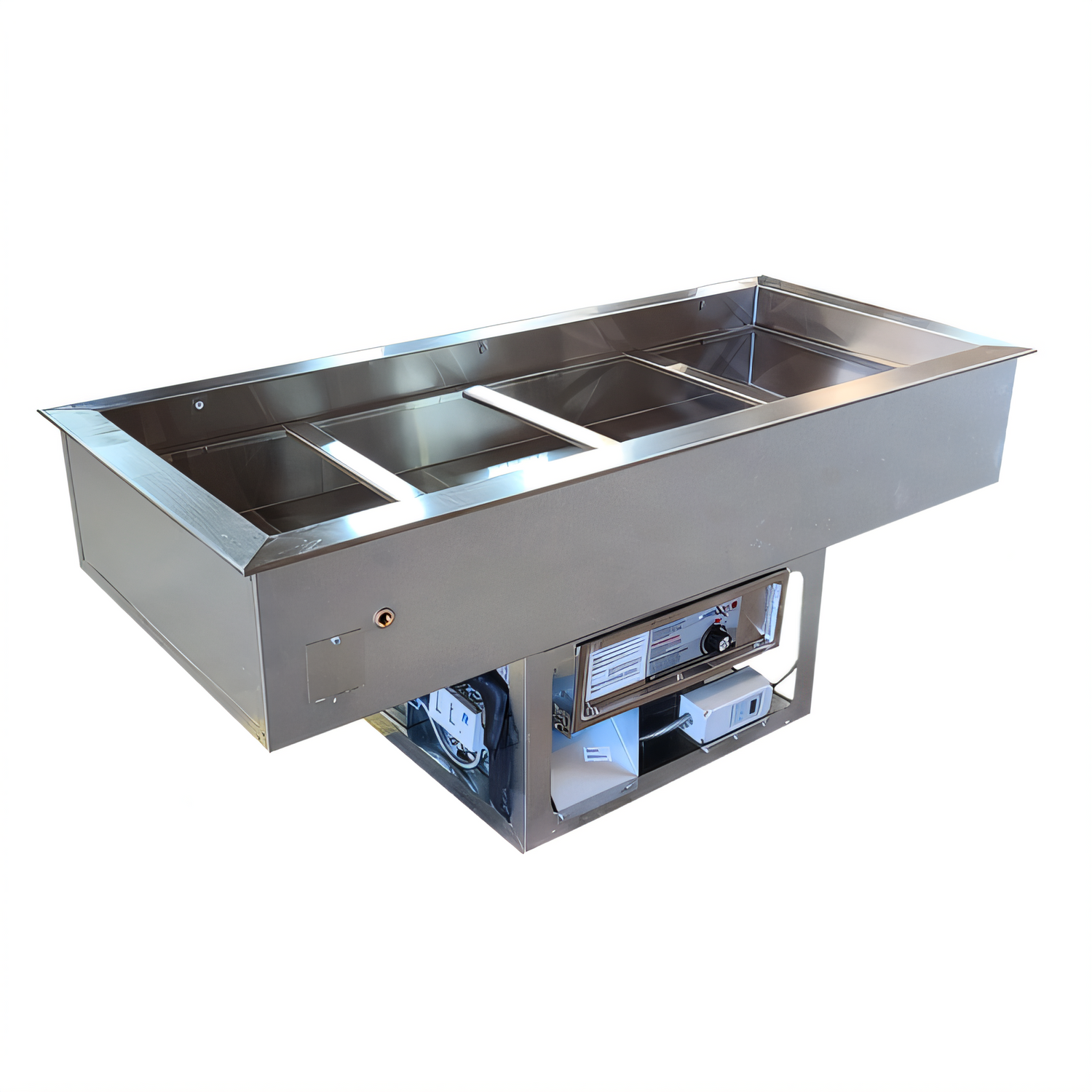

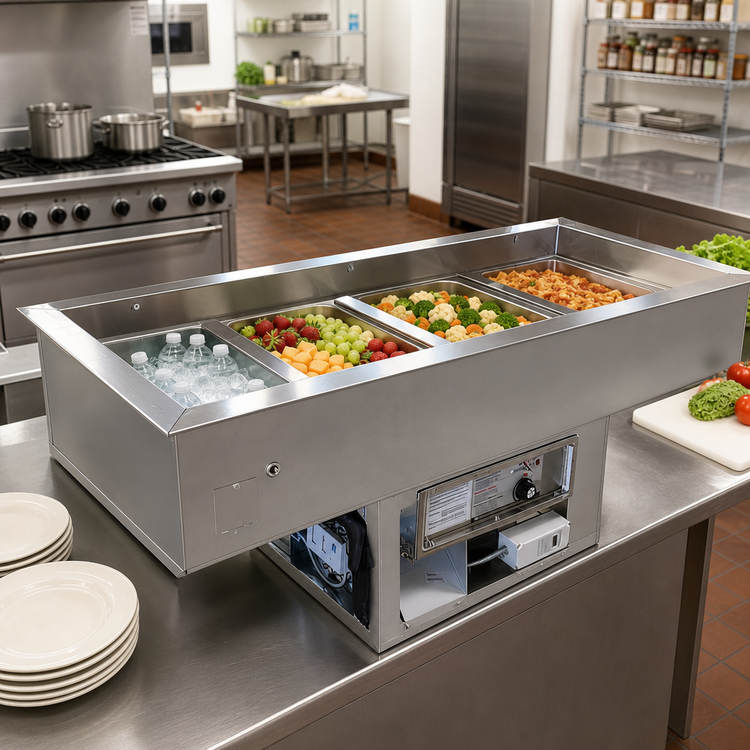

BK Resources Dual Temperature Drop-In Hot/Cold Food Well, 4-Pan, 12 x 20 Pan Capacity

Mechanically cooled; holds standard 12 x 20 pans and fractional pans.

Serve hot and cold menu items from one durable drop-in food well built for standard serving pans.

  • Dual-temperature design supports both hot and cold food holding in one unit.
  • Four-well capacity is well suited for busy buffet and serving line applications.
  • Holds standard 12 x 20 food pans and fractional-sized pans.
  • Mechanically cooled cold section uses R-404A refrigerant.
  • 3-inch recessed top edge and coved corners help create a cleaner built-in presentation.
  • Stainless steel top and well with a corrosion-resistant steel exterior provide durable construction.
  • NSF and UL listed for commercial foodservice use.

Overall Dimensions:

60.25"W x 27.13"D x 25.13"H

Product Weight:

9999.0 lb

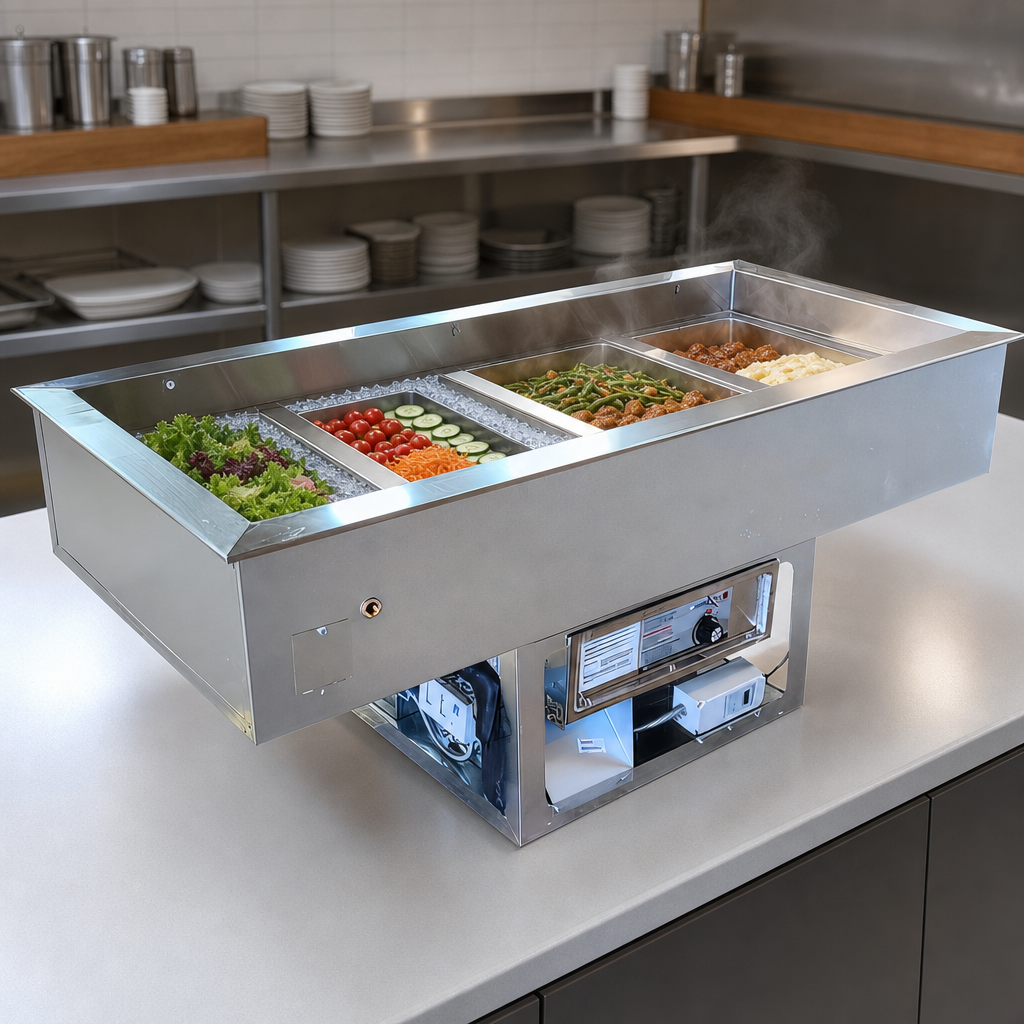

Dual Temperature Holding

Supports both hot and cold food service from a single drop-in unit.

Dual Temperature Holding

Four-Pan Capacity

Provides four wells for serving-line or buffet use.

Standard Pan Compatibility

Accommodates standard 12 x 20 food pans as well as fractional pans.

Mechanically Cooled Cold Section

Uses a mechanically cooled refrigeration system with R-404A refrigerant for the cold side.

Easy-Clean Drop-In Design

Features a 3-inch recessed top edge and coved corners for a cleaner built-in fit and easier cleanup.

Durable Stainless Steel Construction

Built with a stainless steel top and well and a corrosion-resistant steel exterior.

Commercial Listings

NSF and UL listed.

Type Hot/Cold Food Well
Style Drop-In
Installation Type Drop-In
Refrigeration Type Mechanically Cooled
Pan Capacity 4 Pans
Pan Size Standard 12 x 20 Inches and Fractional Pans
Material Stainless Steel
Finish Stainless Steel Top and Well; Corrosion-Resistant Steel Exterior
Refrigerant Type R-404A
Voltage 115 Volts (Cold), 208/240 Volts (Hot)
Amps 6.4 Amps (Cold), 18.1/20.8 Amps (Hot)
Hertz 60 Hz
Phase 1-Phase
Width 61 Inches
Depth 28 Inches
Height 26 Inches
Weight 230 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

It holds standard 12" x 20" food pans and fractional-sized pans.
It is a dual-temperature hot/cold food well.
The cold side is mechanically cooled and uses R-404A refrigerant.
The cold side uses 115V/60/1-phase at 6.4 amps, and the hot side uses 208/240V/60/1-phase at 18.1/20.8 amps.
It has a 3-inch recessed top edge and coved corners.
Yes, it is NSF and UL listed.
