BK Resources
BK Resources 34 x 20 Inch Drop-In Ice Bin with 8-Circuit Cold Plate and Sliding Cover
SKU: DICP8-3420
$1,594.88
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?

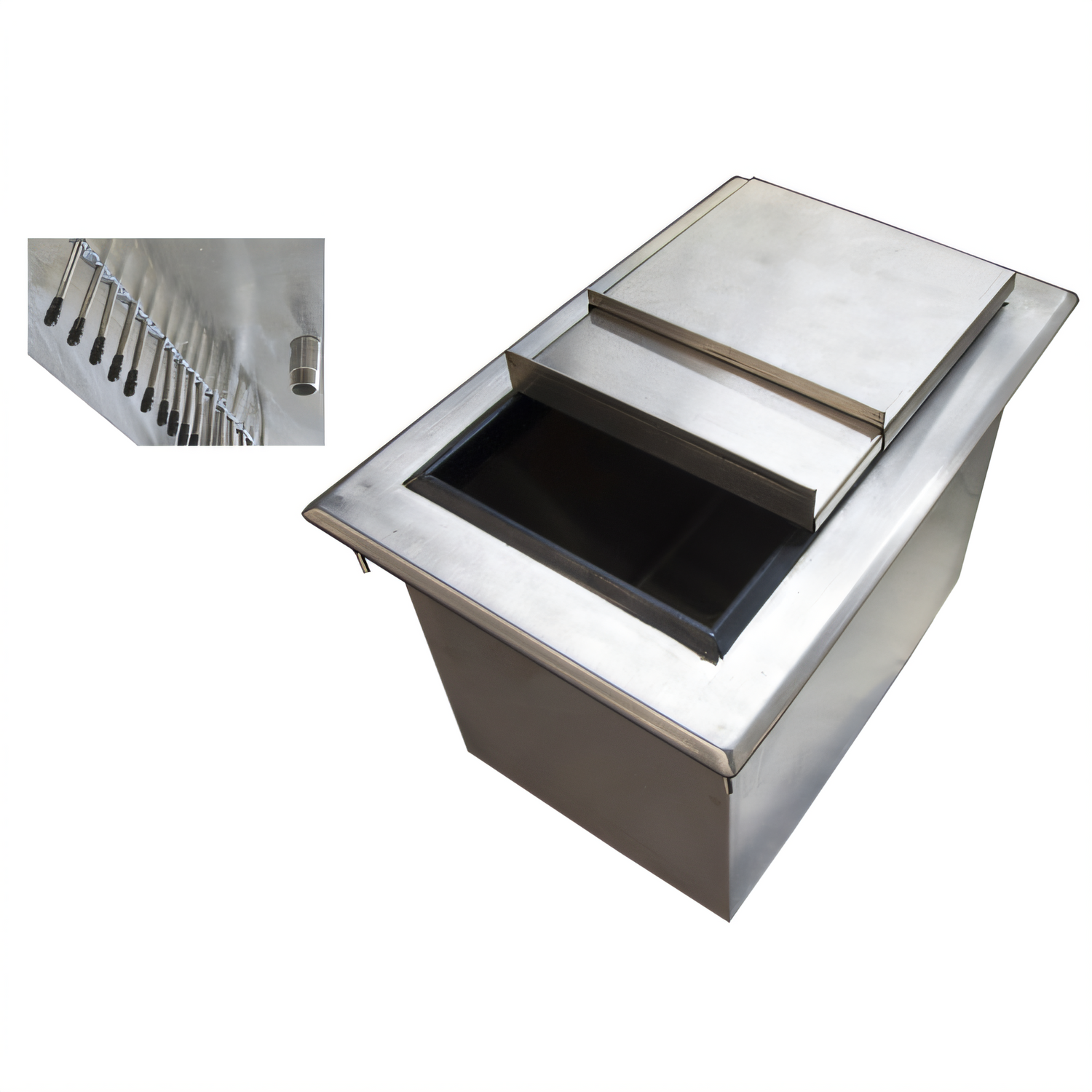

BK Resources 34 x 20 Inch Drop-In Ice Bin with 8-Circuit Cold Plate and Sliding Cover
Stainless Steel, 30 x 15 x 10 Inch Basin, 1/2 Inch NPT Drain
A durable drop-in ice bin built with an 8-circuit cold plate and stainless steel construction for efficient beverage service.
- Drop-in design integrates cleanly into underbar and countertop installations.
- 8-circuit cold plate supports chilled beverage service.
- Large 30 x 15 x 10 inch basin provides generous ice storage space.
- Built with T-304 stainless steel deck and base for durability.
- Includes a 1/2 inch NPT drain connection for serviceability.
- Sliding cover helps protect stored ice and improve access control.
Overall Dimensions:

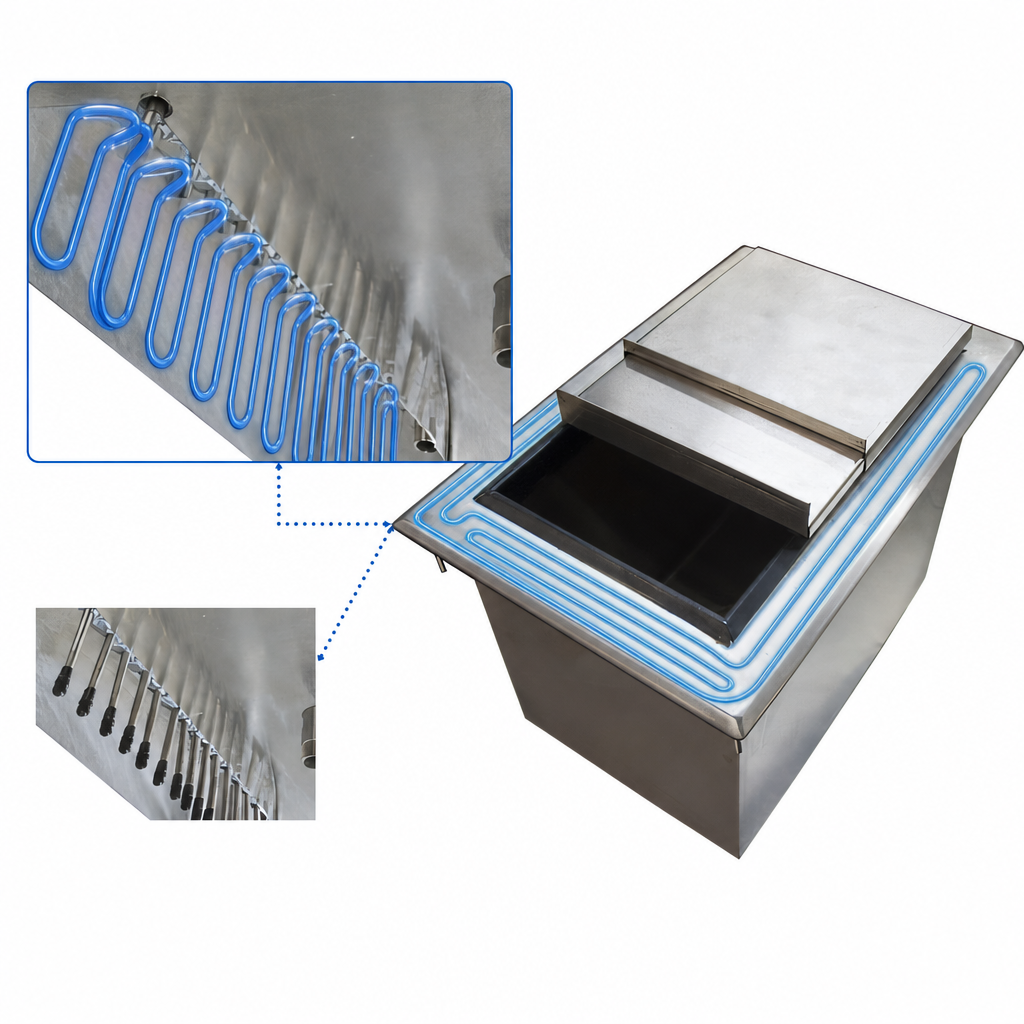

34.0"W x 20.0"D x 16.05"H8-Circuit Cold Plate
Designed with an 8-circuit cold plate to support beverage chilling performance.

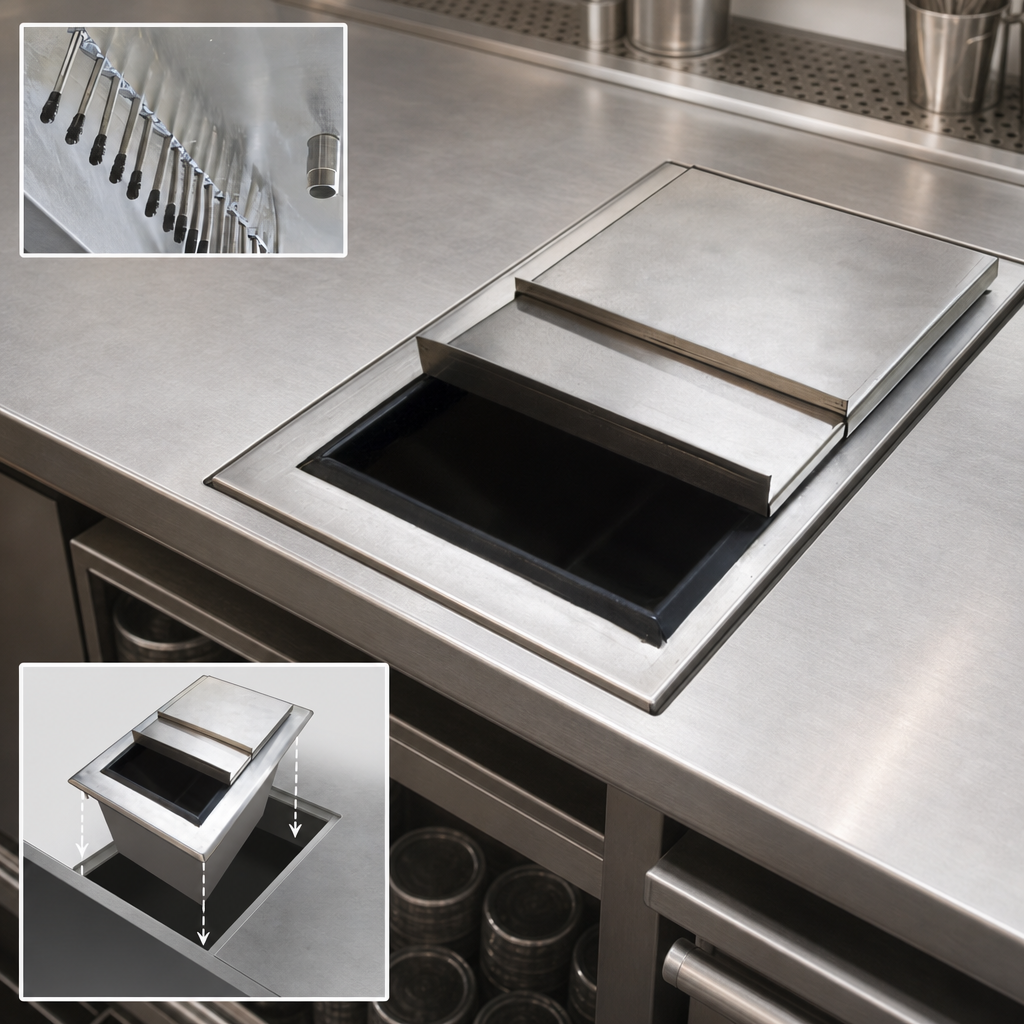

Drop-In Installation
Drop-in construction is made for installation into a cutout in a countertop or underbar surface.
Stainless Steel Construction
Features a T-304 14-gauge stainless steel deck and T-304 18-gauge stainless steel base.
Large Basin
Basin measures 30 inches side-to-side by 15 inches front-to-back by 10 inches deep.
1/2 Inch NPT Drain
Built with a 1/2 inch NPT drain connection.
Sliding Cover
Sliding cover helps keep ice protected when not in use.
Type
Drop-In Ice Bin
Style
With Cold Plate
Installation Type
Drop-In
Material
Stainless Steel
Drain Connection Size
1/2 Inch NPT
Shipping Width
34 Inches
Shipping Depth
20 Inches
Shipping Height
17 Inches
Shipping Weight
60 lb.
Selling Unit
Each
Units Per Case
1
Documents
Frequently Asked Questions
The overall size is 34 inches wide by 20 inches deep by 16.05 inches high.
The basin measures 30 inches side-to-side by 15 inches front-to-back by 10 inches deep.
It includes a 1/2 inch NPT drain connection.
It uses a T-304 14-gauge stainless steel deck and a T-304 18-gauge stainless steel base.
This specific model is the 8-circuit cold plate version.
