BK Resources DICP8-2820 Bar Equipment
Description

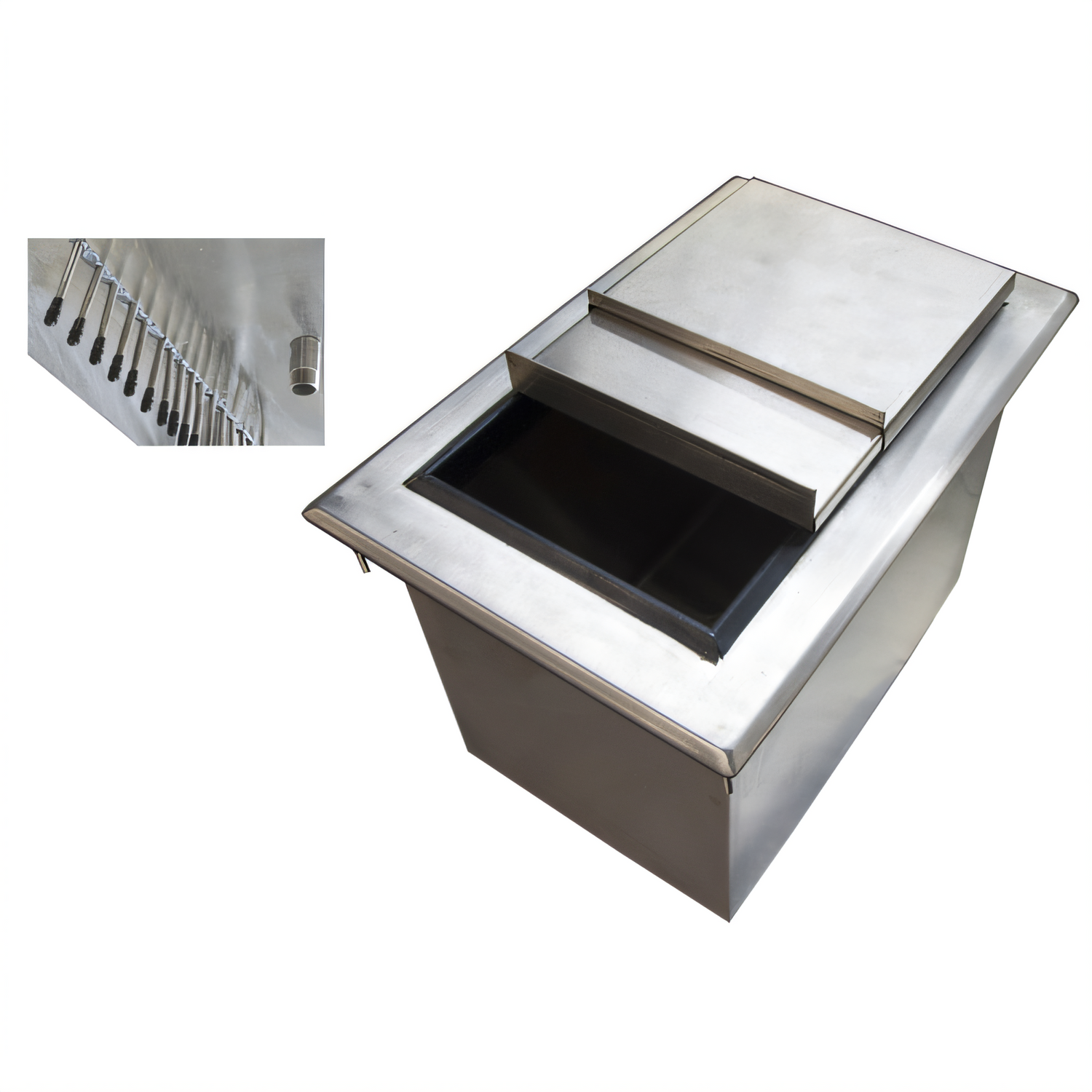

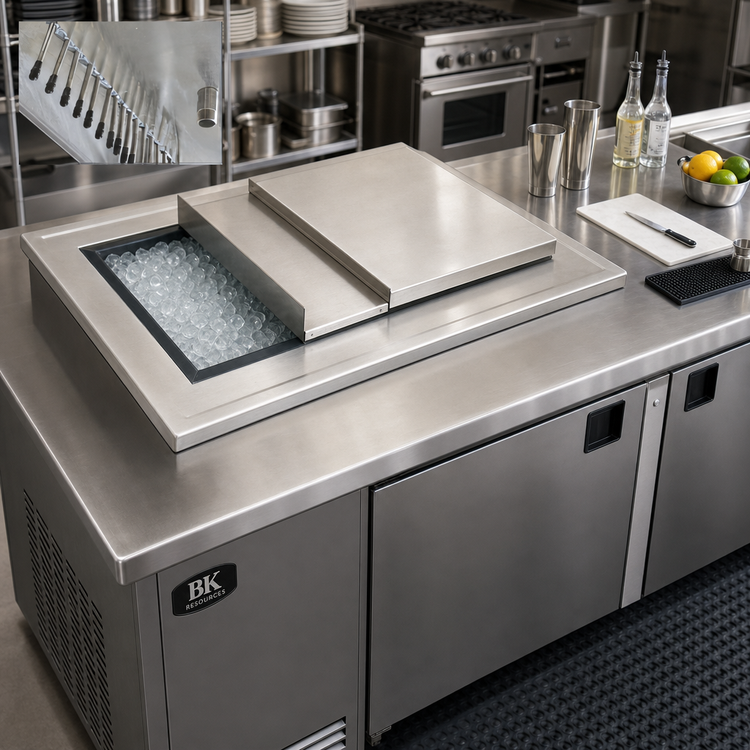

Drop-In Ice Bin w/ 8-Circuit Cold Plate – 28" x 20"
BK Resources model DICP8-2820Keep beverages perfectly chilled and service running smoothly with BK Resources’ 28" drop-in ice bin featuring an integrated 8-circuit cold plate. Designed for high-volume bars, restaurants, and concession counters, this self-contained unit combines rugged T-304 stainless steel construction with smart, labor-saving features that bartenders love.
Why you’ll love it

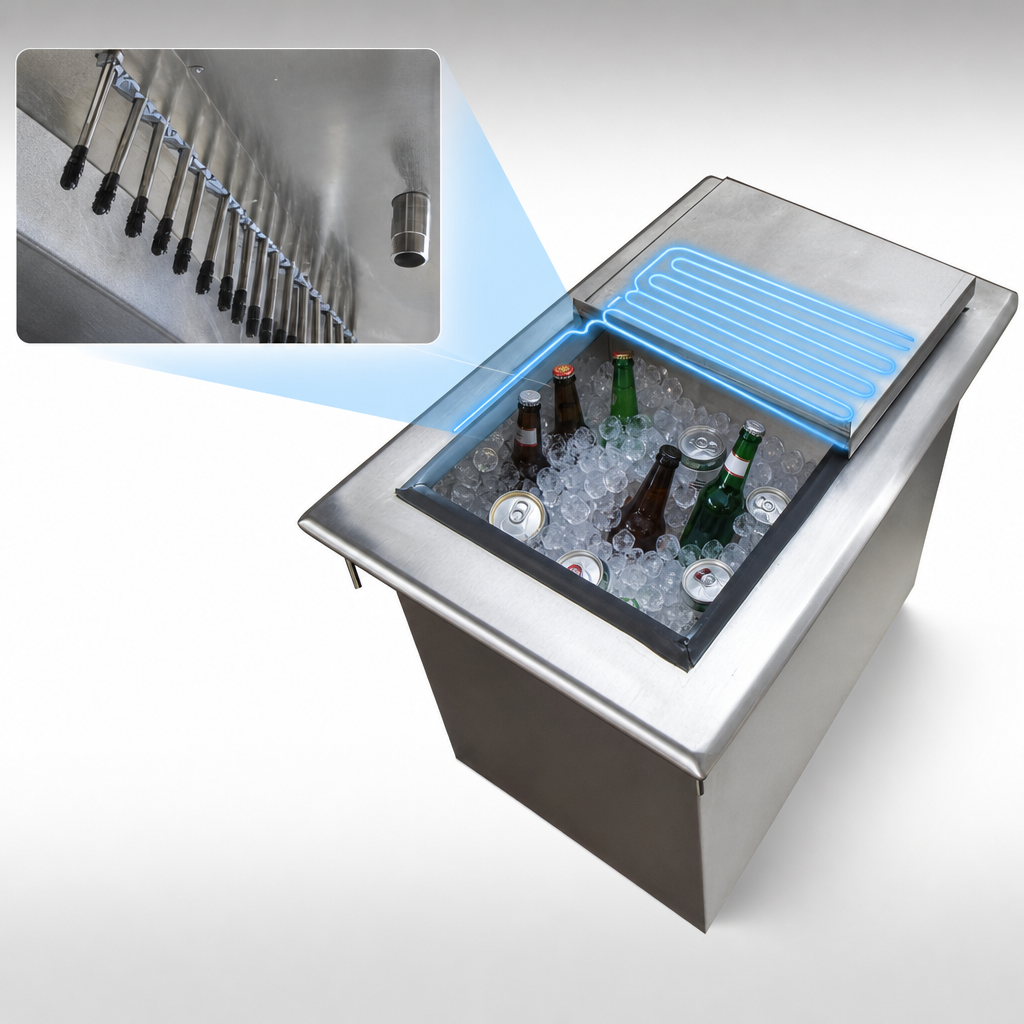

- Eight built-in cold-plate circuits deliver ice-cold soda, juice, and cocktail mixers directly from your beverage system.
- Generous 24" x 15" x 10" basin holds plenty of ice for peak-hour demand without constant refills.
- Durable T-304 stainless steel – 14 ga. deck for exceptional rigidity; 18 ga. fully welded base for long service life.
- NSF listed for food-safe peace of mind.
- 1/2" NPT drain simplifies hookup to existing waste lines and prevents messy melt-water overflow.

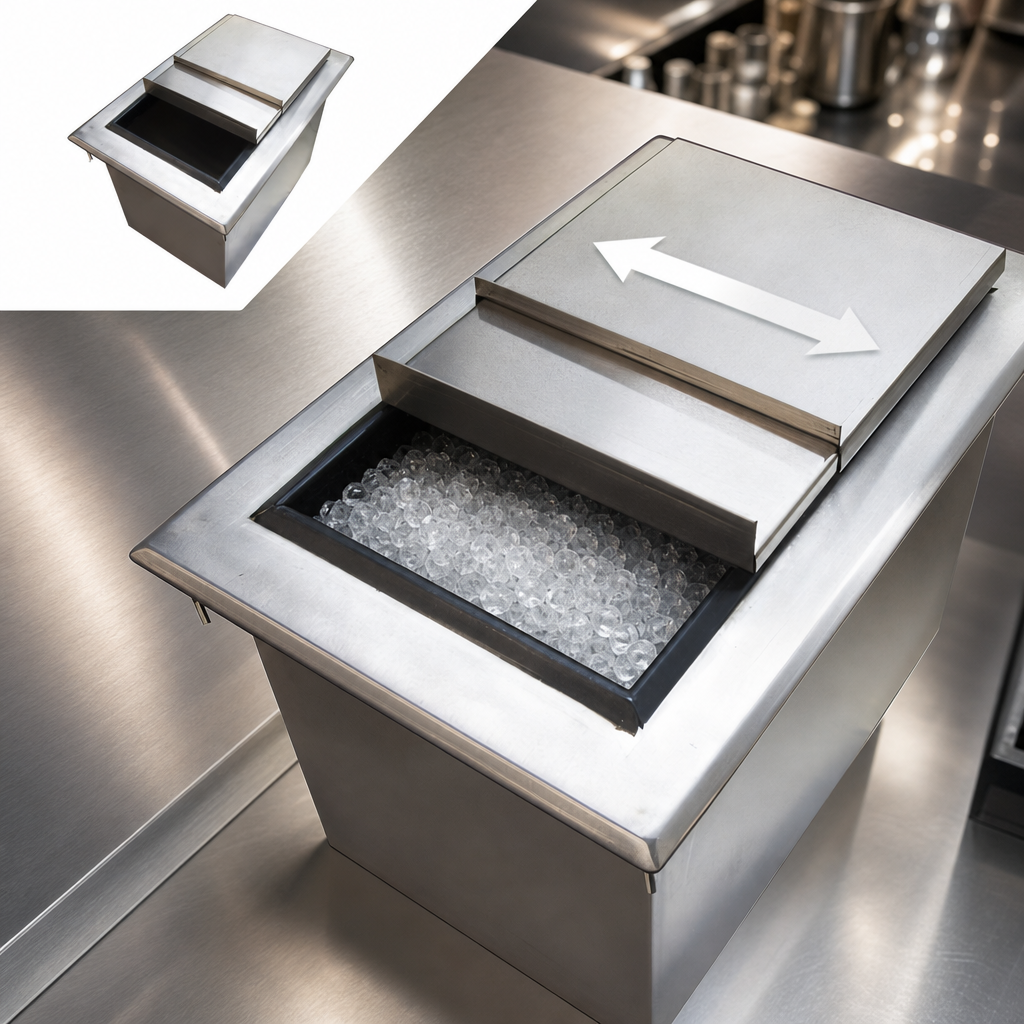

- Drop-in design installs flush with your countertop for a clean, professional look and effortless bar workflow.
Specifications
| Part Number | DICP8-2820 |
|---|---|
| Overall Dimensions (L x W) | 28" x 20" (712 mm x 508 mm) |
| Bowl (Interior) Dimensions | 24" side-to-side x 15" front-to-back x 10" deep (610 mm x 381 mm x 254 mm) |
| Cold Plate | 8 beverage circuits, cast-in aluminum |
| Deck Material / Gauge | T-304 stainless steel, 14 ga. |
| Base Material / Gauge | T-304 stainless steel, 18 ga. |
| Drain Connection | 1/2" NPT |
| Certification | NSF |
| Recommended Counter Cut-out | 27 3/8" x 19 1/4" (695 mm x 489 mm) |
Cut-out sizes are provided as a guideline. Always verify measurements on the physical unit before cutting the countertop.
