BK Resources DICP7-3420 Bar Equipment
Description

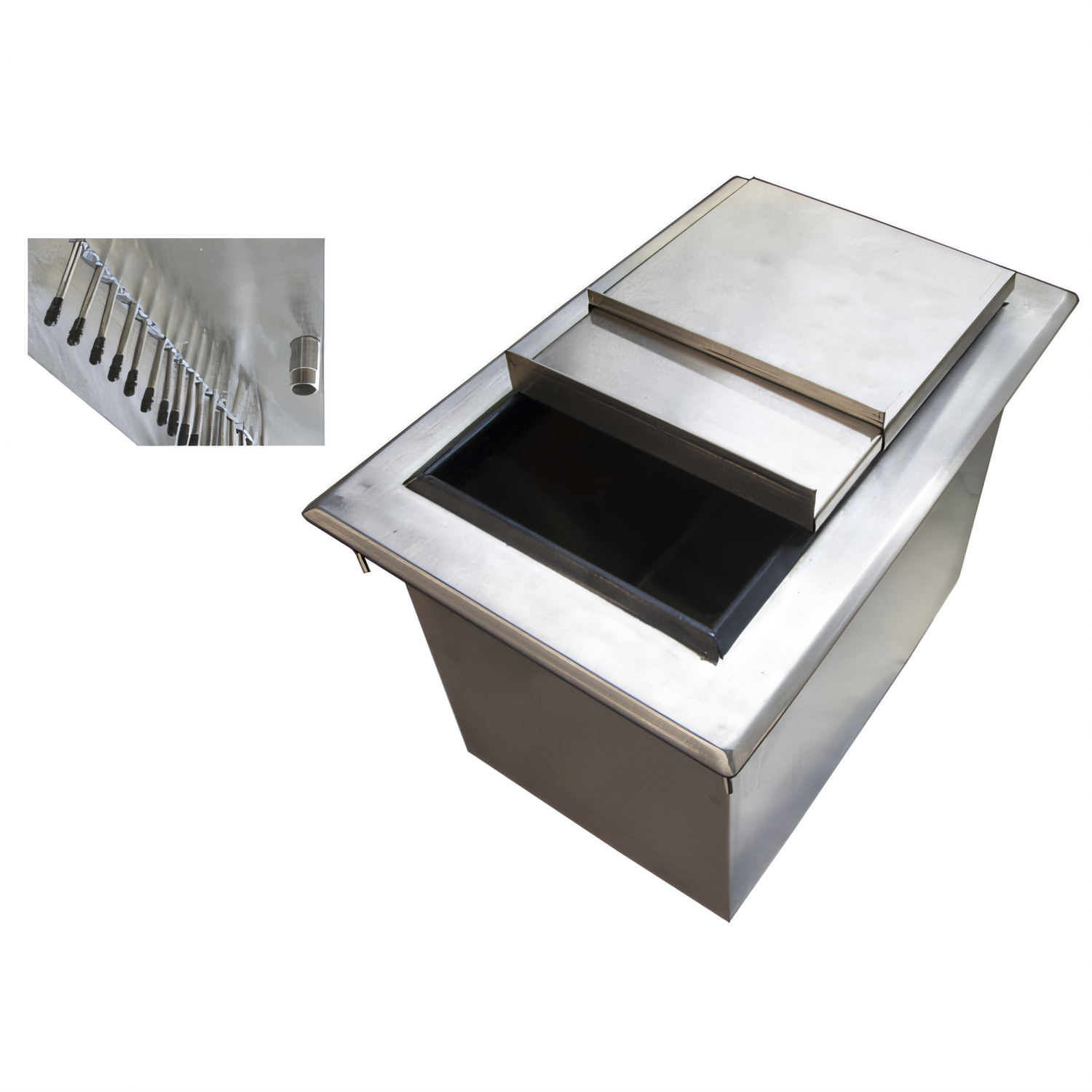

BK Resources DICP7-3420 Drop-In Ice Bin w/ 7-Circuit Cold Plate

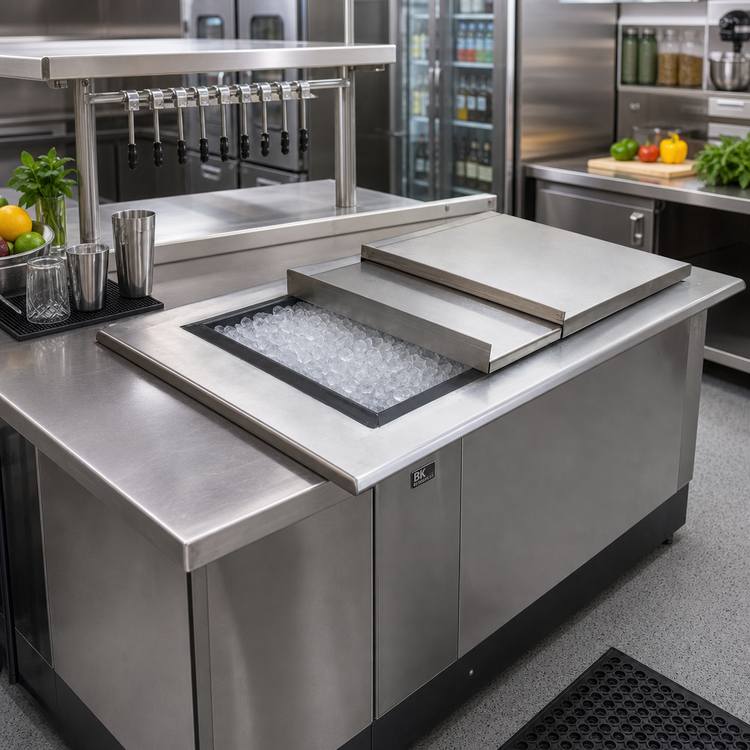

34" W × 20" D overall | 30" L × 15" W × 10" D basin | NSF ListedEngineered for busy bars, restaurants, and concession stands, the BK Resources DICP7-3420 keeps ice at the ready while providing seven integrated beverage lines for rapid, consistent drink service. Its rugged all-stainless construction drops flush into your counter, freeing up valuable workspace and guaranteeing years of corrosion-resistant performance.
Why You’ll Love It

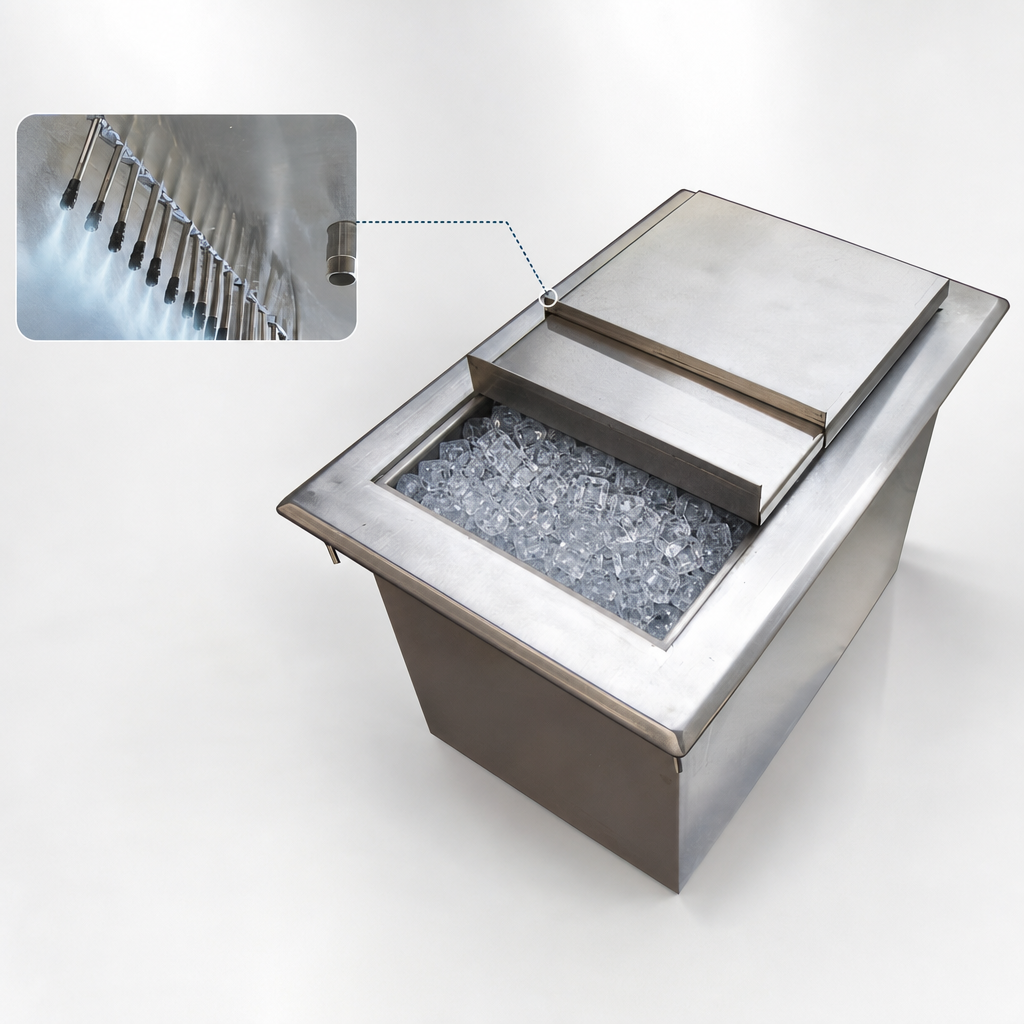

- 7-Circuit Cold Plate chills multiple soda or liquor lines directly inside the bin for perfectly cold pours.
- Premium Stainless Steel – 14 ga. T-304 deck & 18 ga. T-304 base resist dents, rust, and everyday wear.
- Generous 34" × 20" Footprint fits a roomy 30" × 15" × 10" basin capable of holding plenty of ice for peak periods.
- 1/2" NPT Drain simplifies plumbing connections and speeds daily clean-up.
- NSF Certified for safe, sanitary ice storage in commercial foodservice environments.

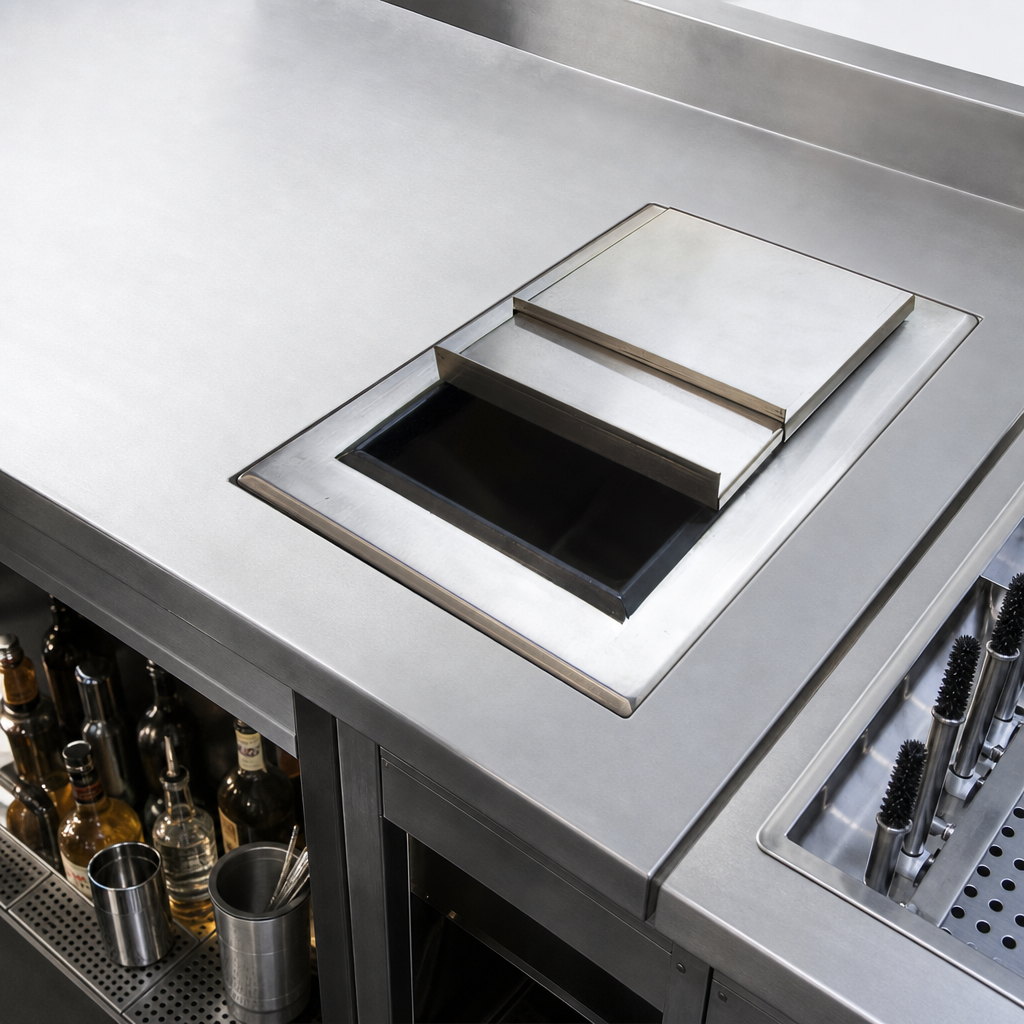

- Drop-In Design creates a low-profile, built-in look—just cut, set, & seal.
Technical Specifications
| Model | DICP7-3420 |
|---|---|
| Cold Plate | 7 circuits (pre-installed) |
| Overall Dimensions | 34" W × 20" D × 16.05" H |
| Basin Dimensions | 30" L × 15" W × 10" D |
| Deck Material | 14 ga. T-304 stainless steel |
| Base Material | 18 ga. T-304 stainless steel |
| Drain Connection | 1/2" NPT |
| Recommended Cutout | 27.375" W × 19.25" D |
| Certifications | NSF |
Need a different circuit count or footprint? 8-circuit and 28"-wide variants are also available—search “BK Resources DICP Series” or contact our team for assistance.
