BK Resources DICP7-2820 Bar Equipment
Description

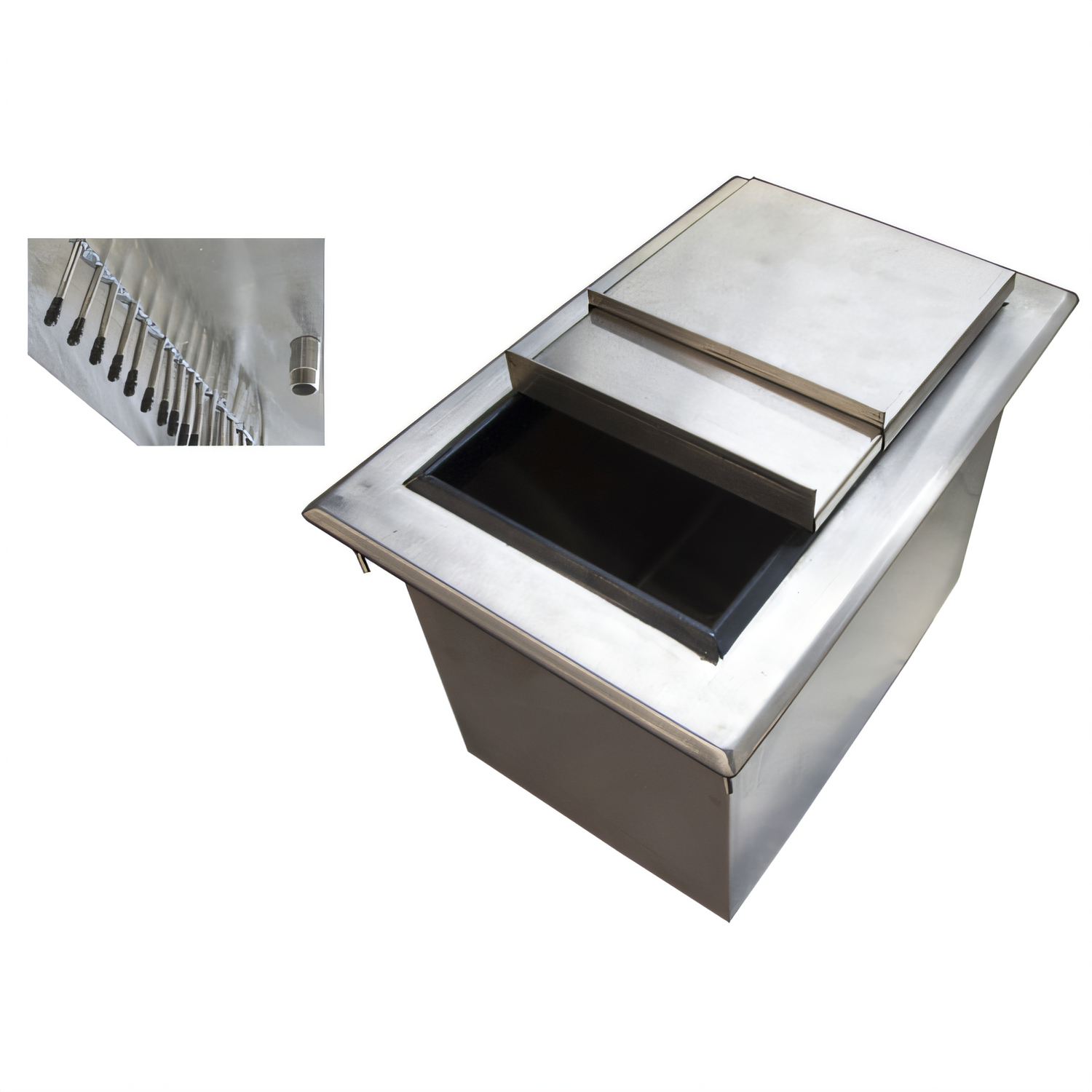

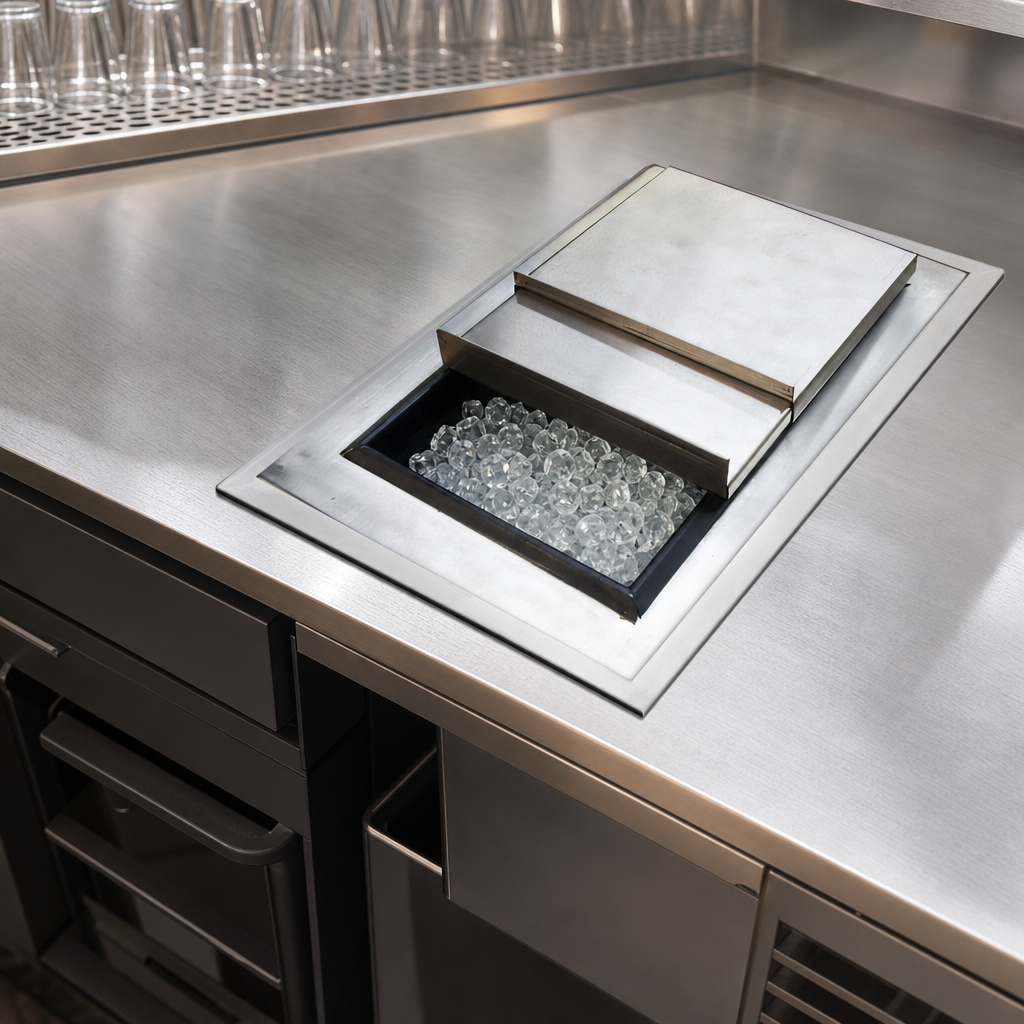

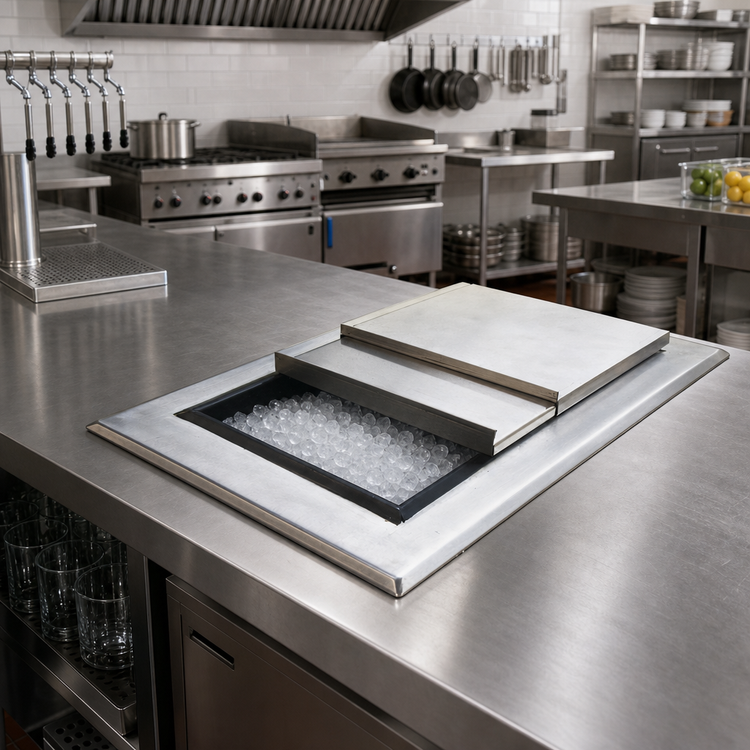

BK Resources DICP7-2820 Drop-In Ice Bin with 7-Circuit Cold Plate
28" W × 20" D overall • 24" × 15" × 10" basin • 304 stainless steelKeep cocktails, soft drinks, and high-volume beverage service running ice-cold. The DICP7-2820 combines a spacious, foam-insulated ice bin with an integrated 7-circuit cold plate—chilling your soda lines right at the point of dispense while maximizing ice retention and bar efficiency.
Key Features

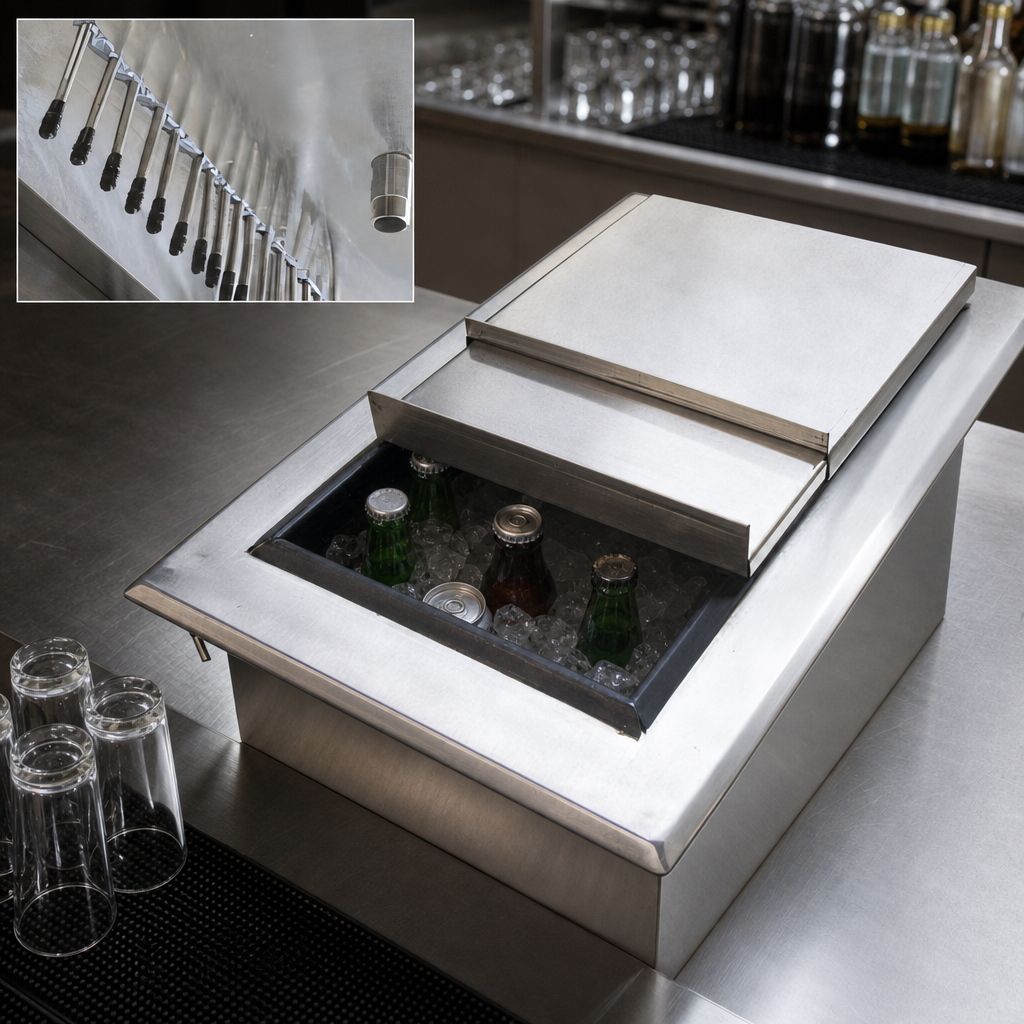

- Integrated 7-circuit cast aluminum cold plate for rapid beverage chilling.
- Roomy 24" (side-to-side) × 15" (front-to-back) × 10" deep basin handles peak-hour ice demand.
- Rugged 14-gauge 304 stainless steel deck stands up to daily bar abuse.
- Corrosion-resistant 18-gauge 304 stainless steel base for a sanitary interior.
- 1/2" NPT drain for quick, dependable water removal.
- Factory-installed foam insulation keeps ice solid and protects surrounding cabinetry.
- NSF listed for safe food-contact operation.
- Made in the USA by BK Resources—a trusted leader in commercial bar equipment.
Specifications
| Model | DICP7-2820 |
|---|---|
| Overall Dimensions (W × D × H) | 28" × 20" × 16.05" |
| Basin Dimensions (W × D × Depth) | 24" × 15" × 10" |
| Cold Plate | 7 circuits |
| Construction | 14-ga 304 stainless steel deck 18-ga 304 stainless steel base |
| Drain Connection | 1/2" NPT |
| Unit Weight | 139 lb |
| Certifications | NSF |
| Recommended Cutout Size | 27.375" × 19.25" |
Looking to complete your bar build-out? Pair this ice bin with BK Resources speed rails, dump sinks, and faucets for a seamless, high-performance station.
