BK Resources  |  SKU: DDI4-R5-1014HS  |  UPC: 840653174334

BK Resources DDI4-R5-1014HS Compartment Sinks

$1,058.56
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Plumbing Supplies Commercial Sinks Drop-in & Undermount Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

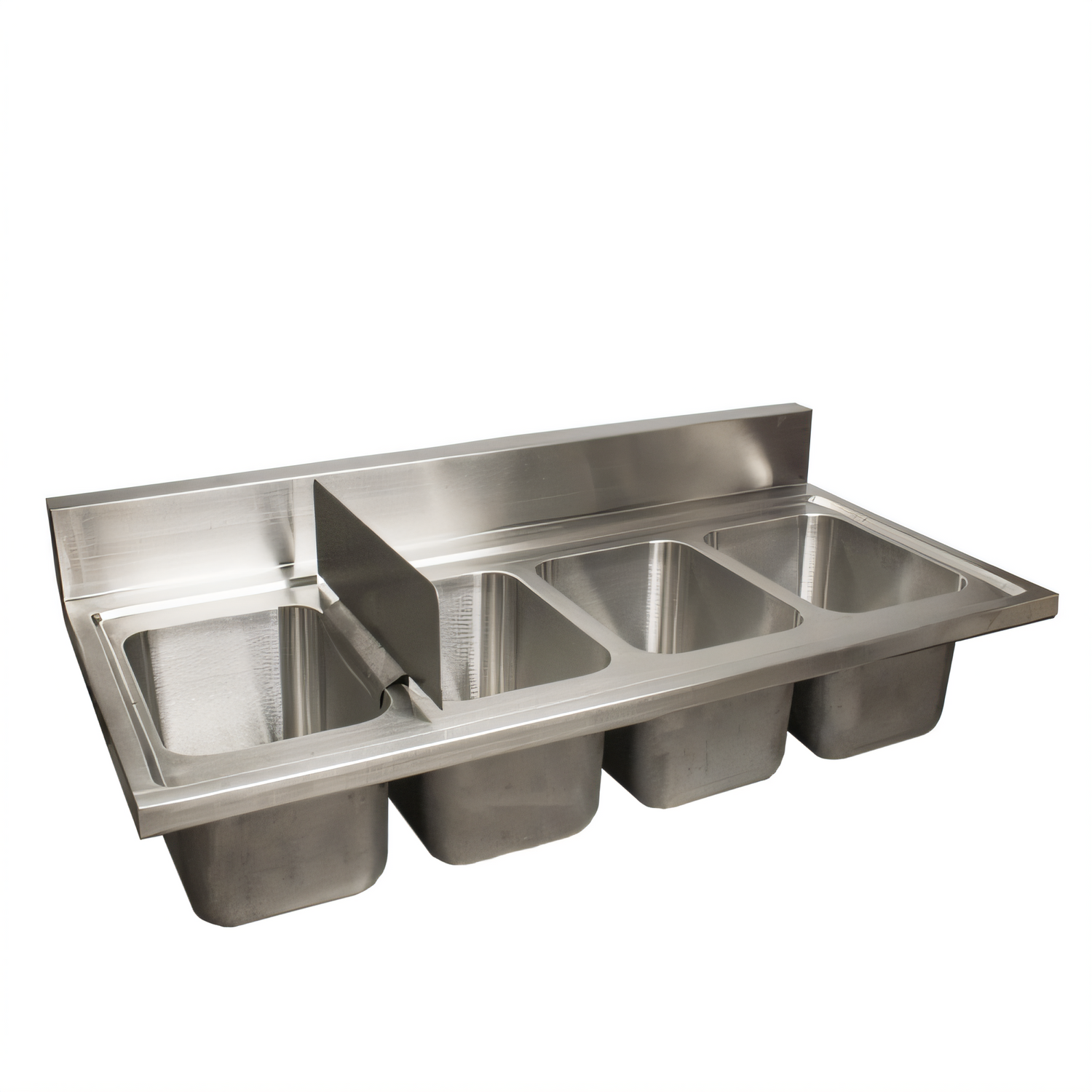

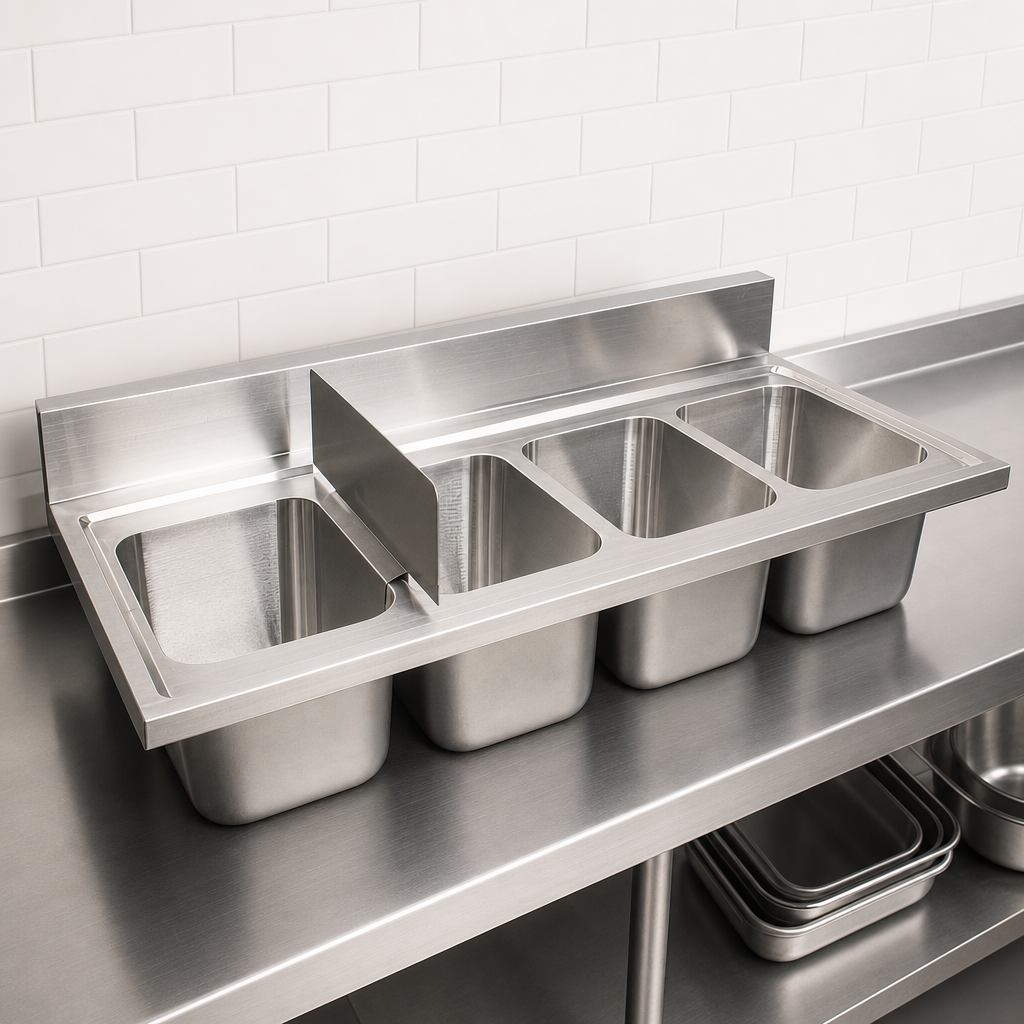

BK Resources 48" 4-Compartment Drop-In Sink w/ 5" Riser

Model DDI4-R5-1014HS • 3-Comp Sink + Hand Sink • NSF

Create a fully compliant ware-washing station without giving up precious counter space. This heavy-duty drop-in sink combines three bowls for wash / rinse / sanitize and a separate hand-wash sink in one compact, easy-to-install unit.

Key Features

  • Four deep-drawn bowls for superior strength and easy cleaning.
  • Traditional top-mount design drops into a 48" × 24" cut-out or BK Resources CST cabinet.
  • 5" backsplash with (2) sets of 4" on-center faucet punchings.
  • 18 ga Type 304 stainless steel with #4 satin polish resists corrosion and stands up to daily use.
  • Includes (4) BKDR-4 basket drains – everything you need to plumb and go.
  • Optional side splashes available for added overflow protection.
  • NSF listed for commercial food-service applications.

Specifications

Overall size 48" W × 24" D × 15 1/4" H (to top of riser)
Compartments 4 total (3 main bowls + 1 dedicated hand sink)
Bowl interior (each) 10" W × 14" F-B × 10 1/4" deep
Backsplash 5" H with (2) 4"-OC faucet holes
Drain openings 3 1/2" – accepts BKDR-4 drains (included)
Mount type Drop-In / Top-Mount
Material 18-gauge, 304 stainless steel
Finish #4 satin polish
Certifications NSF

Faucets are sold separately. Compatible with BK Resources BKF-W2 series 4" on-center deck-mount faucets.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Width

48.0in

Depth

24.0in

Bowl Width (side - side)

10" width

Bowl Depth (front - back)

14" depth

Bowl Deep (rim - drain)

10" deep

Drainboards

without drainboards

Specifications

Drop-In Sink, (4) compartment, 48"W x 24"D, (2) 4" OC, 5" riser, 18/304 stainless steel, (4) BKDR-4, traditional top mount, deep drawn construction, fits CST cabinet, (3) compartment sink, (1) handsink, NSF
