BK Resources CSTR5-4-1014HHS Compartment Sinks
Description

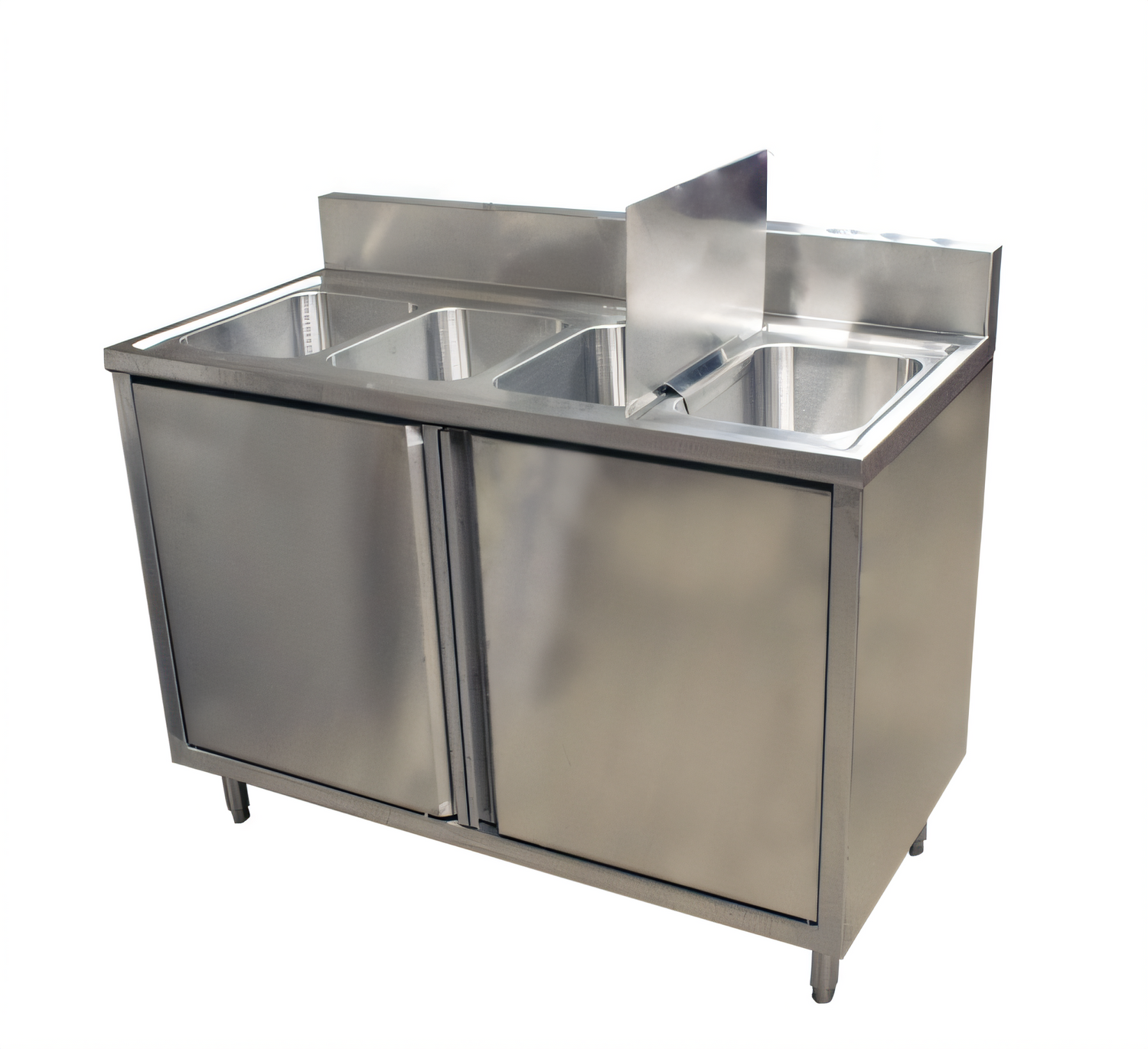

48" Four-Compartment Stainless Steel Sink Cabinet

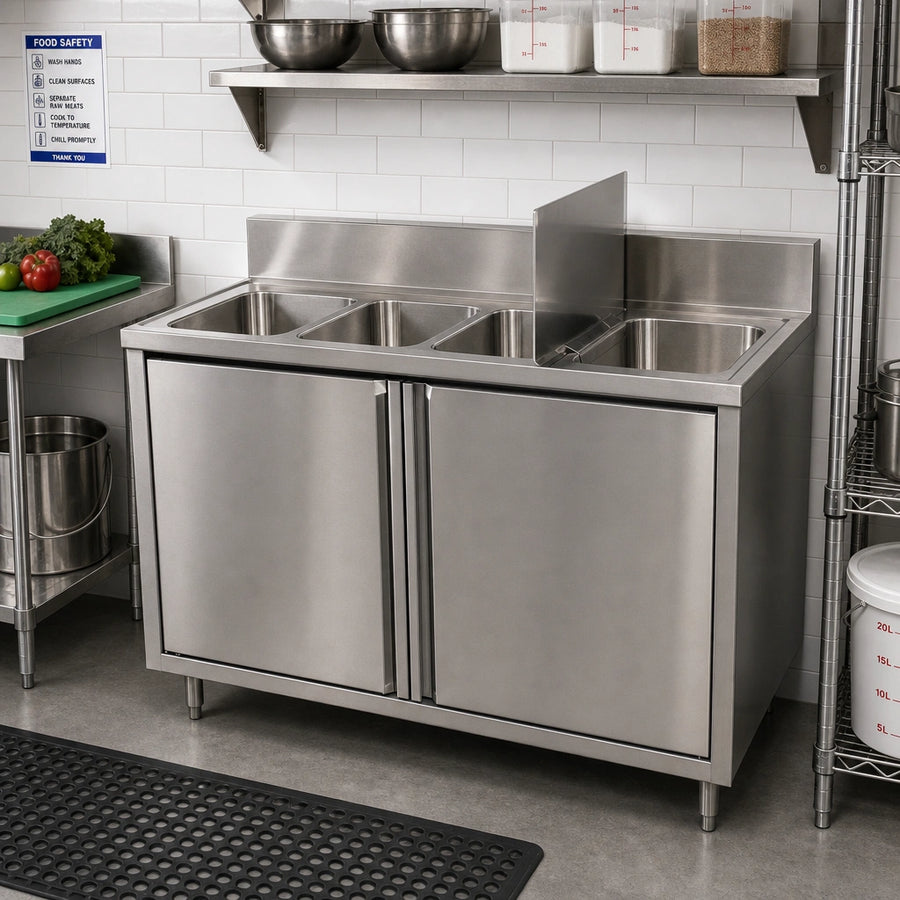

BK Resources • Model CSTR5-4-1014HHS • NSF ListedGive your dish room or prep area a compact, code-compliant washing station that’s built to last. This fully enclosed 4-compartment sink cabinet combines deep-drawn bowls, generous storage, and premium 18-gauge type 304 stainless steel construction—perfect for restaurants, bars, bakeries, and commissaries that refuse to compromise on cleanliness or durability.
Key Features
- Four seamless 10" × 14" × 10" bowls formed from a single sheet of steel—no weld seams to trap food soil.
- Marine edge around the deck contains spills and helps keep adjacent work surfaces dry.
- (2) sets of 4" on-center faucet holes pre-punched for quick, hassle-free faucet installation.
- Removable splashguard divider lets you dedicate one compartment as a hand-sink when required by local health codes.
- Fully enclosed cabinet base with hinged doors keeps plumbing out of sight and provides extra storage.
- (4) BKDR-4 basket drains supplied—no need to purchase drains separately.
- 1 ⅝" diameter stainless steel legs with 6" fixed base & adjustable bullet feet; legs adjust in 1" increments.
- NSF certified for food-contact safety.
Dimensions & Specifications
| Overall width | 48" / 1219 mm |
|---|---|
| Overall depth | 24" / 610 mm |
| Working height (deck) | 34 ¾" / 883 mm |
| Overall height (to top of backsplash) | 39 ¾" / 1010 mm |
| Bowl interior (each) | 10" W × 14" L × 10" D / 254 × 356 × 254 mm |

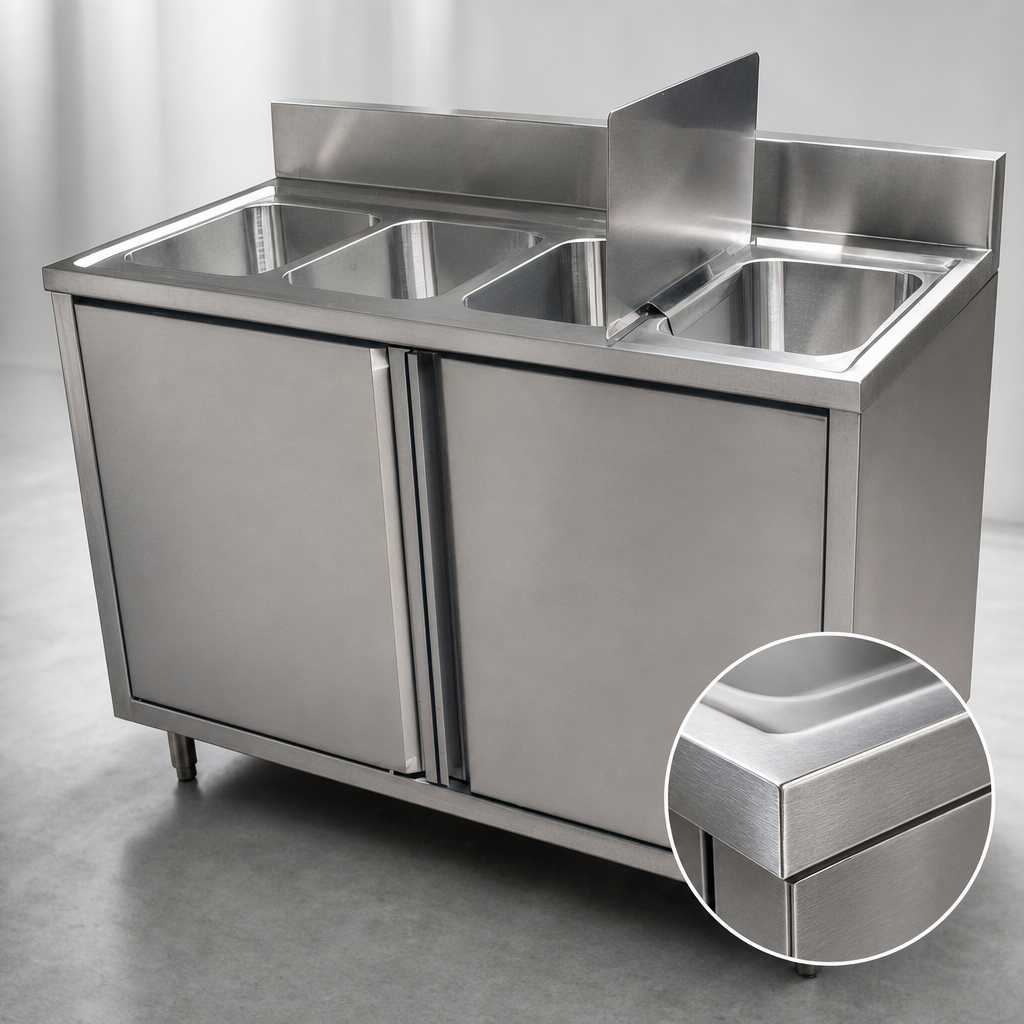

| Material | 18 ga type 304 stainless steel deck & bowls |
| Faucet holes | (2) sets • 4" on-center |
| Included drains | (4) BKDR-4 basket drains |
| Certifications | NSF, ANSI Standard 2 |
What’s in the Box?
- 4-compartment sink cabinet
- (4) BKDR-4 drains with removable baskets
- Removable splashguard divider
- Stainless steel legs & bullet feet (assembly hardware included)
Faucets are shown for illustration only and are sold separately.
Deep-Drawn Advantage
Unlike welded bowls, deep-drawn construction presses each sink compartment from one continuous sheet of stainless steel. The result? Rounded corners that rinse clean in seconds, superior corrosion resistance, and a smooth, professional appearance.
