BK Resources  |  SKU: BKS-4-1620-14-18T  |  UPC: 840653106151

BK Resources BKS-4-1620-14-18T Compartment Sinks

$1,510.79
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
4-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

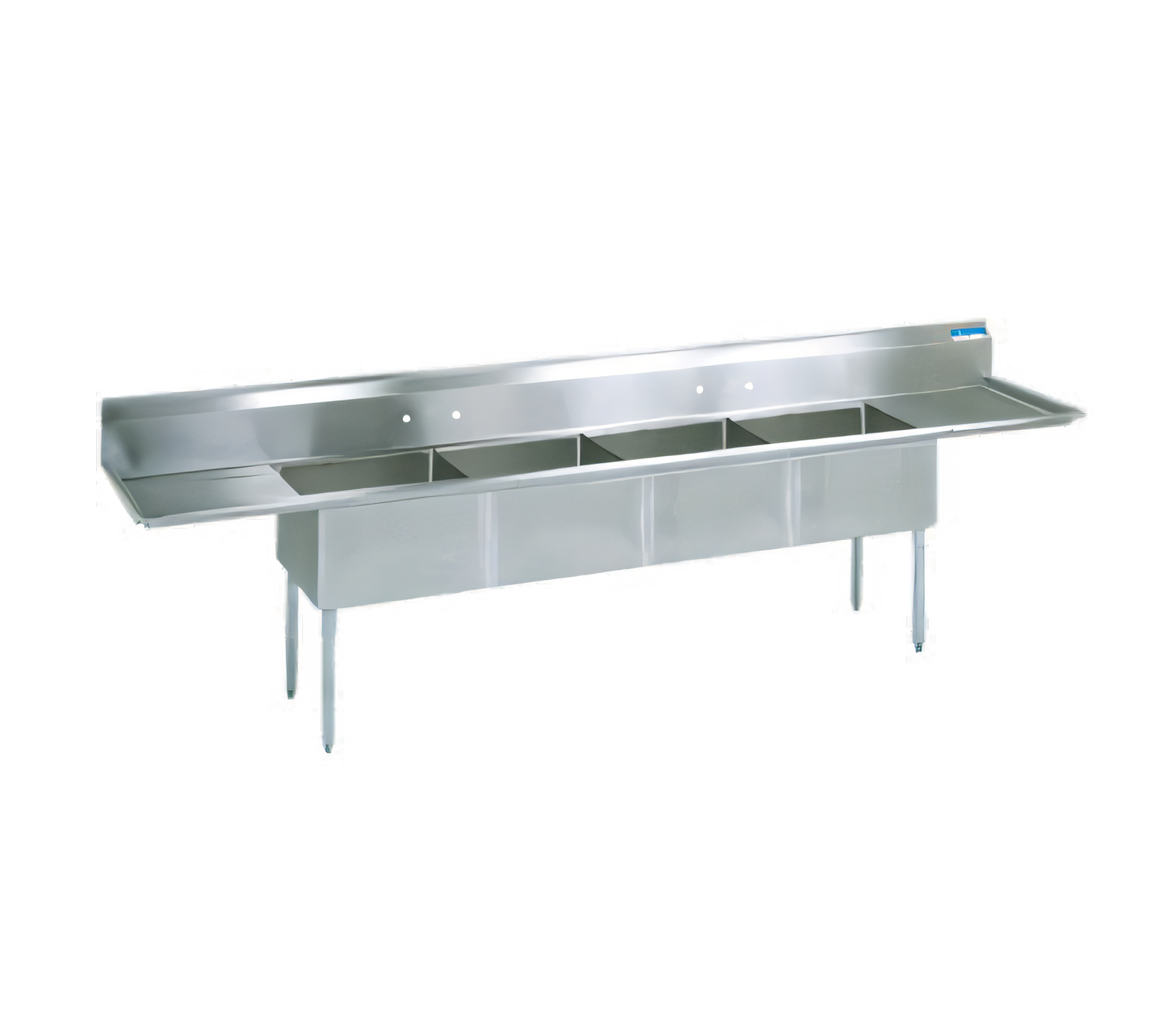

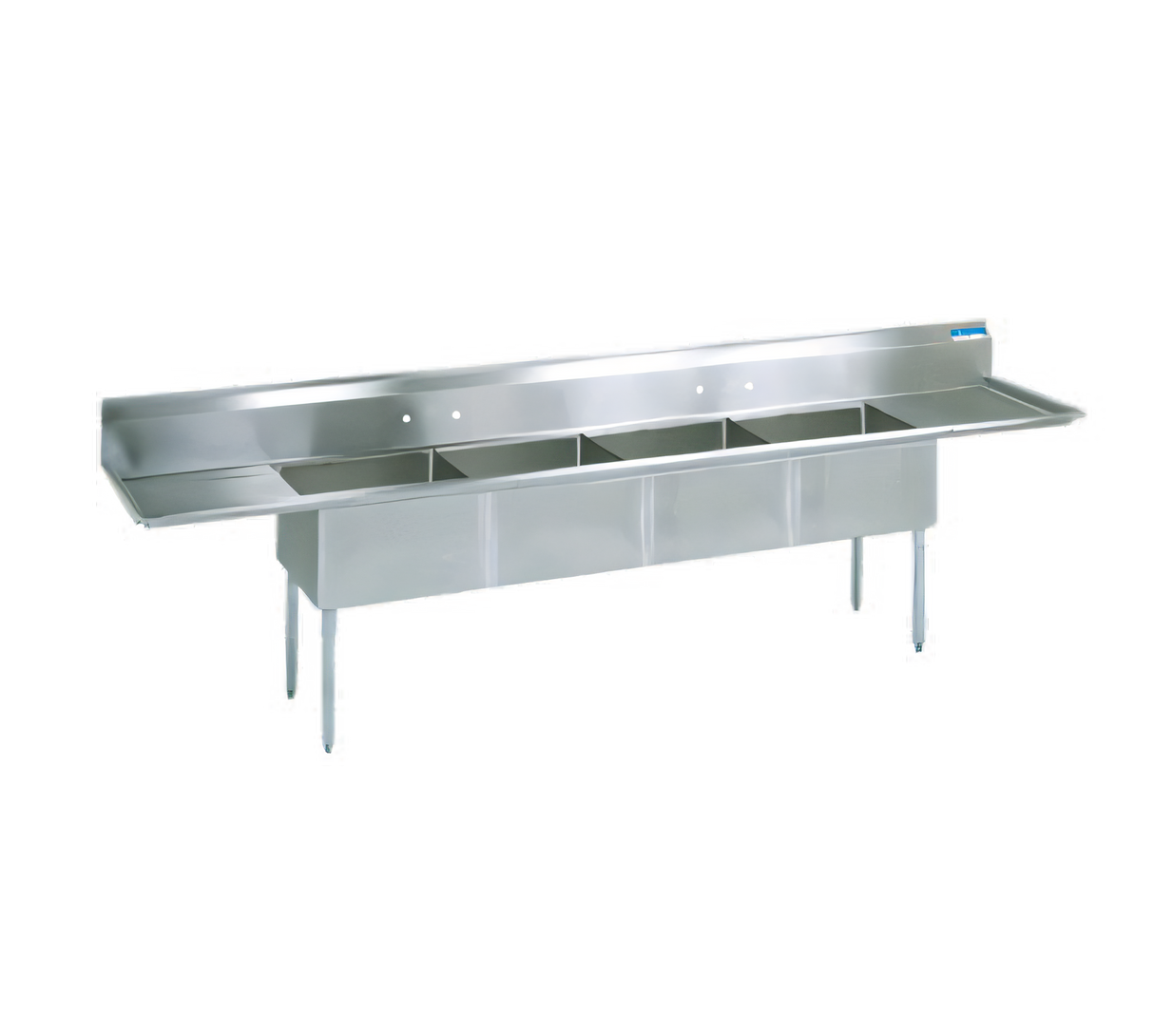

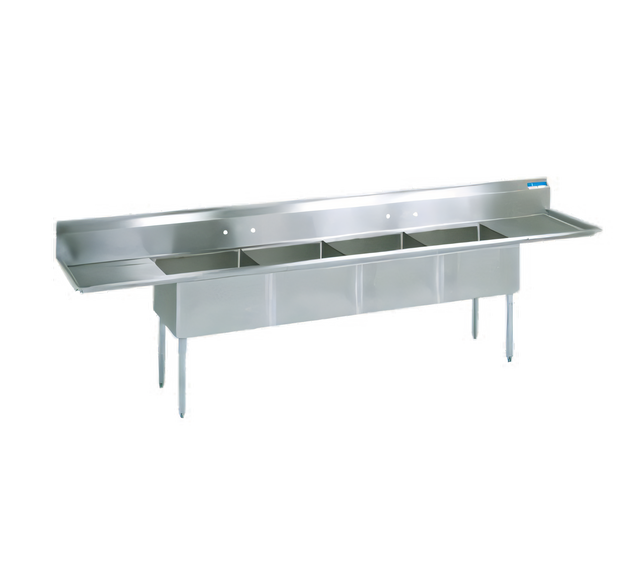

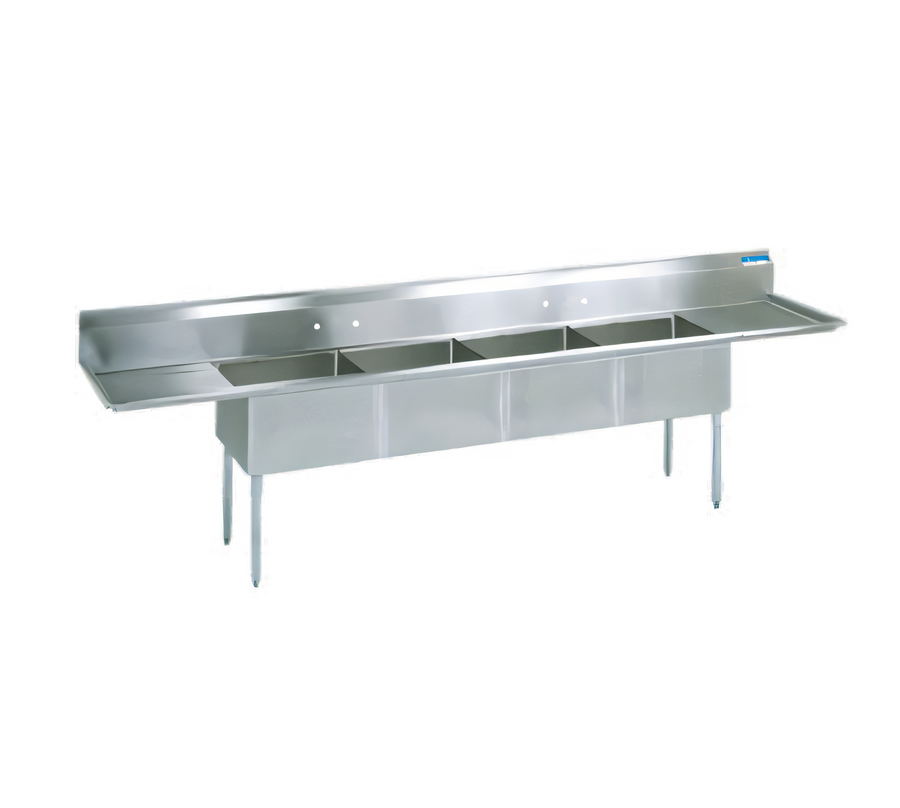

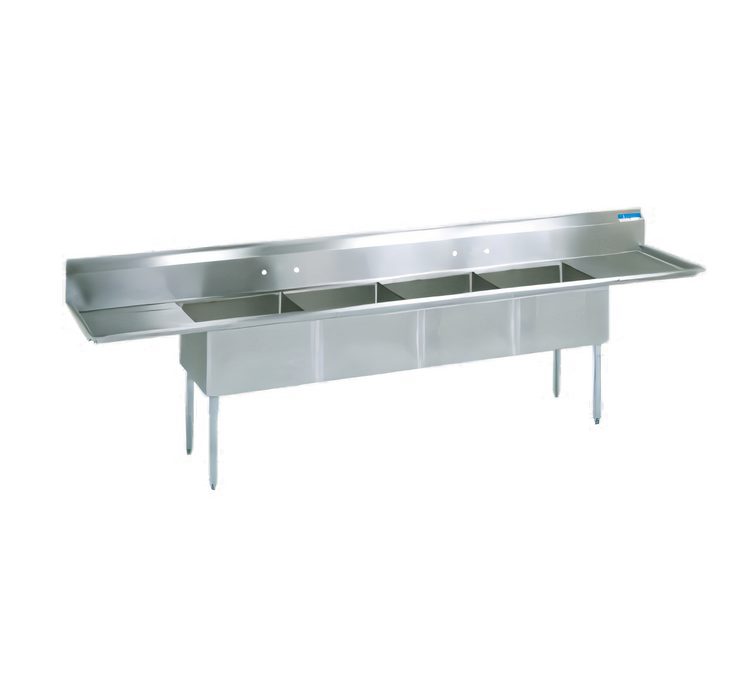

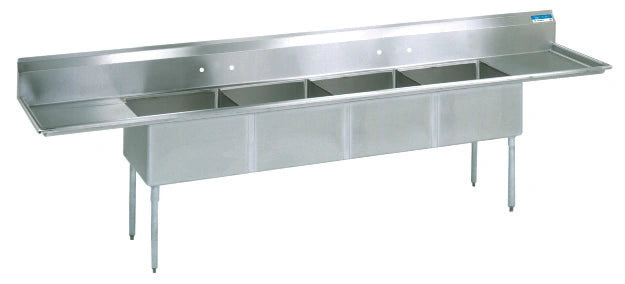

BK Resources BKS-4-1620-14-18T Four-Compartment Sink with Dual 18" Drainboards

100" W x 25-3/16" D | 16" x 20" x 14" Bowls | NSF Certified

Engineered for high-volume convenience stores, bars and commercial kitchens, the BK Resources BKS-4-1620-14-18T combines four spacious wash bays with left- and right-side drainboards—streamlining every step from wash to sanitize in one rugged, easy-to-clean unit.

Key Features

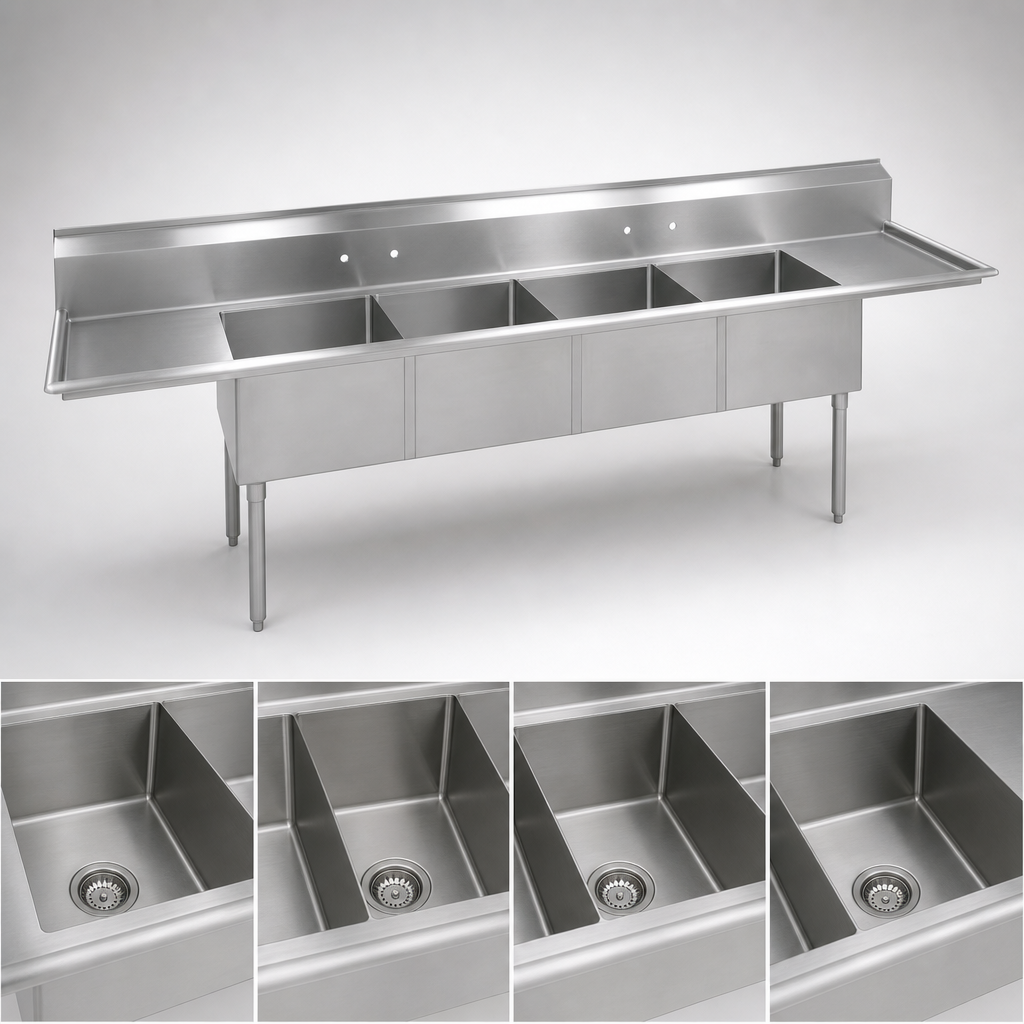

  • Four 16" × 20" × 14" deep compartments for simultaneous wash, rinse & sanitize cycles
  • (2) 18" drainboards pitched ¼" for fast, efficient drainage
  • (2) sets of 8" on-center splash-mount faucet holes—ideal for independent faucet or pre-rinse stations
  • 9-3/4" integral backsplash with tile edge prevents wall damage and meets health-code standards
  • 1-1/2" rolled front & side edges improve operator comfort and overall rigidity
  • Includes (4) 3-1/2" basket drains—no add-ons required
  • NSF listed for open-food contact applications

Built to Last

  • 18-ga 304 stainless steel deck & bowls resist rust, pitting and harsh chemicals
  • 1-5/8" galvanized steel legs deliver rock-solid stability without added weight
  • Adjustable, high-impact, corrosion-resistant bullet feet keep the sink level on uneven floors
  • Welded construction with polished seams for a professional, sanitary finish

Specifications

Model BKS-4-1620-14-18T
Compartments 4
Compartment Size (W × D × H) 16" × 20" × 14"
Drainboards (2) 18" left & right, ¼" pitch
Overall Dimensions (W × D × H) 100" × 25-3/16" × 43-3/4"
Work Height 33-3/4"
Backsplash Height 9-3/4"
Front & Side Edges 1-1/2" rolled radius
Faucet Holes (2) sets, 8" on-center (splash-mount)
Drain Size / Type 3-1/2" basket drains (included)
Construction 18-ga 304 SS deck & bowls; 1-5/8" galvanized legs
Feet Adjustable, high-impact, corrosion-resistant bullet feet
Unit Weight 111 lb
Certifications NSF

Optional Accessories (Sold Separately)

  • 8" on-center faucets & pre-rinse sprayers
  • Lever-style drains
  • Stainless steel legs & bracing upgrade
  • Upgraded bullet feet
Heads up: Faucets, pre-rinse units and other plumbing connections are sold separately. Confirm local code requirements prior to installation.

Ships Truckline Only for cost-effective delivery.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF

Height

43.75in

Width

100.0in

Depth

25.19in

Shipping Weight

111.0lbs

Drainboards

with left & right-hand drainboards

Sink Depth (rim - drain)

14"

Overall Length

98" - 113"

Base Type

legs

Compartment (front - back)

20"

Splash Height

9"

Top Gauge

18 gauge

Compartment Width (side - side)

16"

Base Construction

galvanized

Top Stainless Series

300 series

Specifications

Sink, four compartment, 100"W x 25-3/16"D x 43-3/4"H overall size, 16" wide x 20" front-to-back x 14" deep compartments, (2) left & right 18" drainboards, 9"H backsplash, (2) sets of 8" OC splash mount faucet holes, 1-1/2" rolled front & side edges, includes basket drains, 18/304 stainless steel construction, galvanized steel legs, adjustable high impact corrosion resistant feet, NSF
