Description

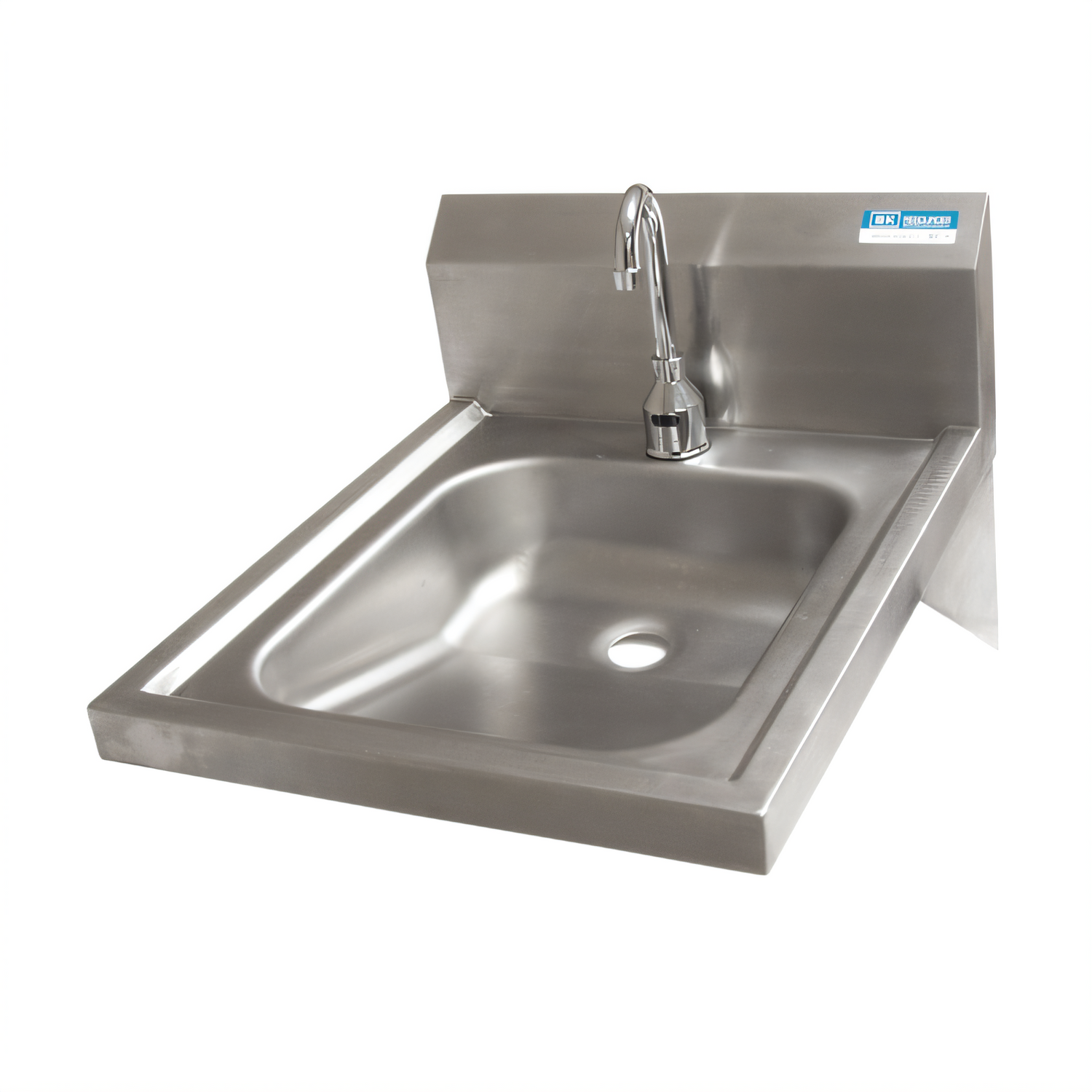

BK Resources 14" × 16" Wall-Mounted ADA Hand Sink

with BKF-DEF-3G Touch-Free Faucet & Wrist-Blade Deck Faucet

Built from rugged 18 ga. type 304 stainless steel, this NSF-listed hand sink delivers reliable performance and full ADA compliance in a compact footprint. An 8 inch integral riser with a 1 inch turndown, spill-containing marine edge and included wall bracket make installation fast while the BKF-DEF-3G electronic sensor faucet promotes superior hygiene.

Key Features

  • Hands-free BKF-DEF-3G electronic sensor faucet with 3 ½" gooseneck spout reduces cross-contamination
  • Additional 4" O.C. solid-body deck faucet with wrist-blade handles included for manual operation
  • 5" deep bowl (14" W × 16" D) accommodates thorough hand washing without splashing
  • 18 gauge, 304 stainless steel construction resists corrosion and everyday wear
  • 8" backsplash / riser with 1" rear turndown protects walls and simplifies cleanup
  • Spill-containing marine edge keeps water on the deck, not on the floor
  • 1 ⅞" drain opening with basket drain included
  • Heavy-duty wall mounting bracket & hardware supplied for quick install
  • Fully ADA compliant design—ideal for new builds and retrofits
  • NSF certified for food-service environments

Specifications

Manufacturer BK Resources
Model / Part # BKHS-ADA-D-1-P-G (sink)  |  BKF-DEF-3G (sensor faucet)
Bowl Interior (W × D × H) 14" × 16" × 5"
Overall Sink Dimensions* Approx. 20" W × 22" D (see spec drawing)
Material / Gauge 18 ga. Type 304 stainless steel
Backsplash / Riser Height 8"
Edge Style Marine edge on three sides
Drain Opening 1 ⅞"
Faucet Centers Single-hole deck (sensor) + 4" on-center deck (manual)
Certifications NSF, ADA compliant
Shipping Weight 30 lb

*Overall dimensions taken from manufacturer drawing and may vary slightly in production.

Ideal For

  • Restaurants, cafés & food trucks
  • Healthcare & dental operatories
  • Schools & daycare hand-wash stations
  • Laboratories and clean rooms
Installation note: Confirm local plumbing codes for sensor faucet power requirements (battery or AC adapter) before installation.

Features & Specs

Manufacturer

BK Resources

Certifications

NSF, ADA Compliant

Shipping Weight

24.0lbs

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Style

wall mounted

Bowl Width (left to right)

13" - 14"

Specifications

Hand Sink, wall mounted, 14"W x 16"D x 5" deep bowl, 1-7/8" drain opening, includes: BKF-DEF-3G electronic sensor faucet, 4" OC solid body deck mount faucet, 3-1/2" gooseneck spout, wrist blade handles, 8" riser, 1" turn down on rear riser, marine edge, includes wall bracket, 18/304 stainless steel, ADA compliant, NSF
