BK Resources 5SS-4RA-LDP-TLB 5" Polyolefin Swivel Stem Caster with Top-Lock Brake, 300 lb Capacity, 2" Expanding Stem
SKU: 5SS-4RA-LDP-TLB
$49.76
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

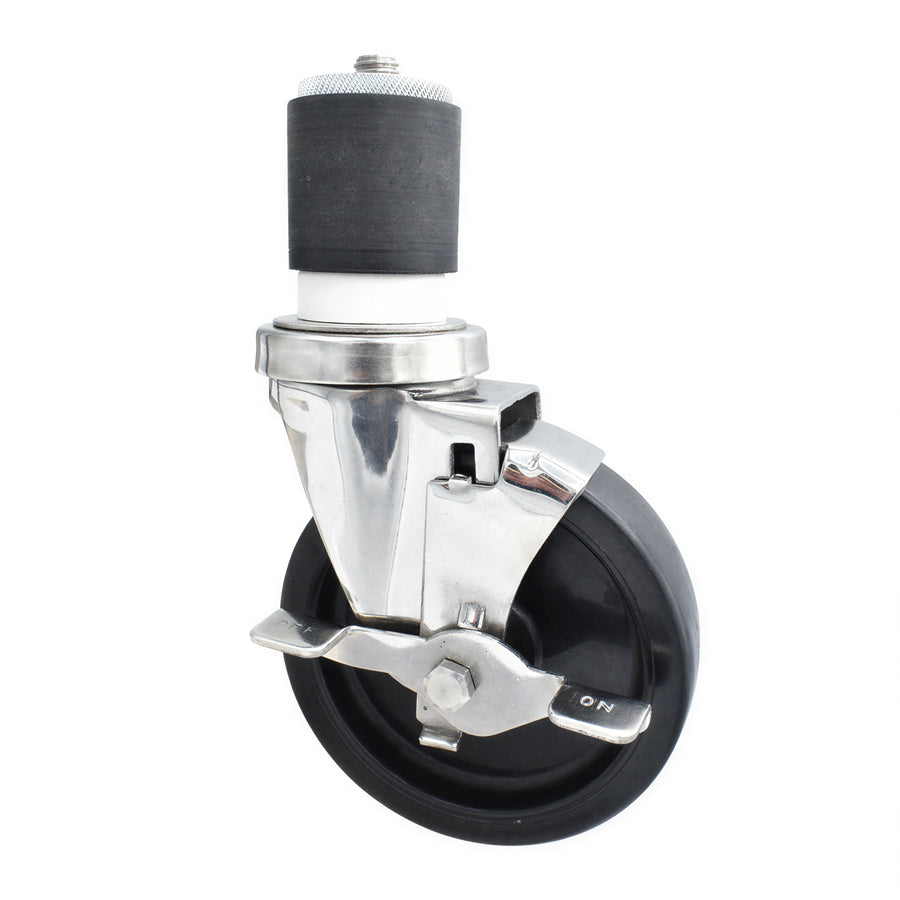

The BK Resources 5SS-4RA-LDP-TLB is a swivel stem caster with a 5-inch polyolefin wheel, top-lock brake, and 2-inch expanding stem.
- Fits standard 2-inch tubing by expanding the stem.
- Provides a 300 lb. capacity.
- Features a stainless steel construction, double ball bearing raceway, nylon bearing sleeve, and raceway dust cover.
- Resists chemicals and solvents and operates from -45°F to 180°F.
Overall Dimensions:
6.38"HProduct Weight:
3.0 lbTop-lock brake
The TLB version includes a top-lock brake.
Expanding stem
The 2-inch stem expands to fit standard 2-inch tubing.
Polyolefin wheel
The caster uses a 5-inch polyolefin wheel.
Stainless steel construction
The caster is specified as stainless steel.
Double ball bearing raceway
The double ball bearing raceway is specified for the caster.
Chemical and solvent resistance
The caster is resistant to chemicals and solvents.
Operating temperature range
The specified operating temperature range is -45°F to 180°F.
Raceway dust cover
The caster includes a raceway dust cover.
Nylon bearing sleeve
The caster uses a nylon bearing sleeve.
Type
Swivel caster
Stem
2 in expanding stem
Wheel diameter
5 in
Wheel material
Polyolefin
Brake
Top-lock brake
Capacity
300 lb.
Tubing compatibility
Standard 2 in OD tubing
Construction material
Stainless steel
Bearing
Double ball bearing raceway
Bearing sleeve
Nylon
Raceway cover
Dust cover
Chemical and solvent resistance
Resistant to chemicals and solvents
Operating temperature
-45°F to 180°F
Documents
Frequently Asked Questions
Yes. The 5SS-4RA-LDP-TLB has a top-lock brake.
It uses a 2-inch expanding stem designed to fit standard 2-inch tubing.
The capacity is 300 lb.
The wheel is 5 inches in diameter and made of polyolefin.
The operating temperature range is -45°F to 180°F.
