Key specifications
- Type
- Stem Caster
- Style
- Top Lock Brake
- Material
- Polyolefin
- Finish
- Zinc Plated
- Diameter
- 5 Inches
- Capacity
- 300 lb.
Spec sheet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

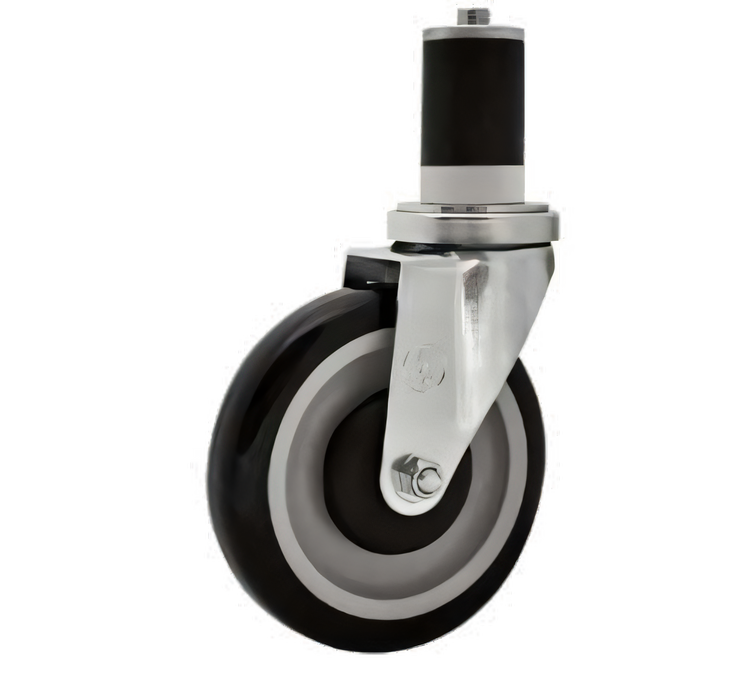

The BK Resources 5SBR-RA-LDP-TLB is a 5-inch expanding stem caster with a top-lock brake, non-marking polyolefin tread, and a 300 lb. capacity.
- Fits standard 1-5/8-inch OD tubing by expanding the stem.
- Features a double ball bearing raceway, dust cover, and zinc-plated finish.
- Polyolefin construction is impact resistant and highly resistant to chemicals and solvents.
- Operates from -45°F to 180°F.
Overall Dimensions:
5.0"WProduct Weight:
2.0 lbExpanding Stem
Fits standard 1-5/8-inch OD tubing by expanding the stem for a secure fit.
Top-Lock Brake
Includes a top-lock brake.
Polyolefin Tread
Non-marking polyolefin tread with impact resistance.
Double Ball Bearing Raceway
Supports long wear and added strength.
Raceway Dust Cover
Includes a dust cover for the raceway.
Load Capacity
Rated for 300 lb. per caster.
Chemical and Solvent Resistance
Highly resistant to chemicals and solvents.
Operating Temperature
Rated for an operating temperature range of -45°F to 180°F.
