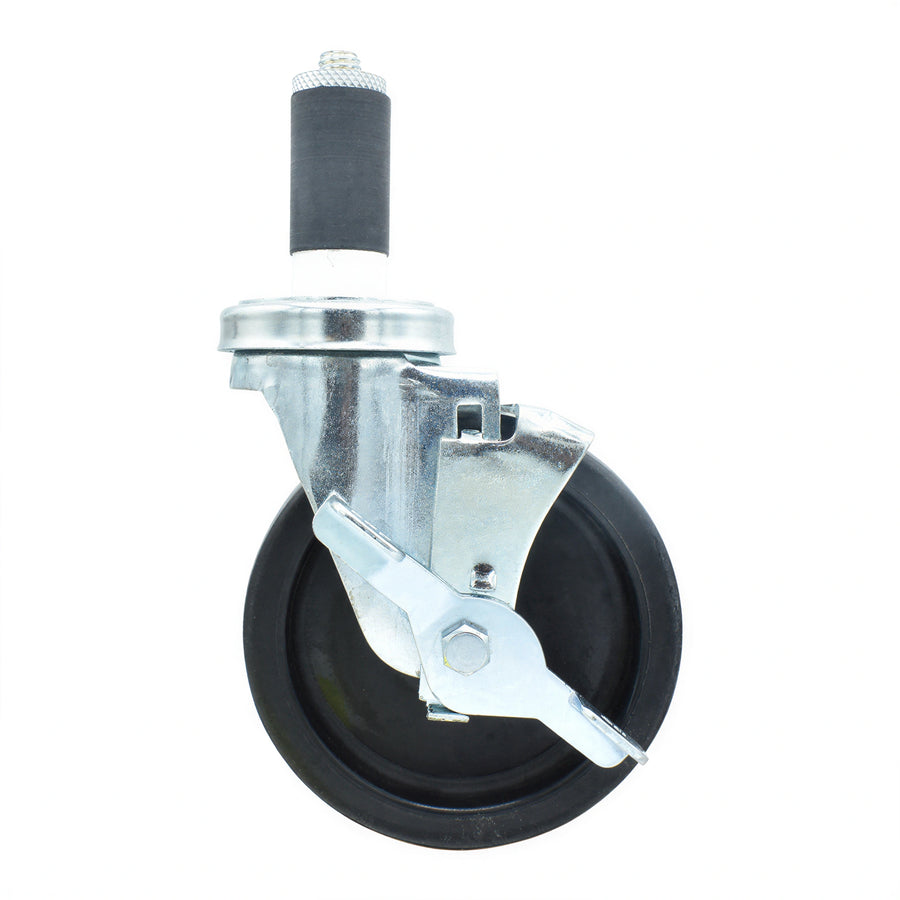

BK Resources 5SBR-2RA-LDP-TLB 5" Polyolefin Swivel Stem Caster with Top-Lock Brake, 300 lb Capacity, 1-1/4" Expanding Stem
SKU: 5SBR-2RA-LDP-TLB
$17.92
The BK Resources 5SBR-2RA-LDP-TLB is a swivel stem caster with a 5-inch polyolefin wheel, top-lock brake, and 300 lb capacity.
- Fits 1-1/4-inch OD tubing with an expanding stem.
- Features a double ball bearing raceway and zinc plated steel construction.
- The polyolefin wheel is non-marking and resistant to chemicals and solvents.
- Operates from -45°F to 180°F.
Overall Dimensions:
6.38"HProduct Weight:
2.0 lbTop-lock brake
The TLB configuration includes a top-lock brake.
Expanding stem
The 1-1/4-inch expanding stem fits 1-1/4-inch OD tubing.
Polyolefin wheel
The 5-inch wheel is injection molded polyolefin and non-marking.
Double ball bearing raceway
The double ball bearing raceway supports long wear and added strength.
Chemical and solvent resistance
The wheel is resistant to chemicals and solvents.
Temperature range
The caster is specified for operation from -45°F to 180°F.
Zinc plated steel
The caster includes zinc plated steel construction.
Raceway dust cover
The product data sheet lists a raceway dust cover.
Caster type
Swivel stem caster
Capacity
300 lb
Wheel diameter
5 in
Wheel material
Polyolefin
Brake
Top-lock brake
Stem
1-1/4 in expanding stem
Tubing compatibility
1-1/4 in OD tubing
Bearing
Double ball bearing
Construction
Zinc plated steel
Wheel characteristic
Non-marking
Chemical and solvent resistance
Resistant to chemicals and solvents
Operating temperature range
-45°F to 180°F
Documents
Frequently Asked Questions
The capacity is 300 lb.
It has a 5-inch polyolefin wheel.
Yes. This TLB model includes a top-lock brake.
The 1-1/4-inch expanding stem fits 1-1/4-inch OD tubing.
The specified operating temperature range is -45°F to 180°F.
